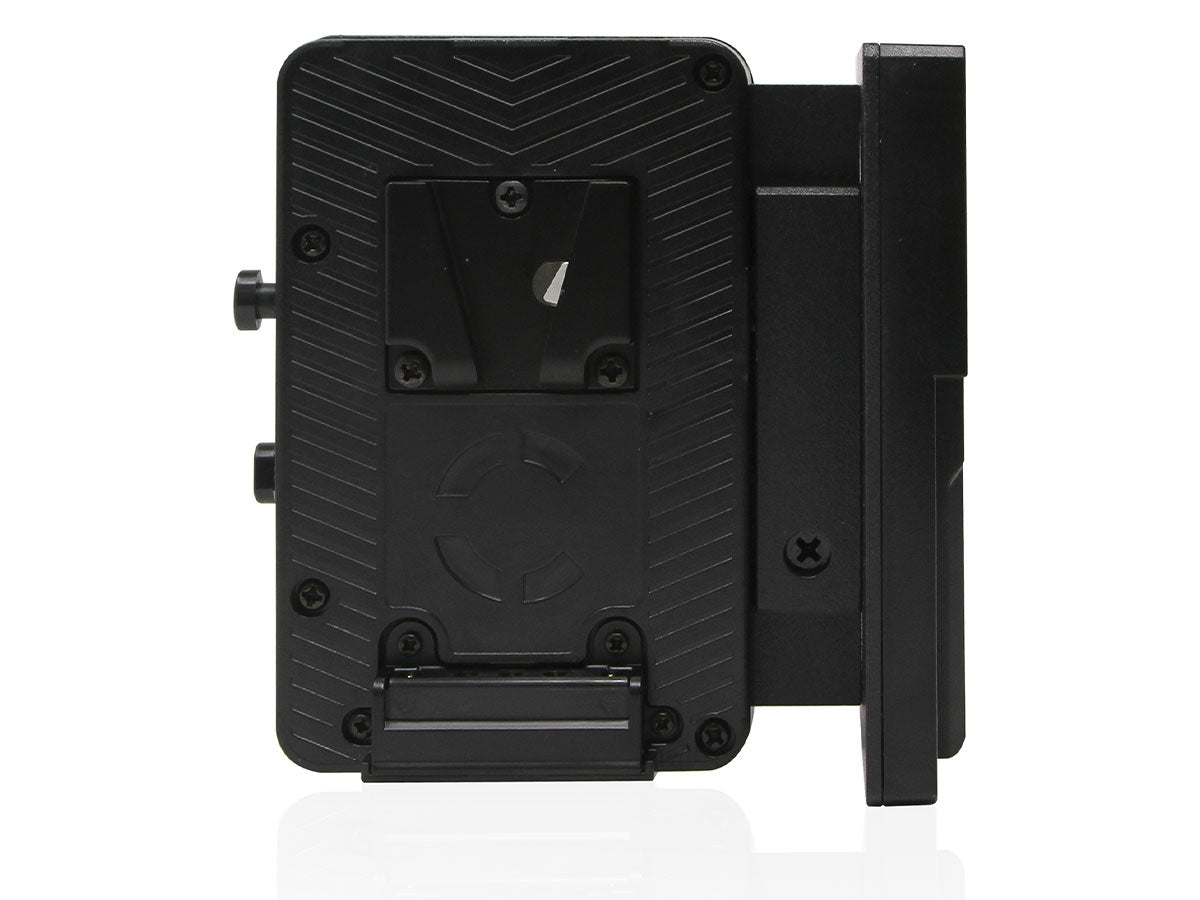

CoreSWX Hotswap/Sharkfin Plate - V-Mount
CoreSWX Hotswap/Sharkfin Plate - V-Mount
SKU:
CORE-HLX-TS-SFF
Regular price
£290.83 GBP ex VAT
£349.00 GBP inc VAT
£349.00 GBP inc VAT
Regular price
ex VAT
Sale price
£290.83 GBP ex VAT
£349.00 GBP inc VAT
Unit price
per
£349.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
The HLX-TS-SFF is a v-mount to v-mount sharkfin plate that accepts HELIX battery packs and standard 14v packs. When two HELIX battery packs are on-board and connected to a HLX mount plate, the adapter can output both 11-17vdc and 22-34vdc. A separate pin set for high voltage allows for safe power transmission.
To insure there is enough power in one of the packs to facilitate a hotswap either stagger the packs when in discharge(start operating with one pack on, and then place another pack on after 10min. of usage) or exchange one of the depleted packs off the hotswap mount when 10% is remaining. This way the remaining pack will have ample power to carry the load of the rig.
- Hotswap/Sharkfin V-Mount Plate
- Accepts both Helix packs to connect to HLX-BAB-V mount plate to output 33.6v
- Also accepts 14v V-mount packs for parallel standard voltage operation
- Mount input: DC 11-34v
- Output for Camera: DC 11-34v, Unregulated* requires HLX mount plate for 20-34v transmission
- Output for P-Taps: DC 11-17vdc simultaneous
- Size: 4.6″ x 3.5″ x 4.7″
- Weight: 1.2 lbs
