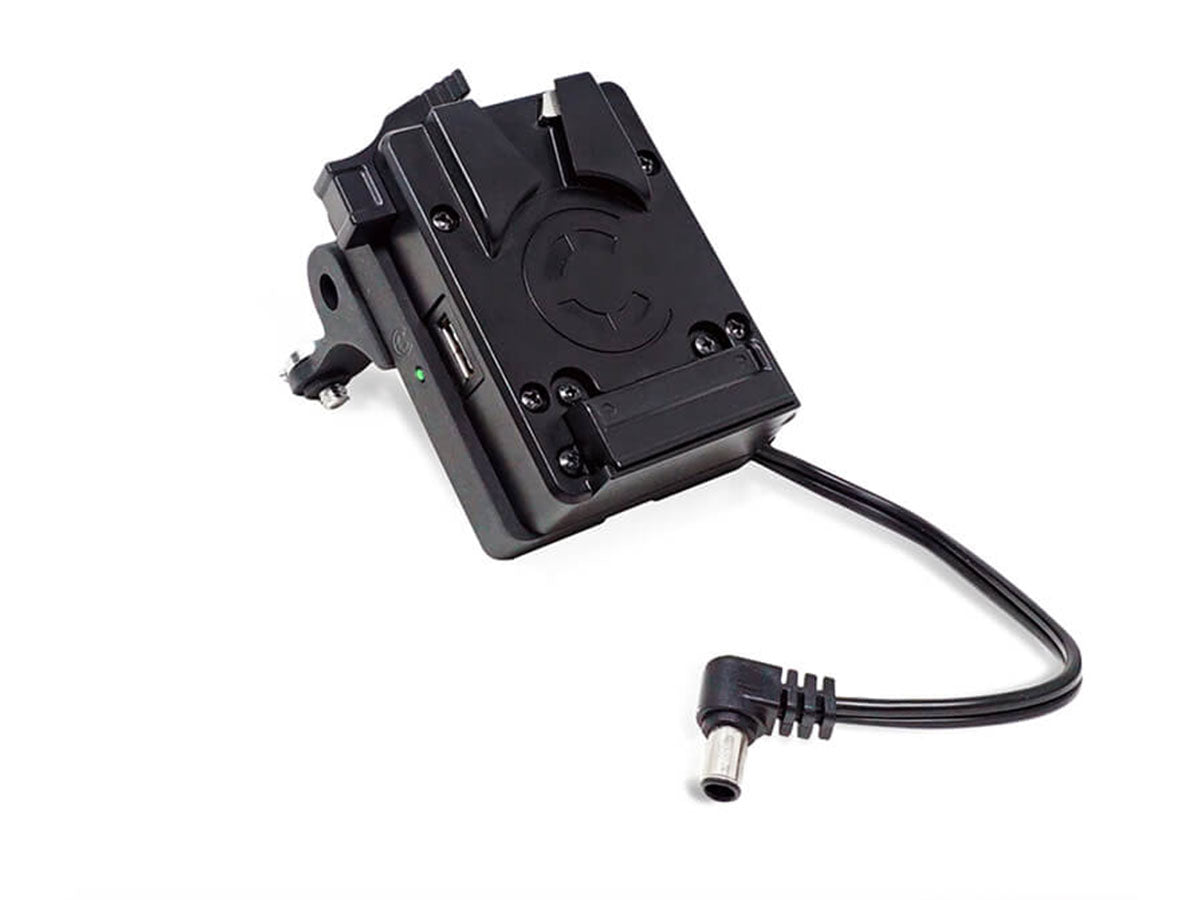

CoreSWX Articulating Micro V Mount Plate for Sony FX6. Powertap and USB outputs
CoreSWX Articulating Micro V Mount Plate for Sony FX6. Powertap and USB outputs
£412.00 GBP inc VAT
£412.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
The CXAM-FX6 mounts directly to the back of the Sony PXW-FX6. The milled aluminum product inserts attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting G-mount batteries directly onto the FX6 camera. It has a 19.5v DC output with a visual low battery warning LED and a DC barrel input (OEM camera power supply) for hotswapping between external and on-board power. In addition, it’s equipped with a powertap and USB to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.
Up to a BP-U100 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the G-mount on-board pack dies, it will automatically pull power from the BP-U battery and you will see the battery indication on the viewfinder change.
| On-Board Input: | 11.9vdc-16.8vdc, unregulated |
| DC Input: | DC power input utilizing the cameras power supply |
| Output for Camera: | 19.5v regulated |
| Powertap: | DC 11.9-17v, unregulated |
| USB: | DC 5v, unregulated |
| Size: | 4.6″ x 2.8″ 1.6″ |
| Weight: | 0.6 lbs |
