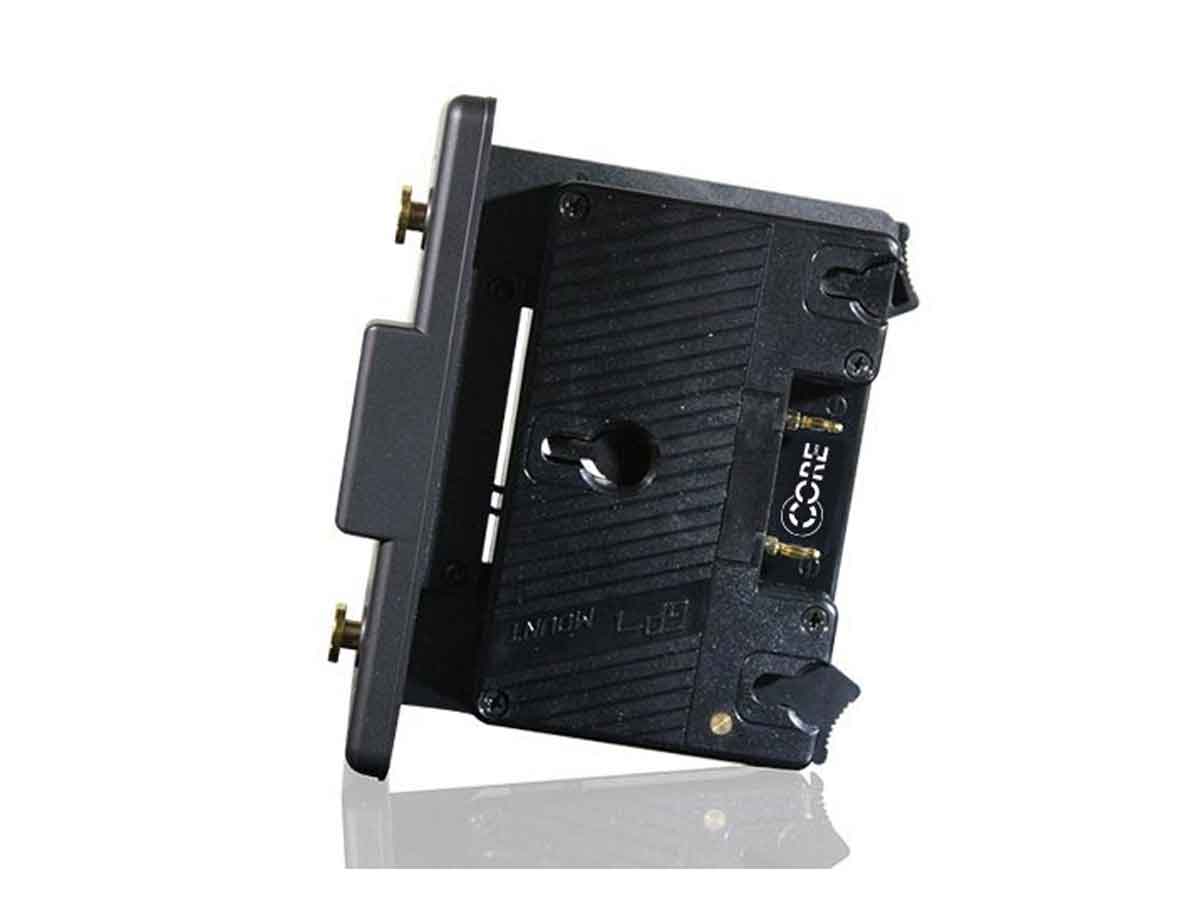

CoreSWX 3-Stud Hotswap Adapter
CoreSWX 3-Stud Hotswap Adapter
£229.00 GBP inc VAT
£229.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Hotswap adapter mounts directly to the existing G-mount or V-mount plate on the camera and allows for continuous battery operation. Because the batteries aren’t ‘stacked’ on one another, you can easily remove the depleted battery while the leaving the other battery connected so that there is no down time. It can provide up to 260wh at only 6lbs.
To ensure there is enough power in one of the packs to facilitate a hotswap either stagger the packs when in discharge(start operating with one pack on, and then place another pack on after 10min. of usage) or exchange one of the depleted packs off the hotswap mount when 10% is remaining. This way the remaining pack will have ample power to carry the load of the rig.
- 3-Stud/Gold Mount Hotswap Adapter, allows two batteries to be mounted simultaneously and hot-swapped
| Input: | DC 11-17v |
| Output for Camera: | DC 11-17v, Unregulated Paralleled |
| Output for P-Tap: | DC 11-17v, Unregulated |
| Dimensions: | 12.1 x 14 x 8.9cm / 4.75″ x 5.5″ x 3.5″ |
| Weight: | 725.7g / 1.6 lbs. |
- 1x CoreSWX 3-Stud Hotswap Adapter
