Cinelex Gaffers Control GC28 Wireless DMX Starter Pack with 8 SKYNODE²
Cinelex Gaffers Control GC28 Wireless DMX Starter Pack with 8 SKYNODE²
SKU:
CLX-GCS-Kit-8
Regular price
£4,965.00 GBP ex VAT
£5,958.00 GBP inc VAT
£5,958.00 GBP inc VAT
Regular price
ex VAT
Sale price
£4,965.00 GBP ex VAT
£5,958.00 GBP inc VAT
Unit price
per
£5,958.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Wireless DMX Starter Pack with Gaffers Control GC28 Portable Transmitter & 8x SKYNODE Receivers
Gaffers Control represents the pinnacle of advanced wireless DMX lighting control.
Simple & logical programming means even first-timers can operate the system without extensive background knowledge.
Naming and organising multiple light fixtures is fast & simple, in part due to the large and intuitive colour touchscreen.
A hardware-based master fader, 7 physical control knobs and a further 7 flash buttons allow for accurate control of a light fixture through numerous inputs.
Based upon LumenRadio protocol, Gaffers Control is the ideal companion to Cinelex SKYNODE & TRX.
Enclosed within a Peli-style hard case, Gaffers Control is ready-to-deploy on set immediately and packs away in an instant.
Robust design Portable all-in-one solution for light control.
The built-in battery and Lumenradio CRMX transmitter allow for complete freedom of movement along the set.
The built-in battery and Lumenradio CRMX transmitter allow for complete freedom of movement along the set.
Make it your own
The Client software allows you to customize the existing profiles and create your own fixture profiles.
You can even choose to share your profiles with other users.
The Client software allows you to customize the existing profiles and create your own fixture profiles.
You can even choose to share your profiles with other users.
Intuitive functionality
Multi touchscreen and accurate adjustments through 7 endless turnable knobs and a slider
Multi touchscreen and accurate adjustments through 7 endless turnable knobs and a slider
Cineplex SKYNODE² Plug & Play Wireless DMX Receiver
USB-Powered Wireless DMX Receiver CRMX2 with 5-Pin XLR Female Connector
WIRELESS DMX, FOR ANY LIGHT
Add wireless DMX functionality to any DMX-capable light.
Add wireless DMX functionality to any DMX-capable light.
SIMPLE SETUP
Link to a LumenRadio transmitter with a single button press.
Link to a LumenRadio transmitter with a single button press.
SMALL, YET MIGHTY
Compact design ensures clean integration with any light fixture.
Compact design ensures clean integration with any light fixture.
PROFESSIONAL-READY
Robust materials make SKYNODE ready for tough rental & on-set environments.
Robust materials make SKYNODE ready for tough rental & on-set environments.
USB-POWERED
Can be powered by any USB power source thanks to integrated circuits preventing battery banks from shutting off.
Can be powered by any USB power source thanks to integrated circuits preventing battery banks from shutting off.
- "All-in-one" DMX console in StormCase™ casing
- 7” capacitive touch screen 800x480 pixels
- Integrated CRMX LumenRadio™ transmitter
- Integrated Lithium-ion 70 W/h battery
- 14 addressable banks/512 DMX addresses
- Integrated DMX library
- Including:
- Arri, BB&S, Creamsource, Cineo, DMG, Astera, Quasar Science, Carpetlight, Litegear, Kino Flo, Litepanels, Dedolight, Alladin, Rotolight, clay paky, luxli and more….
- Update of DMX library via USB
- Master setting via linear potentiometer
- Parameter setting via touch screen or buttons
- DMX outputs on XLR 5Pin
- Duration of operation on battery: up to 10 hours.
| GAFFERS CONTROL GC28 | |
| Power Consumption: | 15 W |
| Supply Voltage: | 100-240 VAC 50/60 Hz |
| Type of Battery: | Li-ion 70 W/h |
| Duration of Full Charge: | 5h |
| Range: | Up to 120 m in an open area depending on the receivers |
| Radio Interface: | 2.4G hz (2,402-2,480 Ghz) |
| Dimensions: | 300 x 249 x 119 mm |
| Weight: | 2,725 g |
| SKYNODE² | |
| WIRELESS PROTOCOL | |
| Protocol: | LumenRadio |
| Operational Frequency: | 2.4GHz (2402-2480MHz) |
| Range: | Up to 100m (environment dependent) |
| DMX Standards: | DMX512, DMX512 (1990) & DMX512-A |
| POWER | |
| USB Type-C: | 5V |
| Power Consumption: | 1W |
| CONTROLS | |
| 1x "SYNC" Button | Synchronise SKYNODE with Transmitter |
| CONNECTORS | |
| Connectors: | 1x DMX XLR 5-Pin Female 1x Micro-USB Power Input Female 1x Built-In Antennae |
| LED INDICATORS | |
| 1x "STATUS" LED: | Connection Status |
| 1x "POW" LED: | Power Input Confirmation |
| 3x Signal Strength LEDs: | Signal Strength Indicator |
| SIZE (WITH ANTENNA) | |
| Weight: | 49g |
| Dimensions: | 60mm x 26mm x 38mm (L x W x D) |

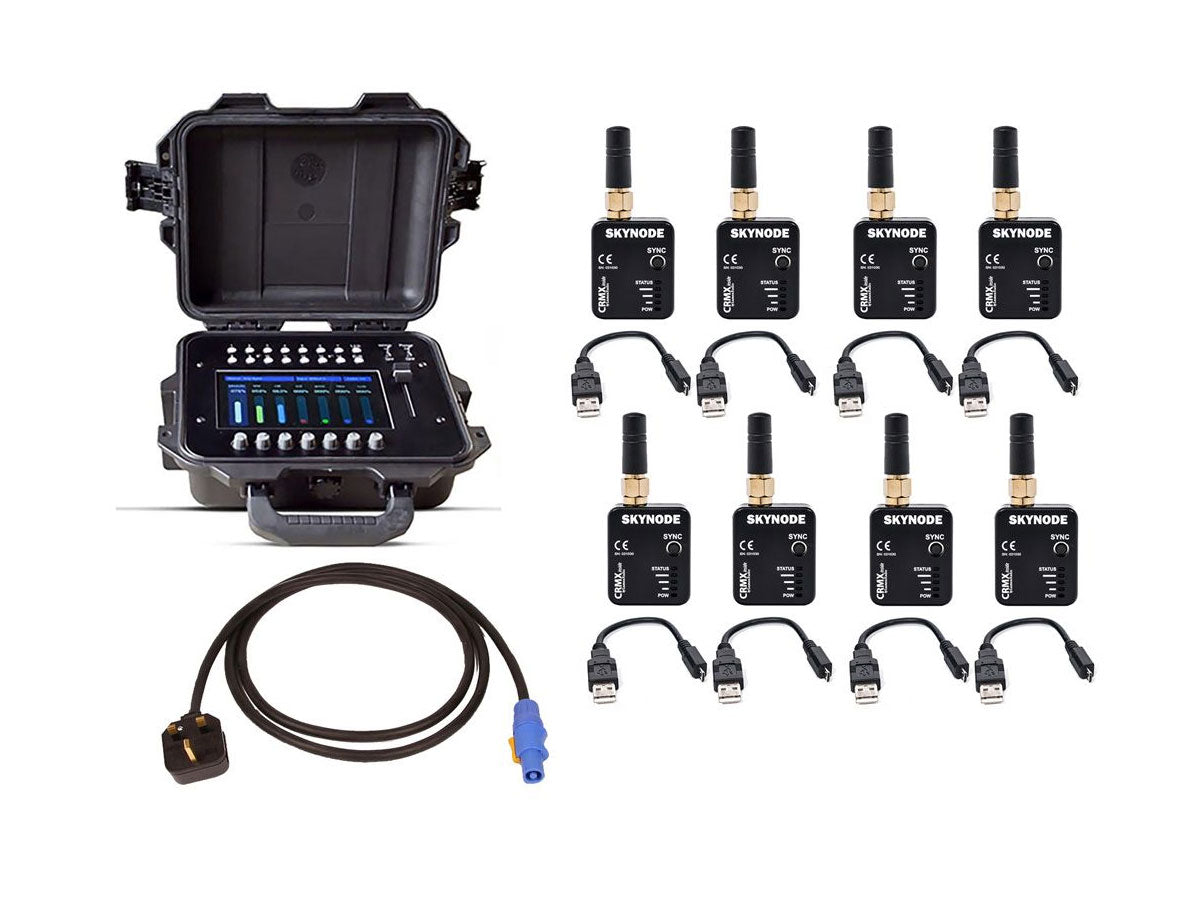

- 1x Gaffers Control GC28 Controller with touchscreen with AC PowerCON Cable,
- 8x SKYNODE CRMX2
- 8x USB-A to USB-C Cables
