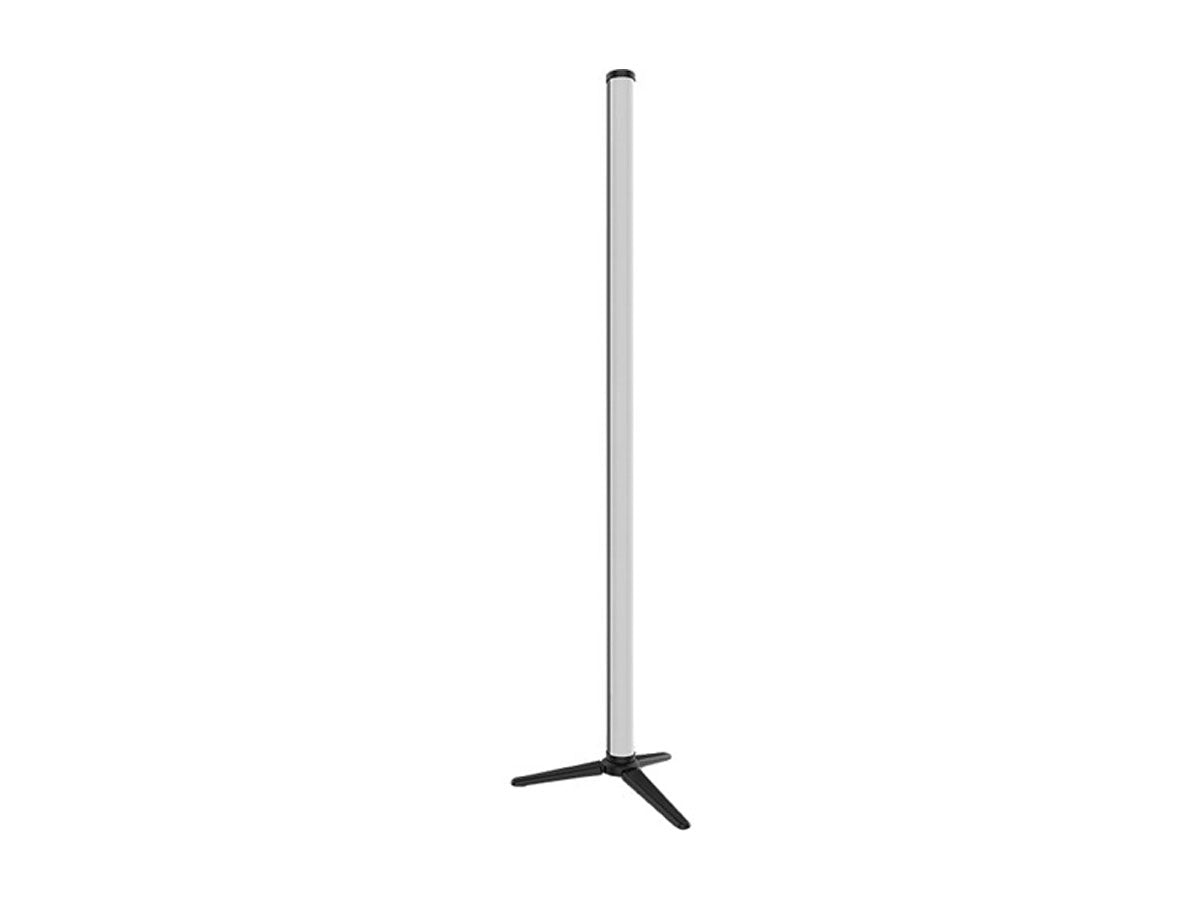

Chauvet WELL STX 180 LED Tube (x6)
Chauvet WELL STX 180 LED Tube (x6)
£4,140.00 GBP inc VAT
£4,140.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

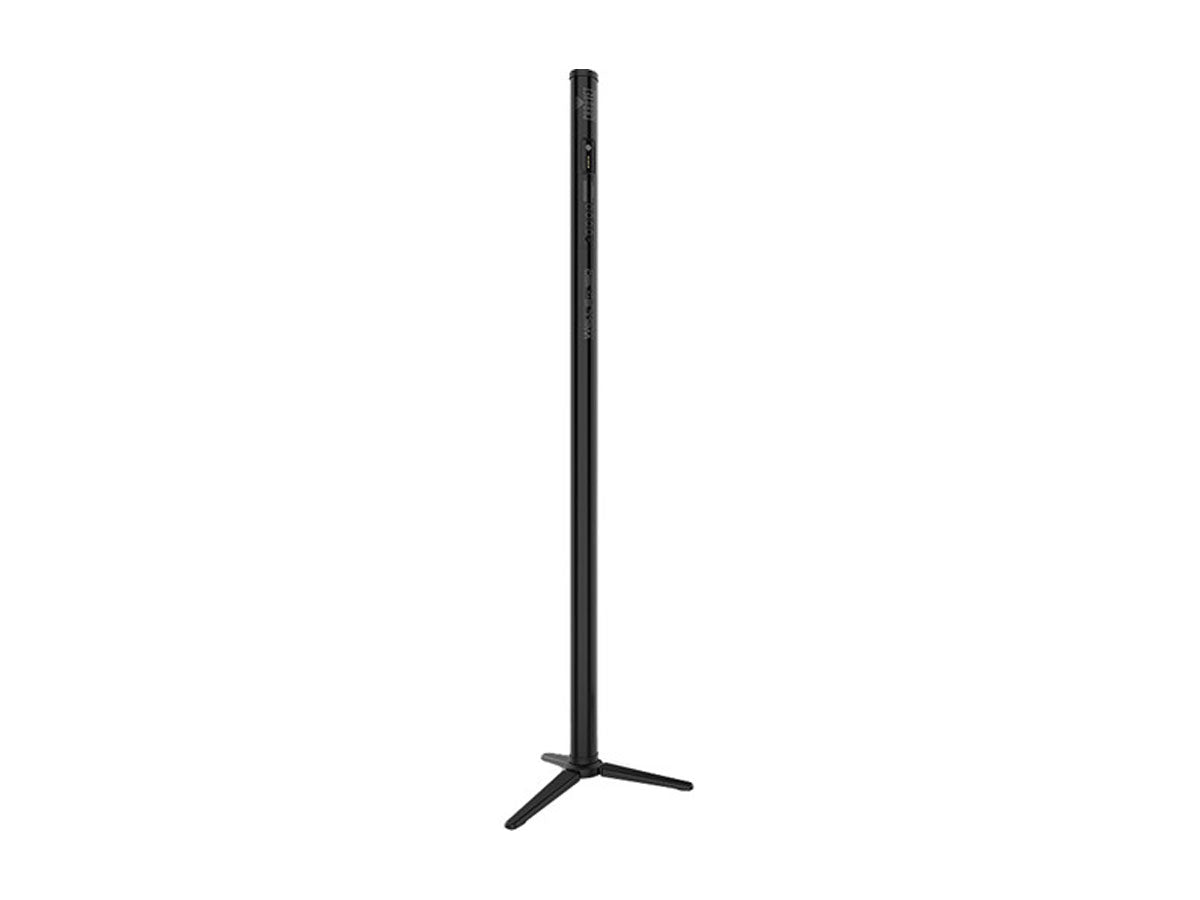

WELL STX 180 is a dynamic freestanding, battery-operated, and outdoor-ready LED tube that emits 180° of ultra-bright, high-quality, pixel-mappable light with an optional stealth filter for a complete disappearing effect when off. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 180 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 6 WELL STX 180, 12 Magnetic Brackets for attaching to steel surfaces, 6 eyebolts for suspended hanging options, 6 folding floor stands, 6 stealth black diffusers 1 IR Remote, and 1 ABS Plastic charging flight case.
- 16 individual zones of control for pixel mapping effects
- High CRI LEDs for fantastic skin tone rendering
- Simple and complex operational modes
- Built in editable pre-programmed effects that are controllable from the menu and over DMX
- 3, 5, 8, and 12 hour settings for optimizing performance time
- Included accessories for several mounting options
- Included charging flight case for easy transportation and charging of fixtures
- Works in both stand alone modes as well as under DMX over W-DMX
- Works perfectly with the WELL-COM controller and app
| OPTICAL | |
| Light Source: | 128 LEDs (64RGB / 64WW) SMD 5050, 50,000 hours life expectancy |
| Colour Temperature (range): | 2800 to 8000 K |
| Colour Temperature (at full): | 9936 K |
| CRI: | 94 @4000 K |
| Beam Horizontal Angle: | 126° |
| Beam Vertical Angle: | 125° |
| Field Horizontal Angle: | 214° |
| Field Vertical Angle: | 210° |
| Illuminance (total): | 17 lux @ 5 m |
| Lumens – Output : | 1387 |
| DYNAMIC EFFECTS | |
| Dimmer: | Electronic |
| Shutter/Strobe: | Electronic |
| Strobe Rate: | 0 to 22 Hz |
| Standalone Colour Mixing: | Yes |
| Colour Temperature Presets: | Yes |
| Dim Modes: | 4 |
| Built-in Automated Programs: | Yes |
| CONSTRUCTION/PHYSICAL | |
| Dimensions: | 39.3 x 1.6 x 1.6 in (1000 x 42.4 x 42.4 mm) |
| Weight: | 3.4 lb (1.5 kg) |
| Exterior Colour: | White |
| Housing Material: | Aluminium alloy, Plastic |
| CONNECTIONS | |
| Power Connection: | Edison (Local) plug to IEC |
| Power Input: | IEC |
| CONTROL | |
| Control Protocol: | W-DMX |
| DMX Channels: | 4, 14, 64 or 67 |
| Modes/Personalities: | 4 personalities |
| ELECTRICAL | |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current (charging case): | 198 W, 1.62 A @ 120 V, 60 Hz |
| Power and Current (charging case): | 252 W, 1.2 A @ 120 V, 60 Hz |
| Power and Current (charging case): | 264 W, 1.44 A @ 120 V, 60 Hz |
| BATTERY SPECIFICATIONS | |
| Battery type: | Lithium Ion |
| Rechargeable: | Yes |
| Battery Charge Time: | 6 hours |
| Battery Life: | 3,5,8,12 hour settings for optimizing performance time |
| Battery Power: | 14.8 V, 6.7 Ah |
| CERTIFICATIONS/QUALIFICATIONS - CE,FCC | |
| IP Rating: | IP65, for temporary outdoor use |
- 6x WELL STX 180
- 1x True 1 style power cord with Edison plug (EU bare end)
- 1x Charging flight case
- 6x Stands
- 6x Stealth black filters
- 12x magnetic clamps
- 6x hanging eye bolts
- 1x Quick Reference Guide
