Cartoni P20 Pedestal PTZ with Flat Adapter
Cartoni P20 Pedestal PTZ with Flat Adapter
£5,580.00 GBP inc VAT
£5,580.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

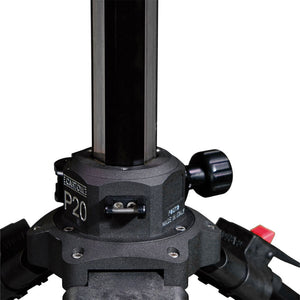

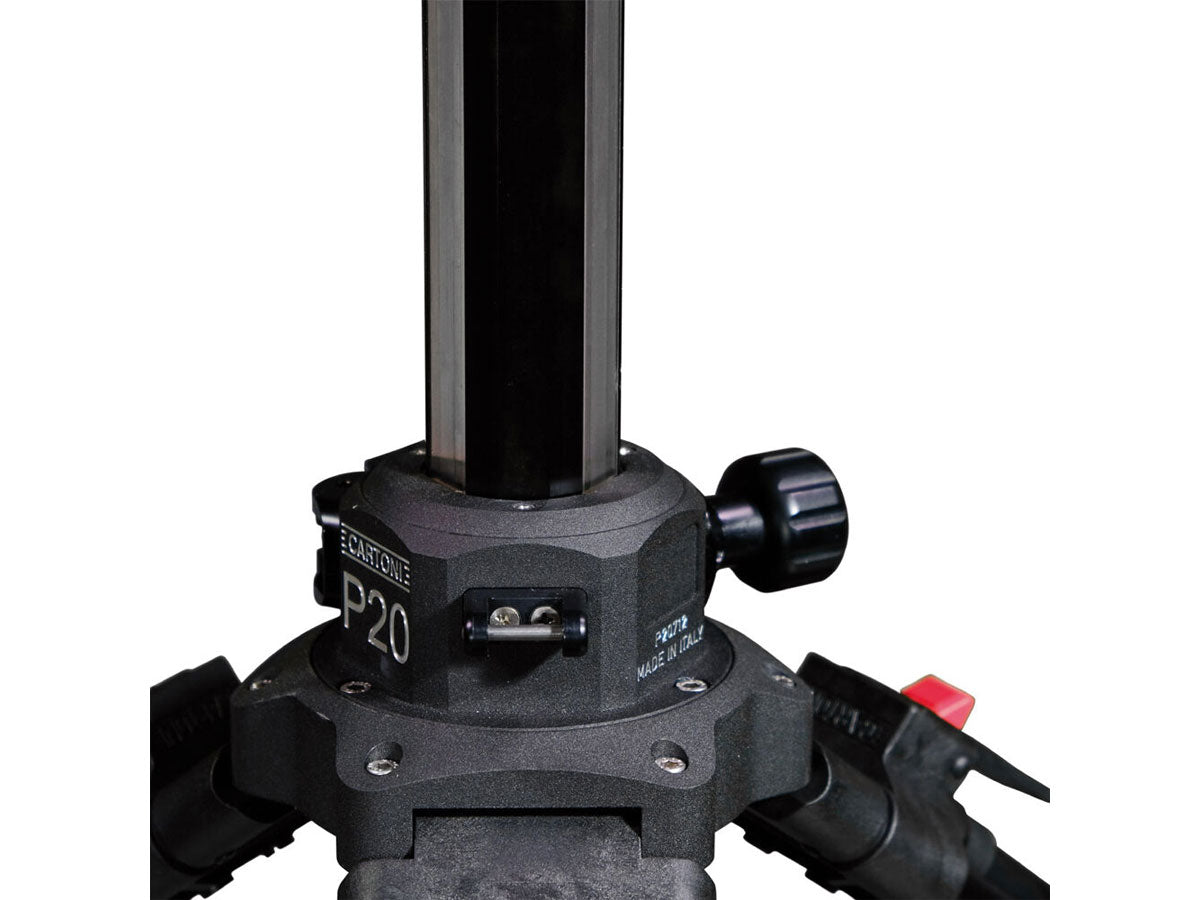

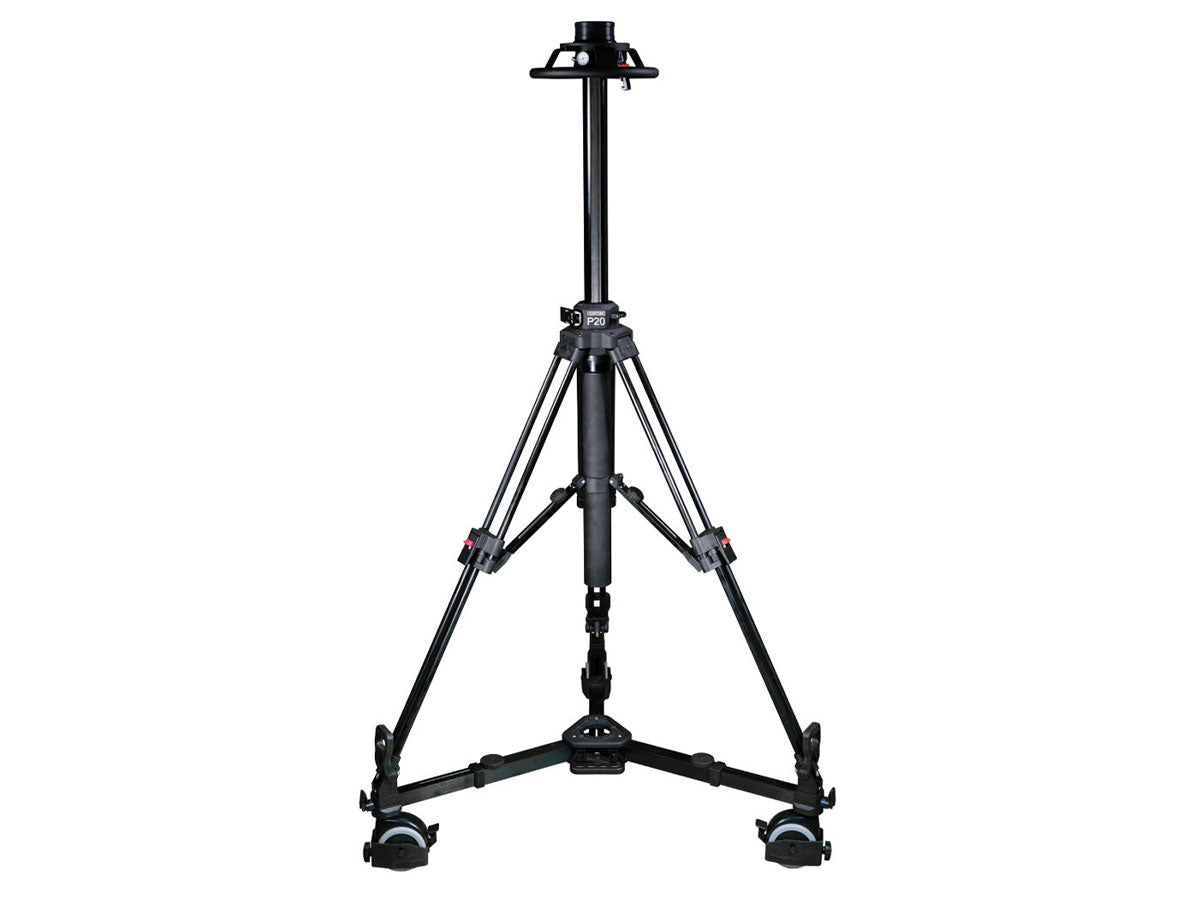

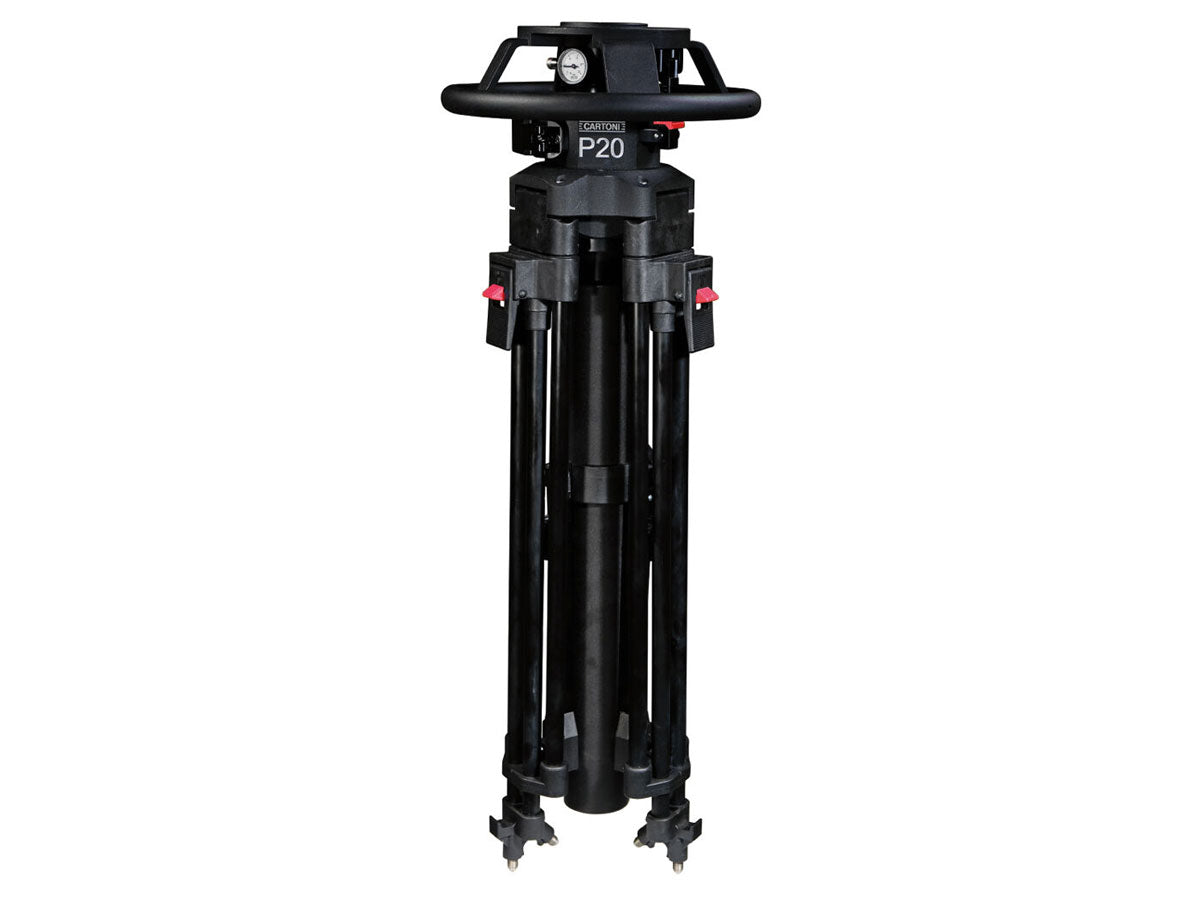

Perform smooth, gliding vertical and horizontal PTZ camera movements with this P20 Pedestal PTZ with Flat Adapter from Cartoni. This solid pedestal mount features a vertical pneumatic column and a rugged dolly with soft, 3.9" wheels to create smooth vertical and horizontal camera movement. A flat PTZ mount adapter with 1/4"-20 and 3/8"-16 threads is included to provide a solid mount for your PTZ productions.

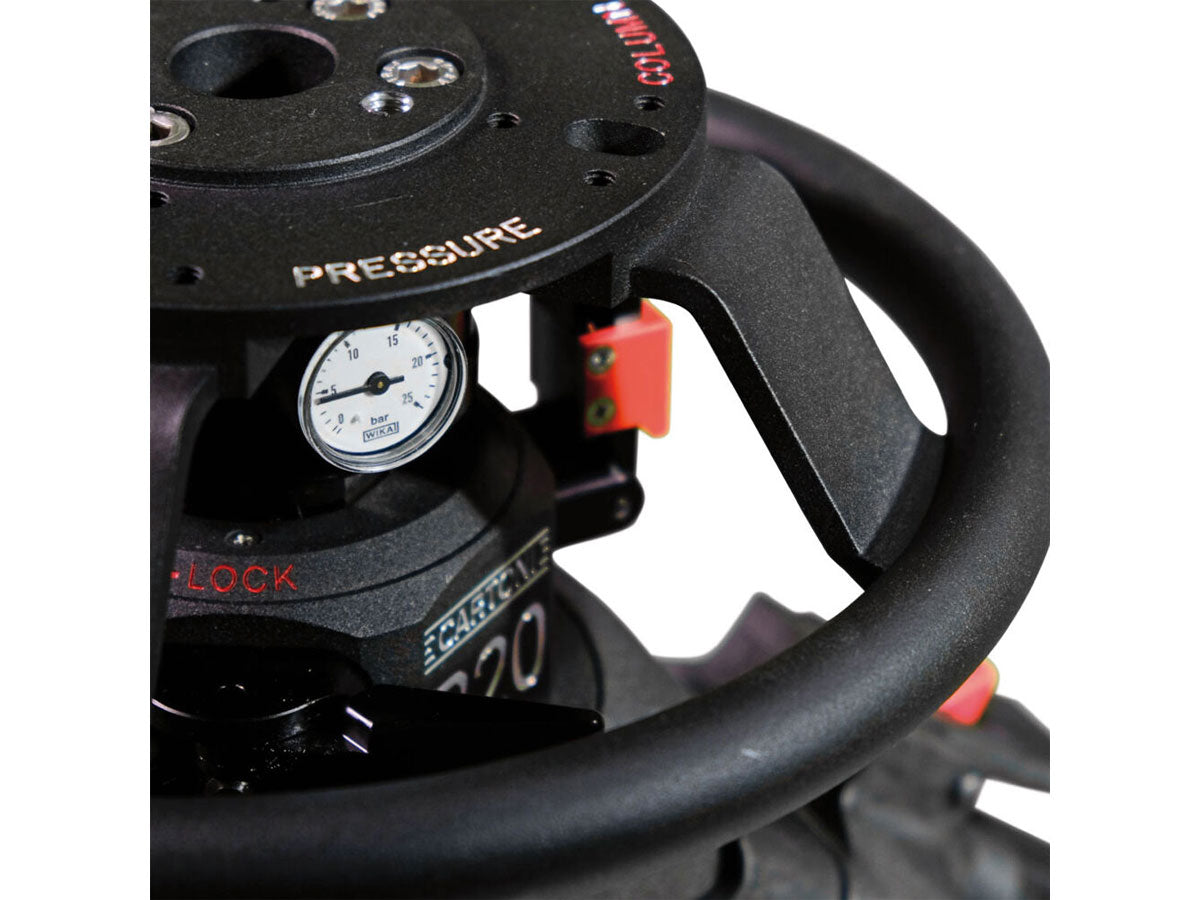

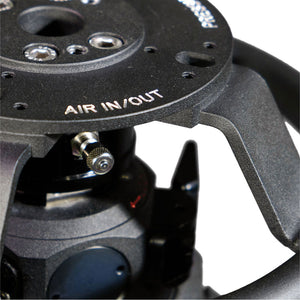

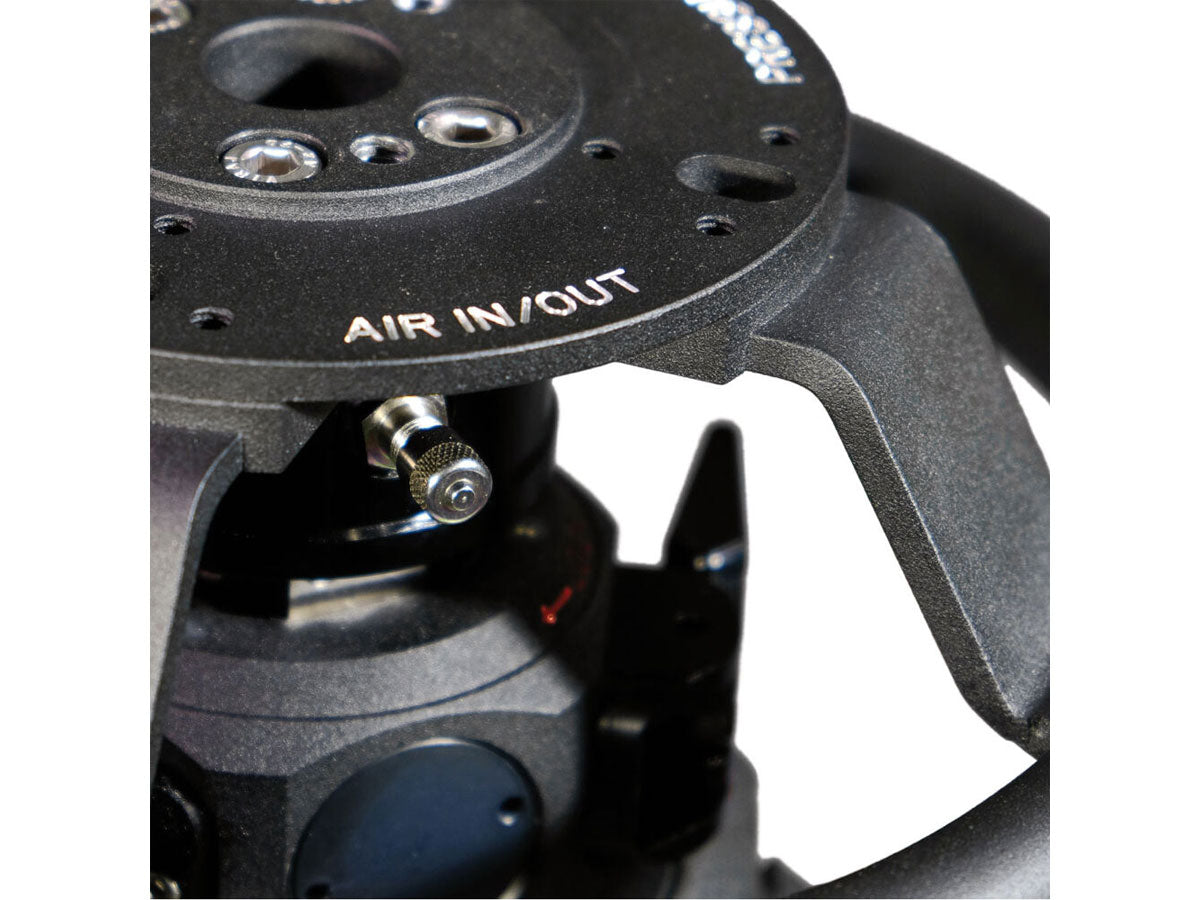

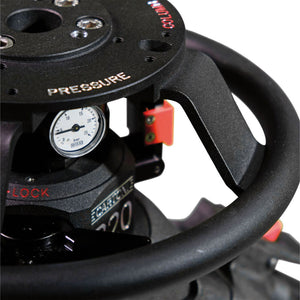

The P20 supports a camera rig up to 55 lb and its pneumatic column features a maximum psi of 191, providing single smooth glides up to 15.7". An adjustable air valve allows air in and out to adjust the pressure, which can be monitored on a gauge at the top of the column. Its three-wheel dolly features 3.9" diameter wheels, a six-position track-lock brake on each wheel, and cable guards to keep cables away from the wheels. A manual hand pump is included to adjust the air pressure in the column.
Features

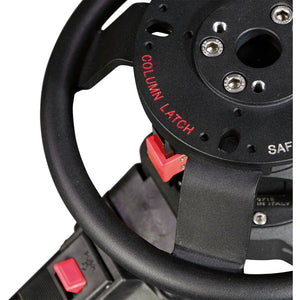

- Flat Base - This system comes with a flat base adapter for heads that utilize flat base attachment.
- On-Shot Stroke - The pneumatic column enables an "on-shot" stroke of 15.7" with one smooth and precise movement of the camera operator. The column works with compressed air and can be serviced with a hand pump.
- Dolly - The dolly is equipped with 3.9" wheels interlocked by a chain operating accurate synchronous travel and steering.
PTZ Camera Compatibility
Compatible with but not limited to:
- Lumens STREAMED-EZ-30X-3B
- Lumens STREAMED-EZ-30X-3W
- Lumens STREAMED-EZ-IP-3W
- Lumens STREAMED-EZ-IP-3B
- Lumens STREAMED-EZ-3B
- Lumens STREAMED-EZ-3W
- Lumens LC200BUNDLE61PB
- Canon 6143B004
- JVC JVKYPZ100BS1
- Panasonic AW-UE150WPJ
- Panasonic AW-UE100WPJ
- Panasonic AW-UE150KPJ
- Panasonic AW-UE100KPJ
- Sony SOBRCH900IPA
- Sony BRC-H900
- Panasonic AW-HE130KPJ
- Panasonic AW-HE130W
- Panasonic AW-HN130WPJ
- Panasonic AW-HE42WPJ
- Panasonic AW-HE42KPJ
- Vaddio 999-99110-000
- Vaddio 999-99600-100W
- Vaddio 999-99600-100
- TVLogic TVC-FG301E
- For Use with Teleprompters & PTZ Cameras
- P20 PTZ Camera Pedestal
- Flat Base Adapter, Dolly & Wheel Locks
- 1/4"-20 & 3/8"-16 Mounting Threads
- 55 lb Load Capacity, Weighs 40 lb
- Soft, Pneumatic Vertical Movement
- 15.7" Vertical Gliding Movements
| Material of Construction | Aluminum |
| Load Capacity | 55 lb / 25 kg |
| Head Base Attachment | Flat Base Adapter |
| Vertical Range | Single Pneumatic Vertical Glide: 15.7" / 40 cm |
| Maximum Pressure | 13 atm / 191 psi |
| Minimum Height | 21.9" / 55.6 cm |
| Maximum Height | 67.3" / 171 cm |
| Wheel Diameter | Dolly Wheels: 3.9" / 100 mm |
| Wheel Lock | Yes |
| Doorway Tracking Width | 26.4 to 38.2" / 67 to 97 cm |
| Weight | 40 lb / 18 kg |
- Cartoni P20 Pedestal PTZ with Flat Adapter
- Flat PTZ Adapter
- Manual Air Pump
- Limited 3-Year Warranty, Total of 5 Years upon Registration
