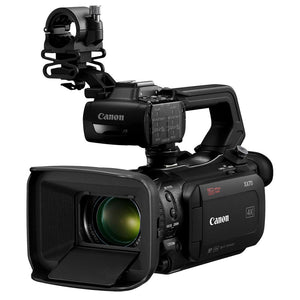

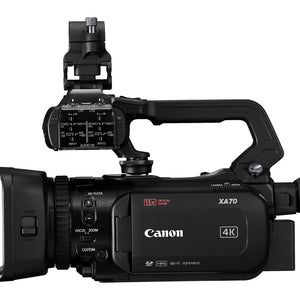

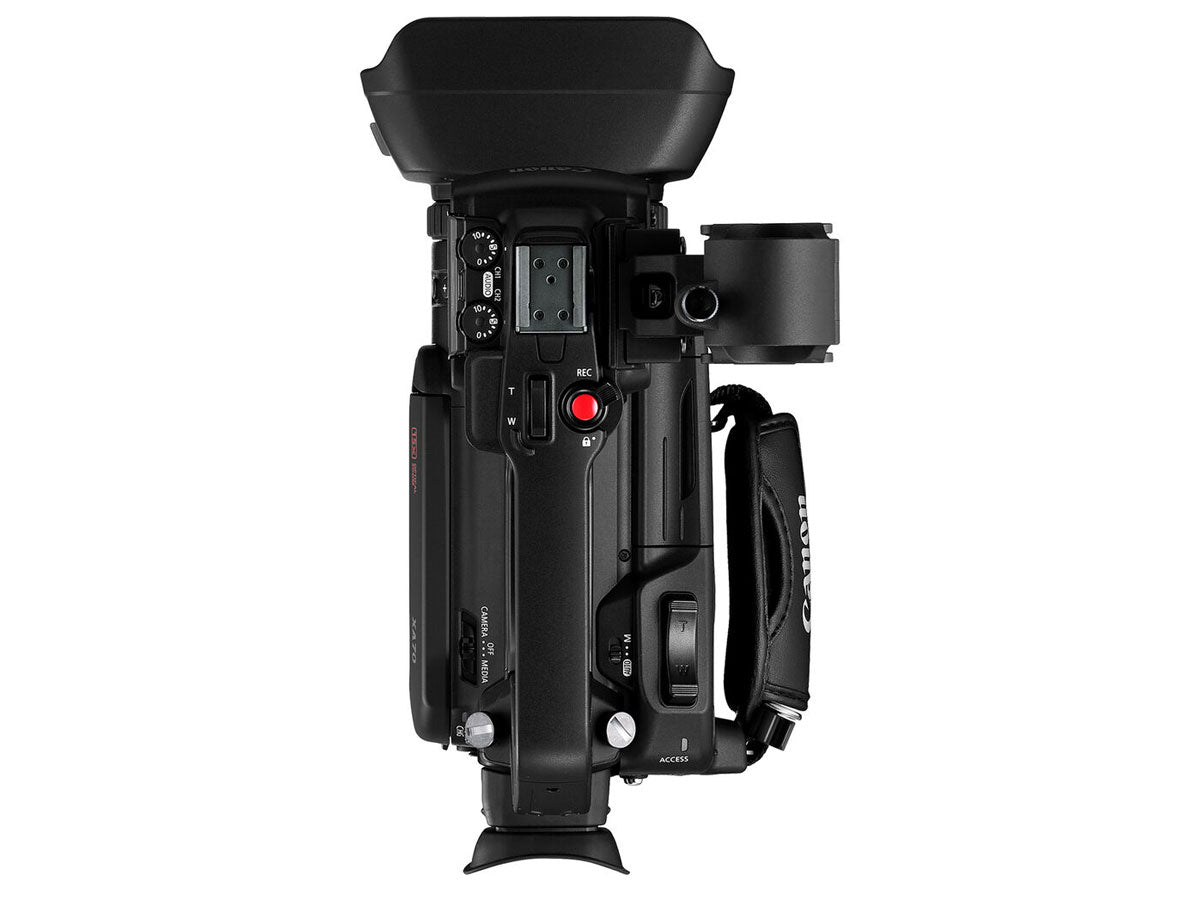

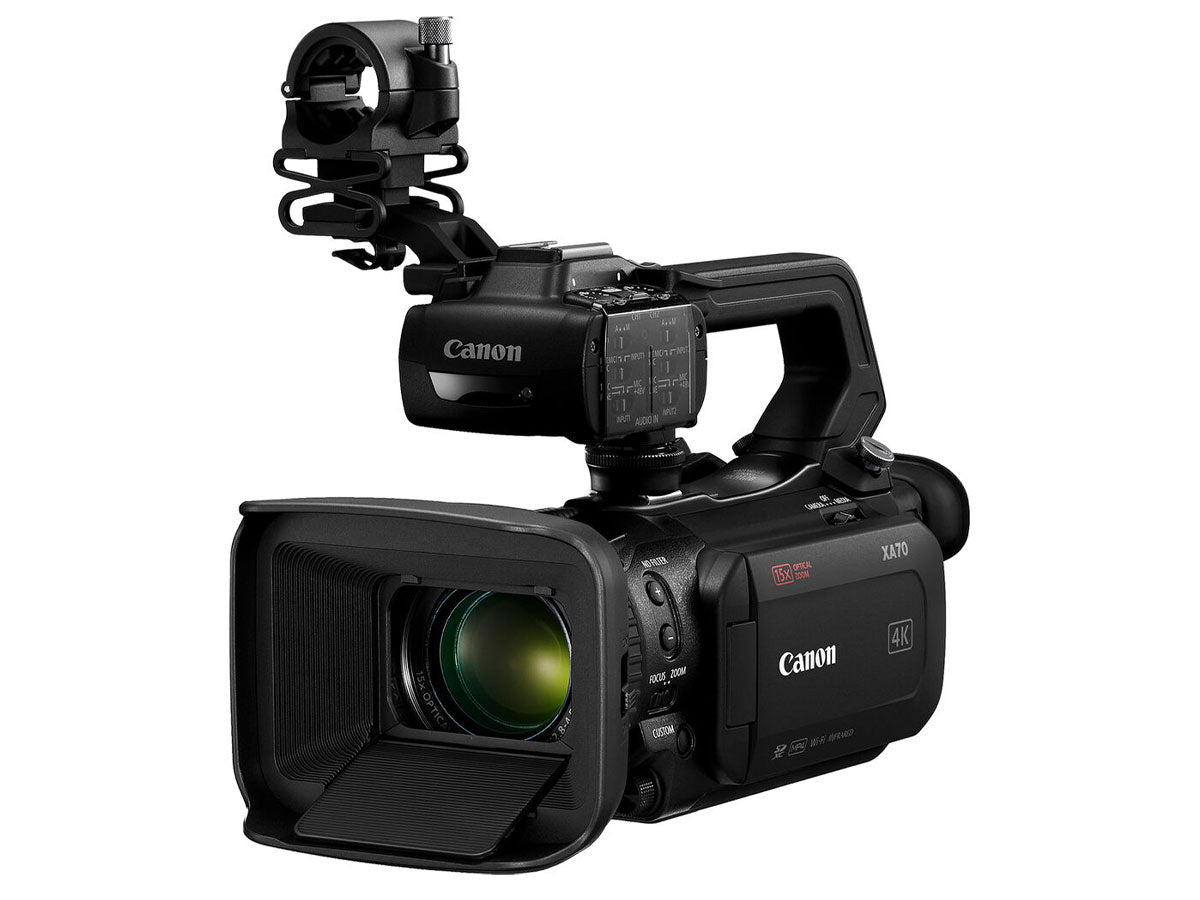

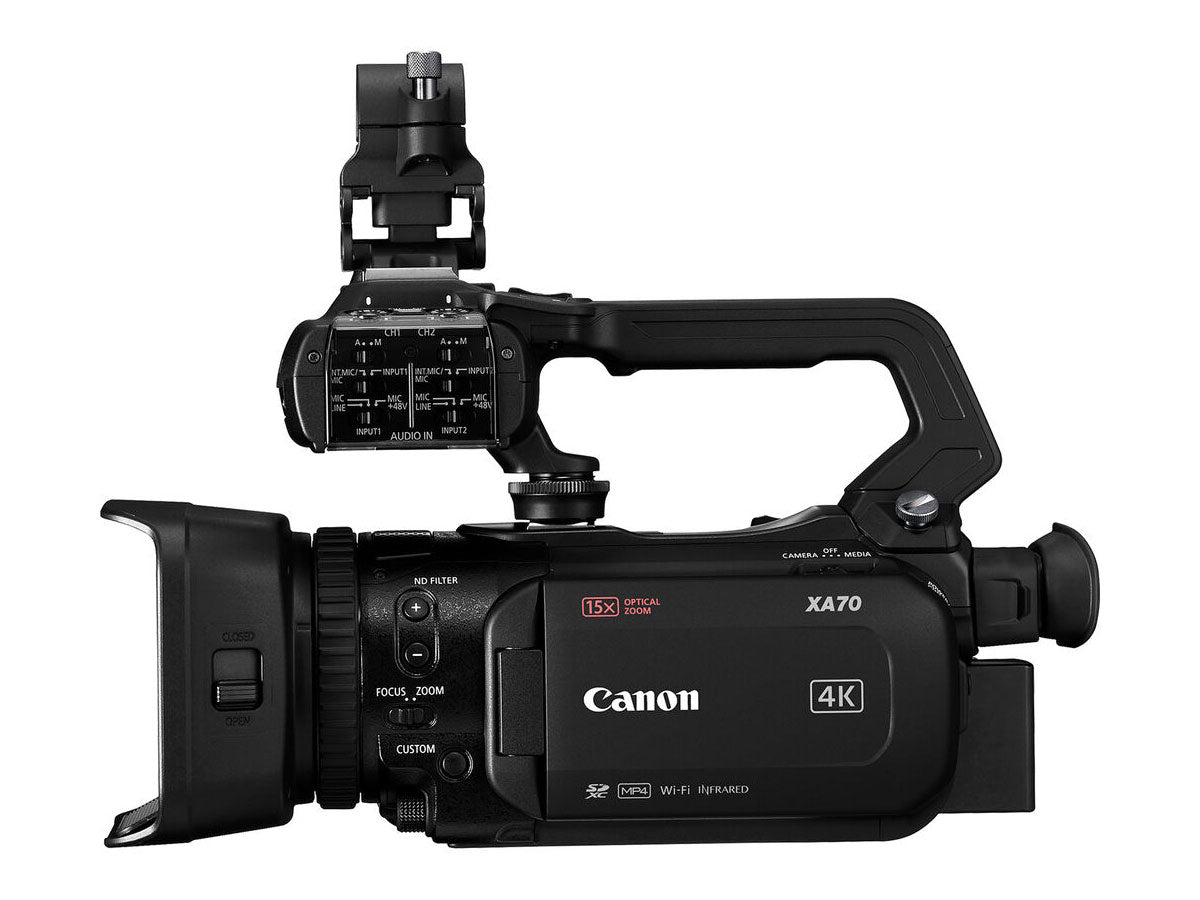

Canon XA70 UHD 4K30 Camcorder

Canon XA70 UHD 4K30 Camcorder

SKU: CAN-5736C005
£1,704.50 GBP ex VAT
£2,045.40 GBP inc VAT
ex VAT £1,704.50 GBP ex VAT
£2,045.40 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Get your shot, tell your story.

Shoot high quality 4K UHD video with the compact XA70. As well as outstanding Over Sampling HD processing, Dual Pixel CMOS AF, a Canon 15x optical zoom lens and HD livestreaming in UVC1 via USB-C over a computer, capture high quality footage in either XF-AVC or MP4 formats.

Compact professional 4K UHD camcorder

Capture stunning 4K UHD and superior Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the sensor.

4K 15x optical zoom lens

The Canon lens covers a 25.5 – 382mm (35mm equivalent) range. A digital zoom boosts to 300x with 5-axis image stabilisation.

Fast, precise focusing with face detection

Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for flexible recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P.

Professional inputs and outputs

Output options include simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu.

Livestream and more

Stream HD footage via UVC1 over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.

4K UHD / 25P

  • MP4 up to 150Mbps
  • XF-AVC up to 160Mbps

15x optical zoom

  • 25.5 – 382mm (35mm equivalent) wide-angle 4K zoom

Over Sampled HD Processing

  • High quality Full HD
  • Uses the 4K UHD sensor to deliver superior Full HD images

Optical IS

  • 5-Axis IS
  • Advanced Image Stabilisation

Infrared

  • Infrared mode
  • Capture high-quality video in conditions with little to no ambient light

Touch Screen

  • 3.5-inch touch screen
  • Easy focus point and camera control

4-channel audio

  • Linear PCM
  • 2 x XLR terminals plus built-in mic

Double slot

  • Dual card slots
  • SD card simultaneous or relay recording

USB-C

  • Video livestream output via Mac or PC1
IMAGE SENSOR

Sensor 1 inch-type CMOS Sensor
Filter RGB Primary Colour Filter Approx.13.4MP
Total pixels Approx. 8.29 MP (3840 x 2160)
Effective pixels Approx. 0.1 lx to 100,000 lx
Subject illumination range Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec.
Minimum illumination (PAL) Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On

IMAGE PROCESSOR

Type DIGIC DV 6
Colour Sampling YCC 4:2:0 8-bit

LENS

Zoom ratio 15 x optical
Focal length (35mm equivalent) Approx. 25.5 - 382.5mm Standard IS/IS Off
Minimum focus distance 1 cm at wide end, 60 cm across entire zooming range


Aperture f/2.8 - 4.5
Aperture blades 9 blades
Filter diameter 58mm
Image stabilization system Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
ND filter 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor- driven.
Zoom control Zoom rockers on body and handle; Touch Screen or Remote Controller
  Selectable manual zoom/focus ring on lens;
  Selectable High Speed and Soft Zoom modes available.
Zoom speed Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow,16 speed level settings in each)
Iris control Touchscreen, Auto
Digital zoom/Teleconverter 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available. Digital zoom not available in AUTO mode.
  2x Digital Teleconverter (Not available when using Digital Zoom)


FOCUS

Focus System Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
AF Mode Continuous, AF-Boosted MF
  Face Detection and Tracking, Face Only AF.
Manual Focus Assist Dual Pixel Focus Guide, Peaking, Magnification
Focus control MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject

RECORDING

Video storage media TypeU3 Class recommended for all recording conditions
  *UHS-II not supported.
Recording time (64GB Card, approx.) MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
  XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
Recording file system FAT32/exFAT
Internal recording format (PAL) XF-AVC:
  3840 x 2160 / 25.00P (160 Mbps)
  1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
  MP4:
  3840 x 2160 / 25.00P(150 Mbps)
  1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
External output (PAL) HDMI output (When Shooting):
  UHD recording mode:
  1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i
  (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
  Full HD recording mode:
  1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
  SDI output (When Shooting): UHD recording mode:
  1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i
  (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
  Full HD recording mode:
  1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
Time Code Rec Run / Free Run
Slow/Fast motion (PAL) 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600,x1200
  1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
  1920 x 1080 / 25.00P: x0.5
Pre Recording function Yes. 3 seconds
Still photos JPEG up to 3840x2160
  (Still image resolution is dependent on the video resolution)
Photo storage media SD Card

SHOOTING FUNCTIONS
Shooting Modes AUTO mode
  M (Manual) mode
  P (Program AE), Tv (shutter-priority AE),
  Av (aperture-priority AE), M (manual exposure),
  SCN (Portrait, Sports, Night Scene, Snow, Beach,
  Sunset, Low Light, Spotlight, Fireworks)
  IR mode
Custom Picture C1: Normal (BT.709 Normal / BT.709)
  C2: Wide DR (BT.709 Wide DR / BT.709) C3: LOG3 (Canon Log 3 / BT.709)
  C4: EOS Std. (EOS Standard / BT.709)
  C5 to C6: USER05 to USER06 (same as C1)
"Looks" setting Standard
  Neutral
  Wide DR
  Monochrome
Infrared shooting mode Yes

EXPOSURE
Exposure metering Center-weighted average metering
  AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
  Segment evaluative metering
  Night Scene, Snow, Beach, Sunset, Spotlight modes
  No metering in Fireworks mode: Exposure constant
Exposure compensation Highlight AE, Normal, Exposure lock, Auto backlight compensation.
Exposure Lock Yes.
Auto Gain Control Auto / Manual
Auto Gain Control limit 0 - 38dB (1dB increments)
  Wide DR Mode: 9 -38dB (1dB increments)

SHUTTER SPEED

Control modes Auto, P, Tv, Manual
Shutter speed 1/6 - 1/2000 sec
  (1/2 - 1/500 sec in Low Light mode)
  Shutter Speed range available dependent on shooting mode
Slow Shutter (SLS) 50.00P:
  Auto slow shutter On: 1/25 to 1/500 sec.
  Auto slow shutter Off: 1/50 to 1/500 sec.
  25.00P:
  Auto slow shutter On: 1/12.5* to 1/500 sec.
  (*Display is 1/12)
  Auto slow shutter Off: 1/25 to 1/500 sec.
Clear Scan No

WHITE BALANCE

Auto Yes
Preset Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
Manual setting Colour Temperature range: 2,000-15,000K
  Default value for Set 1 and Set 2: 5,600K
Built-in IR lamp Yes, in detachable Handle Unit.
  Wavelength: 850nm (near-Infrared)
Look settings Standard
  (Adjustment: Sharpness, Contrast, Colour Depth)

AUDIO
Recording MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio control Manual/Auto
  Independent 2ch Line/Mic/Mic+48V input;
  Independent level control per channel
  (-∞ to +18 dB);
  Independent audio limiters (2 ch); Input mic trimming
Reference tone 1KHz, -12dB / -18dB / -20dB / Off
Microphone attenuation On/Off (20dB)
Microphone level meter Yes

SYSTEM
MONITORING PANEL
Type Capacitive LCD touch panel
Size 3.5-inch (8.8 cm) on the diagonal,
  Approx. 2,760,000 dots (1280 x RGB x 720)
Waveform Monitor Focus Assist No
Peaking Peaking / Magnify
Zebra Selectable Peaking Colour: Red / Blue / Yellow
Markers Grid (white/grey), Level (white/grey), 4:3(white/grey)

VIEWFINDER

Size 0.36-inch (0.92 cm on the diagonal),
Correction lens Approx. 1,770,000 dots (1024 x RGB x 576) +2.0 to -5.5 dioptre

INPUTS/OUTPUTS
Audio input XLR 3-pin jack (x2) with 48V phantom power,
  Line and Mic options on detachable handle,
  3.5mm microphone input jack
  (Supply Voltage 2.4V DC) Built-in Mic
Headphone output 3.5mm stereo mini jack
HDMI output HDMI mini connector. Timecode can be superimposed onto HDMI output

USB Type-C
  Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.


SDI output XA75: 3G-SDI. XA70: No
Time code No
Genlock No
LAN No
AV terminal No
DC input USB-C
Remote Control Terminal 2.5mm mini jack

WI-FI & GPS SPECIFICATIONS
Wi-Fi No
GPS Information Location (Latitude/Longitude/Altitude),
  (Optional Accessory)Coordinated Universal Time (UTC),
  Satellite reception.
  (requires the optional GPS Receiver GP-E2)

MISCELLANEOUS

Tally lamp Yes, in detachable Handle Unit
Colour Bars (PAL) Yes. SMPTE, ARIB or EBU, with 1KHz Tone
Accessory shoe Yes (cold shoe)
Assignable buttons 5 assignable Buttons
Custom dial Iris/Shutter/Gain, AGC Limit,
  Exposure Compensation, Off
Video Output (UVC) Recording system: Motion JPEG
  Resolutions: 1920×1080 (when main resolution is not 1280×720)
  1280×720 (when main resolution is 1280×720) Frame rates: 25 fps (best effort)

ACCESSORIES

Supplied Lens hood with barrier
  Mic holder unit
  Handle Unit HDU-1
  Battery Pack BP-820
  USB Power Adapter PD-E
  AC Cable

Optional (Includes items not currently on sale) Canon Battery Pack BP-820/BP- 828
  Canon Battery Charger CG-800E/CG-800
  Canon HDMI cable HTC-100/HTC-100S
  Canon Shoulder Strap SS-600/SS-650
  Wrist Strap WS-20
  Canon PROTECT Filter 58mm
  Canon ND4-L Filter 58mm
  Canon ND8-L Filter 58mm
  Canon GPS Receiver GP-E2
  Canon Remote Controller RC-V100
  Canon Battery Video Light VL-10Li/VL-10LiII
  Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII)
  Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series)
  Canon Interface Cable IFC-300PCU/S / IFC-400PCU

BATTERY

Battery Pack Canon Battery Pack BP-820 (supplied),
  BP-828 (optional)
Power Consumption (recording, approx.) MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: XA75: 5.2W/XA70: 5.1W
Continuous Recording Time (With supplied BP-820 battery pack, approx.) XA75: MP4, 150Mbps/XF-AVC, 160Mbps,25.00P: Max 140 mins, typical 75 mins
  XA70: MP4, 150Mbps/XF-AVC, 160Mbps,
  25.00P: Max 145 mins, typical 80 mins

SIZE AND WEIGHT

Dimensions Approx. 110 x 91 x 214 mm (main body only)
  Approx. 140 x 216 x 265 mm
  (Including lens hood, BP-820, mic holder unit, and handle unit)
Weight (camera only) 990g
Weight (fully equipped) 1465g
Operating temperature range 0ºC to +40ºC, 85% relative humidity

Disclaimers All specifications are subject to change without notice Specification given for PAL Version
  • XA70
  • HDU-1 Handle Unit
  • PD-E1 USB Power Adapter
  • BP-820 Battery Pack
  • Lens Hood with Lens Barrier
  • Mic Holder
