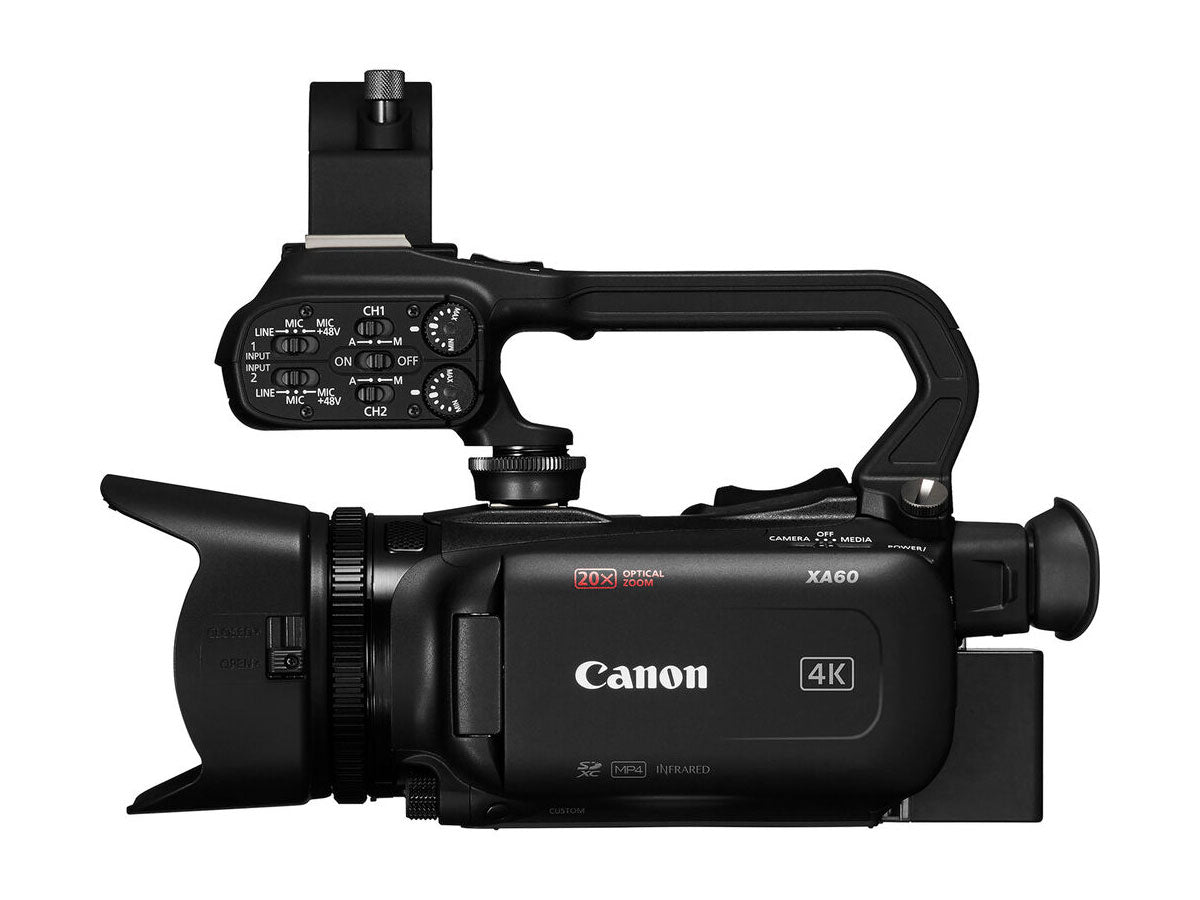

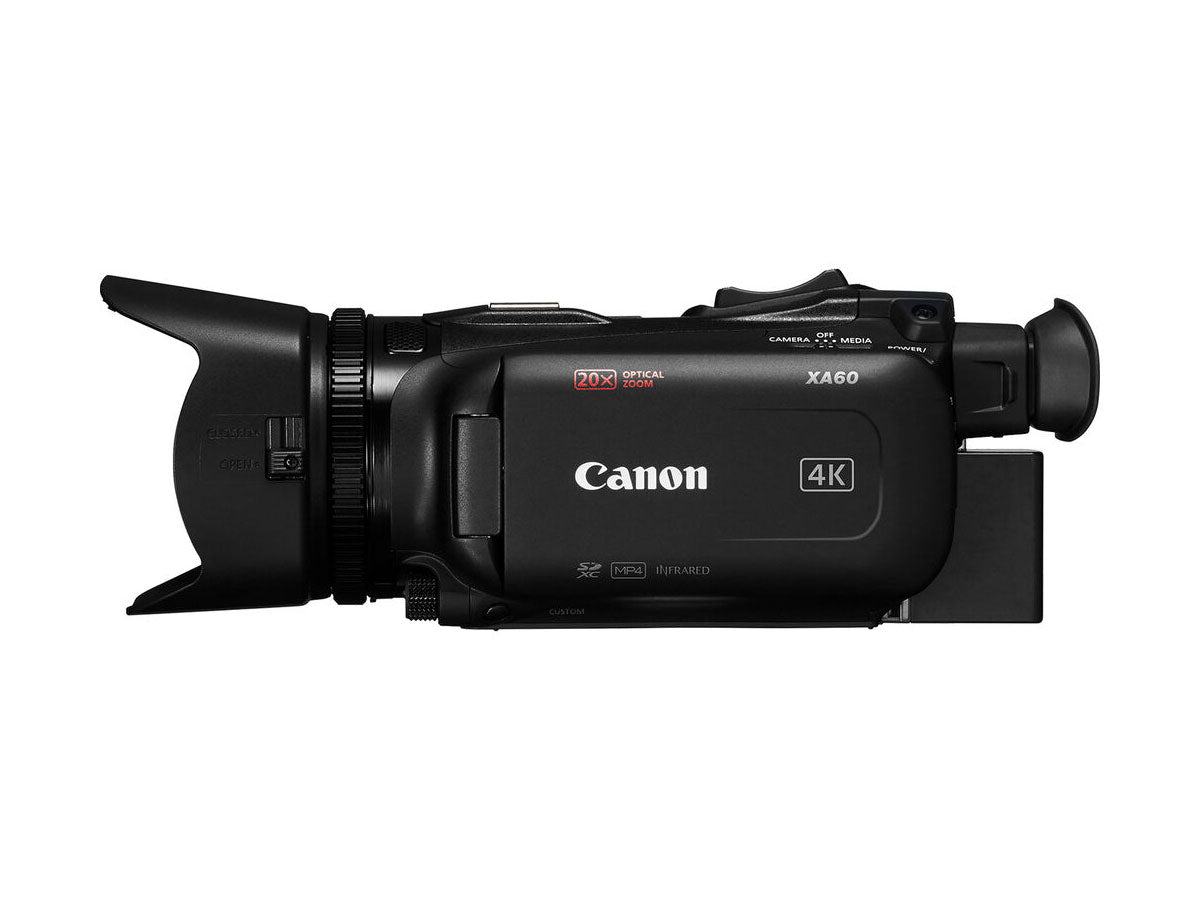

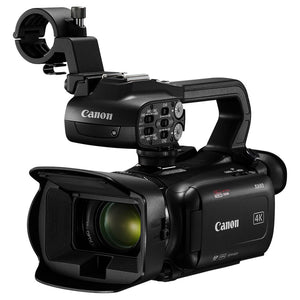

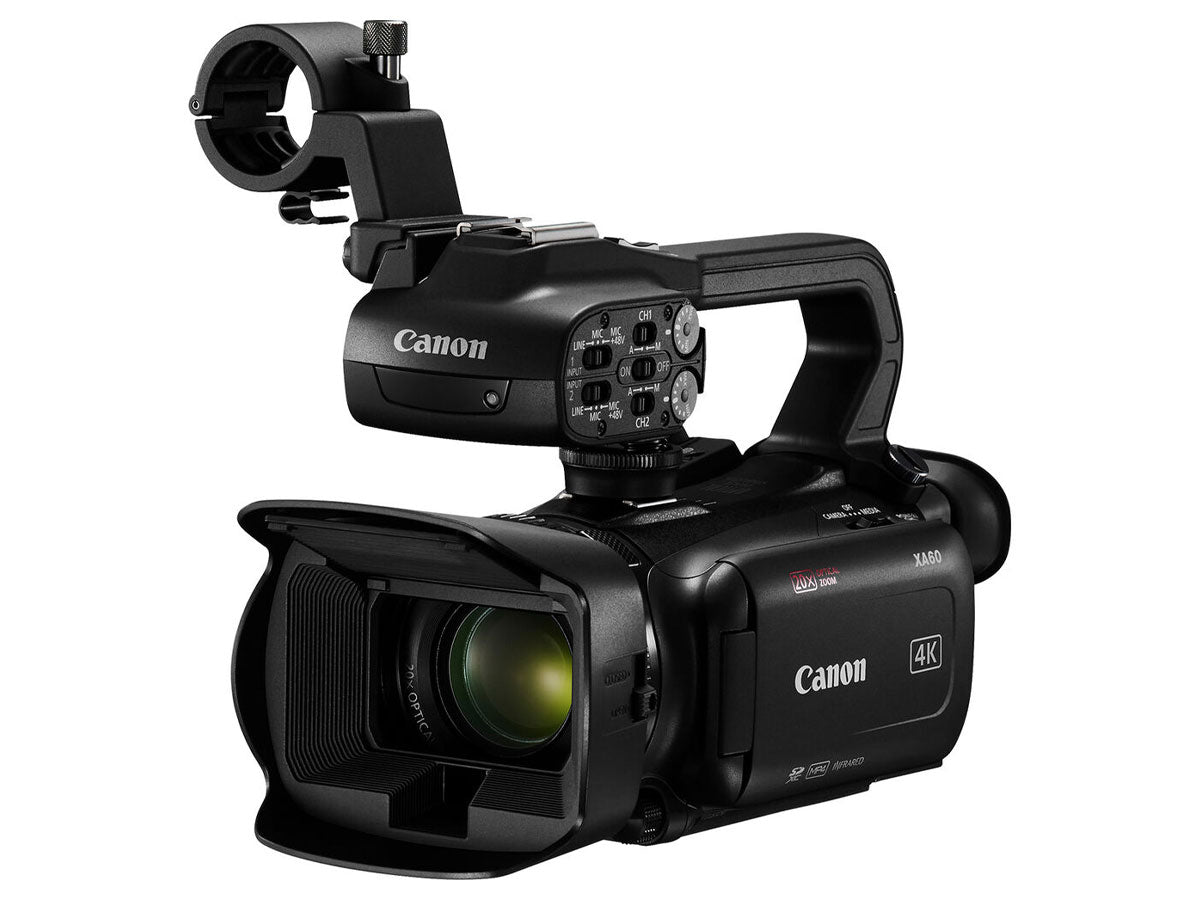

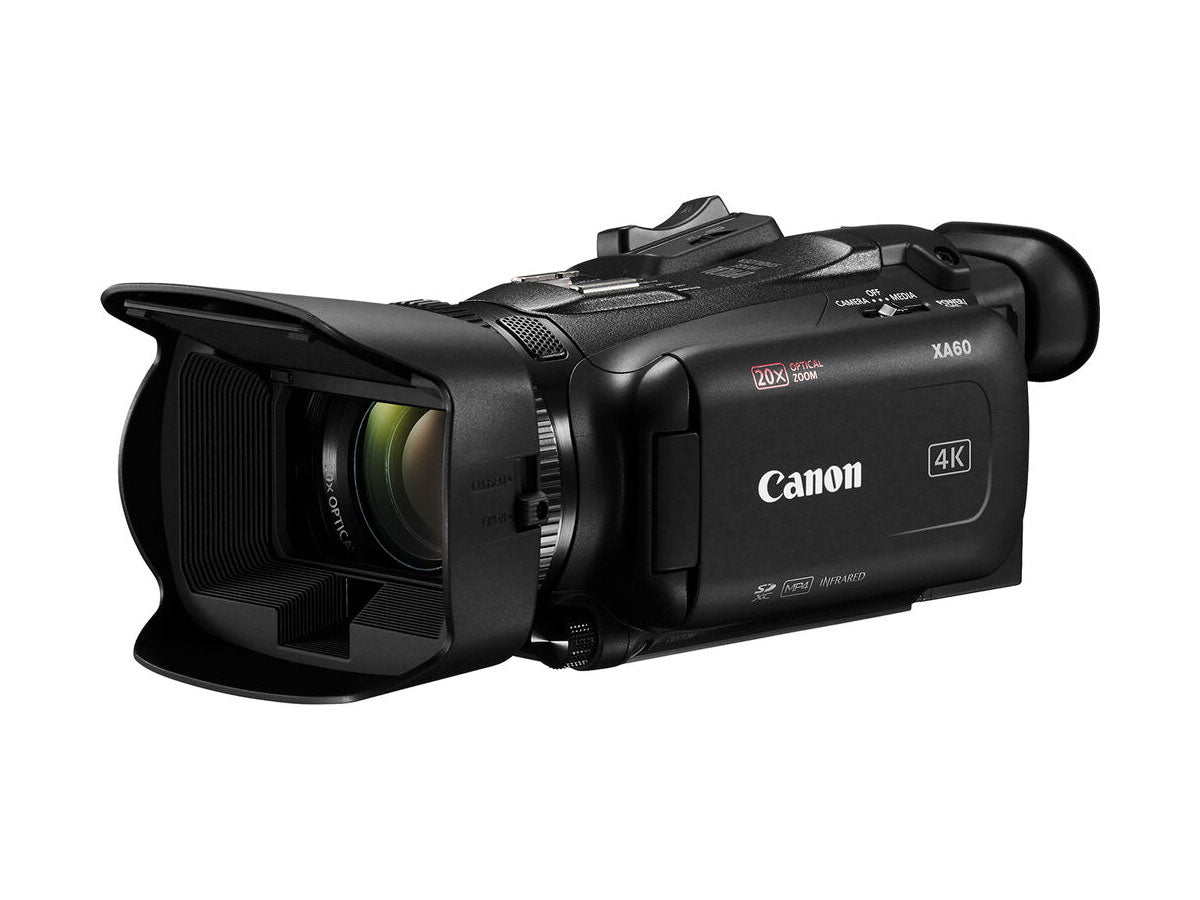

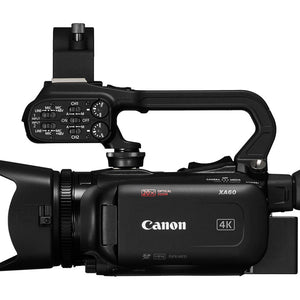

Canon XA60 Professional UHD 4K Camcorder

Canon XA60 Professional UHD 4K Camcorder

SKU: CAN-5733C006
£1,207.14 GBP ex VAT
£1,448.57 GBP inc VAT
ex VAT £1,207.14 GBP ex VAT
£1,448.57 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

A 1/2.3-Type CMOS 4K pro camcorder. With advanced autofocus, 20x optical zoom plus 5-axis stabilisation, HDMI out and UVC, it’s a versatile workhorse.

Shoot, record, stream

Shoot high quality 4K UHD video with the compact XA60. As well as outstanding Over Sampled HD processing, advanced autofocus, a Canon 20x optical zoom lens and HD livestreaming in UVC1 via USB-C over a computer, capture footage and record or share it later in either XF-AVC or MP4 formats.

Compact professional 4K UHD camcorder

Capture stunning 4K UHD and superior Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over Sampled HD processing delivers Full HD images from the 4K sensor.

4K 20x optical zoom lens

The Canon lens covers a 29.3mm wide angle (35mm equivalent) plus a powerful 612mm reach with Dynamic IS. A digital zoom boosts to 800x with 5-axis image stabilisation.

Fast, precise focusing with face detection

Adjustable focusing speeds and advanced Hybrid AF system give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for flexible recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P.

Professional inputs and outputs

Output options include simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu.

Livestream and more

Stream HD footage via UVC1 over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.

1 Audio output through USB is not supported

  • 4K UHD / 25P - MP4 up to 150Mbps and XF-AVC up to 160Mbps
  • 20x optical zoom - Wide-angle 29.3 – 601mm 4K zoom (35mm equivalent)
  • Over Sampled HD Processing - Uses the 4K UHD sensor to deliver superior Full HD images
  • Optical IS - Advanced optical and dynamic image stabilisation over 5-axis
  • Infrared - Capture high-quality video in conditions with little to no ambient light with IR mode
  • Touch Screen - Easy focus point and camera control via 3.5-inch touch screen
  • 4-channel audio - Linear PCM and 2 x XLR terminals plus built-in mic
  • Double slot - Dual slots for simultaneous or relay recording via SD card
  • USB-C - Video livestream output via Mac or PC1 or Canon’s GP-E2 GPS receiver
CAMERA

IMAGE SENSOR
Sensor 1/2.3-type CMOS
Filter RGB Primary Colour Filter
Total pixels Approx. 21.14MP
Effective pixels Approx. 8.29 MP (3840 x 2160)
Subject illumination range Approx. 0.3 lx to 100,000 lx
Minimum illumination (PAL) P (Program AE) Mode: Approx. 4.2 lx
  (shutter speed 1/25 sec with auto slow shutter On) Low Light Mode: Approx. 0.3 lx
  (shutter speed 1/2 sec.)

IMAGE PROCESSOR

Type DIGIC DV 6
Colour Sampling YCC 4:2:0 8bit

LENS

Zoom ratio 20 x optical
Focal length Approx. 29.3 - 601mm Standard IS/IS Off (35mm equivalent)
Minimum focus distance 1 cm at wide end, 60 cm across entire zooming range
Aperture f/1.8 - 2.8 (AV Priority and Manual Modes)
Aperture blades 8 blades
Filter diameter 58mm
Image stabilization system Optical system (lens shift) + electronic stabilization
  Dynamic, Standard, Powered IS, Off
ND filter Built-in gradation filter (Auto or Off)
Zoom control Zoom rockers on body and handle;
  Selectable manual zoom/focus ring on lens;
  Selectable High Speed and Soft Zoom modes available.
Zoom speed Variable (body rocker only) or Constant speed
  (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
Iris control Touchscreen, Auto
  Digital zoom/Teleconverter 20x digital zoom (400x with optical zoom) and 40x
  digital zoom (800x with optical zoom) are available. Digital zoom not available in AUTO mode.
  2x Digital Teleconverter

FOCUS

Focus System Hybrid AF (High Speed/Medium speed). Uses combination of TTL- video signal detection system and external phase difference metering system. Normal AF. TTL, Contrast based AF
Focus control MANUAL: Lens ring and touchscreen point selection
  (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF)

RECORDING

Video storage media SD/SDHC/SDXC card (2 card slots)
Recording time 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495
  (64GB Card, approx.) mins
Recording file system FAT32/exFAT
Internal recording format XF-AVC:
(PAL) 3840 x 2160 / 25.00P (160 Mbps)
  1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
  MP4:
  3840 x 2160 / 25.00P(150 Mbps)
  1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)

External output (PAL) HDMI output (When Shooting):
  UHD recording mode:
  1920 x 1080 / 25.00P, 50.00P (for Slow & Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
  Full HD recording mode:
  1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit

  SDI output (When Shooting): UHD recording mode:
  1920 x 1080 / 25.00P, 50.00P (for Slow & Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
  Full HD recording mode:
  1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit

Time Code Rec Run / Free Run
Slow/Fast motion (PAL) 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
  1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
  1920 x 1080 / 25.00P: x0.5
Pre Recording function Yes. 3 seconds
Still photos JPEG up to 3840x2160
  (Still image resolution is dependent on the video resolution)
Photo storage media SD Card

SHOOTING FUNCTIONS

Shooting Modes AUTO mode
  M (Manual) mode
  P (program AE), Tv (shutter-priority AE),
  Av (aperture-priority AE), M (manual exposure),
  SCN (Portrait, Sports, Night Scene, Snow, Beach,
  Sunset, Low Light, Spotlight, Fireworks)
  IR mode
Custom Picture C1: Normal (BT.709 Normal / BT.709)
  C2 to C6: USER02 to USER06
Colour Matrix Neutral: accurate colour reproduction
  Video: Higher contrast colour reproduction
Infrared shooting mode Yes (green or white)

EXPOSURE

Exposure metering Center-weighted average metering
  AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
  Segment evaluative metering
  Night Scene, Snow, Beach, Sunset, Spotlight modes
  No metering in Fireworks mode: Exposure constant
Exposure compensation Highlight AE, Normal, Exposure lock, Auto backlight compensation.
Exposure Lock Yes.
Auto Gain Control setting Auto / Manual
Auto Gain Control limit 0 - 23dB (1dB increments)

SHUTTER SPEED

Control modes Auto, P, Tv, Manual
Shutter speed 1/6 - 1/2000 sec
  (1/2 - 1/500 sec in Low Light mode)
Slow Shutter (SLS) 50.00P:
  Auto slow shutter On: 1/25 to 1/500 sec.
  Auto slow shutter Off: 1/50 to 1/500 sec.

  25.00P:
  Auto slow shutter On: 1/12.5* to 1/500 sec.
  (*Display is 1/12)
  Auto slow shutter Off: 1/25 to 1/500 sec.
  Clear Scan No

WHITE BALANCE

Auto Yes
Preset Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
Manual setting Colour Temperature range: 2,000-15,000K
  Default value for Set 1 and Set 2: 5,600K
Built-in IR lamp Yes, in detachable Handle Unit.
Wavelength: 850nm (near-Infrared)
Look settings Standard
  (Adjustment: Sharpness, Contrast, Colour Depth)

AUDIO
Recording MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio control Manual/Auto
  Independent 2ch Line/Mic/Mic+48V input;
  Independent level control per channel
  (-∞ to +18 dB);
  Independent audio limiters (2 ch); Input mic trimming
Reference tone 1KHz, -12dB / -18dB / -20dB / Off
Microphone attenuation On/Off (20dB)
Microphone level meter Yes

SYSTEM
  MONITORING PANEL

Type Capacitive LCD touch panel
Size 3.5-inch (8.8 cm) on the diagonal,
Approx. 2,760,000 dots (1280 x RGB x 720)
Waveform Monitor No
Focus Assist Peaking / Magnify
Peaking Selectable Peaking Colour: Red / Blue / Yellow
Zebra 70% or 100% reference level
Markers Grid (white/grey), Level (white/grey), 4:3 (white/grey)

VIEWFINDER

Size 0.36-inch (0.92 cm on the diagonal), Approx.
  1,770,000 dots (1024 x RGB x 576)
Correction lens +2.0 to -5.5 dioptre

INPUTS/OUTPUTS
Audio input XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle,
  3.5mm microphone input jack
  (Supply Voltage 2.4V DC)
  Built-in Mic

Headphone output 3.5mm stereo mini jack
HDMI output HDMITM mini connector
USB Type-C
  Hi-Speed USB (USB 2.0) equivalent.
  Point-to-point class and UVC supported.
SDI output XA65: 3G-SDI. XA60: No
Time code No
Genlock No
LAN No
AV terminal No
DC input USB-C
Remote Control Terminal 2.5mm mini jack

WI-FI & GPS SPECIFICATIONS

Wi-Fi No
GPS Information Location (Latitude/Longitude/Altitude), Coordinated
(Optional Accessory) Universal Time (UTC), Satellite reception.
  (requires the optional GPS Receiver GP-E2)

MISCELLANEOUS

Tally lamp Yes, in detachable Handle Unit
Colour Bars (PAL) Yes. SMPTE, ARIB or EBU, with 1KHz Tone
Accessory shoe Yes (cold shoe)
Assignable buttons 5 assignable Buttons
Custom dial Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off

ACCESSORIES
Supplied Lens hood with barrier,
  Mic holder unit,
  Handle Unit
  HDU-1,
  Battery Pack BP-820,
  USB Power Adapter PD-E1,
  AC Cable

Optional (Includes items not currently on sale) Canon Battery Pack BP-820/BP- 828,
  Canon Battery Charger CG-800E/CG-800,
  Canon HDMI cable HTC-100/HTC-100S,
  Canon Tele Converter TL-H58,
  Canon Wide Attachment WA-H58
  Canon Shoulder Strap SS-600/SS-650
  Wrist Strap WS-20,
  Canon PROTECT Filter 58mm,
  Canon ND4-L Filter 58mm,
  Canon ND8-L Filter 58mm,
  Canon GPS Receiver GP-E2,
  Canon Remote Controller RC-V100,
  Canon Battery Video Light VL-10Li/VL-10LiII,
  Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII),
  Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series),
  Canon Interface Cable IFC-300PCU/S / IFC-400PCU

BATTERY

Battery Pack Canon Battery Pack BP-820 (supplied), BP-828 (optional)
Power Consumption (recording) UHD: MP4, 150Mbps 25.00P : Approx. 4.5W
  XF-AVC,160Mbps 25.00P : Approx. 4.5W
  Full HD:
  MP4, 35Mbps 50.00P : Approx. 4.6W
  XF-AVC, 45Mbps 50.00P : Approx. 4.6W
  Continuous Recording Time UHD
  MP4: 150Mbps/25.00p: Max. 165 mins (BP-820),
  typical 95 mins / Max. 240 Mins, typical 140 mins (Optional BP-828)
  XF-AVC: 160Mbps/25.00P: Max. 160 mins (BP-820), typical 95 mins. Max. 230 mins, typical 145 mins (Optional BP-828)

SIZE AND WEIGHT

Dimensions Approx. 109 x 84 x 182 mm (main body only)
  Approx. 131 x 180 x 231 mm
  (Including lens hood, BP-820, mic holder unit, and handle unit)
Weight (camera only) XA60: Approx. 740g,
Weight (fully equipped) XA60: Approx. 1135g,
Operating temperature range 0ºC to +40ºC, 85% relative humidity

Disclaimers All specifications are subject to change without notice Specification given for PAL Version
  • XA60
  • HDU-1 Handle Unit
  • PD-E1 USB Power Adapter
  • BP-820 Battery Pack
  • Lens Hood with Lens Barrier
  • Mic Holder
