| OPTICAL | |
| Image Size: | Full Frame |
| Angle of View (Horizontal, Vertical, Diagonal): | 29° - 10°, 19° 30' - 7° , 34° - 12° |
| Lens Construction (Elements / Groups): | 18/15 |
| Special Optics: | 3x Aspherical (inc 2x GMo and 1x replica), 2x Super UD, 1x UD (inc 1x UD Gmo Aspherical mentioned previously) |
| Special Features: | Iris Ring |
| Number of Diaphragm Blades: | 11 |
| Minimum Aperture: | 22 |
| Closest Focusing Distance: | 0.49m (at 70mm) 0.68m (at 200mm) |
| Maximum Magnification: | 0.3x (at 200mm) |
| Control Ring: | Yes |
| Image Stabilizer OIS: | EOS R8: 5.5 (Centre) |
| Image Stabilizer IBIS x OIS: | EOS R1: 7.5 (Centre) / 7.0 (Corner) |
| AF Actuator: | Dual Nano USM |
| Coating: | ASC, Super Spectra |
| Fluorine: | Front |
| ACCESSORIES | |
| Lens Cap: | E-82 II |

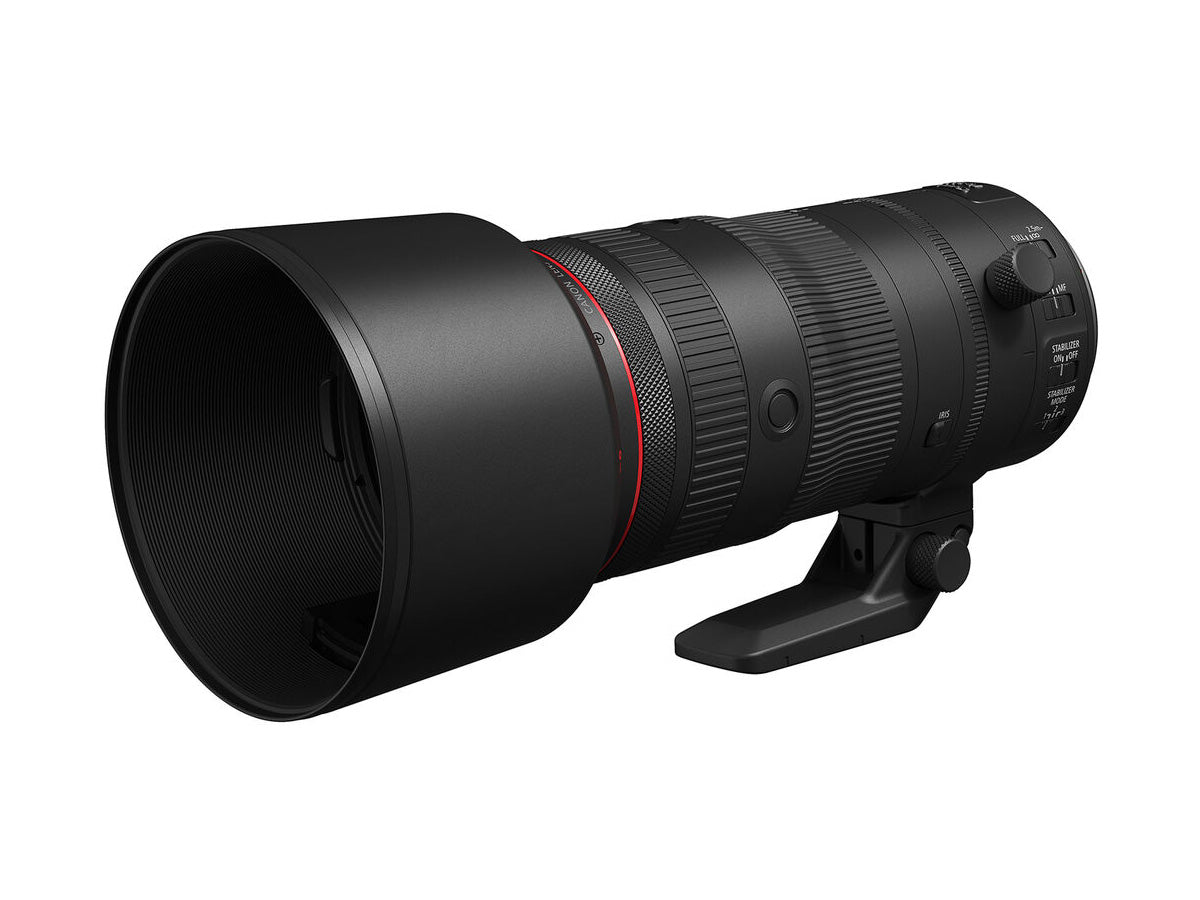

| Lens Hood: | White model: ET-88C (WIII) Black model: ET-88C (B) |
| Lens Case / Pouch: | LZ1328 |
| Rear Eng Cap: | Lens Dust Cap RF |
| Extender Compatibility: | Compatible with RF Extender only |
| Other Accessories: | Lens Holder LH-E1, Power Zoom Adapter PZ-E2 / PZ-E2B |
| SPECIFICATIONS W/ 1.4x EXTENDER | |
| Focal Length: | 98mm-280mm |
| Maximum Aperture: | 4 |
| Maximum Magnification: | 0.42 |
| AF Possible: | Yes |
| Image Stabilizer: | Yes |
| SPECIFICATIONS W/ 2x EXTENDER | |
| Focal Length: | 140mm-400mm |
| Maximum Aperture: | 5.6 |
| Maximum Magnification: | 0.6 |
| AF Possible: | Yes |
| Image Stabilizer: | Yes |
| PHYSICAL | |
| Dust / Moisture Resistance: | Yes |
| Exterior Coating: | White model: Heat Shield Black model: Standard |
| Filter Diameter: | 82 |
| Max Diameter x Length: | 88.5 x 199 |
| Weight: | White model: 1115 (excl. tripod mount) Black model: 1110 (excl. tripod mount) |
