Master your live broadcast feeds by operating and monitoring up to 200 cameras via IP. With unrivalled control and no requirement for a PC, this professional PTZ controller boasts SDI and HDMI connectivity plus a 7-inch multi-function touchscreen, customisable buttons, dials and an ergonomic joystick for precise manual control.

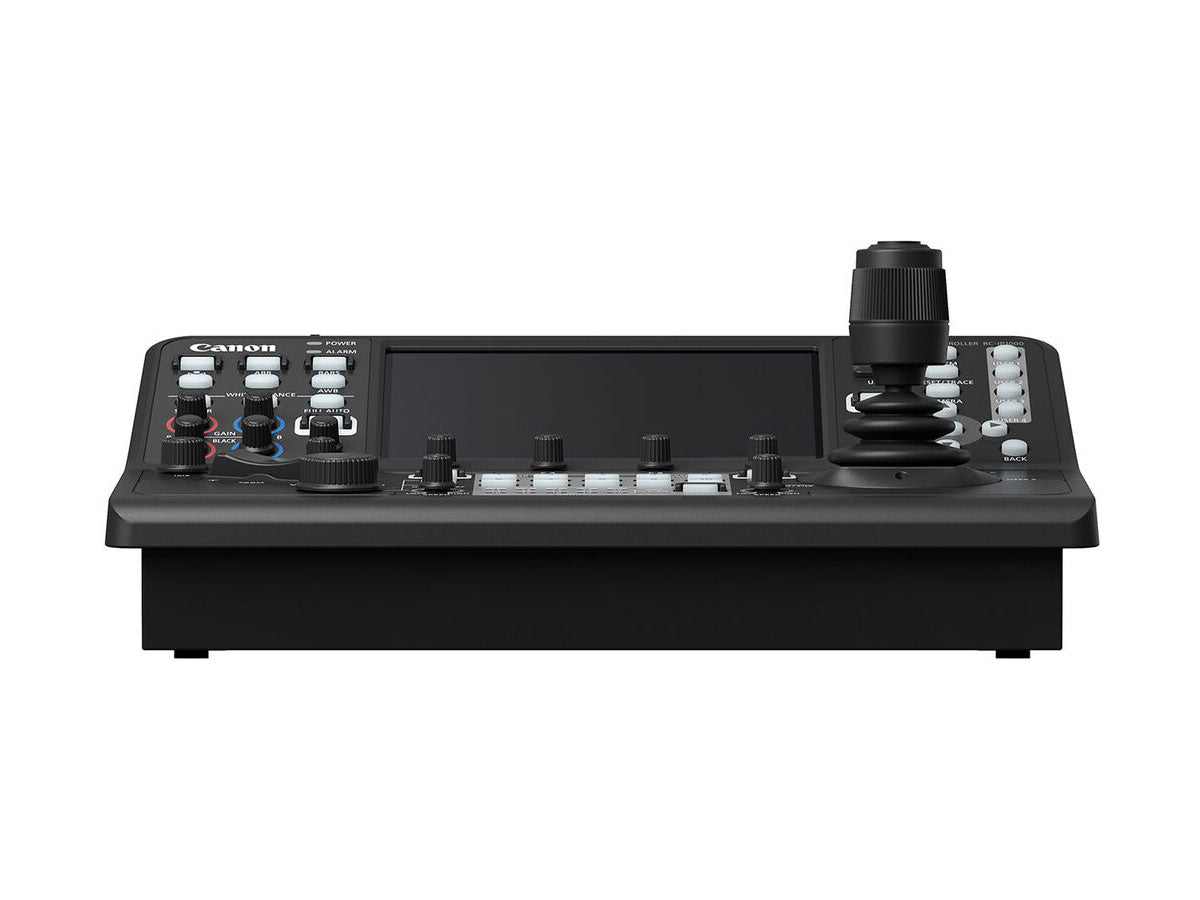

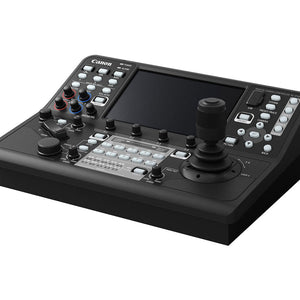

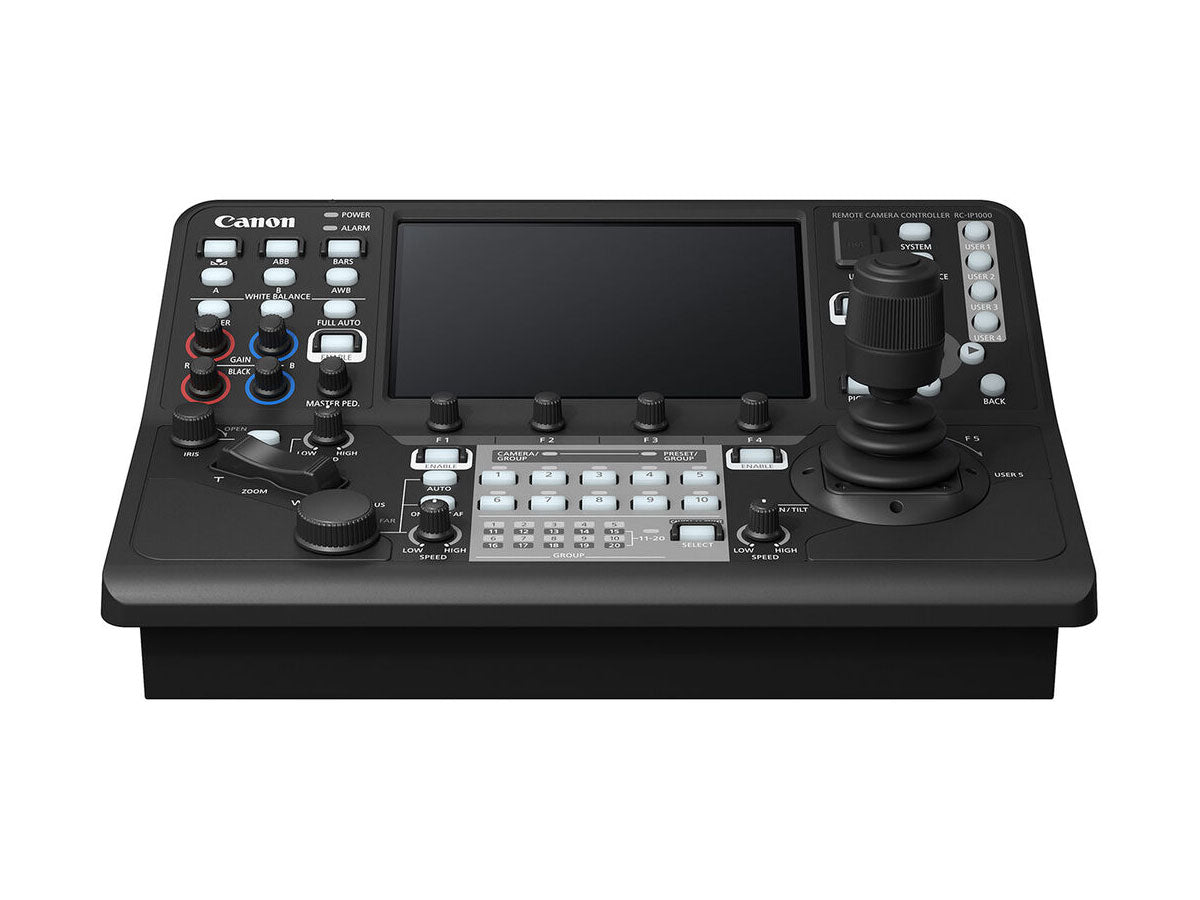

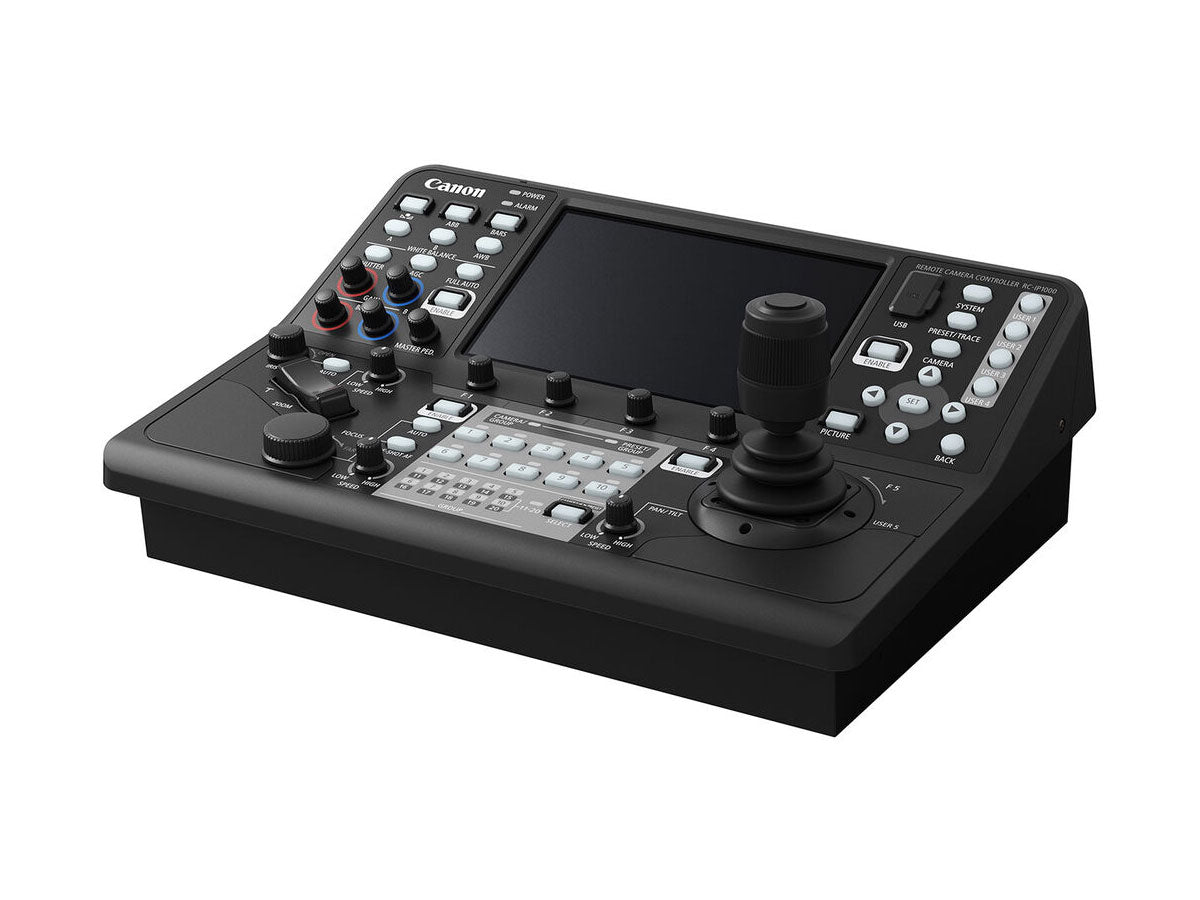

The RC-IP1000 is a professional PTZ controller aimed at broadcast and live events. It is the standalone controller with no PC required to set up PTZ Cameras. It offers a high-quality ergonomic joystick and professional zoom rocker along with professional level inputs, outputs and connectivity plus a 7-inch touchscreen control for video monitoring and intuitive control.
Tactile Precision, Professional Control

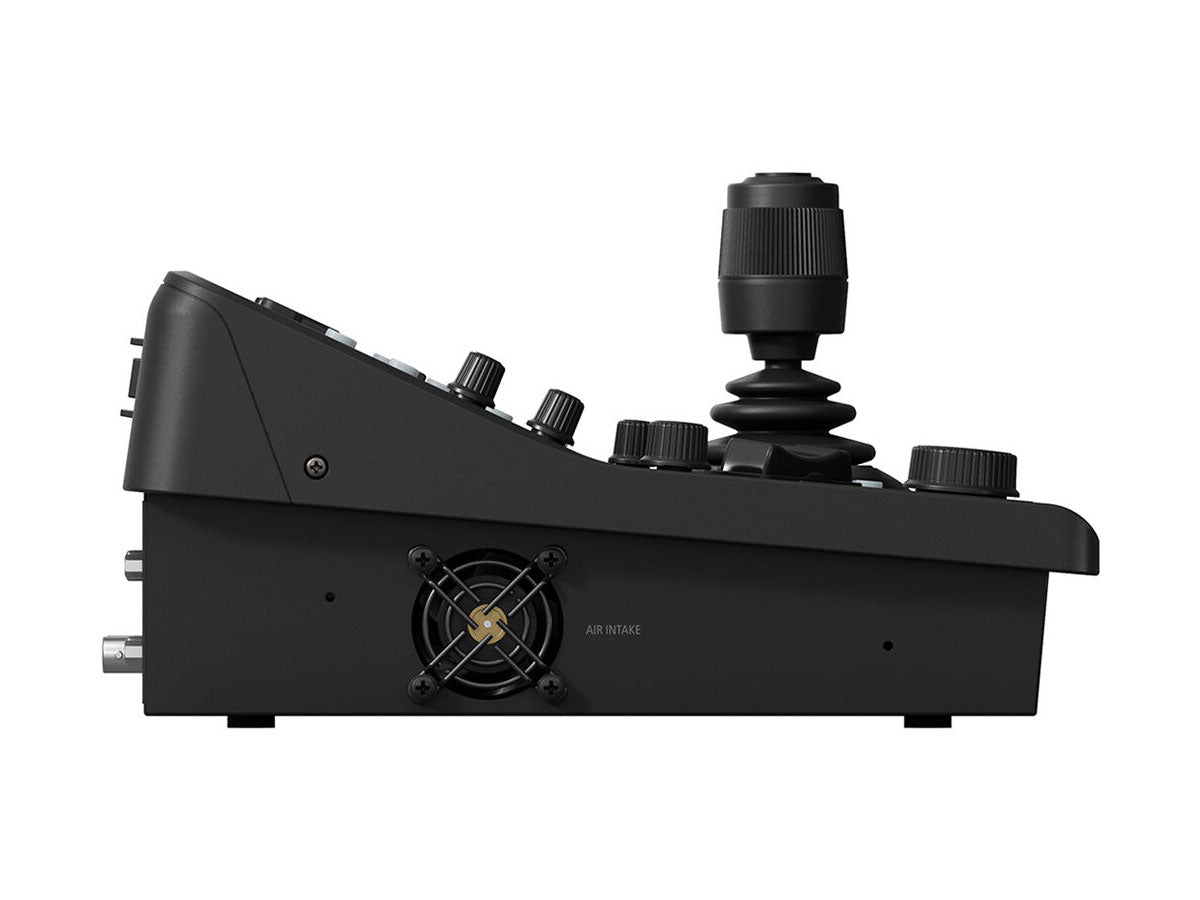

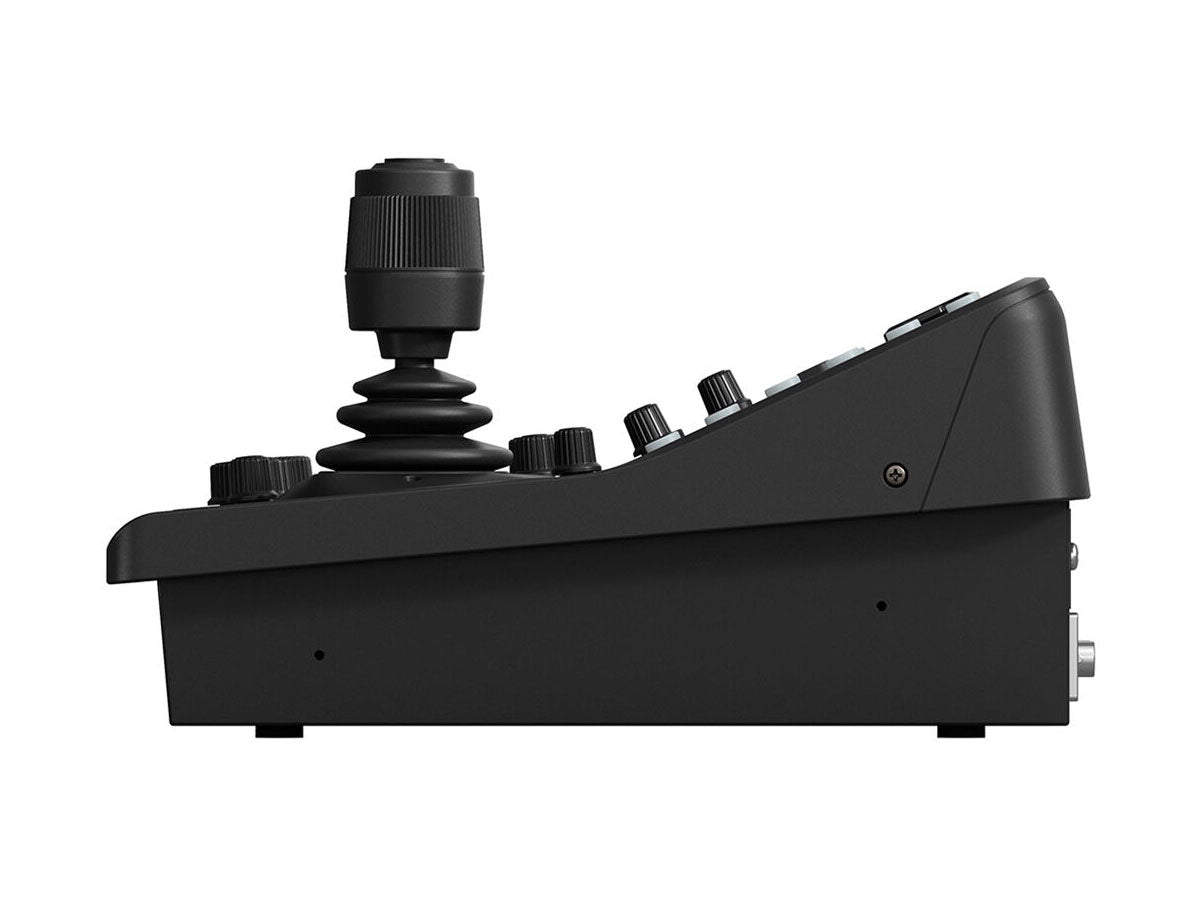

Fine-tune PTZ camera movements using the ergonomically designed joystick, designed to fit comfortably into the palm of your hand for intuitive twisting control. A customisable button on the top allows even greater versatility such as One Shot AF and Return to Home position.
Multiple Physical Buttons and Knobs

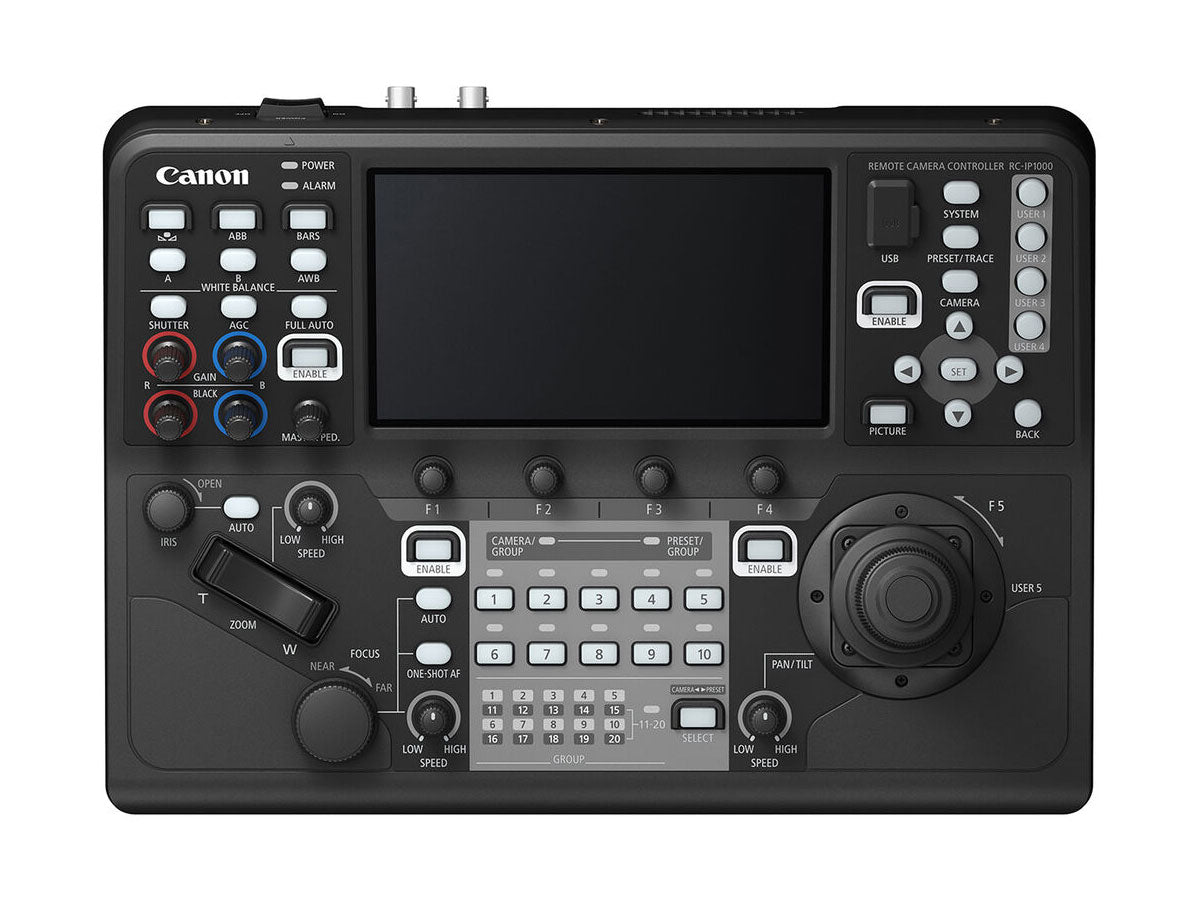

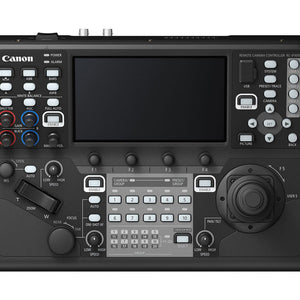

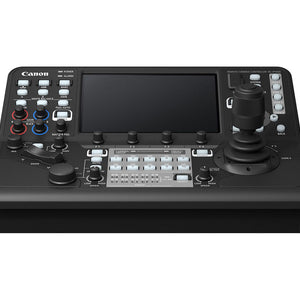

Control connected cameras using 42 buttons and 14 dials that control functions such as Iris, Gamma, Knee and white balance. Backlit LEDs help general visibility while the professional zoom rocker ensures pinpoint accuracy when adjusting the zoom.
IP Video and Input Monitoring
Monitor and control Canon camera feeds quickly and easily on the 7-inch touchscreen via IP with up to nine being viewable at once in various layout options. Whatever camera is chosen, the touchscreen will automatically switch to show that live feed. Alternatively, output one full-screen feed to an external monitor via the 12G-SDI or HDMI port.
Easy Set Up Without a PC
Use the RC-IP1000’s camera search function to find and register new cameras via the LAN. RC-IP1000 can change all system settings of up to 200 connected cameras such as IP address, ID, and password. It can also perform initial setup of camera and controller without a PC.
Multi-Camera Control Made Easy
Group all cameras together or up to ten in one group. Implement presets for multiple PTZ cameras at once as well as control others from Canon’s PTZ and Cinema EOS1 ranges, plus the XF605 Pro Camcorder.
Intuitive Touchscreen
Access a wide range of settings via the touchscreen. Set Focus Points and settings within touch AF, Face and Eye detection; control Manual Focus Point and adjust crop areas to enable two feeds to be sent out from one camera.
- IP Video and Input Monitoring - Monitor and control up to 200 cameras
- PC-less Set-up of cameras - Register and system setup of cameras without PC.
- 7-inch touchscreen -View feeds plus adjust AF settings, crop areas and more.

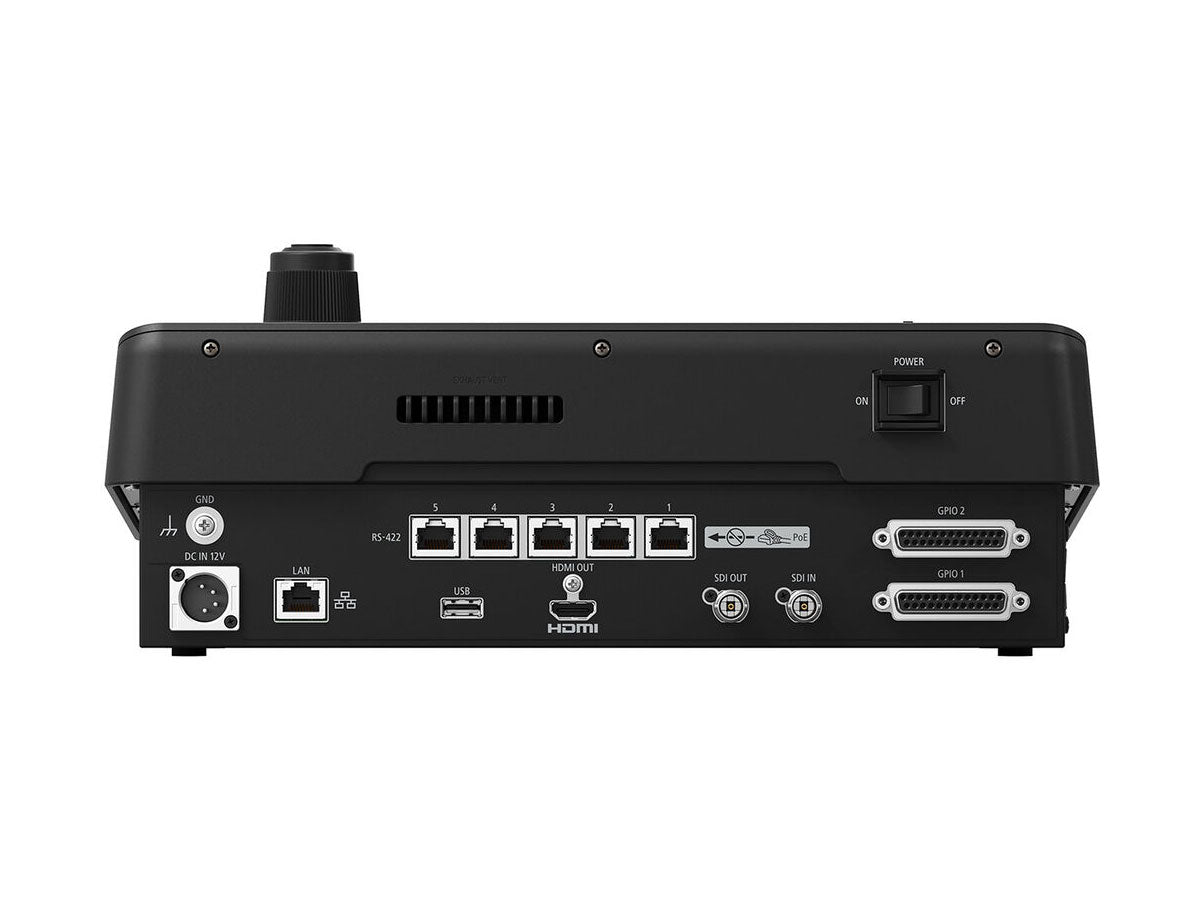

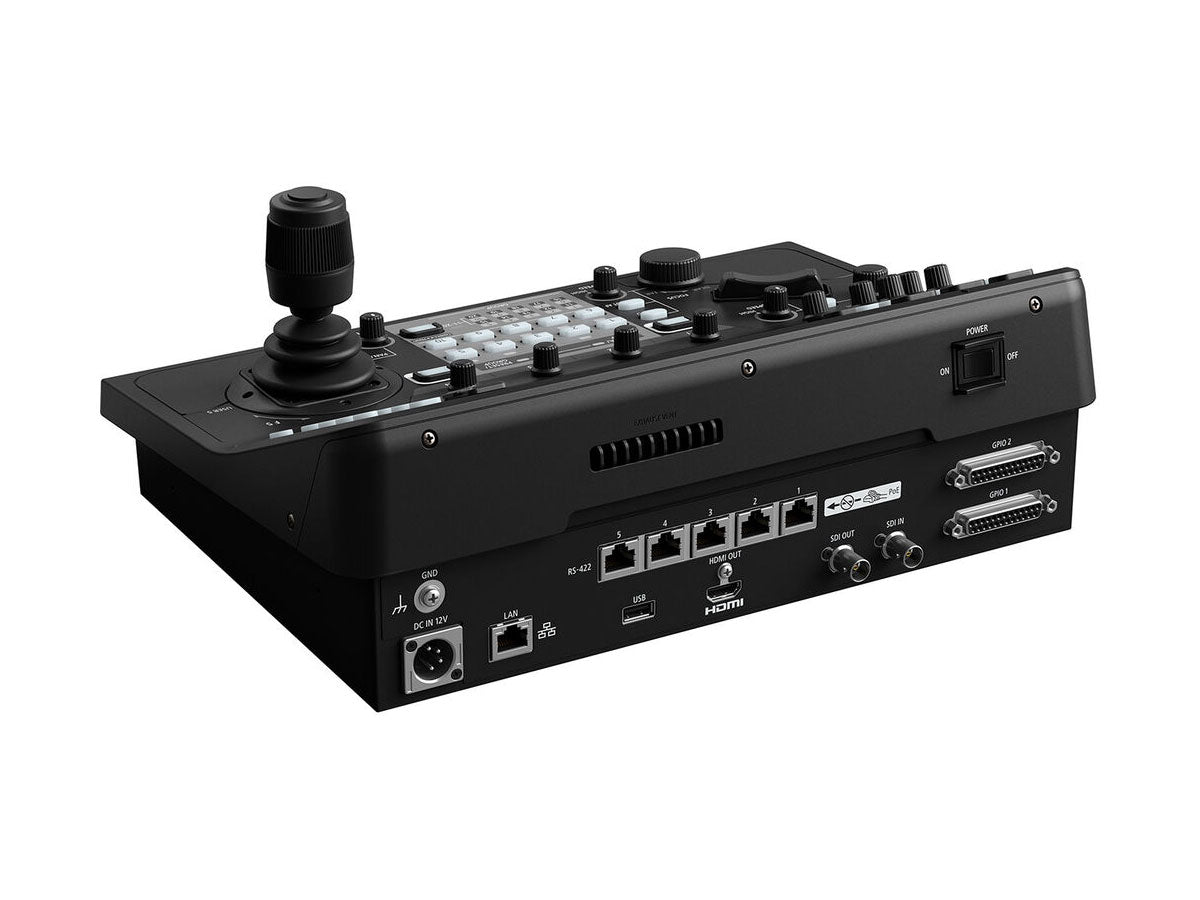

- Professional Inputs and Outputs - HDMI Out, 12G-SDI in/out, Serial RJ45, LAN/POE+, two USB ports and two GPIO D-Sub 25pin channels.
- Multiple physical buttons and dials - For professional control and setting adjustments
- High quality joystick and zoom rocker - Ergonomic, comfortable design
- Multiple camera control - Control multiple cameras by grouping them for easy control.
- Advanced Pre-Set and Trace control - Control other cameras during trace. Easy access to presets using physical buttons and touch screen.
- Arrow Buttons - Easy menu navigation.
| GENERAL | |
| Power Supply (Adapter): | DC12V |
| Power Supply (PoE): | (PoE + with some restrictions) |
| Exterior Dimensions: | W 342 mm x H 115 mm x D 245 mm (excluding controller level, protruding parts) |
| Weight: | 3.5 kg (T.B.D.) |
| Operating Temperature: | 0°C - 40°C |
| LCD Display: | 7-inch capacitive touch panel |
| Supported Protocols: | XC protocol (IP) NU protocol (serial) |
| CONNECTIONS | |
| No. of Connectible Cameras: | 200 (IP), 5 (Serial) |
| No. of Camera Groups: | 20 (10 units per 1 group |
| INPUT / OUTPUT | |
| Power Supply: | XLR-4pin (10.8 to 20V) |
| Video Input / Output: | IP IN (video switch with camera selection; 2x2/ 3x3 multi-camera video display) 12G-SDI IN/OUT (2K/4K except through-out, no additional information such as audio/TimeCode) HDMI OUT (2K, no additional information such as audio/TimeCode |
| Serial Interface: | RJ45 x 5 |
| Tally / GPIO: | D-sub 25pin x 2 |
| Video Display on Touch Panel: | YES (SDI IN/IP) |
| Touch Focus from Screen: | YES (SDI IN/IP) |
| USB: | Control panel: USB Type A (for saving settings data, firmware update) Rear: USB Type A (for expansion) |
| MEMORY | |
| Presets: | Up to 100 for each camera (depends on camera specs) |
| Hard Button Support for Presets: | Yes (used with camera number buttons |
| Trace: | Up to 10 for each camera (depends on camera specs) |
