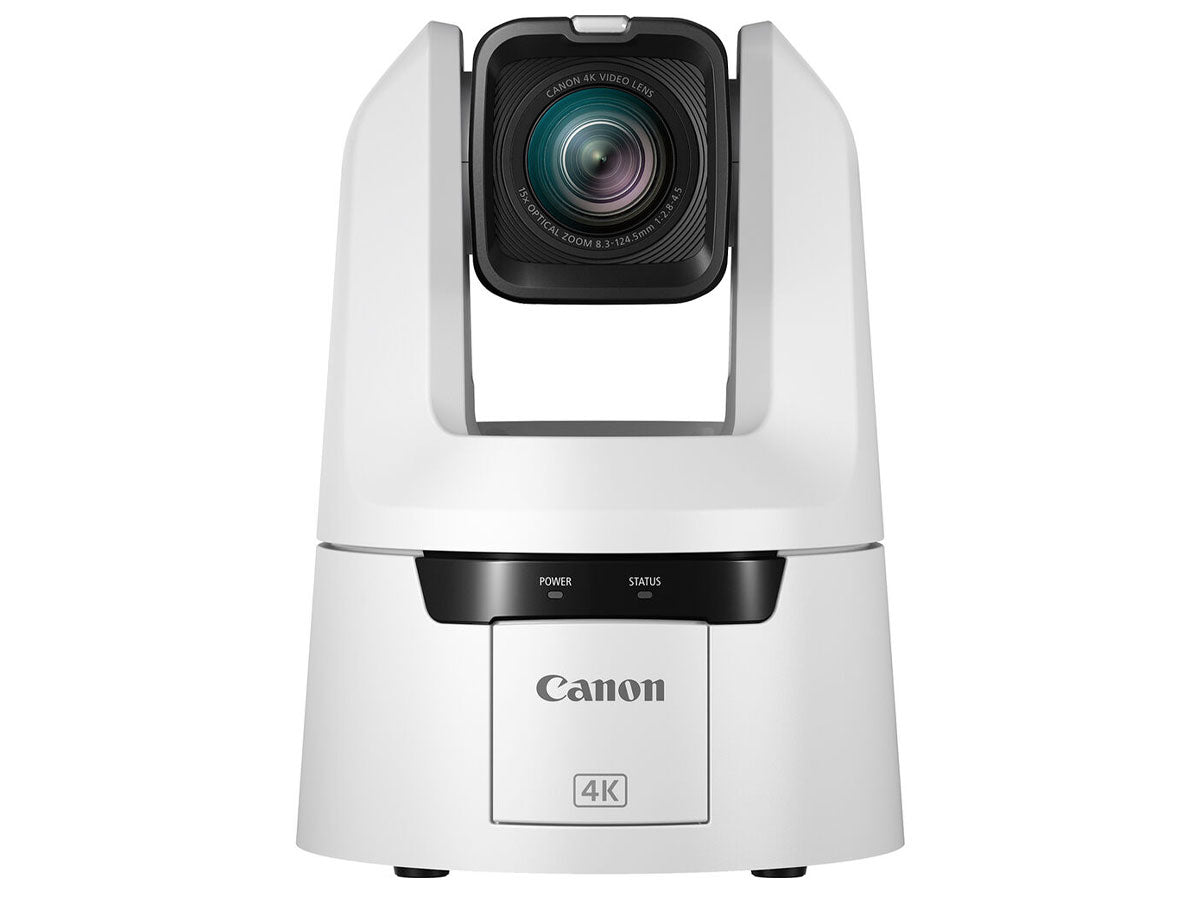

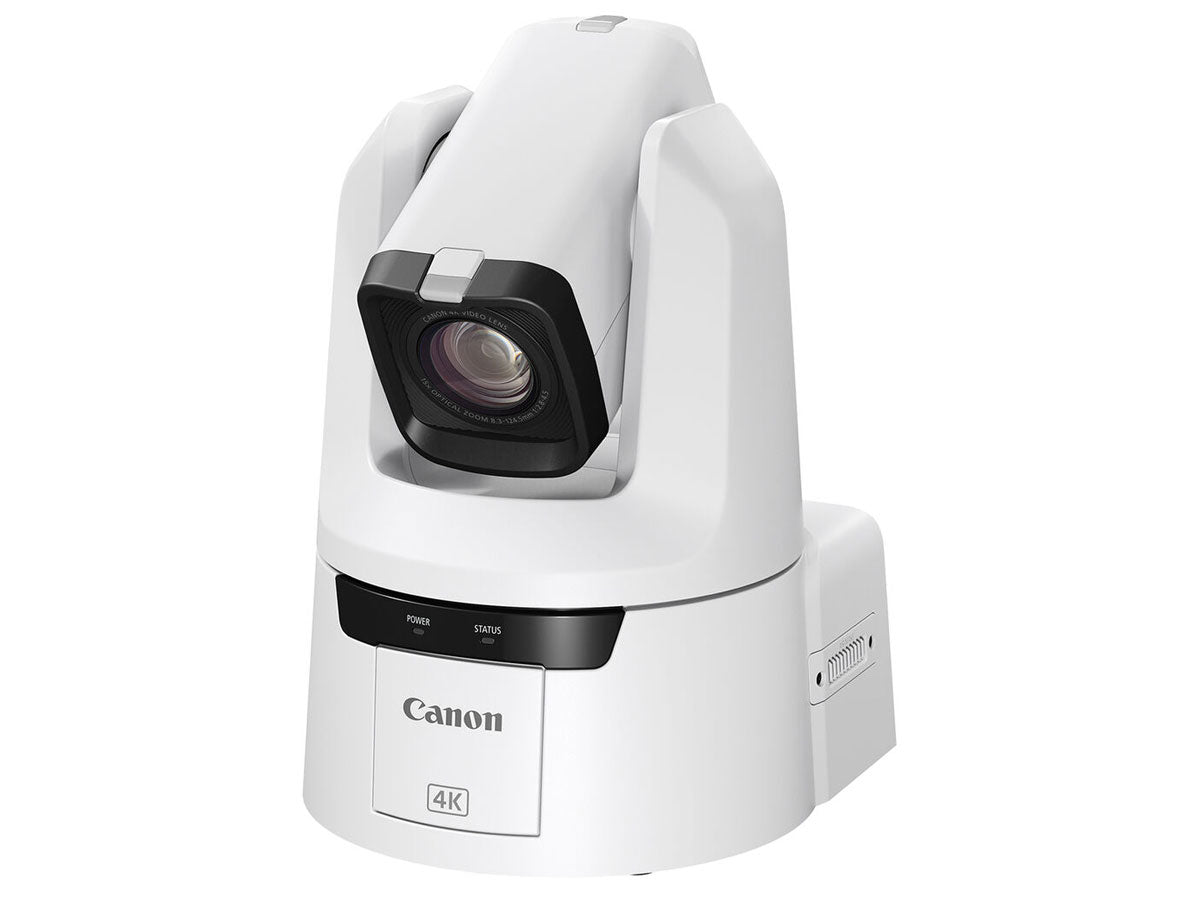

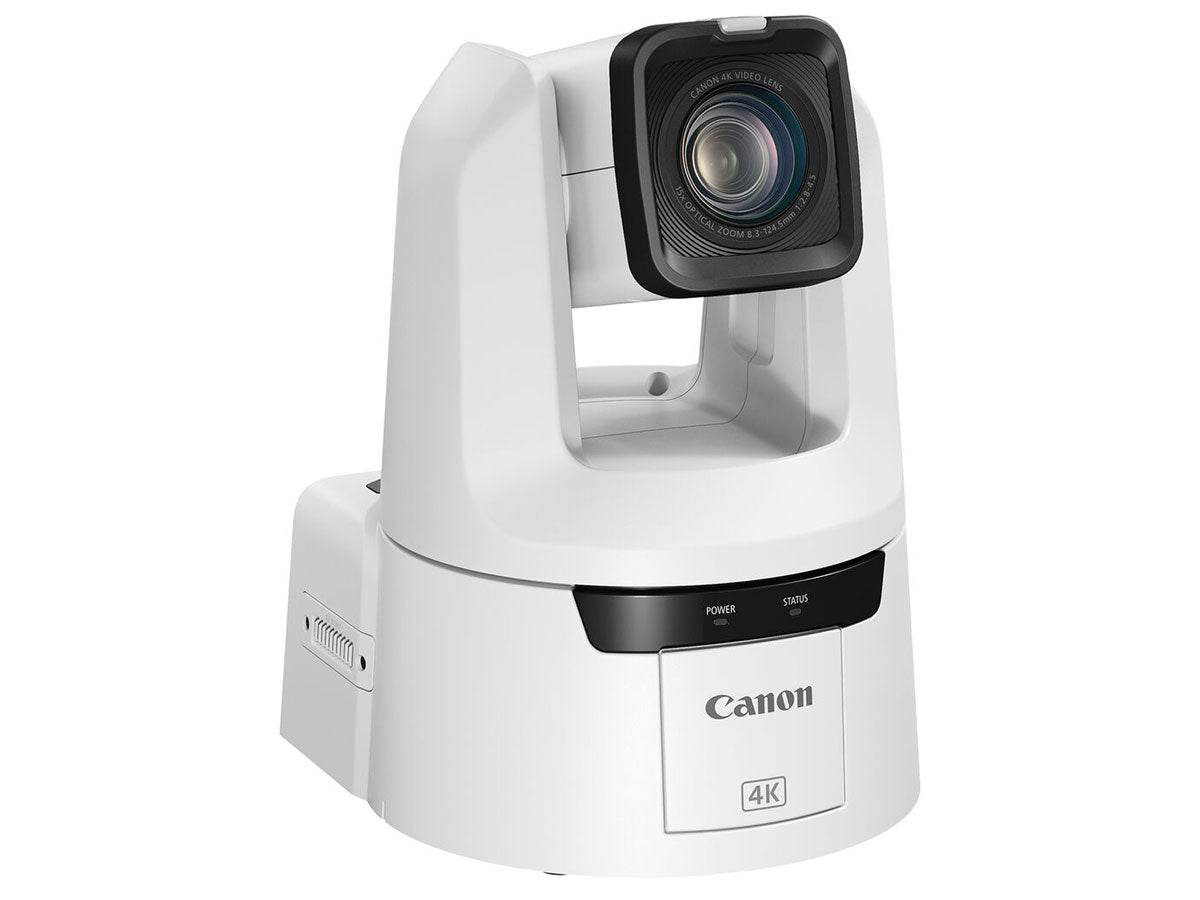

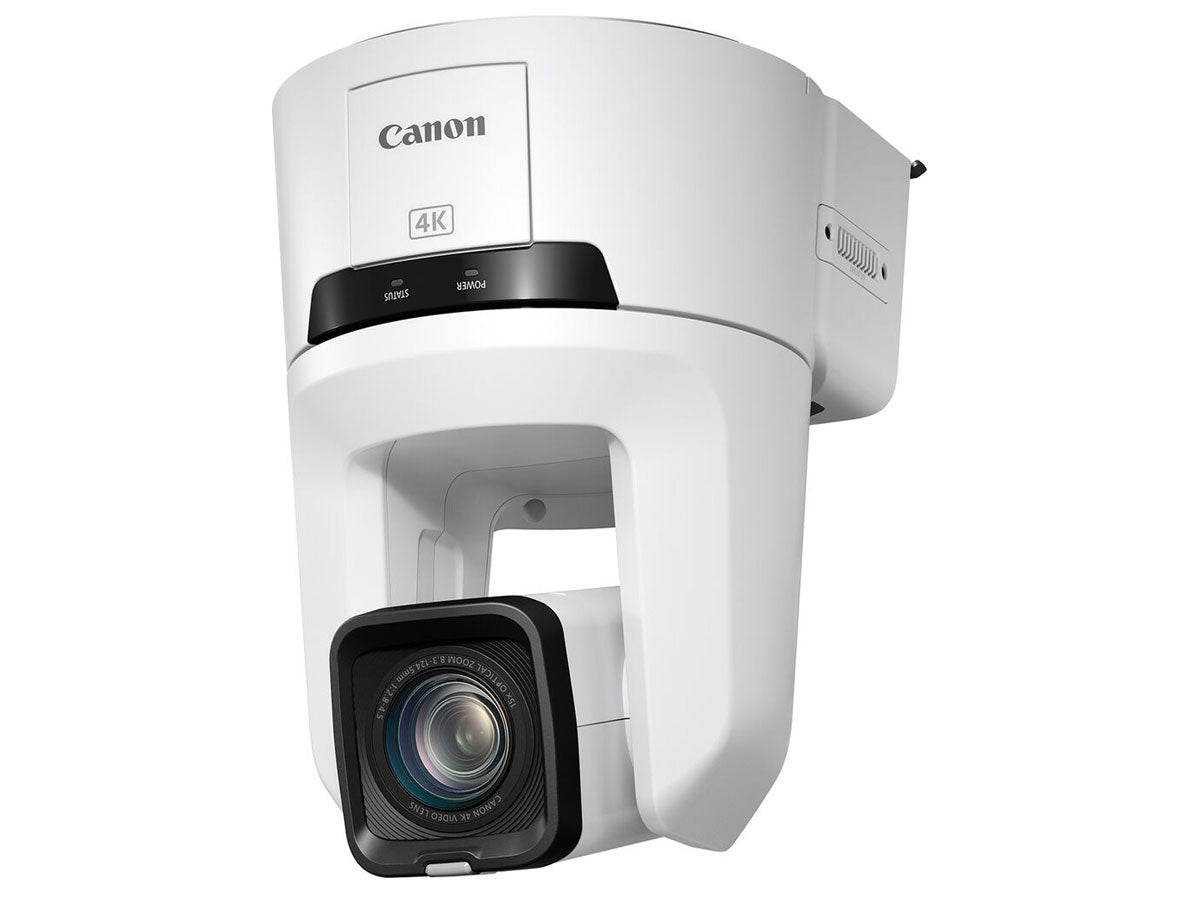

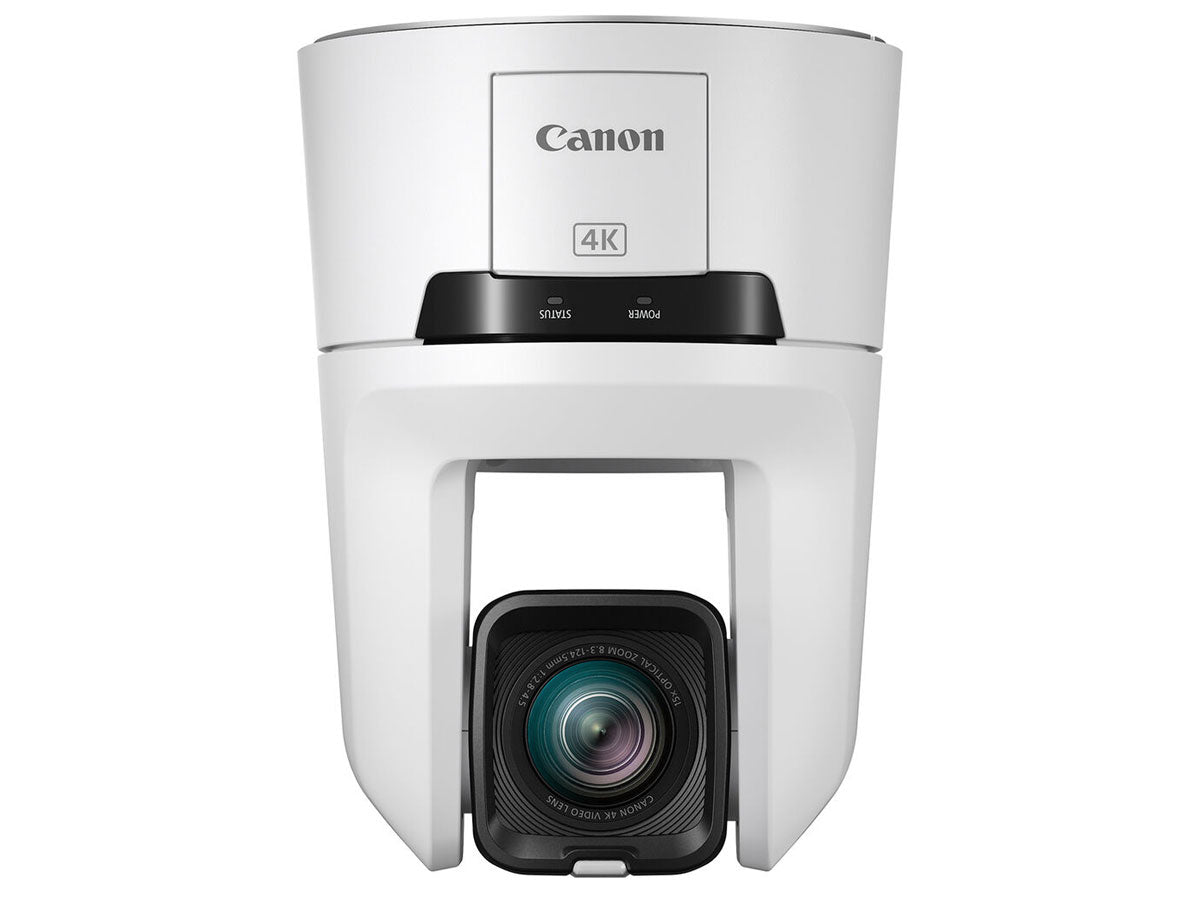

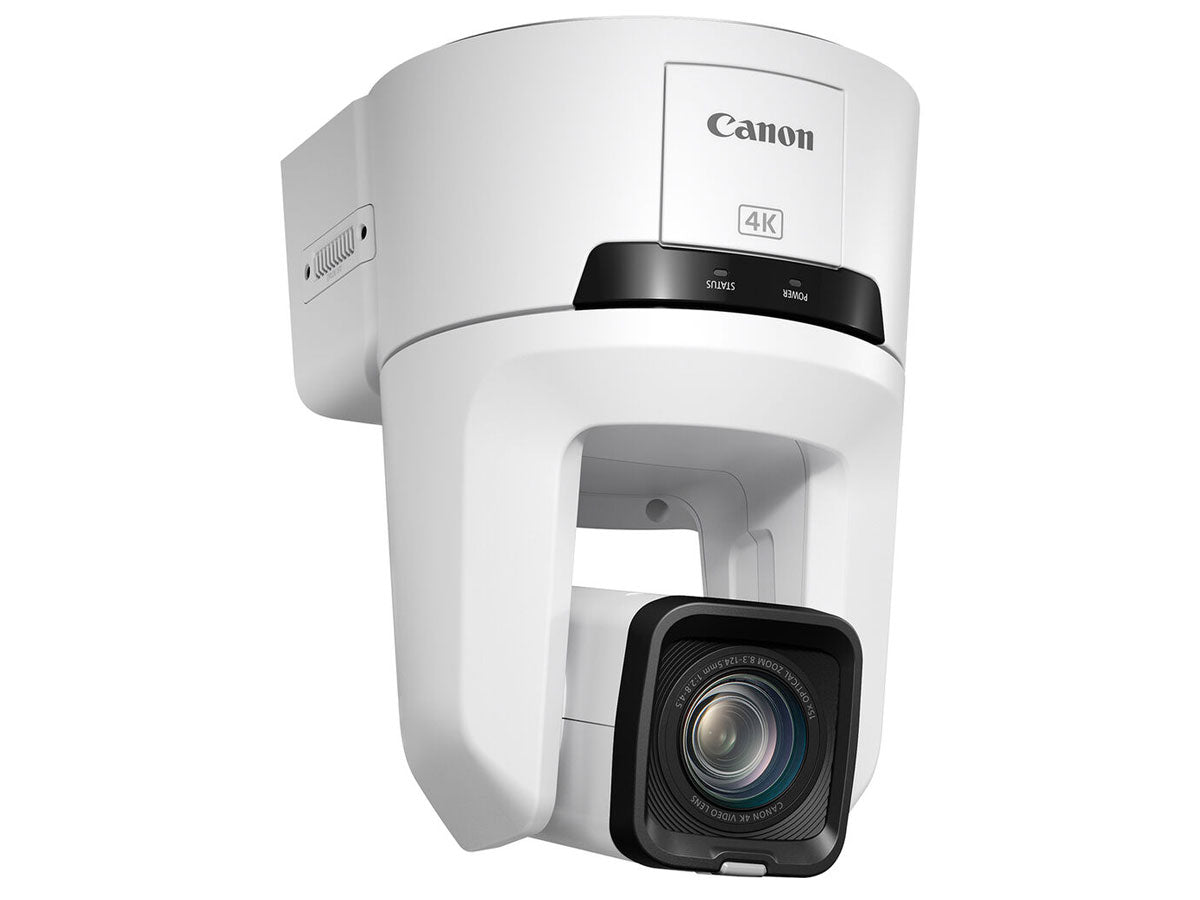

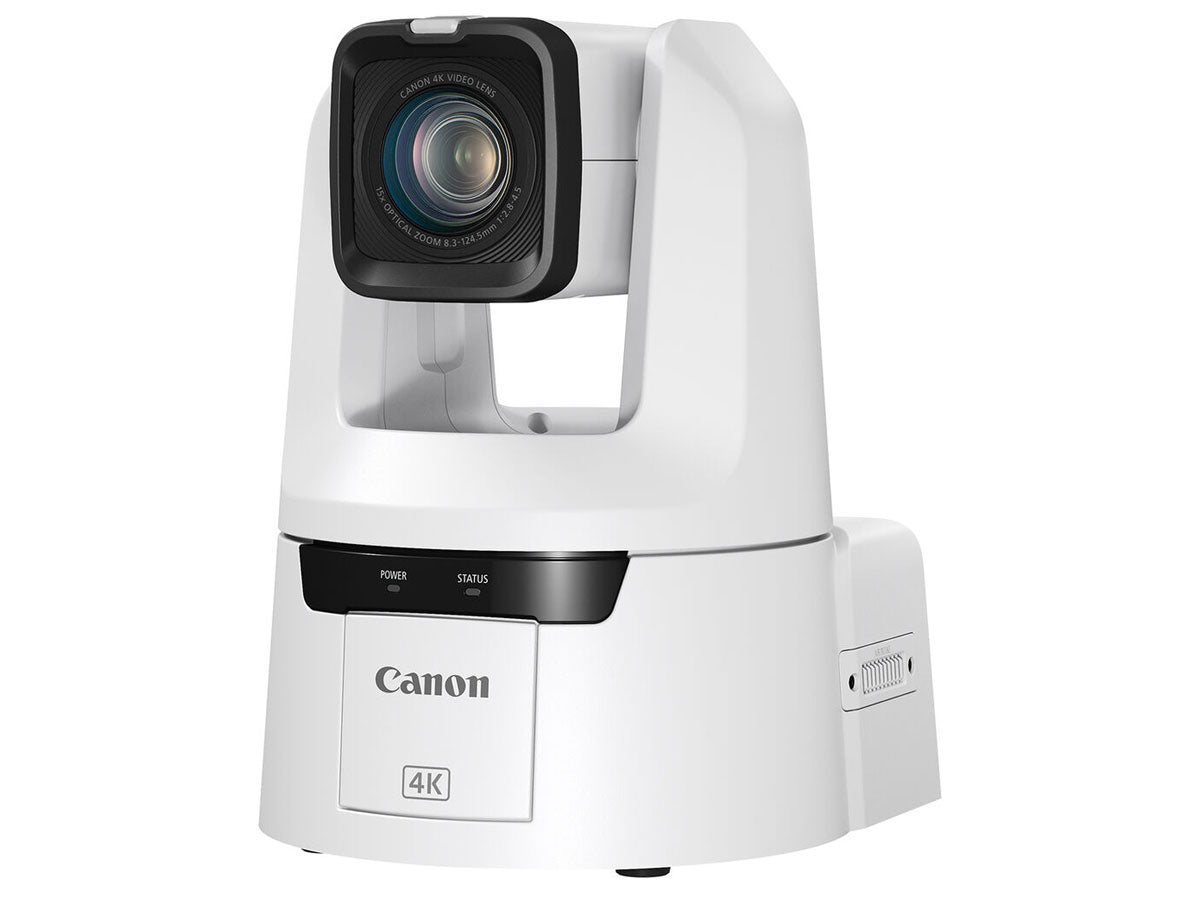

Canon N700 4K PTZ Camera - White
Canon N700 4K PTZ Camera - White
SKU:
CAN-6022C002
Regular price
£7,500.00 GBP ex VAT
£9,000.00 GBP inc VAT
£9,000.00 GBP inc VAT
Regular price
ex VAT
Sale price
£7,500.00 GBP ex VAT
£9,000.00 GBP inc VAT
Unit price
per
£9,000.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Achieve Broadcast Quality, Easily
To meet the current demands of broadcasters, the CR-N700 features a 1.0 Type CMOS sensor and DIGIC DV7 processor to deliver exceptional 4K UHD 60P 4:2:2 10-bit imagery, for truly immersive content. Capable of high-quality transmission, Canon’s newest PTZ camera allows content creators to stream 4K 60P over IP – perfect for remote and live broadcast productions. This impeccable image quality is also the result of the high-performance lens, which has a 15x optical zoom and a 30x advanced zoom when shooting in Full HD. When coupled with Canon’s renowned Image Stabilizer, broadcasters can capture smooth, steady footage even from a distance. This is ideal for shooting reality TV shows or even sports, when camera operators want to discreetly zoom in on the action. The CR-N700 also features a Night Mode, allowing operators to capture footage in near darkness thanks to an in-built IR cut filter. Along with the HDR formats in PQ or HLG, broadcasters can capture uncompromised footage in any lighting environments.
Breaking new ground for Canon’s line-up of PTZ cameras, the CR-N700 is equipped with fast, intelligent and extremely accurate focusing thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X. This deep learning autofocus locks onto a subject’s head, to track them as they move and even when they turn their face away. Eye Detection AF locks onto the subject’s pupil for even greater precision, while the Face Priority AF allows operators to prioritise a specific individual. This is ideal for scenarios where it’s imperative to stay locked onto the anchor throughout.
Superior Connectivity, Simple Workflows
As with Canon’s entire range of PTZ cameras, the CR-N700 supports multiple protocols to seamlessly integrate with existing workflows. Designed to fit into the diverse production ecosystems of broadcasters, the CR-N700 features SRT and NDI|HX[i] protocols for high quality 4K video streams, while FreeD enables integration with virtual productions. Broadcasters can easily create multi-camera set ups that meet their needs with these protocols and with Canon’s XC protocol it is possible to integrate the CR-N700 alongside other Canon Cinema EOS cameras such as the EOS C500 Mark II, EOS C300 Mark III or professional camcorders including the XF605[ii] for a truly versatile set-up. It’s even possible to match other Canon cameras’ look with Canon Log 3 and Wide Dynamic Range picture settings.
The flexible connectivity options include 12G-SDI and 3G-SDI, HDMI or IP (PoE++) which allow the seamless transmission of 4K60P, for high-quality consistent broadcasts. The CR-N700 also includes professional dual XLR audio inputs and GEN-LOCK, for different production needs.
Enhanced Control
Canon’s latest PTZ camera offers the same intuitive control as other models in the line. The advanced drive mechanism enables movements as slow and precise as 0.1° /second meaning operators can capture cinematic shots. Compatible with both Canon’s RC-IP100 controller and Remote Camera Control Application controllers, as well as selected third-party controllers, this further simplifies integration with existing production set-ups. With the CR-N700’s crop function, broadcasters can take two separate feeds from a single PTZ camera. They can select a region of interest within the frame and output that as a separate feed in Full HD. This feature is perfect for productions with limited PTZ cameras on site.
- 4K 60P 4:2:2 10-bit Image Quality
- 1.0-inch Type CMOS sensor
- DIGIC DV7 Processor
- 15x Optical and 30x Advanced zoom
- Dual Pixel CMOS AF with EOS iTR AF X
- HDR Imagery
- Region of Interest Cropping
- Inbuilt Protocols including SRT, NDI HX, FreeD and more
- Flexible connectivity with 12G-SDI, HDMI, IP (PoE++) and more
| CAMERA | ||
| Image Sensor: | Type 1.0 (1.0 in.) single-plate CMOS sensor | |
| Effective Pixels: | approx. 8.29 megapixels (3840 x 2160) | |
| Lens: | 15x optical zoom, 9-bladed iris diaphragm | |
| Optical Zoom: | 15x optical zoom (30 x with advanced zoom) | |
| Digital Zoom: | 20x digital zoom | |
| Focal Length: | 8.3 – 124.5 mm, f/2.8 – 4.5, 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T) | |
| Angle of View: | Horizontal: 73.0 (W) – 5.7° (T) Vertical: 45.2° (W) – 3.2° (T) | |
| Minimum Subject Illumination: | Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain) Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain) | |
| Shutter Speed: | 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate) | |
| Iris: | Manual/Automatic aperture | |
| Gain: | -6.0 dB - 36.0 dB | |
| ND Filter: | Built-in (Off, 1/4, 1/16, 1/64), motor operated | |
| Night Mode (IR Cut Filter Off): | Yes | |
| Whtie Balance: | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), | |
| Focus: | Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF type: Dual Pixel CMOS AF, Contrast AF Detection: Face Detection, Eye Detection | |
| Minimum Focusing Distance: | 1 cm at wide end, 60 cm across entire zooming range | |
| Gamma: | BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG | |
| Pan & Tilt: | Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. Tilt operation range: Vertical -30° – +90° Tilt operation speed: 0.1° – 100°/sec. | |
| SERVER | ||
| Video Output Format: | SDI: | [12G-SDI] 3840 x 2160: 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit) 1280 x 720: 59.94P/50.00P (4:2:2 10 bit) 720 x 576: 59.94i/50.00i (4:2:2 10 bit) [3G-SDI] 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit) 1280 x 720: 59.94P/50.00P (4:2:2 10 bit) 720 x 576: 59.94i/50.00i (4:2:2 10 bit) |
| HDMI: | 3840 x 2160: 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit) 1280 x 720: 59.94P/50.00P (4:2:2 10 bit) 720 x 576: 59.94i/50.00i (4:2:2 10 bit) | |
| IP: | [Frame frequency 59.94 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) *59.94 fps/50.00 fps is only when H.265. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps | |
| USB: | No | |
| Video Transmission Protocol: | Canon XC, RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD | |
| Preset: | Number of presets: Max. 100 (including home position) | |
| INTERFACE | ||
| Communication Control: | LAN, Wi-Fi, Serial, IR | |
| Network Terminal: | LAN x 1, RJ45, 1000Base-T | |
| SDI OUT Terminal: | 2G-SDI OUT Terminal 6G-SDI OUT Terminal 3G-SDI OUT Terminal | |
| GEN-LOCK Terminal: | BNC jack (also serves as the SYNC OUT terminal) | |
| TIME CODE Terminal: | BNC jack (for both input/output) | |
| HDMI OUT Terminal: | HDM connector (Type A), both video and audio are output only | |
| RS-422 Terminal: | RJ45 connector x 1 | |
| INPUT 1 / INPUT 2 Terminals: | XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale) Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ) | |
| MIC Terminal: | Ï• 3.5 mm stereo mini-jack (unbalanced; supports plug-in power) Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale) Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ) | |
| USB Terminal: | No | |
| PHYSICAL FEATURES | ||
| Operating Environment: | Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation) | |
| Power Supply: | PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used External power source: 12 V DC | |
| Power Consumption: | PoE++ Input: Approx. 37.4 W/1.2 A max. (body only) DC Input: Approx. 36.7 W/3.5 A max. (body only) | |
| Dimensions: | Approx. 200 x 269 x 208 mm (excluding protrusions) | |
| Weight: | Approx. 4.4 kg (9.7 lbs) [Body Only] | |
- 1 x CR-N700 Camera
- 1 x Mounting Bracket, with screw
- 1 x Safety Wire, with screw
- 1 x Camera-to-mount Safety Wire, with screw
- 1 x Remote Control (WL-N01)
