| IMAGE SENSOR | |
| Type: | 22.3 x 14.9mm CMOS |
| Effective Pixels: | Approx. 24.1 megapixels |
| Total Pixels: | Approx 25.8 megapixels |
| Aspect Ratio: | 3:2 |
| Low-Pass Filter: | None |
| Sensor Cleaning: | None |
| Colour Filter Type: | RGB Primary Colour |
| Sensor Shift-IS: | No |
| IMAGE PROCESSOR | |
| Type: | DIGIC 8 |
| LENS | |
| Lens Mount: | RF |
| Compatibility: | RF, RF-S (EF and EF-S lenses compatible via mount adapter) |
| Focal Length: | Equivalent to 1.6x the 35mm focal length of the lens |
| Image Stabilisation: | Optical stabilisation with lenses featuring IS Movie Digital IS: Off / Enabled / Enhanced |
| FOCUSING | |
| Type: | Dual Pixel CMOS AF System Contrast detection method is used during 4K Movie Servo AF |
| Maximum AF Zones (Stills / Movies): | 143 / 117 |
| AF System / Points: | Stills: Maximum 3975 positions Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings. Max 25 frames in Zone AF Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent) |
| AF Working Range: | EV -4 - 18 / EV -2 - 18 |
| AF Modes: | One-Shot AF and Servo AF |
| AF Point Selection: | Face+ Tracking Stills: Maximum 3975 positions Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings. Max 25 frames in Zone AF Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent) |
| AF Tracking: | Humans (Eyes/Face/Head/Body) |
| AF Lock: | Locked when shutter button is pressed half way or customisable AF Lock Button |
| AF Assist Beam: | via LED assist beam |
| Manual Focus: | With RF lenses: Via dedicated AF/MF switch on lens where available, or in menu With EF & EF-S lenses - Select via AF/MF switch on lens MF Peaking available AF+MF available (Manual focus adjustment after One-Shot AF) Magnify image available during MF (3-10x, in 0.1x increments) |
| Focus Bracketing: | Not provided |
| EXPOSURE CONTROL | |
| Metering Modes: | Real-time metering from the image sensor
|
| Metering Brightness Range: | Still image: EV -2 - 20 Movie: EV 0 - 20 |
| AE Lock: | Auto: In One-shot AF mode, exposure is locked as soon as subjects are in focus Manual: By AE lock Button in creative zone or movie modes |
| Exposure Compensation: | +/-3 EV in 1/3 stop increments |
| AEB: | 3 shots, +/- 2 EV, 1/3-stop increments |
| Anti-Flicker Shooting: | Yes. Flicker detected at a frequency of 100 Hz or 120 Hz High frequency anti-flicker shooting not provided |
| ISO Sensitivity: | Normal ISO speed: ISO 100-12800 in 1/3 or 1-stop increments Expanded ISO speed: H (equivalent to ISO 25600) |
| SHUTTER | |
| Type: | Electronically controlled focal-place shutter (Rolling shutter, using the image sensor). Electronic first curtain, mechanical 2nd curtain |
| Speed: | 30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
| Shutter Release: | Soft-touch electromagnetic release |
| WHITE BALANCE | |
| Type: | Auto white balance with the imaging sensor |
| Settings: | AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation: 1. Blue/Amber +/-9 2. Magenta/Green +/-9 |
| Shift: | Blue/Amber +/-9 levels Magenta/ Green +/-9 levels |
| Custom White Balance: | Yes, select an image on a card for use as a custom white balance |
| WB Bracketing: | +/- 3 levels, single level increments |
| VIEWFINDER | |
| Type: | 0.39-type OLED Electronic Viewfinder |
| Dot Count: | Approx. 2,360,000 dots |
| Coverage (Vertical / Horizontal): | Approx 100% |
| Magnification: | Approx. 0.95x |
| Eyepoint: | Approx 22mm |
| Dioptre Correction: | Approx. -3.0 to +1.0 m-1 (dpt) |
| Viewfinder Information: | Viewfinder sensor: provided Vertical display for Stills only. Exposure Simulation 'Customisable and toggle via [INFO] Button
Grid overlay (x3 formats), Histogram (Brightness/ RGB) Viewfinder Brightness: Manually adjustable 1-5 |
| Depth of Field Preview: | Yes |
| Eyepiece Shutter: | No |
| LCD MONITOR | |

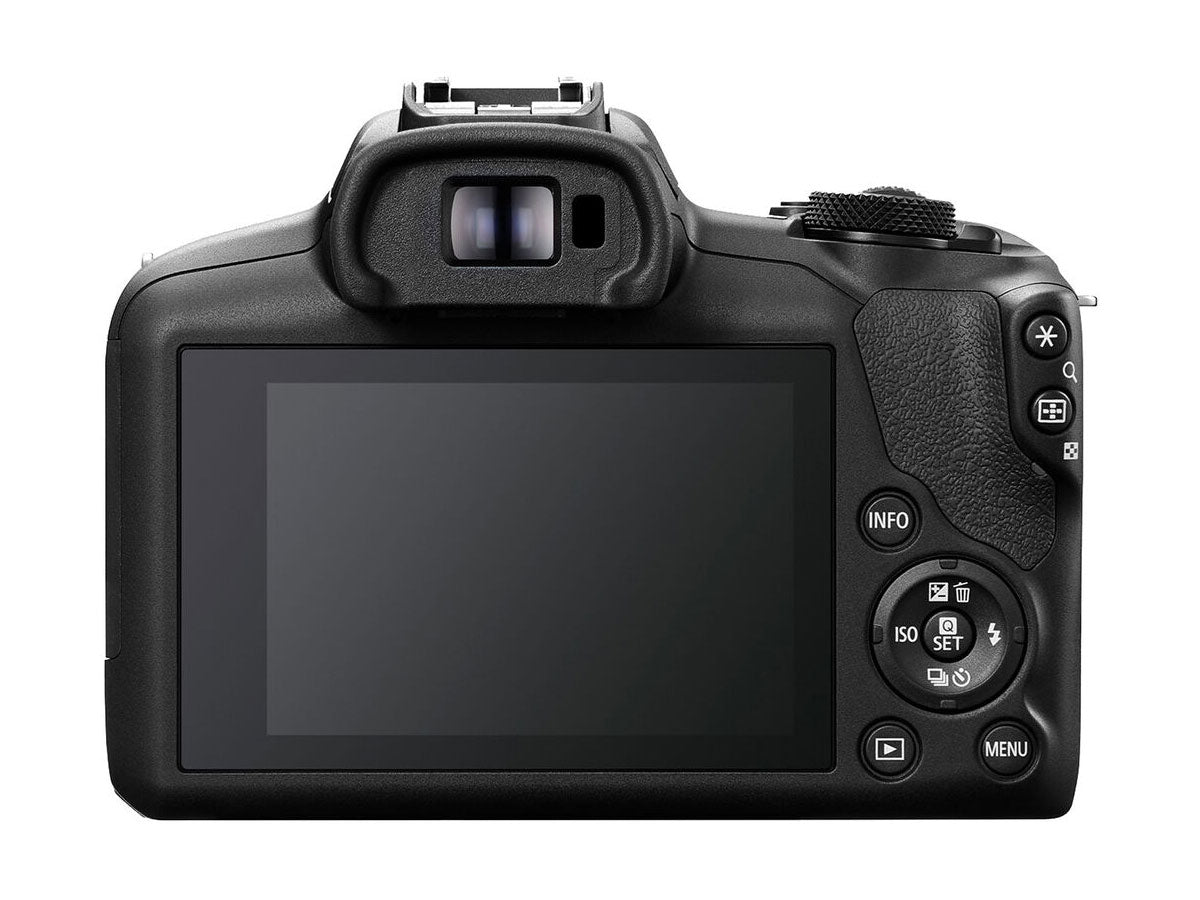

| Type: | 7.5 cm (3.0”) LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. |
| Coverage: | Approx 100% |
| Brightness Adjustment: | Adjustable to one of seven levels |
| Touch Screen Operations: | No |
| Display Options: | Customisable and toggle via [INFO] Button
Customisable settings: |
| FLASH | |
| Built-In Flash GN (ISO 100, Meters): | 6 |
| Built-In Flash Coverage: | Approx. 18mm angle of view |
| Built-In Flash Recycle Time: | Approx. 5 seconds |
| Modes: | Auto Fire Off E-TTL II flash metering (Evaluative (Face Priority) / Evaluative / Average) |
| Red-Eye Reduction: | Yes |
| X-Sync: | 1/250 sec |
| Flash Exposure Compensation: | +/- 2 EV in 1/3 increments |
| Flash Exposure Bracketing: | No |
| Flash Exposure Lock: | Yes |
| Second Curtain Synchronisation: | Yes |

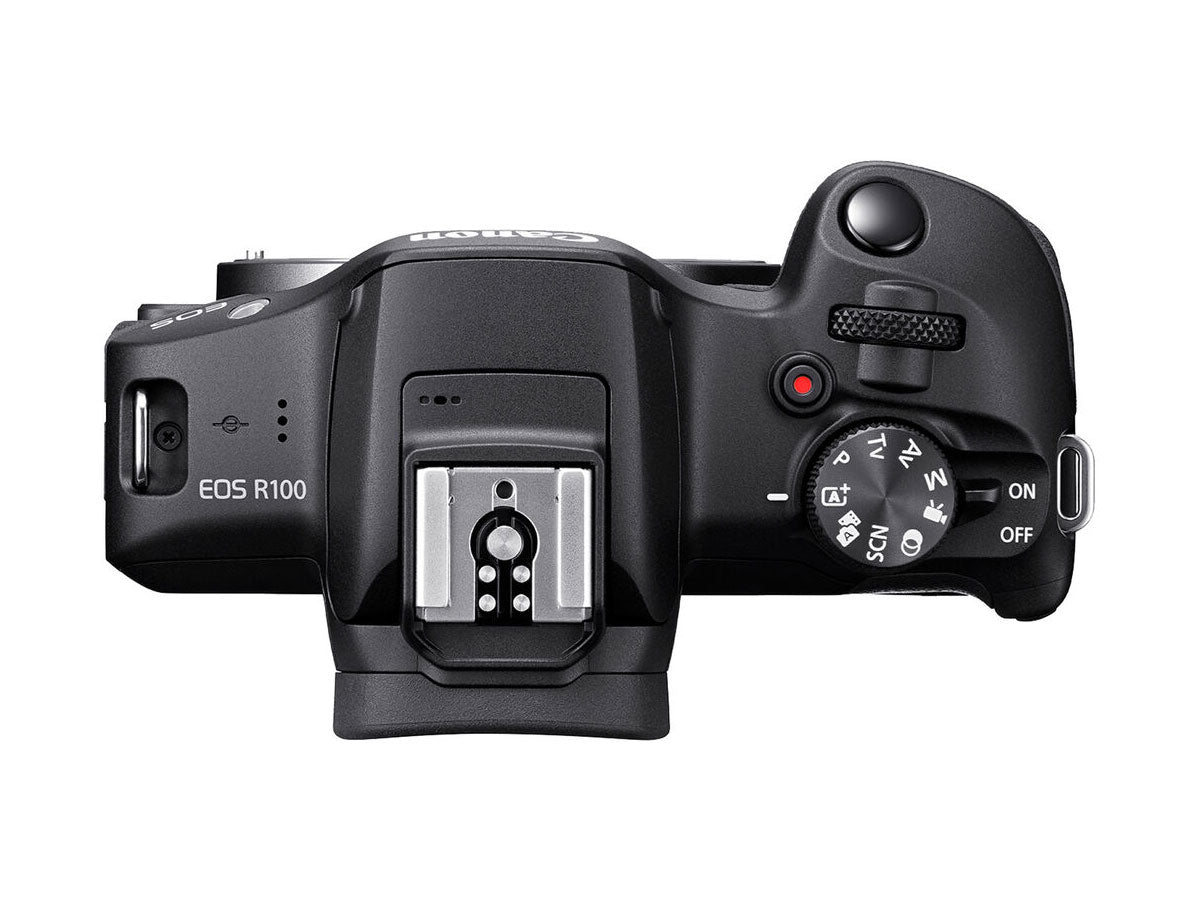

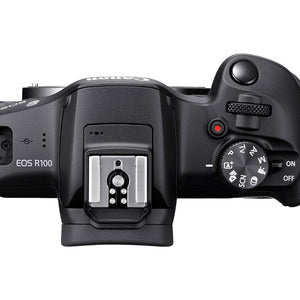

| HotShoe / PC Terminal: | 5-pin shoe only |
| External Flash Compatibility: | E-TTL II with EX and EL series Speedlites, wireless multi-flash support |
| External Flash Control: | Via camera setting/ flash setting menu |
| SHOOTING | |
| Modes: | Stills:
Creative Filters
P (Program AE) Movies: |
| Picture Styles: | Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) |
| Colour Space: | sRGB and Adobe RGB |
| Image Processing: | Highlight Tone Priority (standard and enhanced) Creative Assist: |
| Drive Modes: | Single Shooting Continous Shooting Self-timer: 10 sec. / remote control Self-timer: 2 sec. / remote control Self-timer: continuous shooting |
| Continuous Shooting: | One shot AF: Max. Approx. 6.5 shots/sec with Electronic 1st-curtain shutter, speed maintained for 97 JPEG(All sizes) or 6 RAW, 17 C-RAW, or RAW + L JPEG: 6, C-RAW + L JPEG: 13 images.23 Servo AF: Max. Approx. 3.5 shots/sec. |
| Interval Timer: | No |
| FILE TYPE | |
| Still Image Type: | JPEG: 8 bits, Standard / Fine: (Exif 2.31 compliant) / Design rule for Camera File system (2.0) RAW: RAW, C-CRAW (CR3 14 bits) Digital Print Order Format [DPOF] Version 1.1 compliant |
| RAW + JPEG Simultaneous Recording: | Yes, RAW + various JPEG compression possible |
| Image Size: | RAW / C-RAW: JPEG 3:2: JPEG 4:3: JPEG 16:9: JPEG 1:1: |
| Folders: | New folders can be created and selected |
| File Numbering: | Continuous, Auto Reset Manual Reset |
| EOS MOVIE | |
| Movie Type: | MP4: MPEG-4 AVC/H.264, Audio: AAC |
| Movie Size: | 4K UHD- 3840 x 2160, 23.98 / 25 fps, IPB (Standard), AAC Full HD - 1920 x 1080, 59.94 / 50 / 29.97 / 25 / 23.98 fps, IPB (Standard), AAC HD- 1280 x 720, 59.94 / 50 fps, IPB (Standard), AAC High Frame Rate movies- 1280 x 720, 119.88 / 100 fps, IPB (Standard), No audio Time-lapse movied- 3840 x 2160 / 1920 x 1080, 29.97 / 25 fps, All-I, No audio Miniature effect movies- 1920 x 1080, 29.97 / 25 / 23.98 fps, IPB (Standard), No audio |
| Colour Sampling (Internal Recording): | 4K / Full HD: YCbCr4:2:0 8-bit |
| Canon Log: | Not supported |
| Movie Length: | Max duration 29min 59sec Max file size: SDXC: exFAT: Unlimited SDHC: FAT32: 4 GB SD: FAT16 / FAT12: 2GB |
| High Frame Rate Movie: | HD 1280 x 720, at 100 or 119.88 fps Recorded aa 1/4 speed slow motion movie |
| Frame Grab: | 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible |
| Bitrate / Mbps: | 4K UHD (23.98, 25 fps): IPB (Standard) 120 Mbps Full HD (59.94, 50 fps): IPB ( Standard) 60 Mbps Full HD (29.97, 23.98, 25 fps): IPB (Standard) 30 Mbps HD (59.94, 50 fps): IPB (Standard) 26 Mbps HFR movies (119.88, 100 fps): IPB (Standard) 52 Mbps 4K time-lapse (29.97, 25 fps): ALL-I 300 Mbps Full HD time-lapse (29.97, 25 fps): ALL-I 90 Mbps Miniature effect (29.97, 23.98, 25 fps): IPB (Standard) 30 Mbps |
| Dual Card Recording: | Not supported |
| Microphone: | Built-in monaural microphone (48 KHz, 16-bit x 2 channels) |
| HDMI Display: | Output to external monitor only (output of images and shooting information, images/video are recorded to the card) Camera screen and External Monitor output (Recording to camera is not possible, use with external recorder, camera screen shows images with shooting information) |
| HDMI Output: | HDMI Micro OUT terminal (Type D) Auto:
|
| Focusing: | 4K: Contrast detection AF Full HD: Dual Pixel CMOS AF HFR Movie: Autofocus disabled |
| ISO: | Auto: 100-12800, H: 25600 Manual: 100-12800, H: 25600 |
| OTHER FEATURES | |
| Custom Functions: | ISO Expansion Safety shift 7 customisable buttons
Retract lens on power off |
| Metadata Tag: | User copyright information (Author's Name, Copyright Details) Image rating (0-5 stars) |
| LCD Panel / Illumination: | No |
| Water / Dust Resistance: | No |
| Voice Memo: | No |
| Intelligent Orientation Sensor: | No |
| Playback Zoom: | 1.5x - 10x in 15 levels |
| Display Formats: |
|
| SlideShow: | Playback time: 1/2/3/5/10/20 seconds Repeat: Enable / Disable Transition Effects: Off, Slide in 1-2, Fade 1-3 Background music: Off / On |
| Histogram: | Brightness / RGB |
| Highlight Alert: | Yes |
| Image Erase: | Single image, select range, Selected images, Folder, Card |
| Image Erase Protection: | Erase: Single image, Selected images, Selected range, folder, All images on card , All found images Protection: Selected images, Selected range, All images. Folder |
| Self Timer: | 2 sec, 10 sec |
| Menu Categories: | Shooting menu Playback menu Communication features menu Function settings menu Display level settings menu My Menu |
| Menu Languages: | 29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Vietnamese, Indonesian, Hindi, Japanese |
| Firmware Update: | Firmware update possible by the user via SD card, EOS Utility or Camera Connect app |
| INTERFACE | |
| Computer: | Hi-Speed USB (USB 2.0), USB Type-C terminal |
| Wi-Fi: | Wireless LAN (IEEE802.11b/g/n) (2.4 GHz), with Bluetooth 4.2 support Features supported - EOS Utility, Smartphone, Upload to image.canon, Wireless printing |

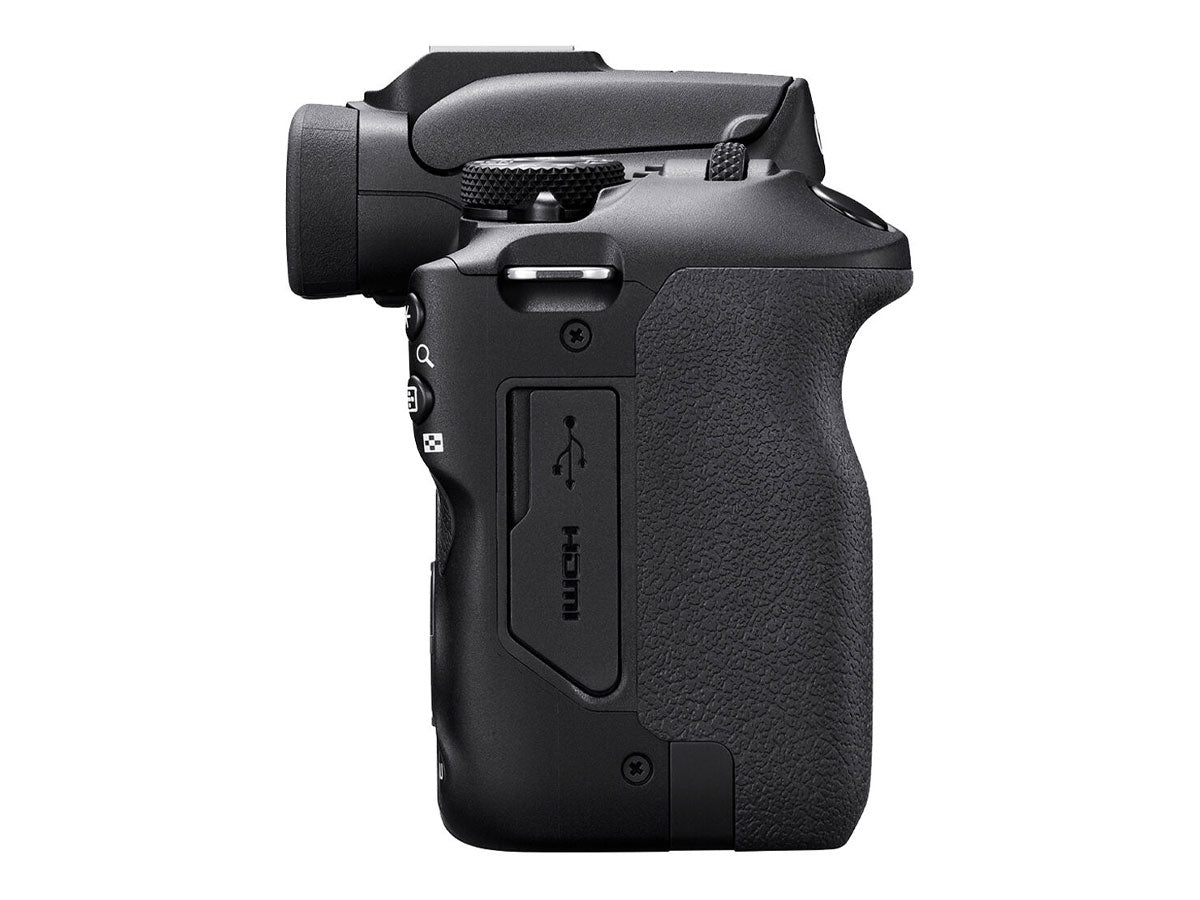

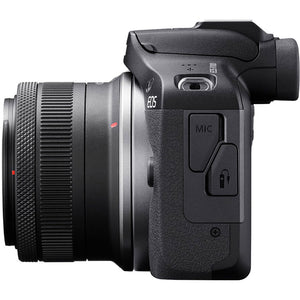

| Other: | HDMI (Micro - Type-D connector), HDR output to compatible TV supported External microphone in (3.5mm stereo mini jack) |
| DIRECT PRINT | |
| Canon Printers: | Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
| PictBridge: | PictBridge-compatible (wireless LAN) printer compatible |
| STORAGE | |
| Type: | SD, SDHC, SDXC (UHS-I compatible) |
| SUPPORTED OPERATING SYSTEM | |
| PC: | See support pages for up-to-date information |
| Macintosh: | See support pages for up-to-date information |
| SOFTWARE | |
| Image Processing: | Digital Photo Professional |
| Other: | Picture Style Editor, EOS Utility, Image Transfer Utility Camera Connect app available on iOS and Android devices |
| POWER SOURCE | |
| Batteries: | 1 x Rechargeable Li-ion Battery LP-E17 |
| Battery Life: | Viewfinder: Approx. 340 shots (Based on CIPA standards) (With a new, fully charged LP-E17) |
| Battery Indicator: | 4 levels |
| Power Saving: | Display off (15, 30 sec or 1, 3, 5, 10, 30 mins) Auto Power Down (30 sec or 1, 3, 5, 10 mins, Disable) Viewfinder off (1, 3 min, disable) Power saving mode |
| Power Supply & Battery Chargers: | Battery charger LC-E17E AC adapter AC-E6N DC Coupler DR-E18 |
| ACCESSORIES | |
| Wireless File Transmitter: | Not compatible |
| Cases / Straps: | Protecting cloth PC-E1 / PC-E2 Strap provided |
| Lenses: | RF and RF-S lenses EF and EF-S lenses compatible via adapter EF-M lenses not compatible |
| Lens Adapters: | Mount Adapter EF-EOS R, Drop-in Filter Mount Adapter EF-EOS R |
| Flash: | EL series Speedlites: EL-1 / EL-100 EX series Speedlites / Macrolite Speedlite Transmitter ST-E3-RT (Ver. 2) / ST-E3-RT / ST-E2 Off-Camera shoe cord OC-E3 |
| Remote Controller / Switch: | Bluetooth Remote BR-E1 Tripod grip HG-100TBR Remote Switch RS-60E3 |
| Other: | Interface cable IFC-100U Interface cable IFC-400U |
| PHYSICAL SPECIFICATIONS | |
| Body Materials: | Mainly polycarbonate resin with glass fibre that incorporates an aliminium alloy |
| Operating Environment: | 0 – 40 °C, 85% or less humidity |
| Dimensions: | 116.3 x 85.5 x 68.8mm |
| Weight: | Approx. 356 g |
