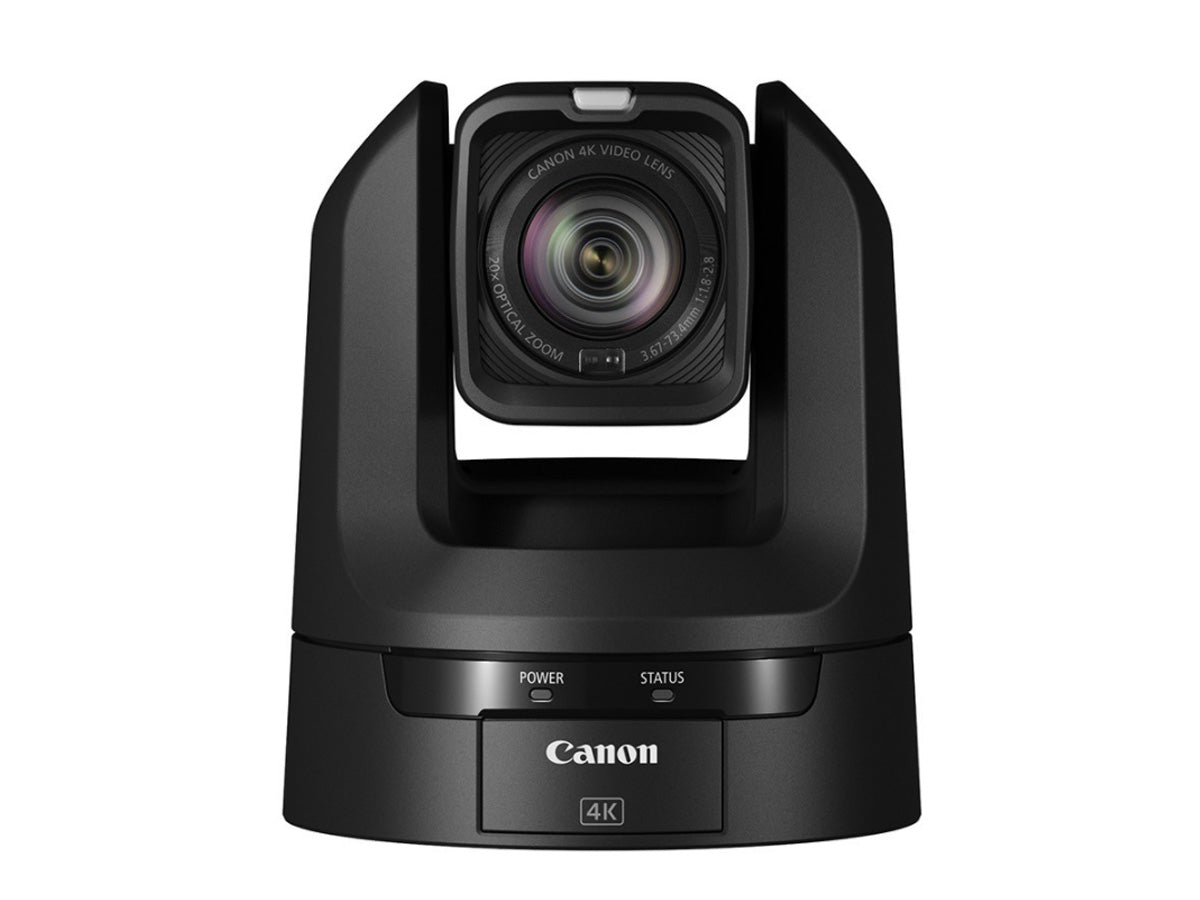

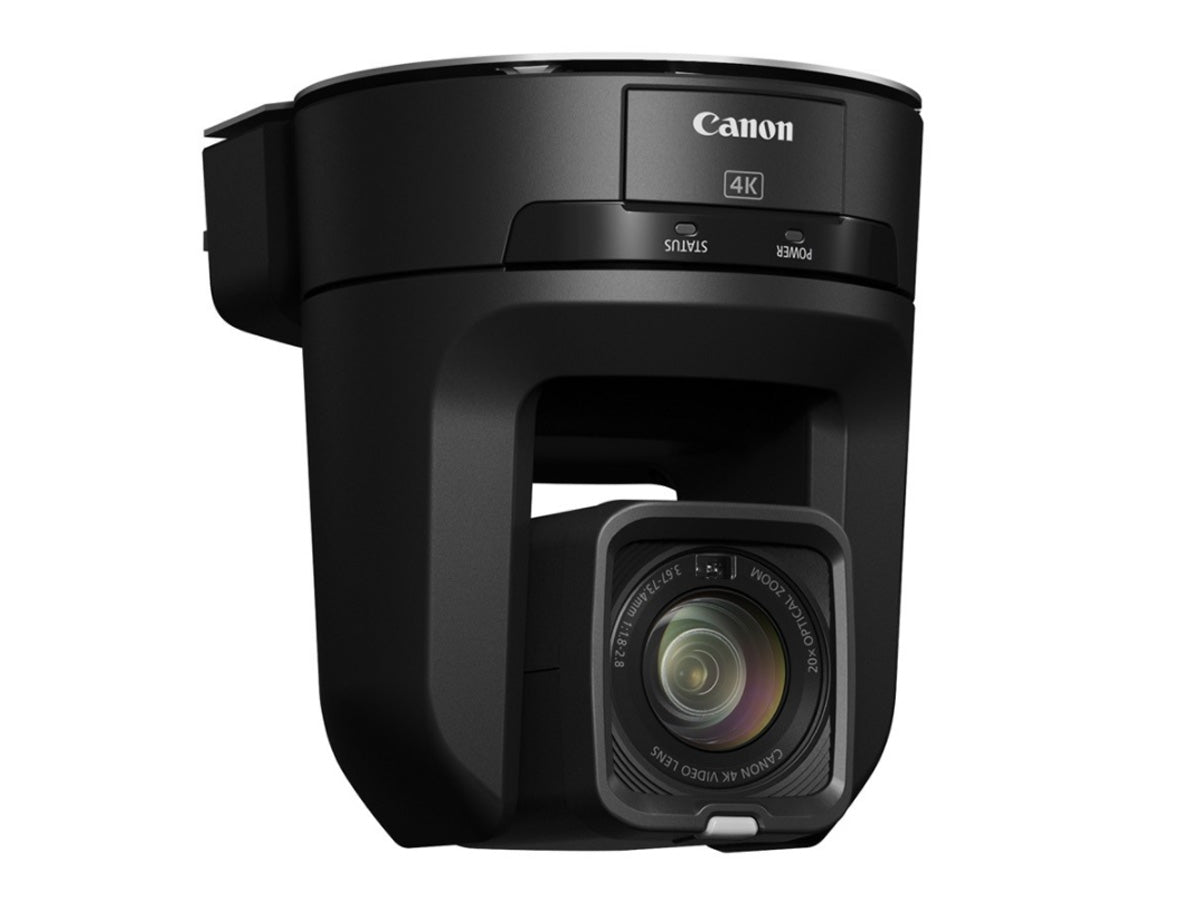

Canon CR-N300 4K PTZ Camera - Black
Canon CR-N300 4K PTZ Camera - Black
SKU:
CAN-5157C007
Regular price
£2,050.00 GBP ex VAT
£2,460.00 GBP inc VAT
£2,460.00 GBP inc VAT
Regular price
ex VAT
Sale price
£2,050.00 GBP ex VAT
£2,460.00 GBP inc VAT
Unit price
per
£2,460.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Close The Distance With Unrivalled Clarity
The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, it’s ideal for remote productions.
The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, it’s ideal for remote productions.
Razor Sharp 4K Imagery
A 1/2.3 inch type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.
A 1/2.3 inch type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.
20x Optical Zoom for Incredible Flexibility
Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.
Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.
IP Streaming and Control to Tansform your Productions
The CR-N300 boasts a comprehensive range of IP control and streaming protocols1 up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI | HX2, RTMP, RTP/RTSP, RTMPS and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.
The CR-N300 boasts a comprehensive range of IP control and streaming protocols1 up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI | HX2, RTMP, RTP/RTSP, RTMPS and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.
Hybrid AF for Precise Focus
The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions. Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.
The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions. Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.
Flexible Connectivity for your Workflow
The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE LAN port.
The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE LAN port.
Smooth, Precise Control
The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, REMOTE CAMERA CONTROL APPLICATION or a tablet via Wi-Fi, to capture the perfect shot.
Image Presets for Quick and Easy Use
The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.
The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.
Small and Compact for Easy Installation
The CR-N300 is small and discreet at 154 x 178 x 164 mm (W x H x D) and weighs just 2.4kg making it ideal to be installed in environments where space is at a premium.
The CR-N300 is small and discreet at 154 x 178 x 164 mm (W x H x D) and weighs just 2.4kg making it ideal to be installed in environments where space is at a premium.
| CAMERA | ||
| Image Sensor: | Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor | |
| Effective Pixels: | approx. 8.29 megapixels (3840 x 2160) | |
| Lens: | f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture | |
| Optical Zoom: | 20x optical zoom | |
| Digital Zoom: | 20x digital zoom | |
| Focal Length: | f=3.67 – 73.4 mm, F/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T) | |
| Angle of View: | [4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T) | |
| Minimum Subject Illumination: | Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (Programmed AE) shooting mode, auto slow shutter on) | |
| Shutter Speed: | 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate) | |
| Iris: | Manual/Automatic aperture | |
| Gain: | 0.0 dB – 36 dB | |
| ND Filter: | Built-in (1/8 at maximum, gradation ND), motor operate | |
| White Balance: | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual * Color temperatures are given for reference purposes only. | |
| Focus: | Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF | |
| Gamma: | Normal1 (Standard), Normal3 (BT.709) | |
| Pan & Tilt: | Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 170°/sec. | |
| PAN & TILT OPERATION | ||
| Protocol: | XC (Canon's original), RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD | |
| SERVER | ||
| Video Output Format: | SDI: | 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| HDMI: | HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. | |
| IP: | 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. – A frame rate that exceeds the frame frequency cannot be selected. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps | |
| USB: | Motion JPEG: 1920 x 1080 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps | |
| Preset: | Number of presets: Max. 100 (including home position) | |
| INTERFACE | ||
| Communication Control: | LAN, Wi-Fi, Serial, IR | |
| Network Terminal: | LAN x 1, RJ45, 1000Base-T | |
| SDI OUT Terminal: | BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC) | |
| GEN-LOCK Terminal: | - | |
| HDMI OUT Terminal: | HDMI connector x 1, output only | |
| RS-422 Terminal: | RJ45 connector x 1 | |
| INPUT 1 / INPUT 2 Terminals: | - | |
| MIC Terminal: | Ï•3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ) | |
| USB Terminal: | Type-A (USB 2.0) x 1 (future expansion) Type-C (USB 3.0) x 1 | |
| PHYSICAL FEATURES | ||
| Operating Environment: | Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation) | |
| Power Supply: | PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor) | |
| Power Consumption: | PoE+ Input: Approx. 16.2 W* max. (body only) DC Input: Approx. 15.0 W max. (body only) *Class 4 (25.5 W required) for power supply devices | |
| Dimensions: | Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions) | |
| Weight: | Approx. 2.2 kg (4.86 lb.) (body only) | |
- 1 x Canon CR-N300 4K PTZ Camera - Black
