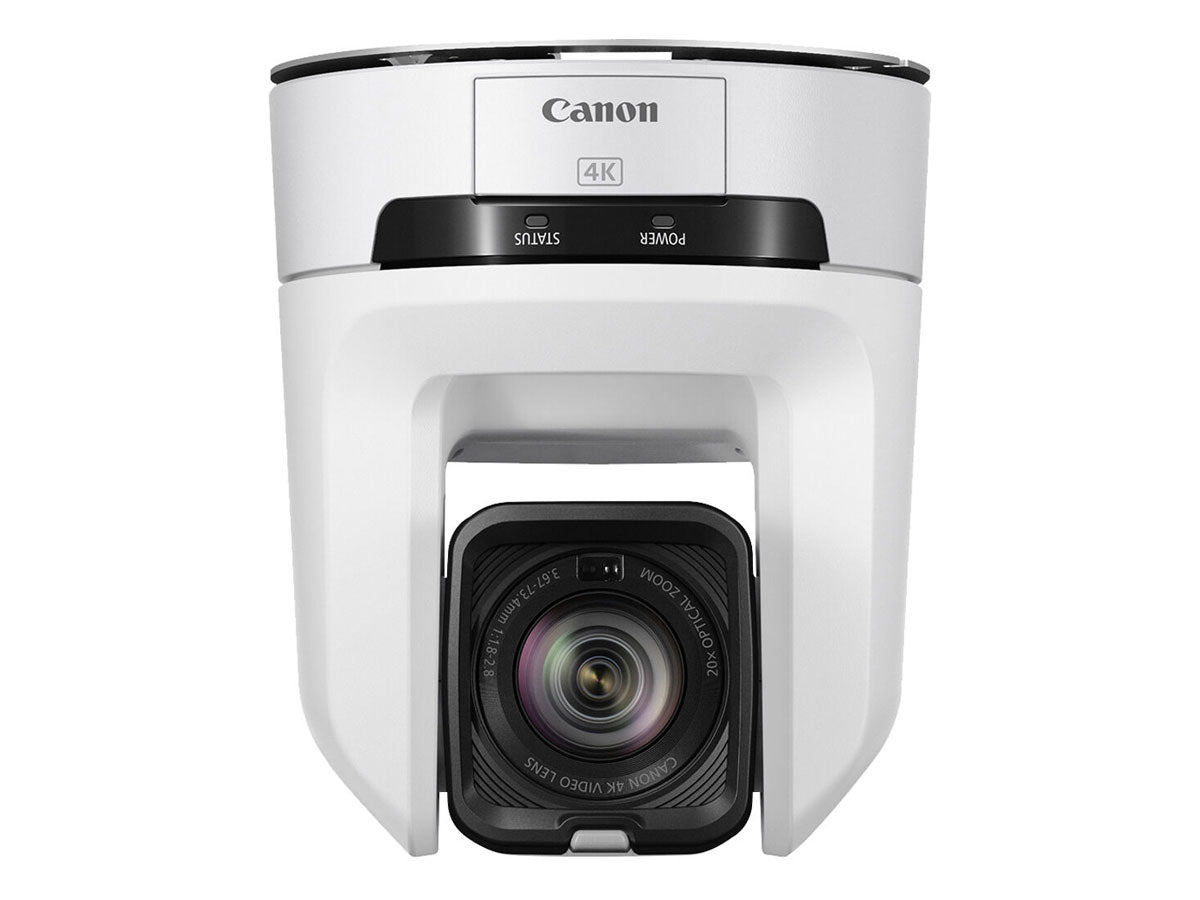

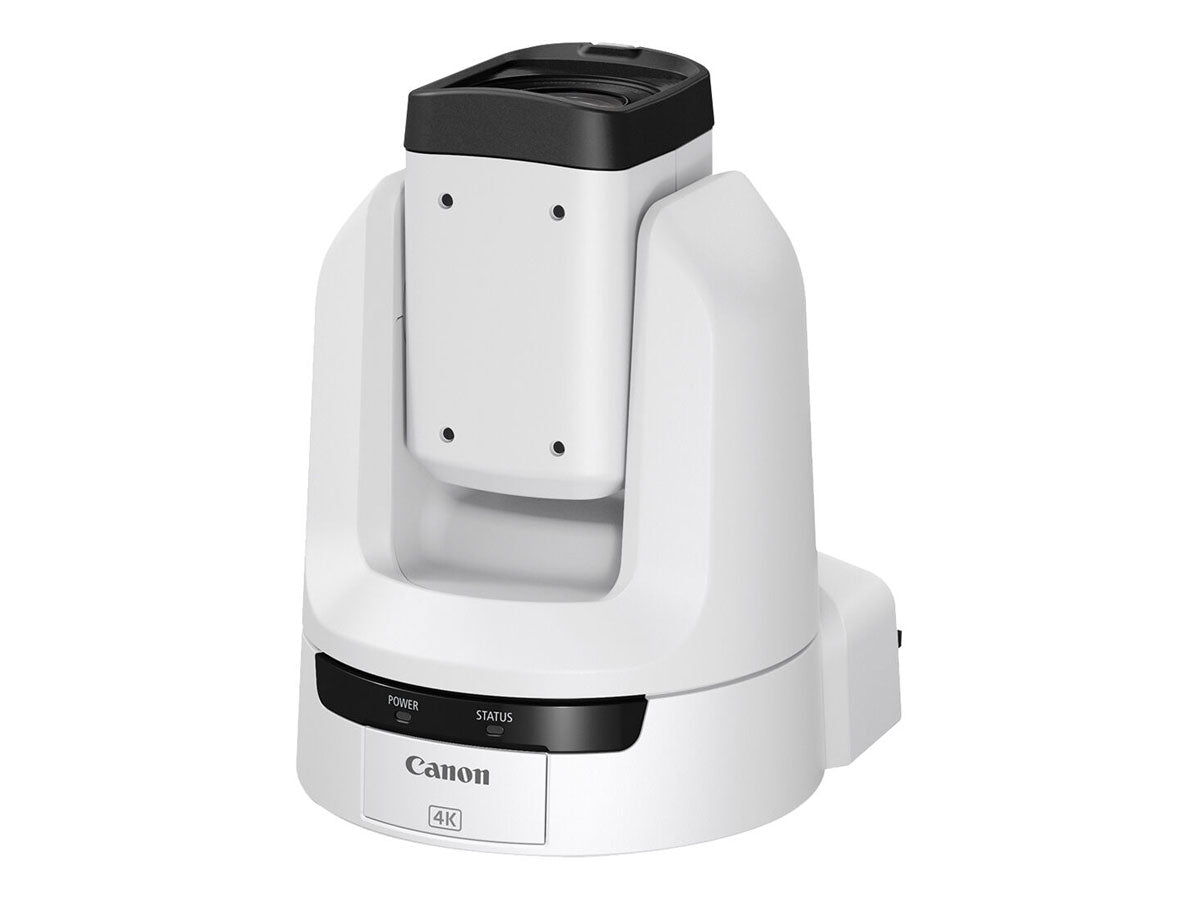

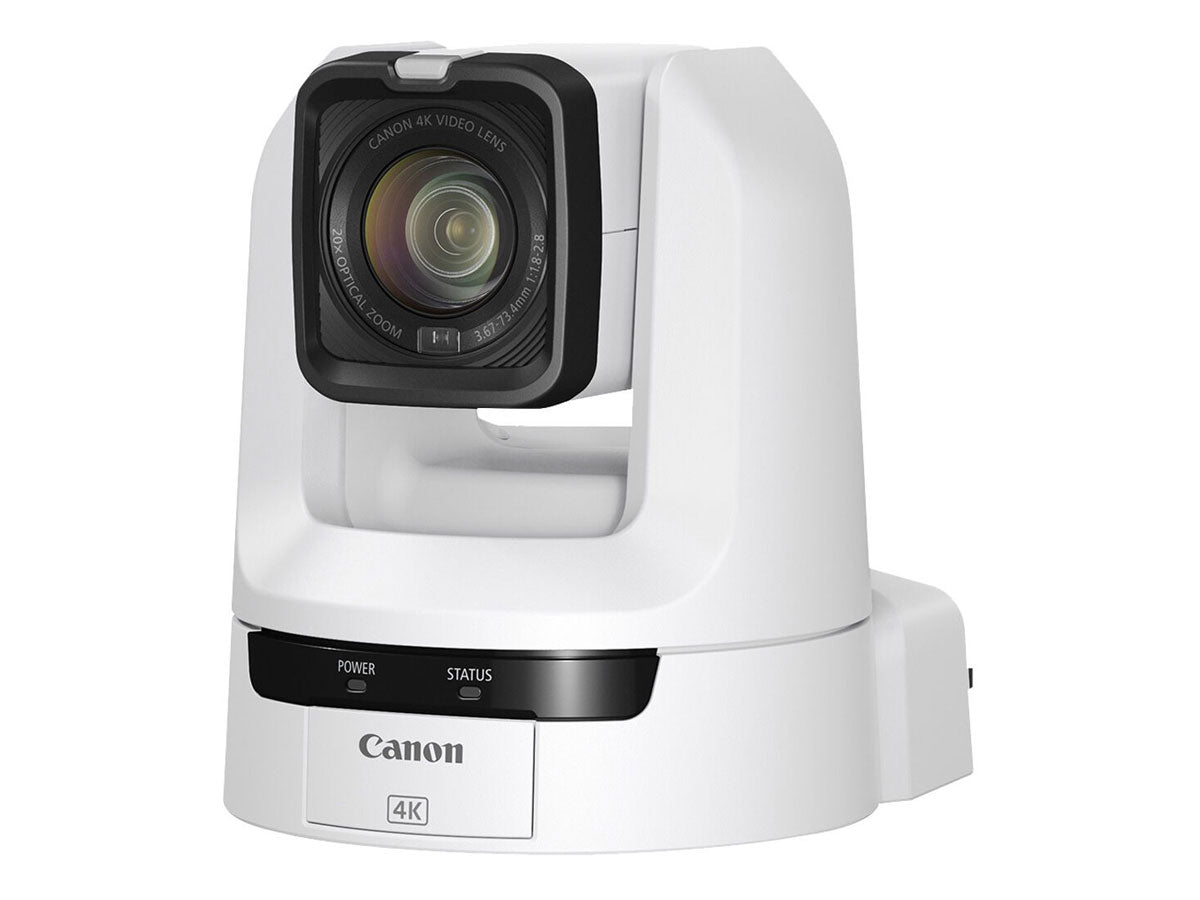

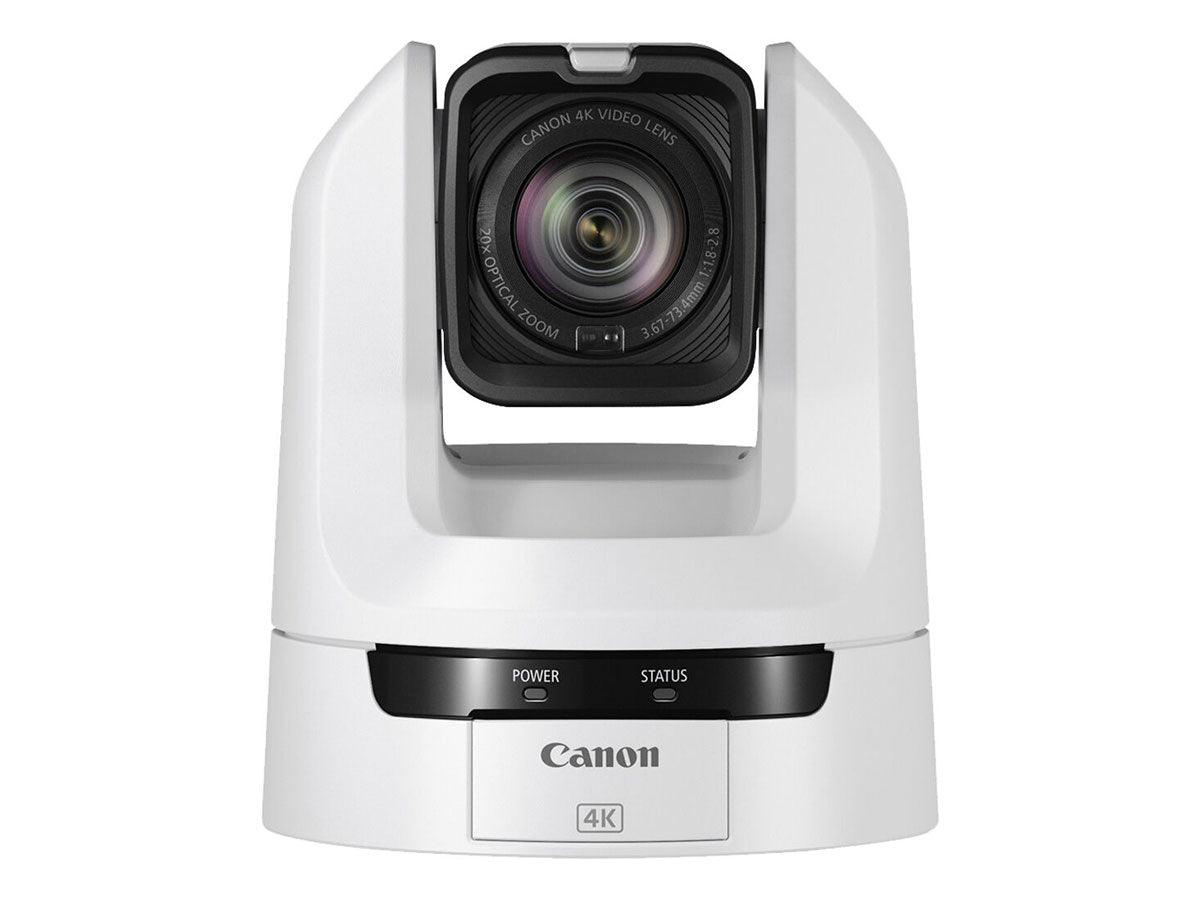

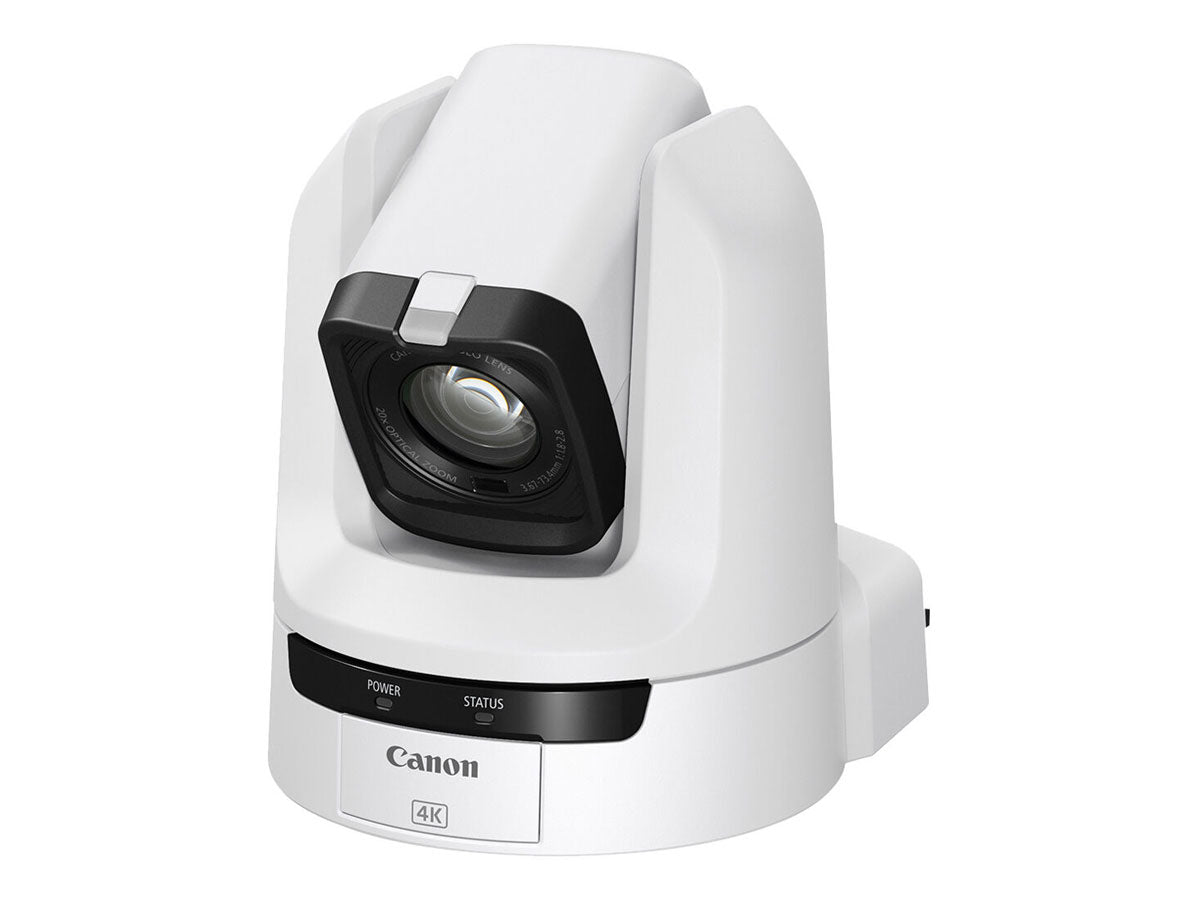

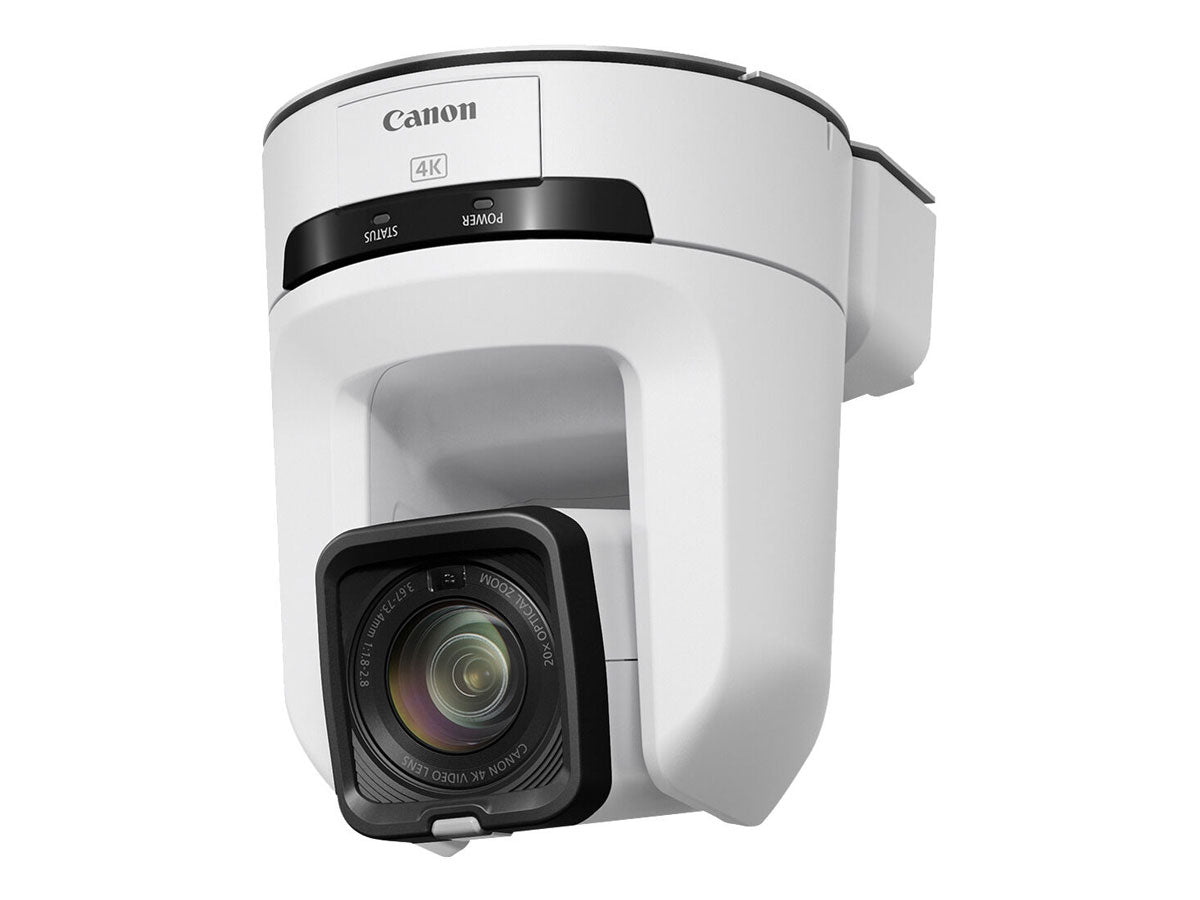

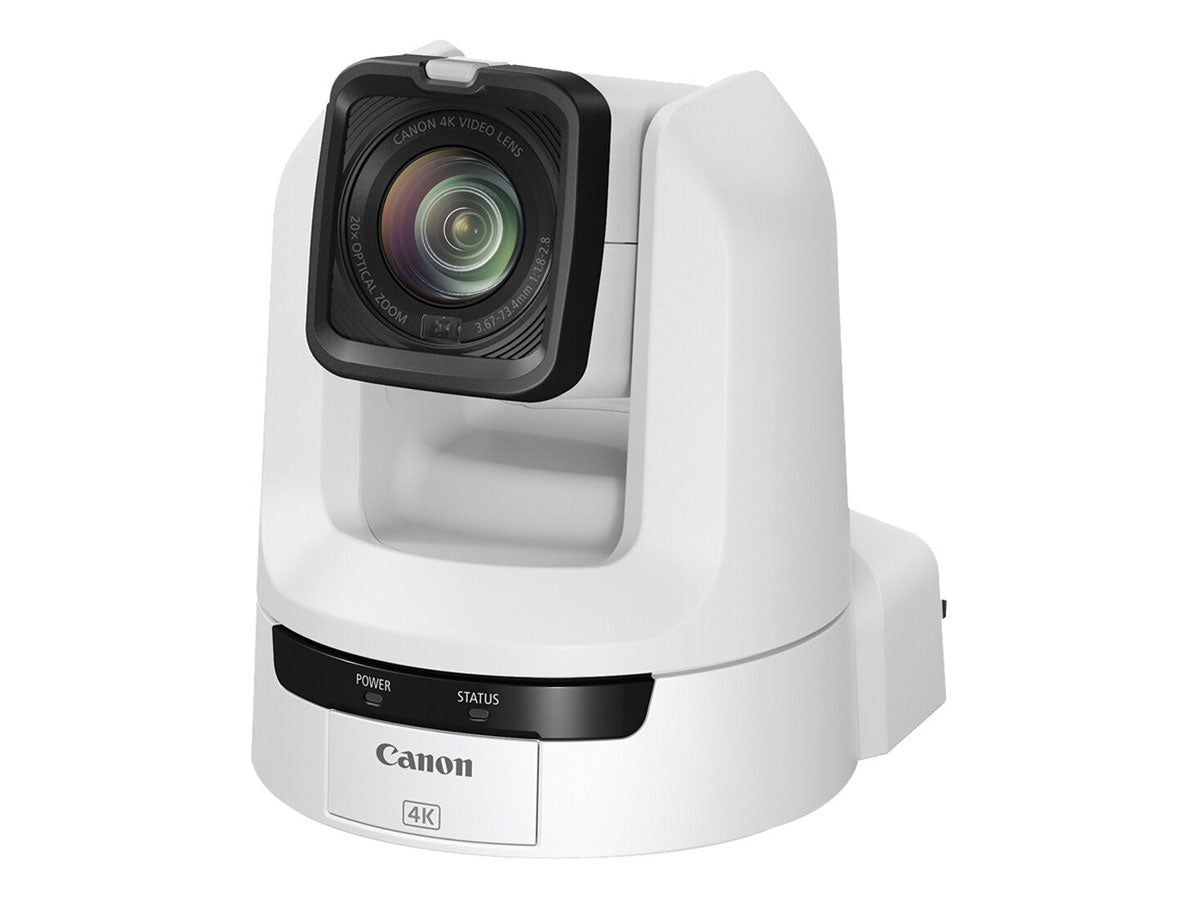

Canon CR-N100 4K PTZ Camera - White
Canon CR-N100 4K PTZ Camera - White
SKU:
CAN-6527C008
Regular price
£1,690.00 GBP ex VAT
£2,028.00 GBP inc VAT
£2,028.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,690.00 GBP ex VAT
£2,028.00 GBP inc VAT
Unit price
per
£2,028.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Capture powerful 4K UHD and superior Full HD images remotely with a PTZ camera boasting a 1/2.3-type 4K sensor and DIGIC DV6 processor. With Hybrid AF and a 20x image stabilized optical zoom plus built-in IP streaming and control protocols, this camera offers seamless integration for the corporate, education, houses of worship and live event industries.
Outstanding 4K Imagery and HD Oversampling
Capture powerful 4K UHD and superior Full HD images with a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the 4K sensor which results in true-to-life HD video.
20x Optical Zoom Delivers Incredible Flexibility
Capture all the detail you need, thanks to Canon’s advanced 4K optics with a flexible 20x optical zoom covering a broad focal length range of 29.3-601mm (35mm equivalent). Equipped with image stabilisation for minimal image disruption when moving.
Precise Focusing with Hybrid AF
Combining high-precision contrast AF with high-speed phase-detection AF, the CR-N100 delivers rapid and accurate focusing, even in low light conditions.
The CR-N100 PTZ camera has an external sensor that measures subject distance and compares the point of focus with that determined by the Contrast AF system. This hybrid auto focus system is particularly effective in low light situations and helps achieve auto focus faster and more reliably compared to contrast auto focus alone.
Accurate Auto Tracking
Unlock the potential to automatically track the main speaker with face detection as they move on stage. Achieve your ideal tracking setup with multiple adjustments, such as composition size, tracking sensitivity, exclusion zones, priority display area and more.
Multiple Protocols for Easy Streaming and Control
The CR-N100 features NDI|HX2 and SRT that produce high quality video streams for a variety of productions even under unstable network conditions. Stream seamlessly using RTMP/RTMPS to either Facebook or YouTube. Canon XC protocol unlocks the potential to control CR-N100 in a multiple PTZ camera system alongside selected Canon camcorders and cinema cameras.
Smooth and Precise Control
The CR-N100 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.2°/s. Compatible with the RC-IP100, RC-IP1000 controllers and the Remote Camera Control Application. This PTZ can also be configured with selected third-party units.
Comprehensive Connectivity

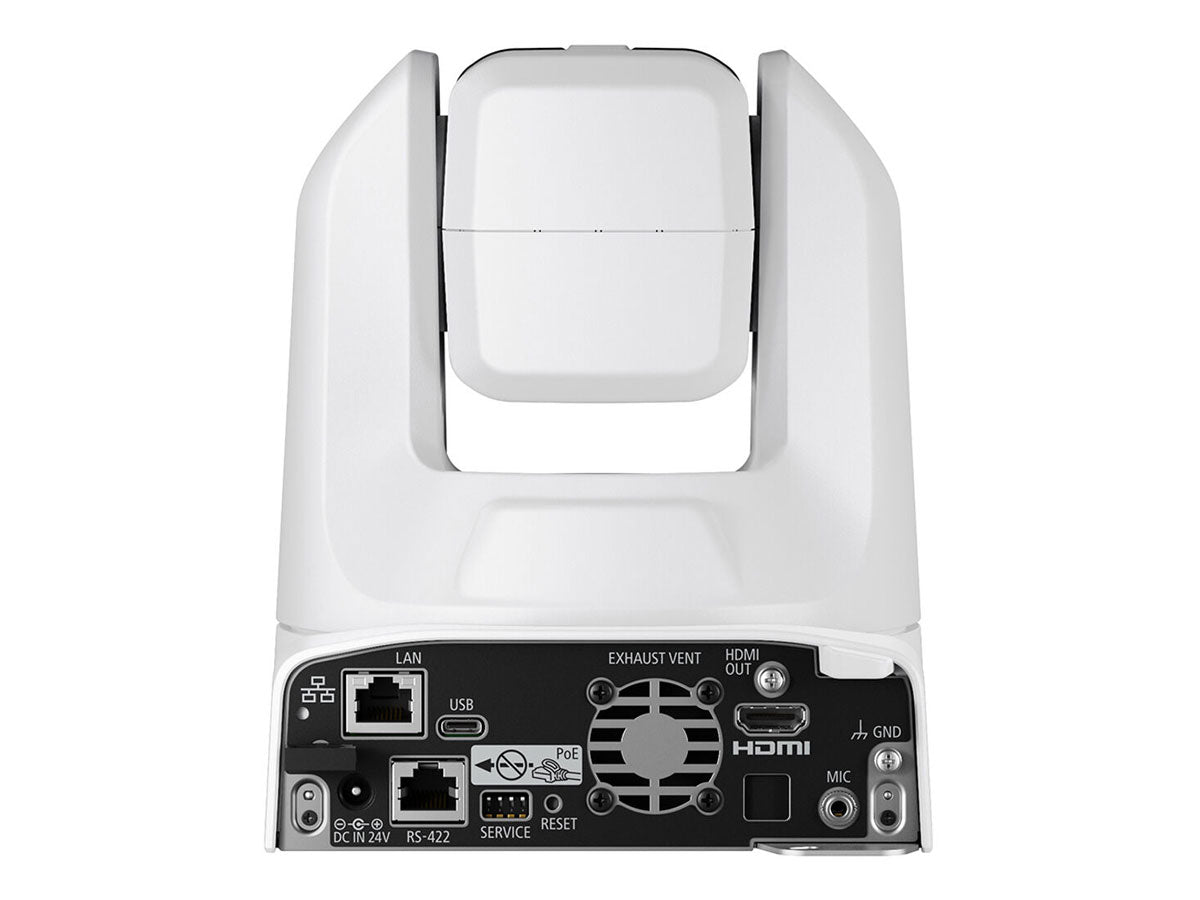

Connect flexibly with HDMI or IP (PoE+) both supporting 4K30P, the CR-N100 also includes a USB-C port, Serial Port (RS422) and a 3.5mm Audio Jack.
Multi-camera Management Application Compatible
The CR-N100 is compatible with the Multi-camera Management App. Manage up to 200 different cameras and/or controllers simultaneously making managing your Canon PTZ camera system easy and seamless. Update firmware, perform the initial set-up for all cameras and more.
- 4K UHD Image Quality: Captures exceptional video in up to 4K UHD 30P, 4:2:2 10-bit
- DIGIC DV6 Processor: Powerful image processing for all types of environments
- 20x Optical Zoom: Broad lens zoom covering a focal length of 29.3-601mm (35mm equivalent)
- Hybrid Auto Focus: Quick and accurate auto focusing even in low light conditions
- IP Streaming and Control Protocols: Including NDI|HX2, SRT, RTMP/RTMPS, Canon XC and Standard Communication protocol
- Auto Tracking: Follows a subject automatically via an additional paid application
- Smooth and Precise Remote Control: Allows for pan and tilt movements as slow as 0.2 °/s
- Small and Compact Chassis: A compact camera weighing just 2.2kg.
- Flexible connectivity: A wide range of connectors such as HDMI, LAN (PoE+), USB-C and 3.5mm Audio Jack.
| CAMERA | |
| Image Sensor: | Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor |
| Effective Pixels: | approx. 8.29 megapixels (3840 x 2160) |
| Lens: | f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture |
| Optical Zoom: | 20x optical zoom |
| Digital Zoom: | 20x digital zoom |
| Focal Length: | 3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T) |
| Angle of View: | [4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T) |
| Minimum Subject Illumination: | Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on) |
| Shutter Speed: | 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate) |
| Iris: | Manual/Automatic aperture |
| Gain: | 0.0 dB – 36 dB |
| ND Filter: | Built-in (1/8 at maximum, gradation ND), motor operated |
| Night Mode (IR Cut Filter Off): | No |
| White Balance: | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual *colour temperatures are given for reference purposes only. |
| Focus: | Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF |
| Gamma: | Normal (Standard), Normal (BT.709) |
| Pan & Tilt: | Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 170°/sec. |
| SERVER VIDEO OUTPUT FORMAT | |
| SDI: | - |
| HDMI: | 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) |
| IP: | [Frame frequency 59.94 Hz] 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/29.97 Hz: 14.99 fps, When frame frequency is 50.00/25.00 Hz: 12.50 |
| USB: | Motion JPEG: 1920 x 1080 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 12.00 fps, 5.00 fps 50.00 Hz: 12.50 fps, 5.00 fps |
| Protocol: | Canon XC, RTSP/RTP, NDI/HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, |
| Preset: | Number of presets: Max. 100 (including home position) |
| INTERFACE | |
| Communication Control: | LAN, Serial, IR |
| Network Terminal: | LAN x 1, RJ45, 1000Base-T |
| 12G-SDI OUT Terminal: | No |
| 6G-SDI OUT Terminal: | No |
| 3G-SDI OUT Terminal: | - |
| GEN-LOCK Terminal: | No |
| TIME CODE Terminal: | No |
| HDMI OUT Terminal: | HDMI connector x 1, output only |
| RS-422 Terminal: | RJ45 connector x 1 |
| AUDIO INPUT 1/INPUT 2 Terminals: | No |
| MIC Terminal: | Ï•3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ) |
| USB Terminal: | Type-C (USB 3.1) x 1 |
| External Device I/O Terminal: | - |
- 1x Canon CR-N100 4K PTZ Camera - White
