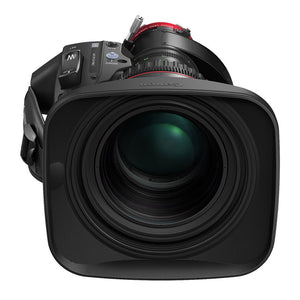

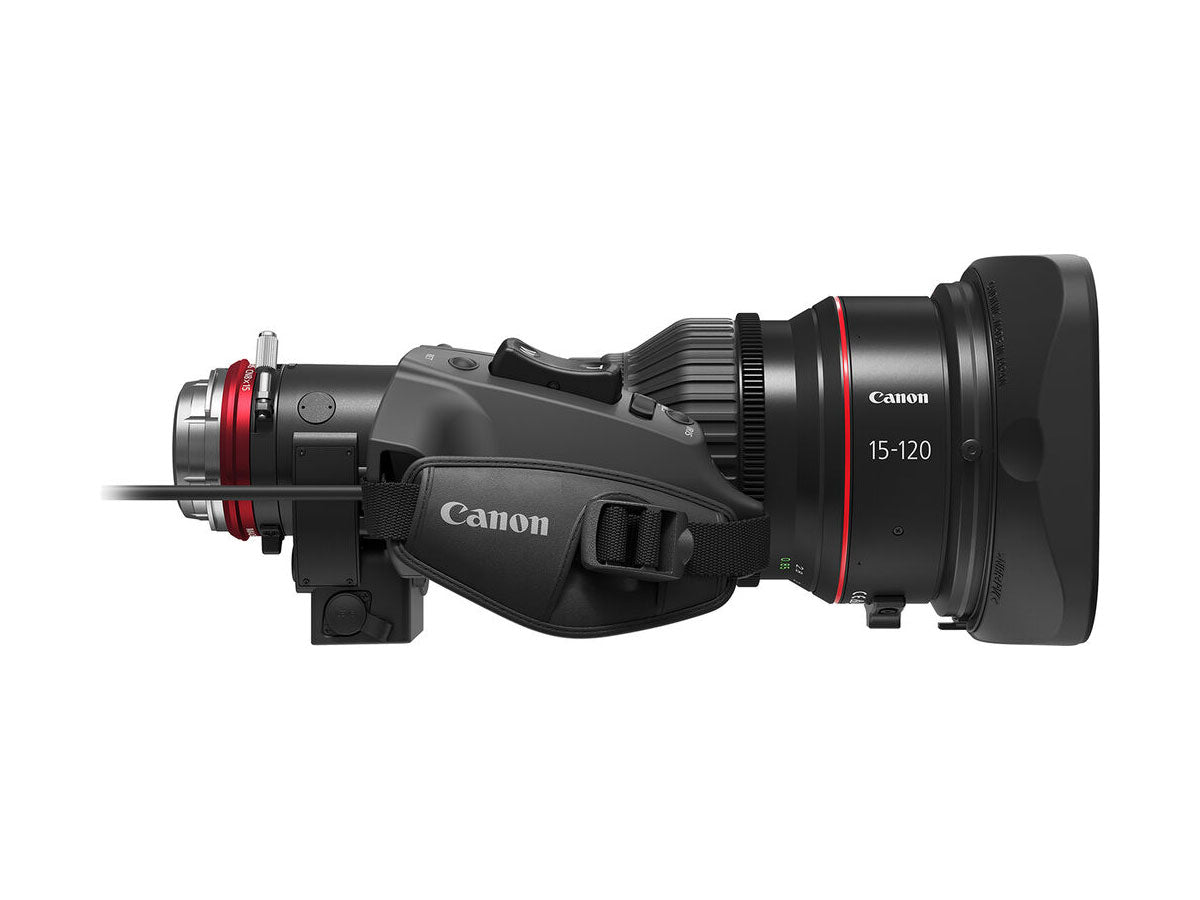

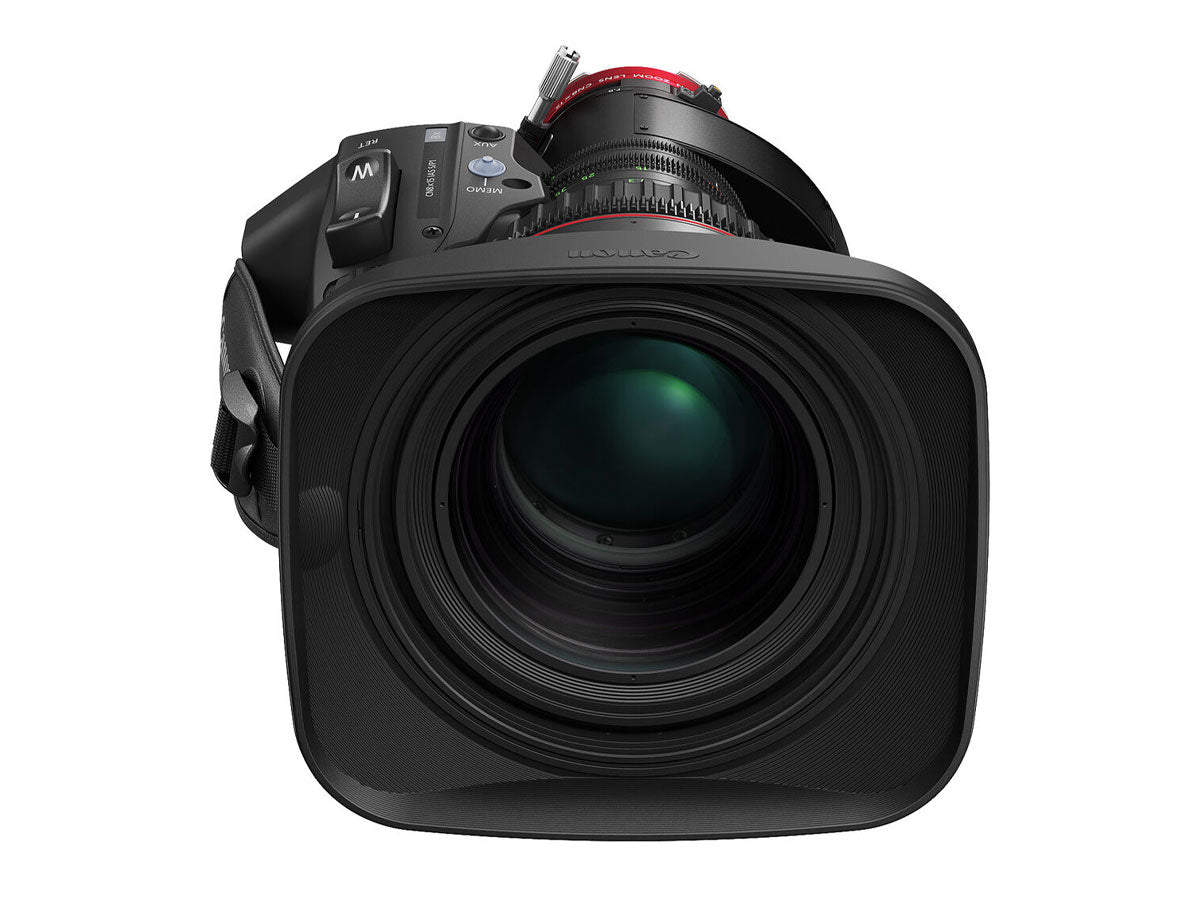

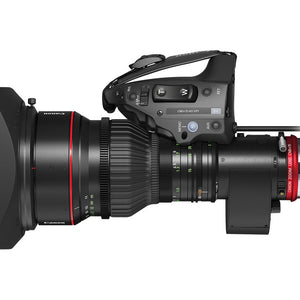

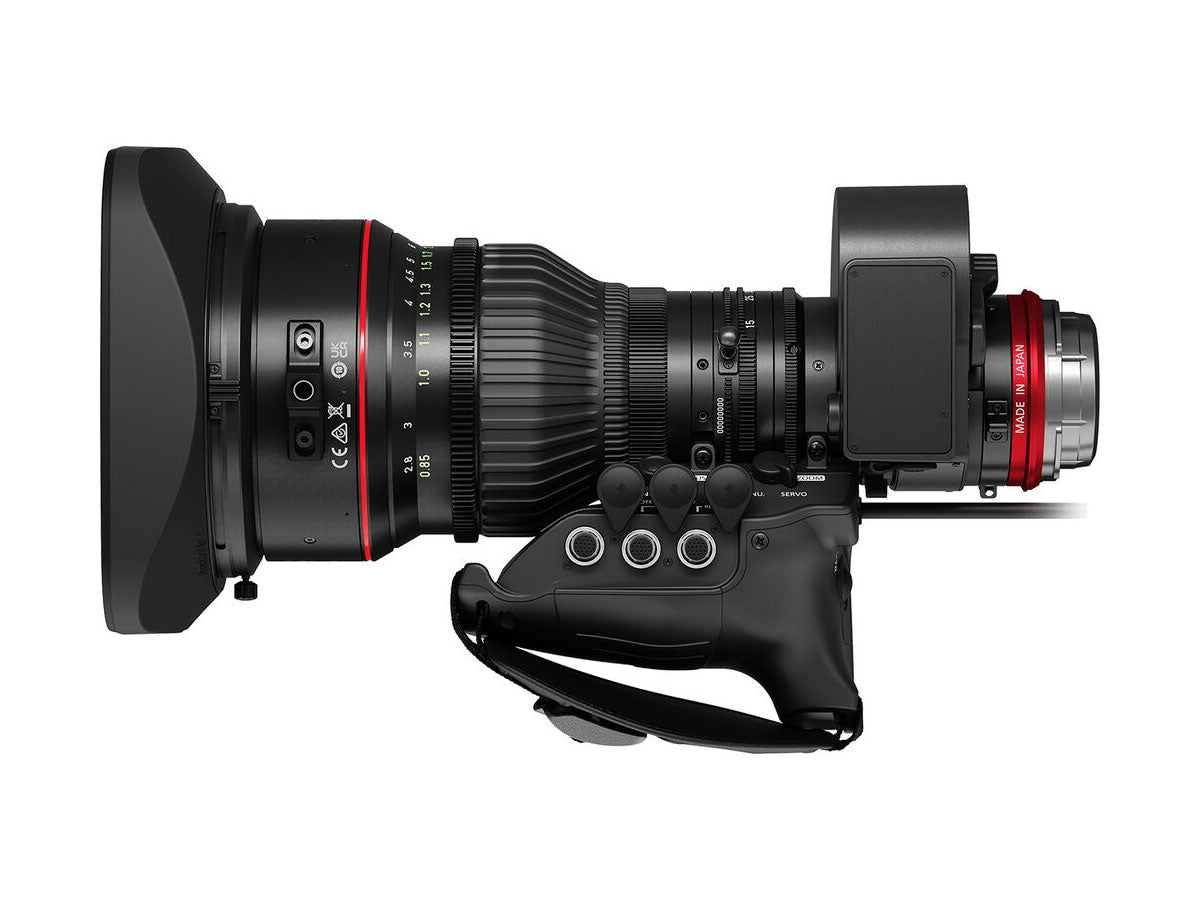

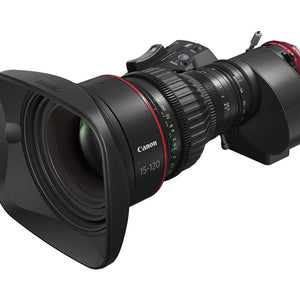

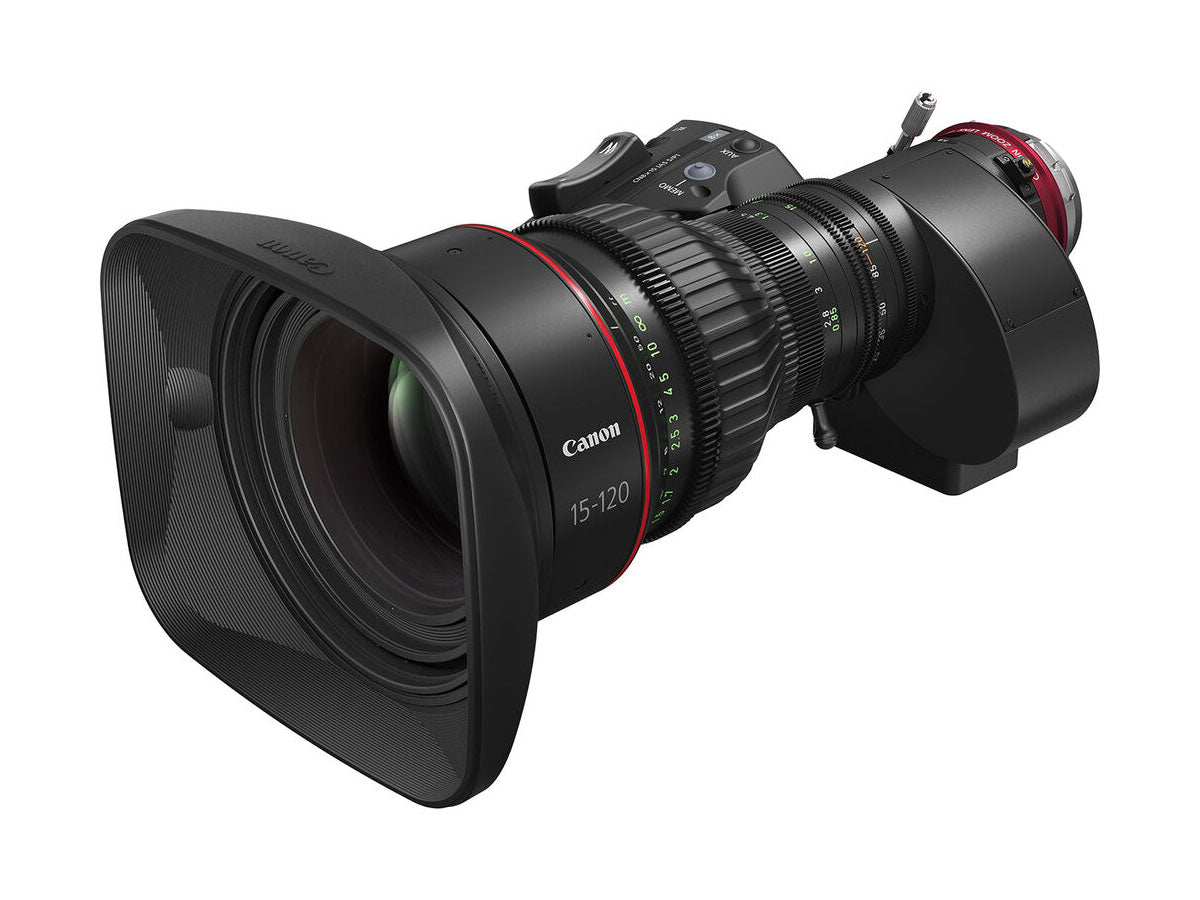

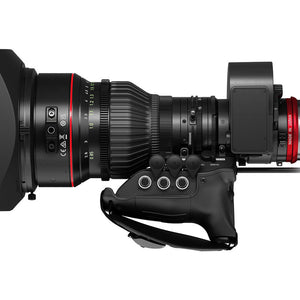

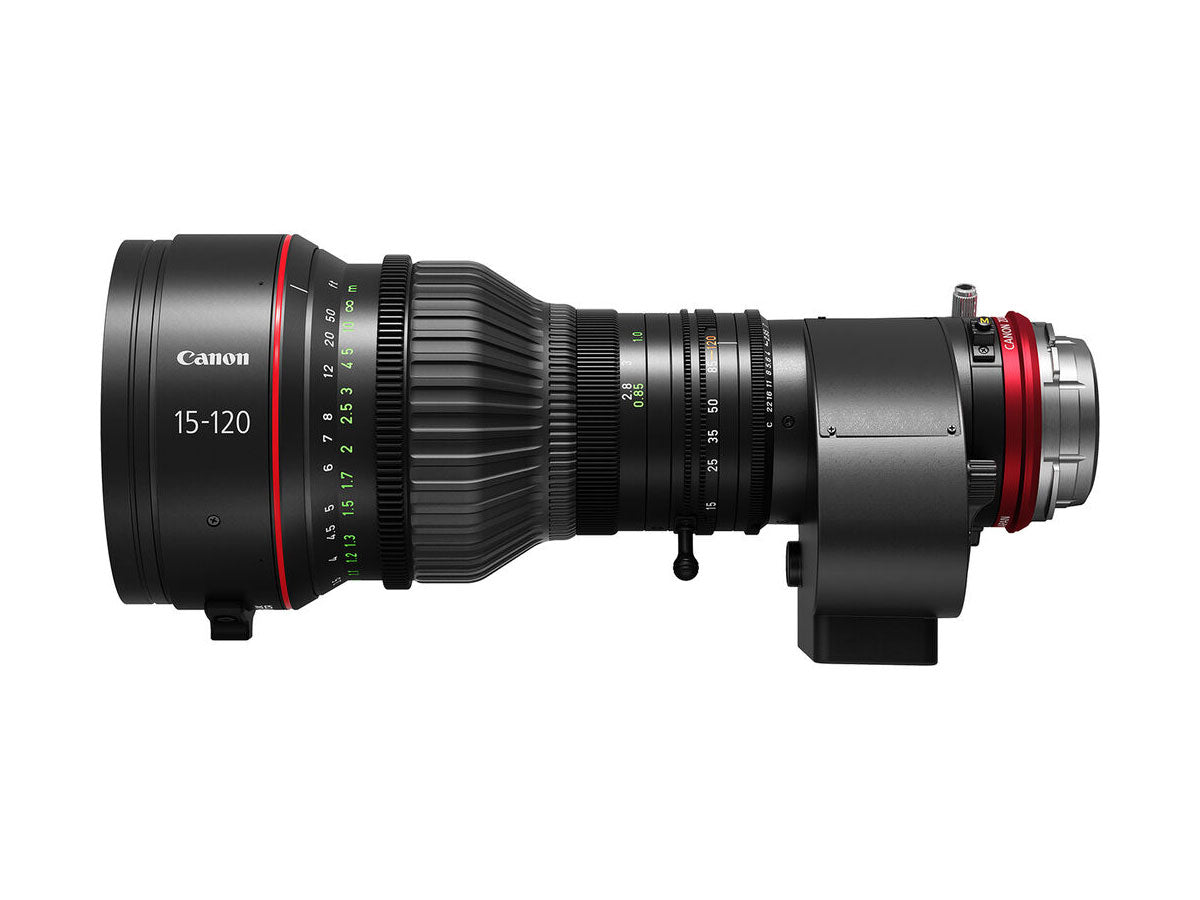

Canon 15-120mm 4K Cine Servo Lens - EF Mount

Canon 15-120mm 4K Cine Servo Lens - EF Mount

SKU: CAN-5953C001
£0.00 GBP ex VAT
£0.00 GBP inc VAT
ex VAT £0.00 GBP ex VAT
£0.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

With a superb combination of focal range, compact size, and light weight, the CN8x15 IAS S E1/P1 supports Super 35mm cameras, making it ideal for a range of cinema and broadcast productions. With its versatile focal range from a wide 15mm, up to an impressive telephoto range of 120mm, the CN8x15 IAS S E1/P1 can further extend up to 180mm via the built-in 1.5x extender whilst offering full frame sensor coverage. To support future productions, the 8K optical performance can be maintained across the full focal length, which guarantees consistently high image quality across the entire frame.

Designed with consistent results in mind, the CN8x15 IAS S E1/P1 features Canon’s renowned warm colour science, matching the existing range of Canon’s cinema lenses – and an 11-blade aperture, producing a beautiful, smooth bokeh. Offering outstanding optical performance – and breath-taking image quality for HDR, 4K and 8K productions – the CN8x15 IAS S E1/P1 supports EF mount communication, advanced metadata capture with support for Cooke /i Technology™ and is also the first Cine-Servo lens to enable ZEISS eXtended Data™ (XD) communication when using the PL Mount. Featuring the same 16-bit encoder found in Canon’s broadcast and existing Cine-Servo lenses, which provides accurate lens position, zoom, focus and iris metadata, the information and communication functions between the CN8x15 IAS S E1/P1 and camera are paramount for VFX, virtual and cinema productions.

The high-end Cine-Servo CN8x15 IAS S E1/P1 is available in both EF and PL mount, featuring a powerful and removable servo motor drive unit. This provides broadcast-friendly shoulder operation for ENG/EFP and documentary style shooters and access for accessories needed for cinema productions.

  • Exceptional quality, exceptional clarity - Capture your subject in exquisite edge-to-edge detail with Super35mm or Full Frame Cameras* while an 11-blade iris produces beautiful specular highlights with cinematic depth-of-field.
  • Wide-angle with extra reach - The CN8X15 IAS S E1/P1 is Canon’s widest Cine-Servo lens, ideal for live events and creative productions. And with a built-in 1.5x Extender, it gives Super35mm sensor cameras greater reach as well as providing full frame sensor cameras with edge-to-edge coverage for large format productions.
  • Advanced communication and efficiency - The EF mount offers advanced lens communication for precise metadata recording. The lens also supports Cooke /i Technology™ and ZEISS eXtended Data™ communication via PL mount.
  • Incorporate into Virtual Systems - A 20-pin connector links to the 16-bit encoder for positional information and supports Cooke /i Technology™ as well as ZEISS eXtended Data™, which can be used for XR and Virtual solutions.
  • Unified Canon colour - Match lenses across Canon’s entire video lens catalogue and deliver organic, warm, pleasing skin tones with accurate and consistent colour.
  • Lens mount versatility - Available in both EF and PL mount; authorised Canon service centres** can change the mount to accommodate different systems and workflows for greater flexibility.

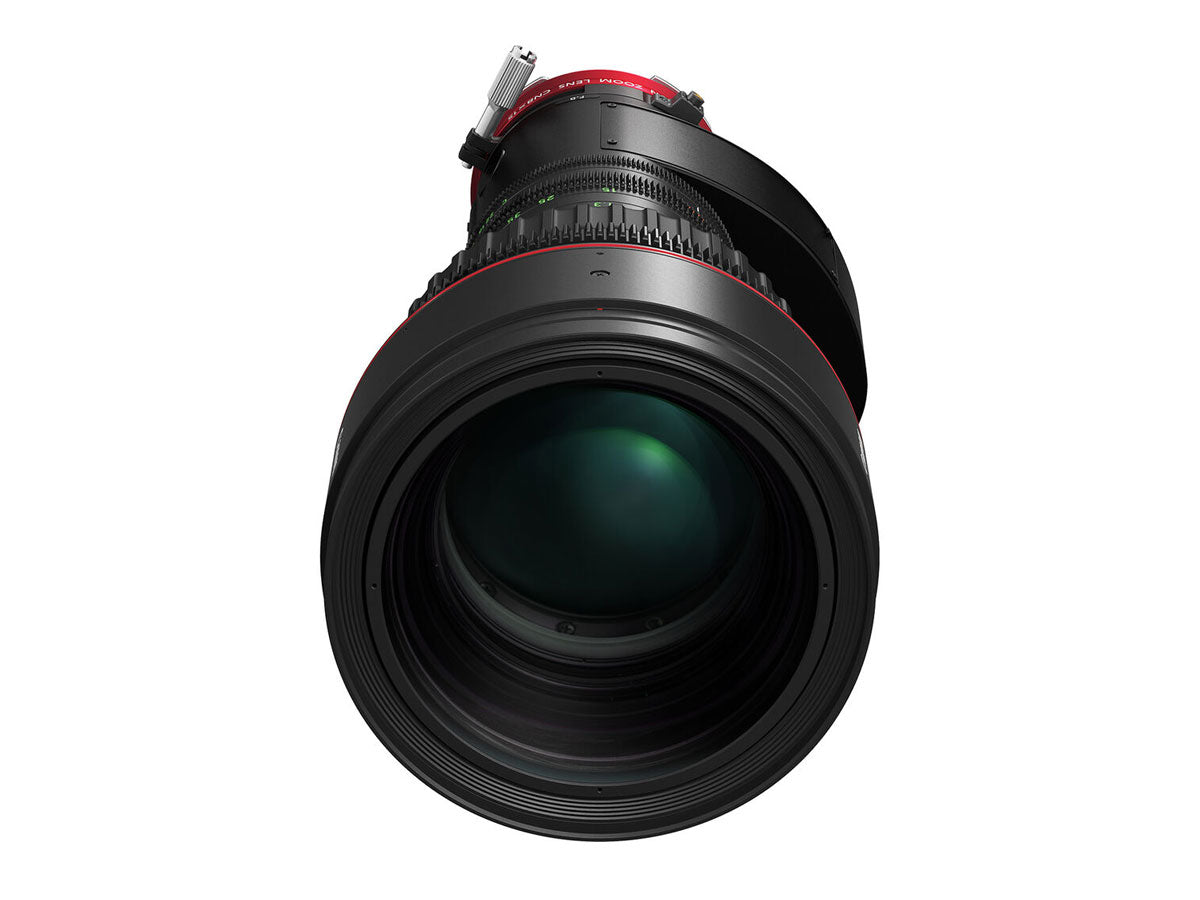

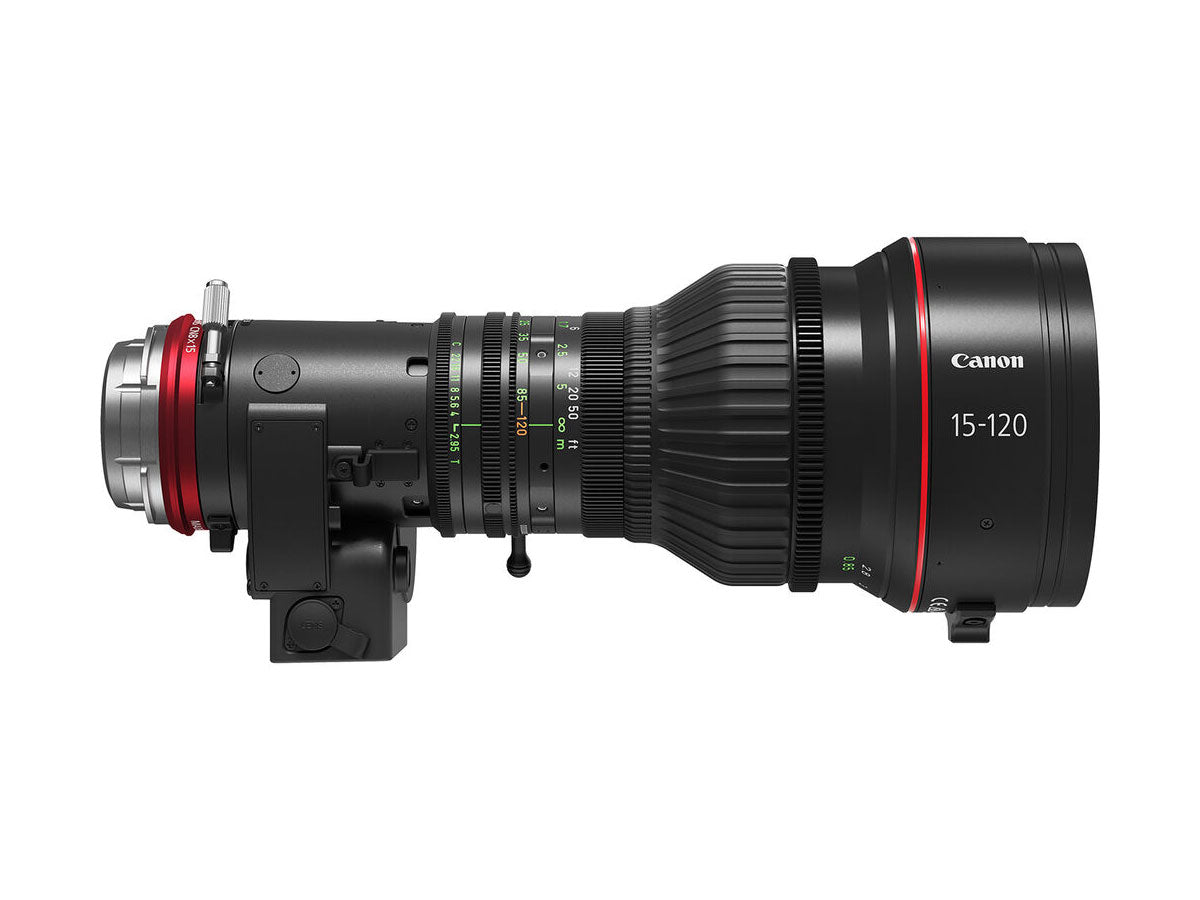

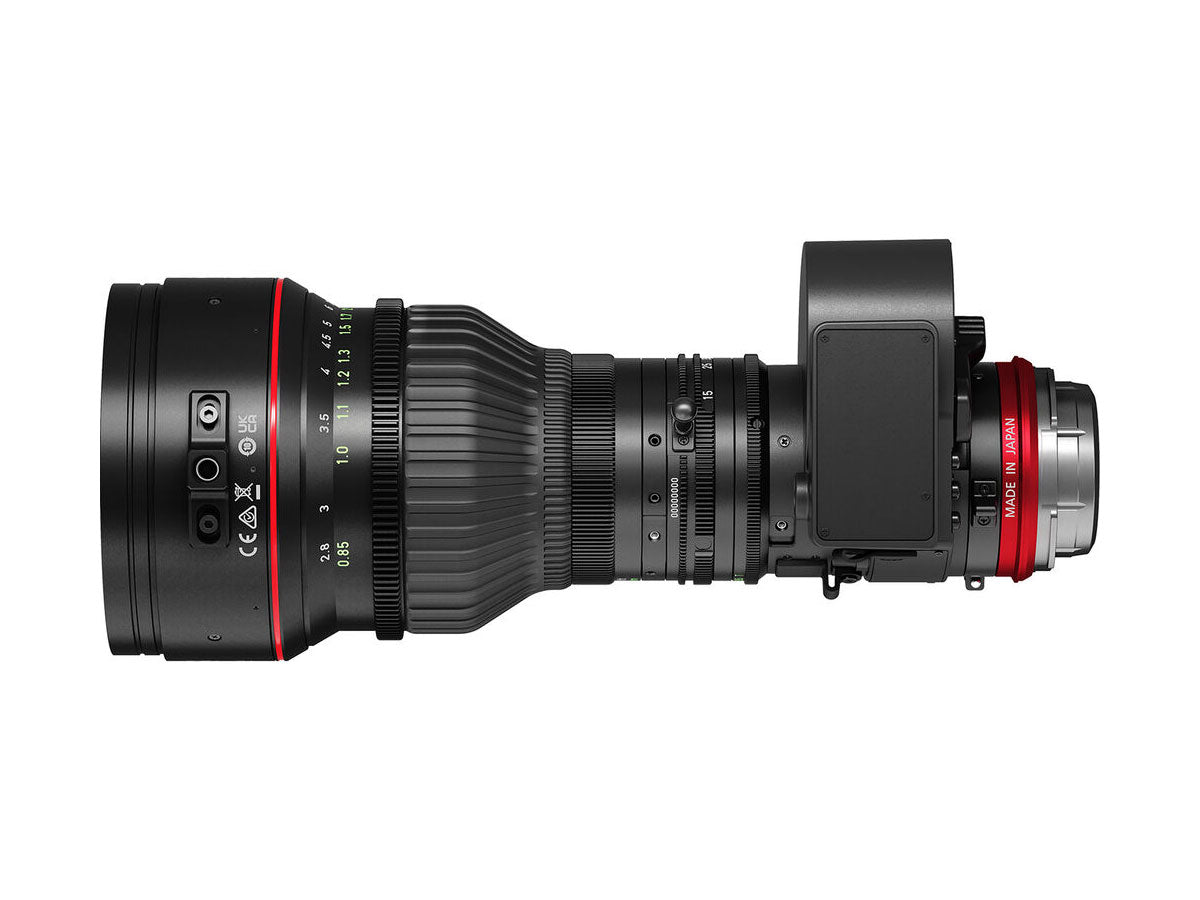

  • Robust, reliable – and built to perform - Remove the drive unit to operate the CN8X15 IAS-S E1/P like a traditional cine lens. With a front diameter of 114mm use industry-standard accessories such as matte boxes and follow focus units. The focus ring sports 0.8 and 0.5 pitch gears with improved markings and engravings.

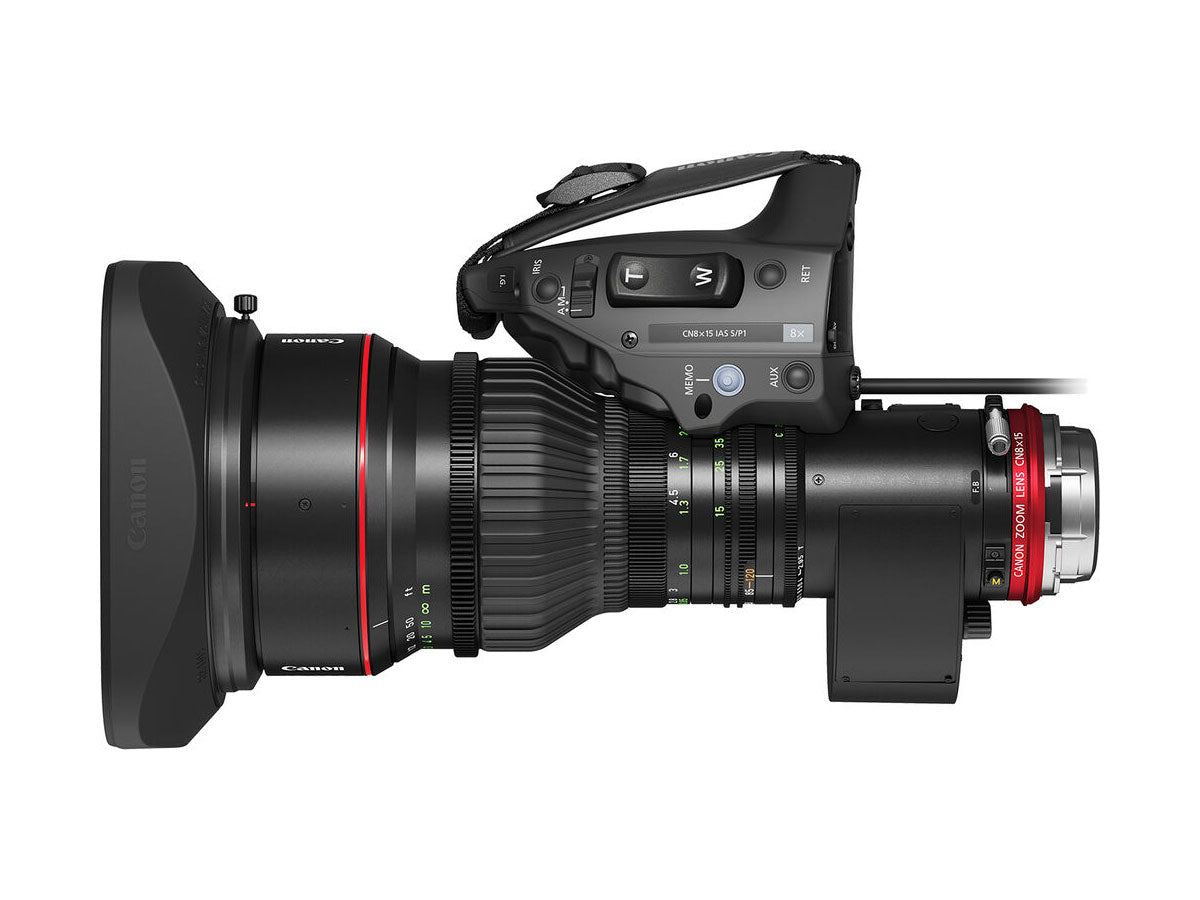

  • Enhanced Servo Drive Unit  - Three 20-pin connectors integrate with Canon’s ZSD-300D and FPD-400D zoom and virtual systems and an electronic display offers precise adjustment and control. Remove the Servo drive for Cinema style operation supporting third-party Cinema accessories.
Zoom Ratio 8x
Focal Length 15 – 120 mm
  22.5 – 180 mm*
Max. Diameter Ratio (T-Stop) T2.95 @ 15 – 90mm
  T3.95 @ 120 mm
  T4.4 @ 22.5 – 135 mm*
  T5.9 @ 180 mm*
Number of aperture blades 11
Angle of view
Aspect Ratio 1.9:1 - FULL FRAME (38.1 x 20.1 mm) 80.5° x 48.1° @ 22.5 mm*
  12.1° x 6.4° @ 180 mm*
Aspect Ratio 1.5:1 - FULL FRAME (36 x 24 mm) 77.3° x 56.1° @ 22.5 mm*
  11.4° x 7.6° @ 180 mm*
Aspect Ratio 1.78:1 - SUPER 35 (24.6 x 13.8 mm) 78.7° x 49.4° @ 15 mm
  11.7° x 6.6° @ 120 mm
  57.3° x 34.1° @ 22.5 mm*
  7.8° x 4.4° @ 180 mm*
Aspect Ratio 1.9:1 - SUPER 35 (26.2 x 13.8 mm) 82.3° x 49.4° @ 15 mm
  12.5° x 6.6° @ 120 mm
  60.4° x 34.1° @ 22.5 mm*
  8.3° x 4.4° @ 180 mm*
Closest focus distance 0.85 m / 2.8’
Shooting range at close contact
1.9:1 - FULL FRAME (38.1 x 20.1 mm) 96.0 x 50.6 cm @ 22.5 mm*
  11.6 x 6.1 cm @ 180 mm*
1.5:1 - FULL FRAME (36 × 24 mm) 90.7 x 60.5 cm @ 22.5 mm*
  11.0 x 7.3 cm @ 180 mm*
1.78:1 - SUPER 35 (24.6 × 13.8 mm) 93.0 x 52.1 cm @ 15 mm
  11.3 x 6.3 cm @ 120 mm
  62.0 x 34.7 cm @ 22.5mm*
  7.5 x 4.2 cm @ 180 mm*
1.9:1 - SUPER 35 (26.2 × 13.8 mm) 99.0 x 52.1 cm @ 25 mm
  12.0 x 6.3 cm @ 120 mm
  66.0 x 34.7 cm @ 22.5 mm*
  8.0 x 4.2 cm @ 180 mm*
Front Diameter Φ 114 mm
Dimensions (Approx.) (W x H x L) 186.7 x 131.7 x 294.9 mm (EF Mount)
Weight (Approx.) 3.40kg
Notes *with extender engaged
  • 1 x Canon 15-120mm 4K Cine Servo Lens - EF
