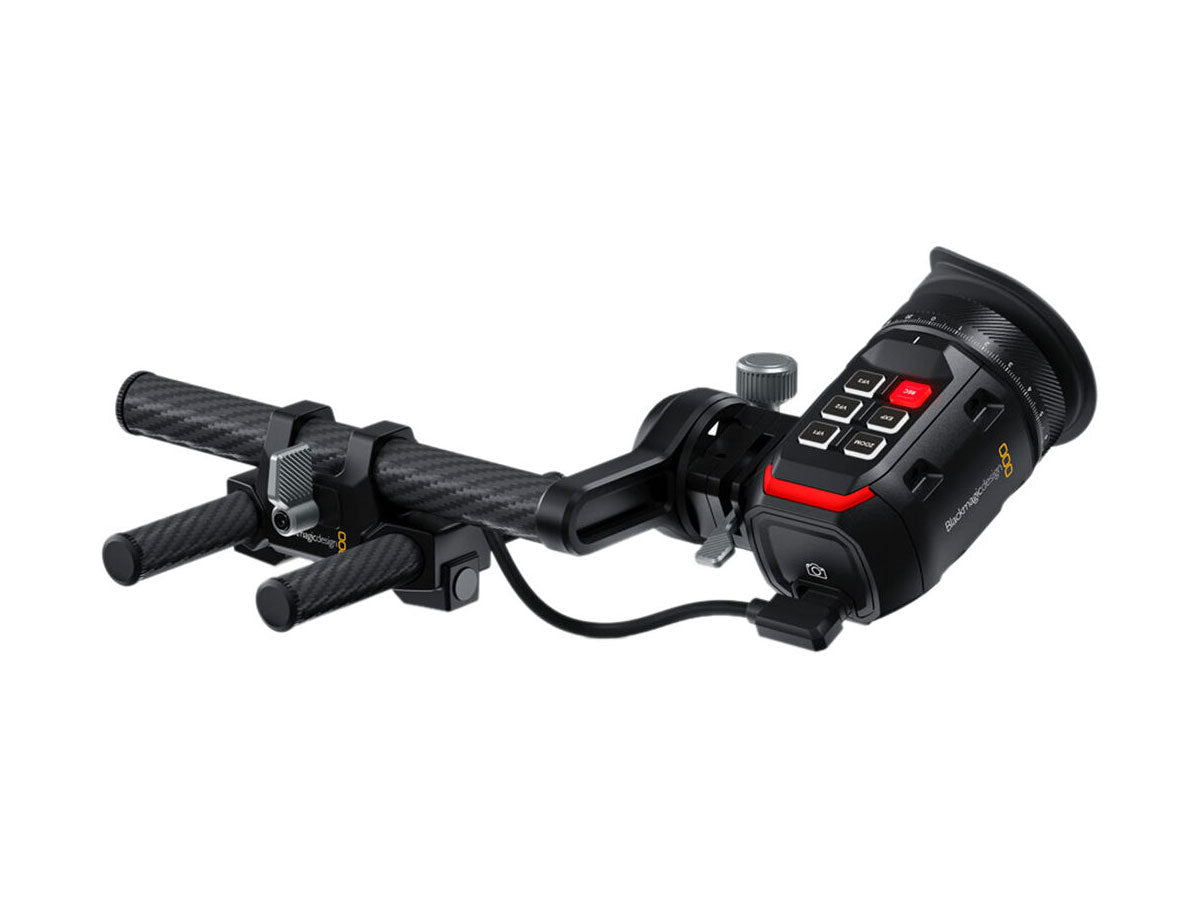

Blackmagic Design URSA Cine EVF
Blackmagic Design URSA Cine EVF
SKU:
BMD-CINEURSAB/EVF
Regular price
£1,215.00 GBP ex VAT
£1,458.00 GBP inc VAT
£1,458.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,215.00 GBP ex VAT
£1,458.00 GBP inc VAT
Unit price
per
£1,458.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.
| CONNECTIONS | |
| Video Inputs: | USB-C |
| Power Input: | USB-C |
| Data Input / Output: | USB-C |
| Computer Interface: | USB-C for software updates. |
| FEATURES | |
| Display Resolution: | Full 1920 x 1080. 6.22 Million dots |
| Display Type: | OLED |
| Frame Rates: | Up to 60fps |
| Focus: | 4 Element diopter. |
| Diopter Range: | -5 to +5 |
| Controls: | Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons. |
| Overlays: | Built in overlay display processor and top mounted buttons. |
| Eyepiece: | Can be tilted vertically and extended for left or right eye use. |
| Tally: | LED tally light. |
| Mounting Options: | Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports. |
| Metadata Support: | Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10 and 11. |
| Mac: | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. |
| POWER REQUIREMENTS | |
| Power Requirements: | Powered over USB‑C. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (‑4° to 113° F) |
| Relative Humidity: | 0% to 90% non‑condensing |
- Blackmagic URSA Cine EVF
- Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
- Blackmagic URSA Cine EVF Bracket rod mount
- Blackmagic URSA Cine EVF Extension
- 2 short carbon fibre 15mm rods
- 1 x long USB viewfinder cable. Right angle to straight
- 1 x short USB viewfinder cable. Right angle to straight
- 1 x short USB viewfinder cable. Right angle to right angle
- Rubber eyecup
- Fabric eye chamois
- Blackmagic Sticker
- Welcome wallet with QR code for software download
