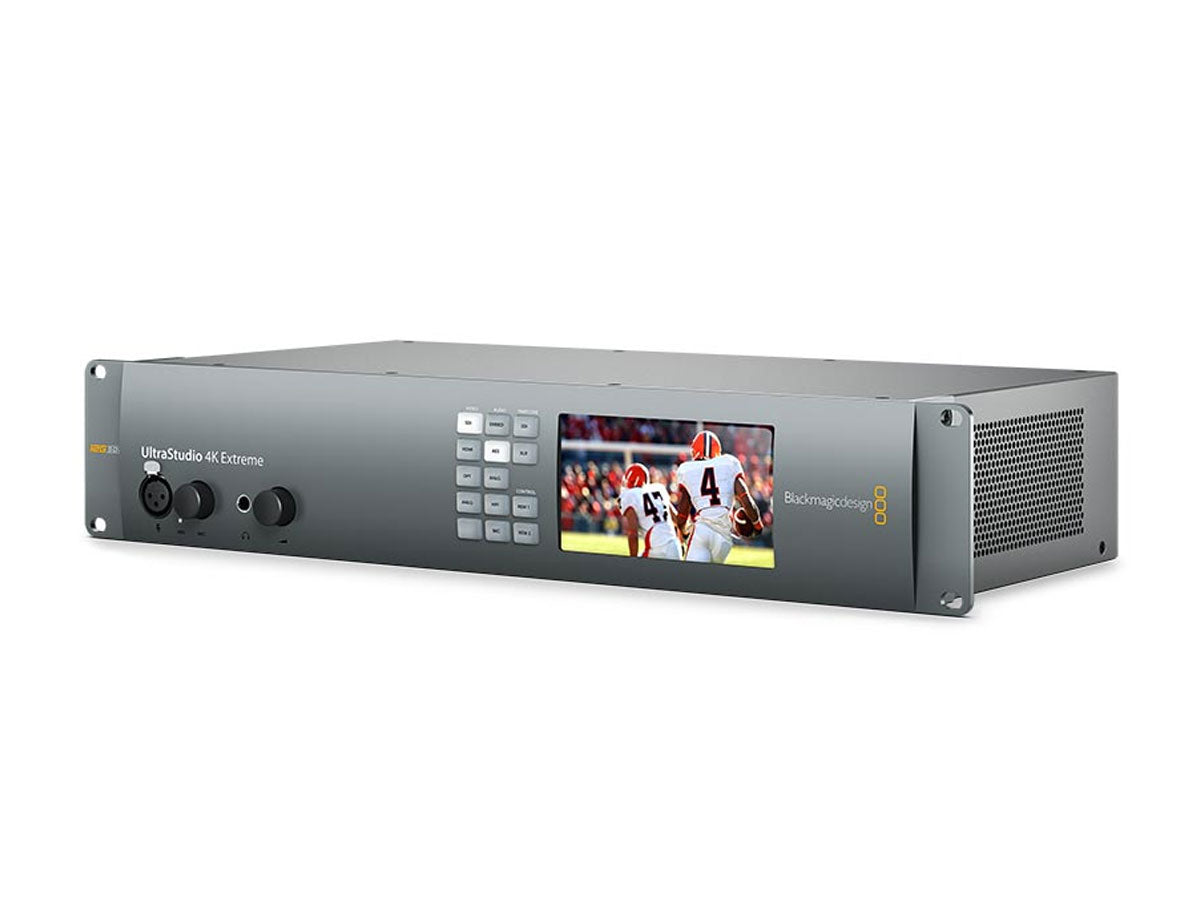

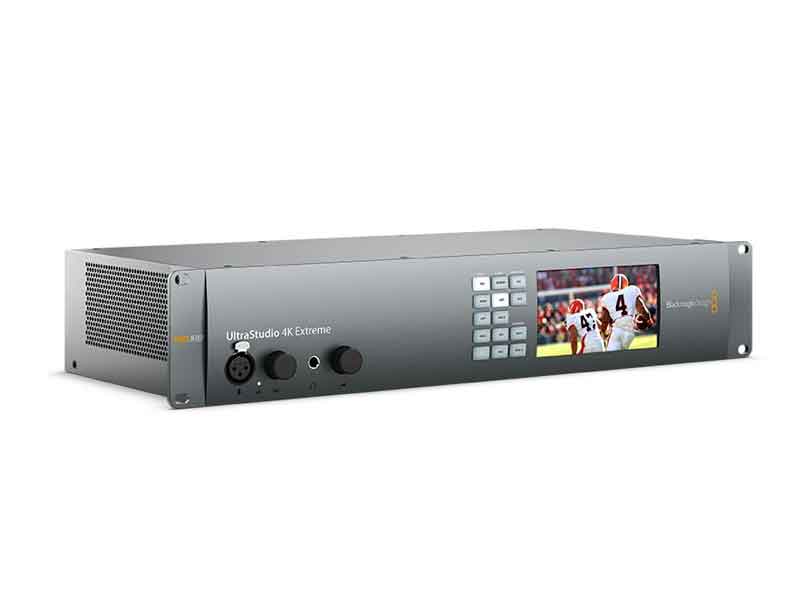

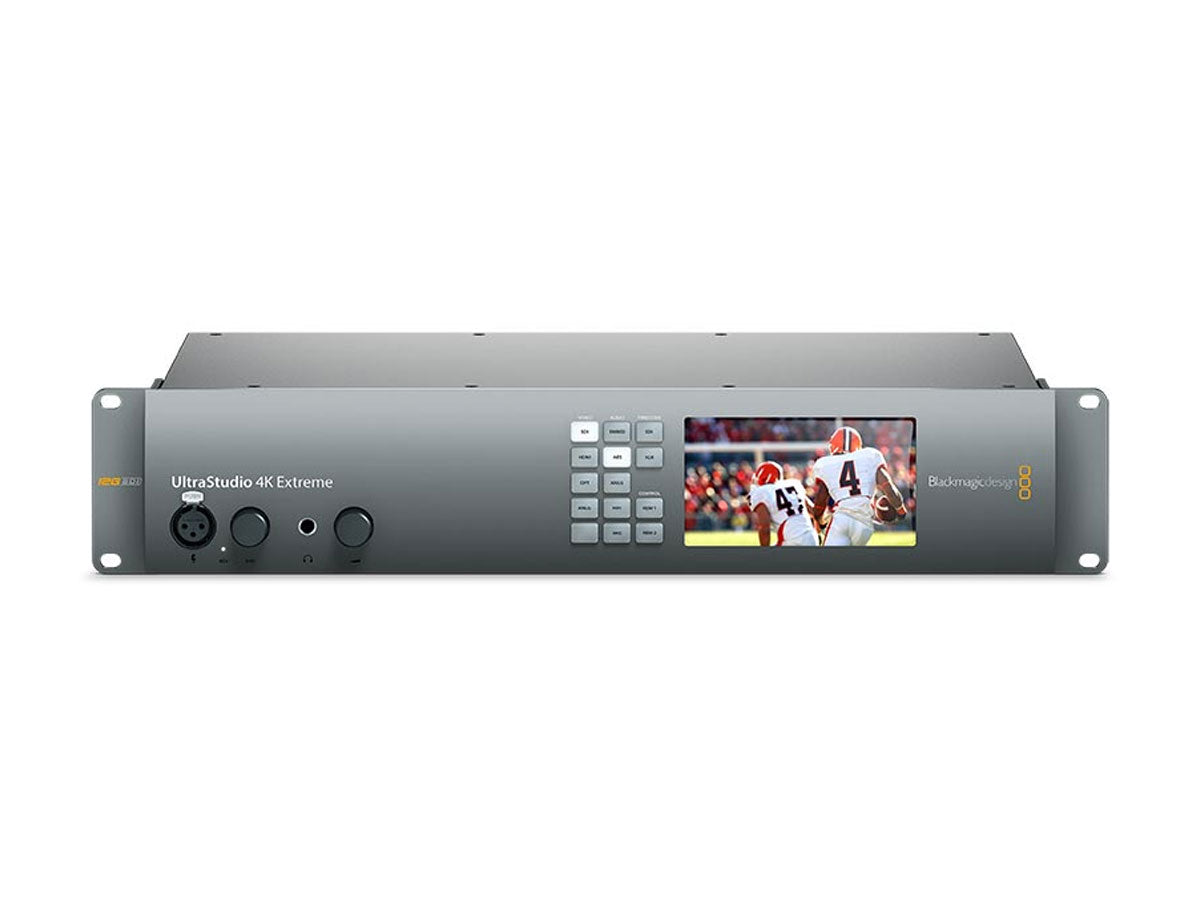

Blackmagic Design UltraStudio 4K Extreme 3
Blackmagic Design UltraStudio 4K Extreme 3
SKU:
BMD-BDLKULSR4KEXTR3
Regular price
£2,235.00 GBP ex VAT
£2,682.00 GBP inc VAT
£2,682.00 GBP inc VAT
Regular price
ex VAT
Sale price
£2,235.00 GBP ex VAT
£2,682.00 GBP inc VAT
Unit price
per
£2,682.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
UltraStudio 4K Extreme 3 is the world’s most advanced capture and playback solution for PCIe and Thunderbolt computers. It features incredibly fast 40Gb/s Thunderbolt 3, advanced 12G-SDI and HDMI 2.0 connections for working at up to 60 frames per second with deep color, 12-bit RGB, support for HDR workflows via HDMI 2.0a and extremely large 4K frame sizes, even in 3D. Featuring the widest range of analog and digital connections, UltraStudio 4K Extreme is compatible with virtually any camera, deck, router or display. There’s even an extremely powerful hardware encoder built-in that supports realtime H.265 encoding.
- Advanced 40Gb/s Thunderbolt 3 and PCIe solution with 12G SDI, HDMI 2.0, Analog, 4:4:4, Ultra HD and 4K up to 2160p60 and hardware encoder for H.265
- Encoding - Hardware based real time h.265 encoder
- Colorspace Conversion - Hardware based real time
- 3D Processing - Dual stream and frame packed capture & playback
- Ultra HD Down Conversion - Built in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D
- HD to SD Down Conversion - Built in, high quality hardware down converter outputs HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3
- HD Up Conversion - Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
- HD Cross Conversion - Built in, high quality hardware cross conversion from 720p to 1080i and 1080i to 720p on playback
- Real Time Effects - DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
- Physical Installation - Requires computer with either a Thunderbolt port or available PCIe slot. PCIe cable and interface card available separately. Please check support pages to see the full system requirement

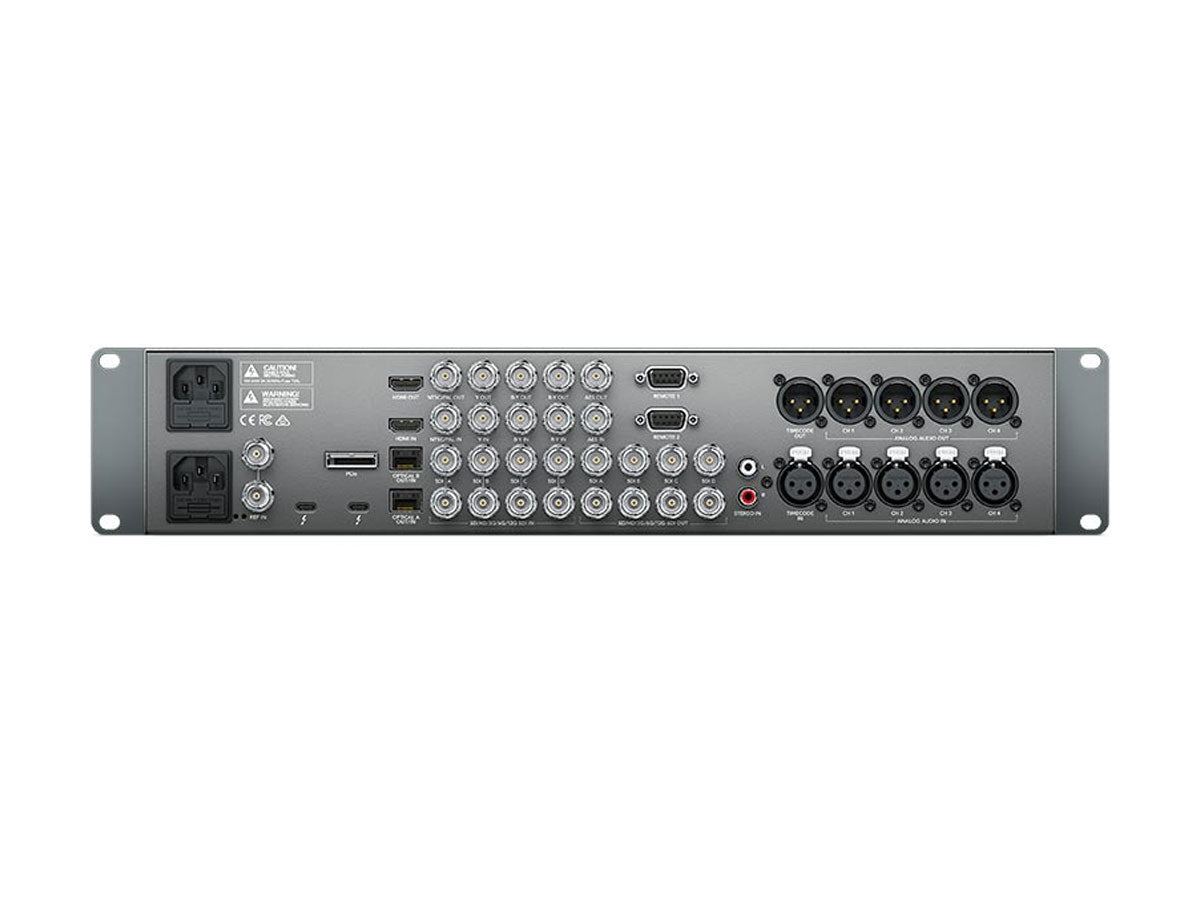

| CONNECTIONS | |
| SDI Video Inputs: | 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable. |
| SDI Video Outputs: | 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable. |
| SDI Rates: | 270Mb, 1.5G, 3G, 6G, 12G. |
| Optical SDI: | Supports 2 optional SMPTE modules. |
| SDI Video Loop: | 4 x reclocked SD/HD/2K/4K linked to corresponding inputs. |
| SDI Video Repeated Outputs: | 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable. |
| Analog Video Inputs: | 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC. |
| Analog Video Outputs: | 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC. |
| Analog Audio Inputs: | 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors. |
| Analog Audio Outputs: | 4 Channels of professional balanced analog audio via XLR connectors. |
| Optical Fiber Inputs / Outputs (Optional): | 2 x 12Gb/s Optical Fiber. |
| AES / EBU Audio Inputs: | 2 Channels unbalanced with sample rate converter on BNC connector. |
| AES / EBU Audio Outputs: | 2 Channels unbalanced on BNC connector. |
| SDI Audio Inputs: | 16 Channels embedded in SD/HD/2K/4K. |
| SDI Audio Outputs: | 16 Channels embedded in SD/HD/2K/4K. |
| HDMI VIdeo Inputs: | HDMI 2.0 type A connector with support for 2160p60 |
| HDMI Video Outputs: | HDMI 2.0 type A connector with support for 2160p60 |
| HDMI Audio Inputs: | 8 Channels embedded in SD/HD/4K. |
| HDMI Audio Outputs: | 8 Channels embedded in SD/HD/4K. |
| Mic Input: | 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control. |
| Timecode Input: | 1 x XLR Input. |
| Timecode Output: | 1 x XLR Output. |
| Sync Input: | 1 x Reference input. Tri-Sync or Black Burst. |
| Sync Output: | 1 x Reference Loop Output. Tri-Sync or Black Burst. |
| Computer Interface: | Thunderbolt™ 3 (Mac OS and Windows), PCI Express 4 lane generation 2. |
| Power: | 2 x built-in international AC power supply with IEC C14 inlet. 100-240V, 50-60Hz. |
| SUPPORTED CODECS | |
| Supported Codecs: | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| SOFTWARE | |
| Software Installed: | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade: | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| SDI VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards: | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 435, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-10, SMPTE ST2108‑1, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support: | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| SDI VIdeo Sampling: | 4:4:4, 4:2:2 |
| SDI Colour Space: | REC 601, REC 709, REC 2020. |
| HDR Support: | HDR metadata packing, HLG and PQ transfer characteristics. |
| SDI Configuration: | SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD. |
| HDMI VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 |
| HDMI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| HDMI Video Sampling: | 4:4:4, 4:2:2, 4:2:0 |
| HDMI Colour Space: | REC 601, REC 709, REC 2020. |
| HDR Support: | HDR static metadata packing, HLG and PQ transfer characteristics. |
| HDMI Configuration: | HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display. |
| Multiple Rate Support: | HDMI and SDI video connections are switchable between SD/HD/UHD and 4K. Component analog video connections are switchable between SD and HD. |
| Copy Protection: | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| HARDWARE FRAME BUFFER | |
| Hardware Frame Buffer: | ARGB, BGRA (8-bit RGB 4:4:4:4), r210 (10-bit RGB 4:4:4), R12B and R12L (12-bit RGB 4:4:4) up to 2160p30. 2vuy (8-bit YUV 4:2:2) and v210 (10-bit YUV 4:2:2) in all modes. |
| COLOUR PRECISION | |
| Colour Precision: | 8, 10, 12-bit RGB 4:4:4 up to 2160p30 and 8, 10-bit YUV 4:2:2 in all standards. |
| COMPUTER CAPTURE | |
| Computer Capture: | 2 x Thunderbolt 3 for Mac and Windows plus PCI Express Gen 2 for Mac, Windows and Linux. Includes Blackmagic Desktop Video SDK. |
| CONTROL | |

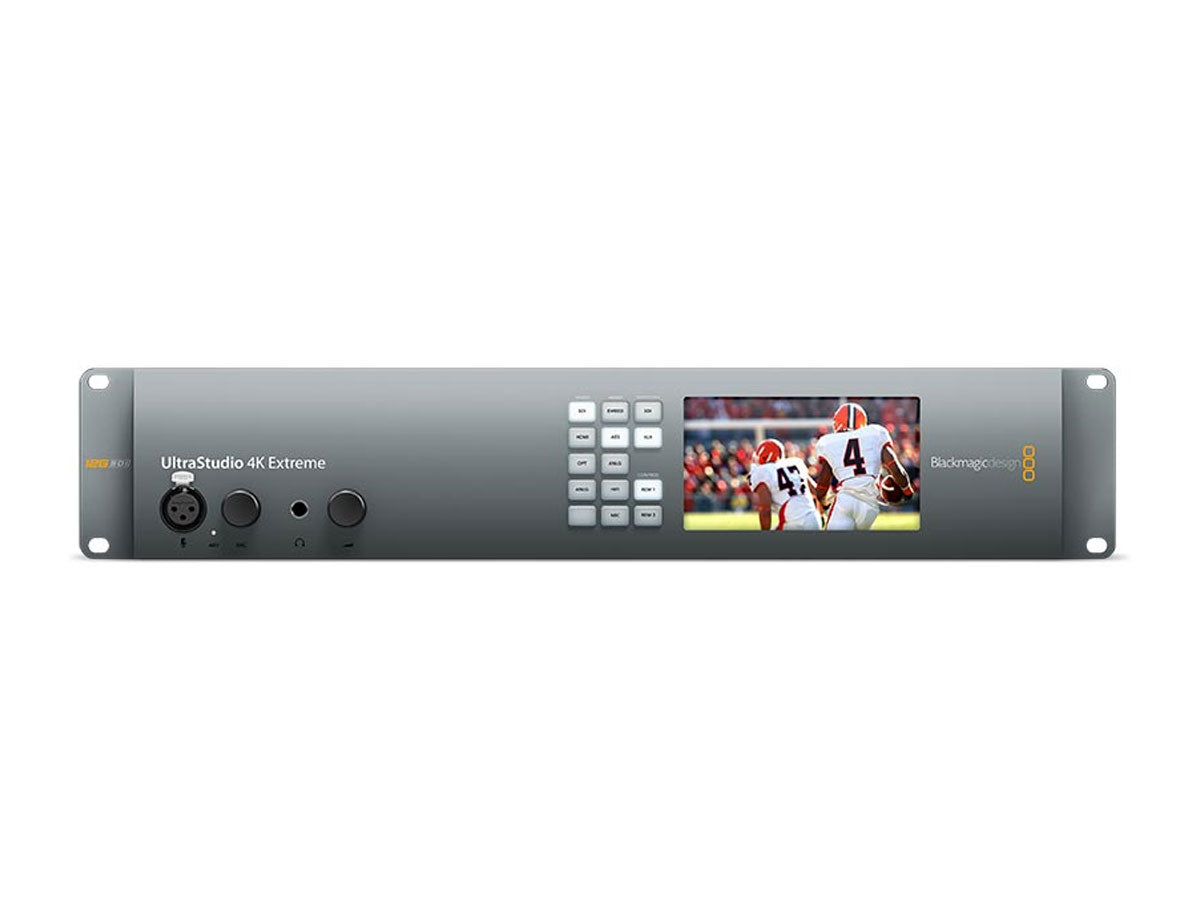

| Built In Control Panel: | 14 buttons for input selection. 5 inch color display. |
| Device Control: | 2 x RS-422 deck control. |
| PROCESSING | |
| Encoding: | Hardware based real time H.265 encoder. |
| Ultra HD Down Conversion: | Built in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D and HDMI output when connected to an HD-only TV. |
| HD to SD Down Conversion: | Built in, high quality hardware down converter outputs HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3. |
| HD Up Conversion: | Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom. |
| HD Cross Conversion: | Built in, high quality hardware cross conversion from 720p to 1080HD and 1080HD to 720p on playback. |
| Real Time Effects: | DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
| Colourspace Conversion: | Hardware based real time. |
| 3D Processing: | Dual stream and frame packed capture & playback. |
| Physical Installation: | Requires a computer with either a Thunderbolt port or available PCI Express slot. Blackmagic PCI Express Cable Kit available separately for high speed PCI Express Gen 3 connection. Please check support pages to see the full system requirement. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. Windows 11. |
| Mac: | Mac 12.0 Monterey, Mac 13.0 Ventura or later. |
| Linux: | Linux |
| POWER REQUIREMENTS | |
| Power Requirements: | 2 x Internal 100 - 240V AC |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 482 x 242 x 88mm |
| Weight: | 3.9kg |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 5° to 40° C (41° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- UltraStudio 4K Extreme 3
- SD card with software and manual
- DaVinci Resolve SD card
