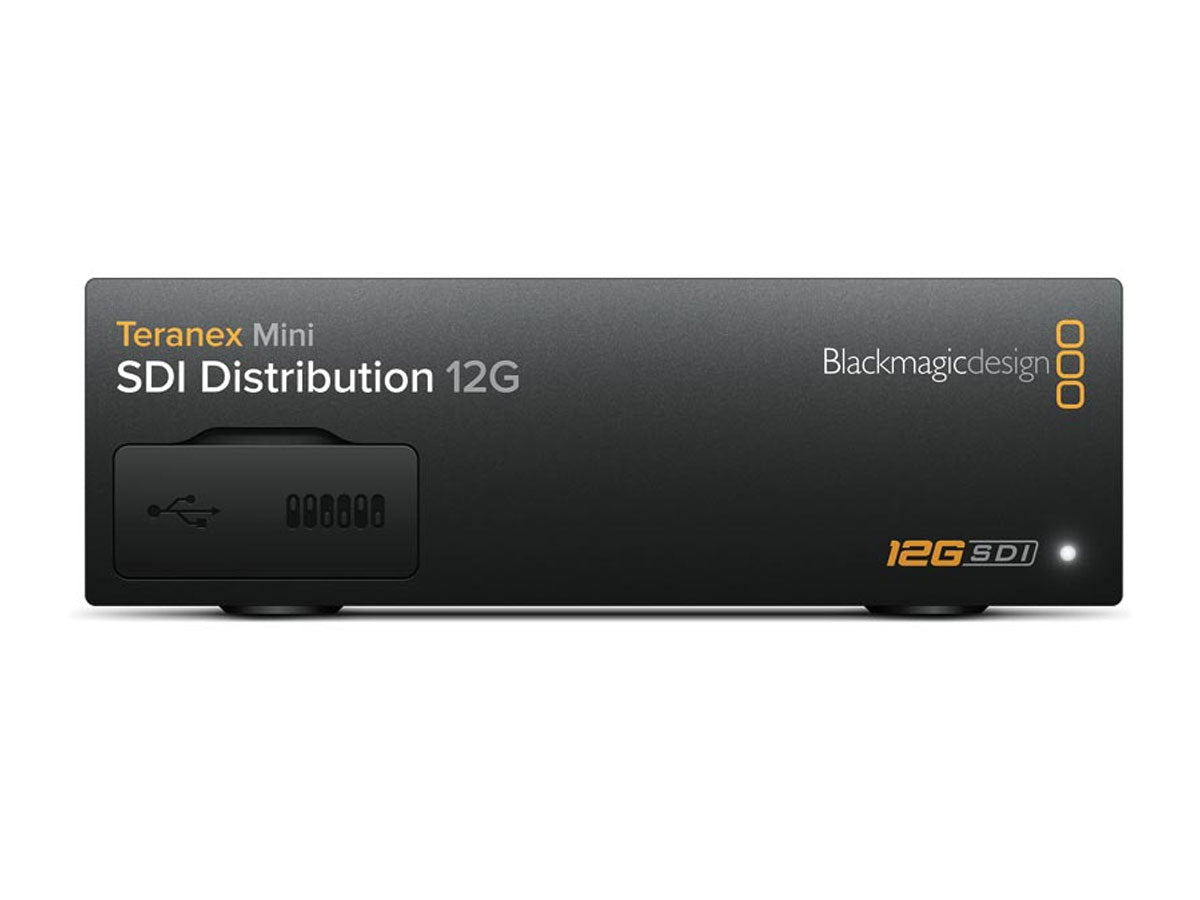

Blackmagic Design Teranex Mini - SDI Distribution 12G
Blackmagic Design Teranex Mini - SDI Distribution 12G
SKU:
BMD-CONVNTRM/EA/DA
Regular price
£384.27 GBP ex VAT
£461.12 GBP inc VAT
£461.12 GBP inc VAT
Regular price
ex VAT
Sale price
£384.27 GBP ex VAT
£461.12 GBP inc VAT
Unit price
per
£461.12 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60.
Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.
- Distribute a single SDI video input to up to eight SDI outputs
- SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
- SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
- Multi Rate Support: Automatic switching between SD/HD/2K and 4K
- Updates and Configuration: USB or Ethernet
- Re-Clocking: Yes

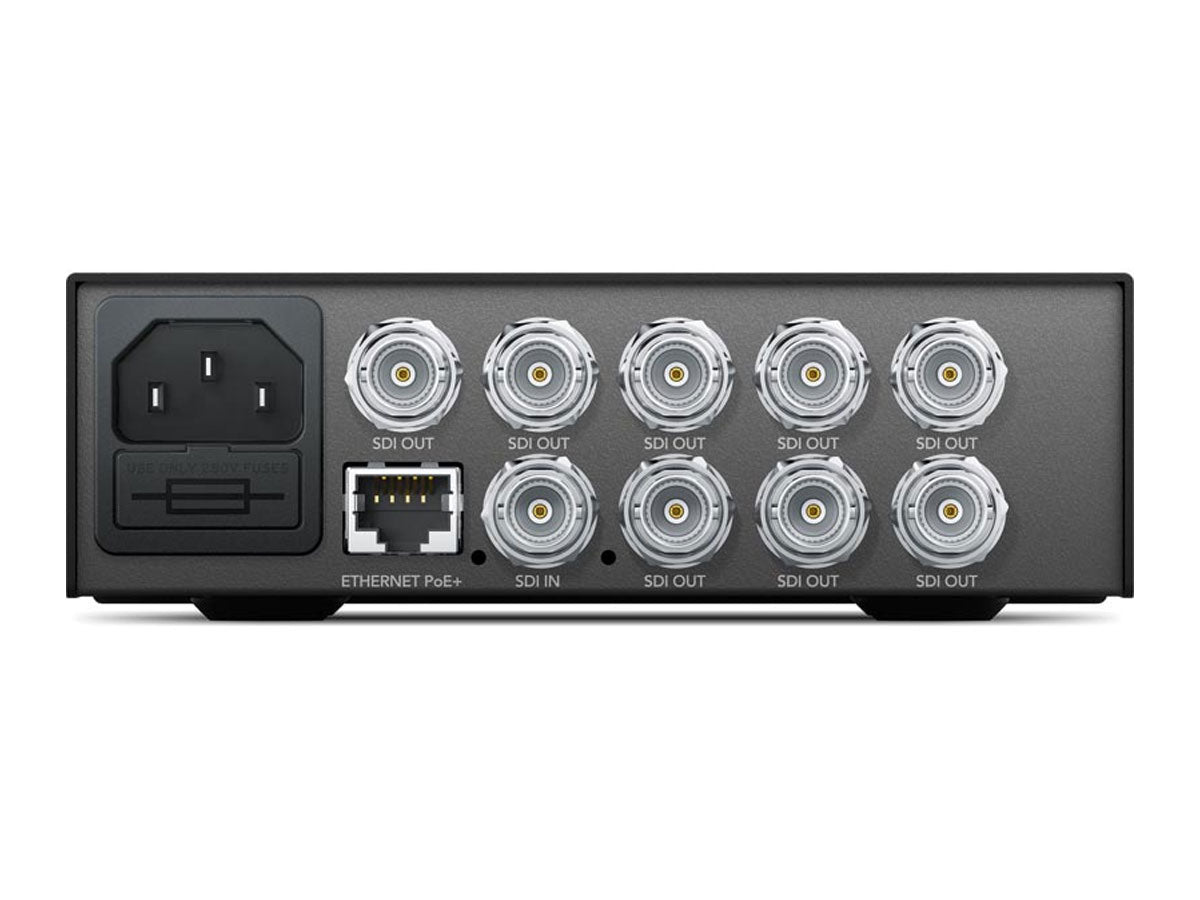

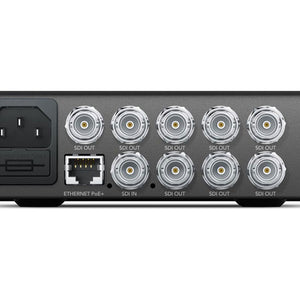

| CONNECTIONS | |
| SDI Video Inputs: | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
| SDI Video Outputs: | 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input |
| Embedded Audio Support: | 16 channels. |
| Multi Rate Support: | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration: | USB or Ethernet |
| Reclocking: | Yes |
| STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards: | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Video Rates: | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling: | 4:2:2 and 4:4:4 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24‑bit. |
| SDI Colour Space: | YUV & RGB |
| SOFTWARE | |
| Software Control: | Mac™ and Windows™ software upgrade via USB and Ethernet. |
| Internal Software Upgrade: | Via included updater application. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| SETTINGS CONTROL | |
| Basic Settings Control: | Mini Switches, USB and Ethernet via free software utility. |
| Optional Front Panel Control: | Front mounted Smart Panel with LCD, rotary knob and six settings buttons. |
| POWER REQUIREMENTS | |
| Power Supply: | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input |
| Power Over Ethernet: | Can be powered via 48V DC using PoE+ (power over ethernet). |
| Power Consumption: | 16 Watts |
| Operational Voltage Range: | 100 - 240V AC |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 170 x 140 x 44mm |
| Weight: | 580g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40°C (32° to 104°F) |
| Storage Temperature: | -20° to 60°C (-4° to 140°F) |
| Relative Humidity: | 0% to 90% non‑condensing |
- Teranex Mini - SDI Distribution 12G
- Software SD Card
