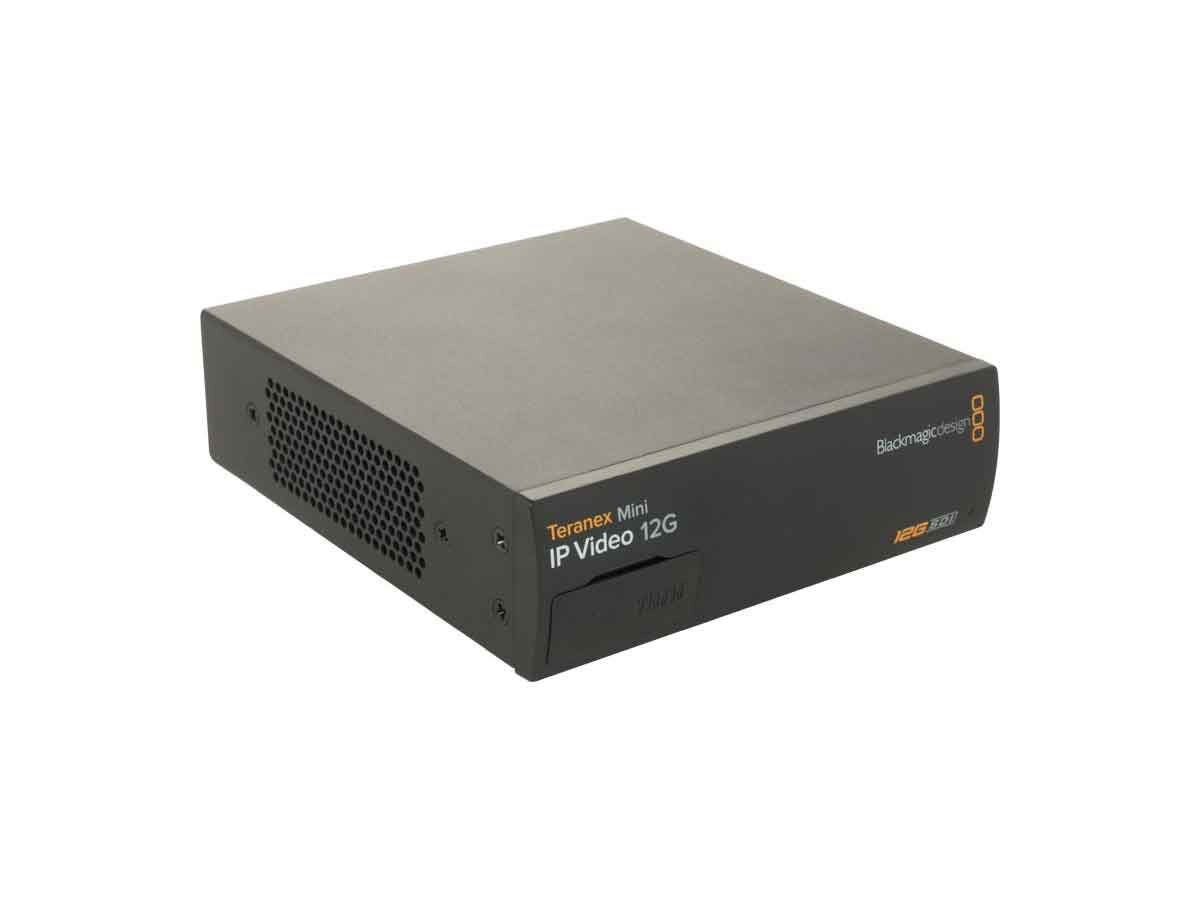

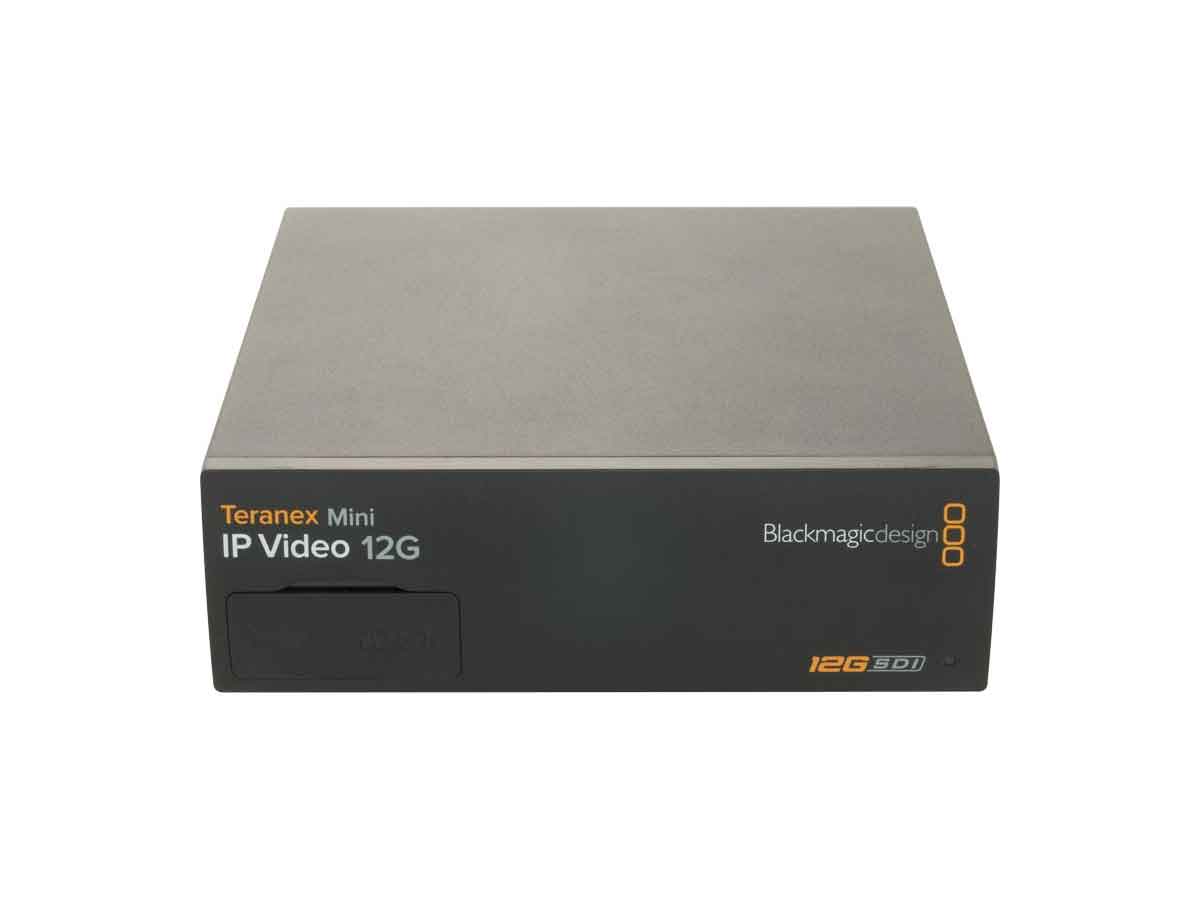

Blackmagic Design Teranex Mini - IP Video 12G - SFP Module not Included.
Blackmagic Design Teranex Mini - IP Video 12G - SFP Module not Included.
SKU:
BMD-CONVNTRM/OB/IPV
Regular price
£365.50 GBP ex VAT
£438.60 GBP inc VAT
£438.60 GBP inc VAT
Regular price
ex VAT
Sale price
£365.50 GBP ex VAT
£438.60 GBP inc VAT
Unit price
per
£438.60 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Now you can convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI. Teranex Mini IP Video 12G uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals! You get 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP!
- Convert video to IP and route it over your existing ethernet network, or you can convert IP video back to SDI
- Uses standard Blackmagic Videohub software and hardware control panels to configure and switch IP video over ethernet as easily as SDI signals
- 12G-SDI and the low latency broadcast quality TICO codec so you can route HD over the built in gigabit ethernet connection or Ultra HD over 10G ethernet with an optional 10G SFP

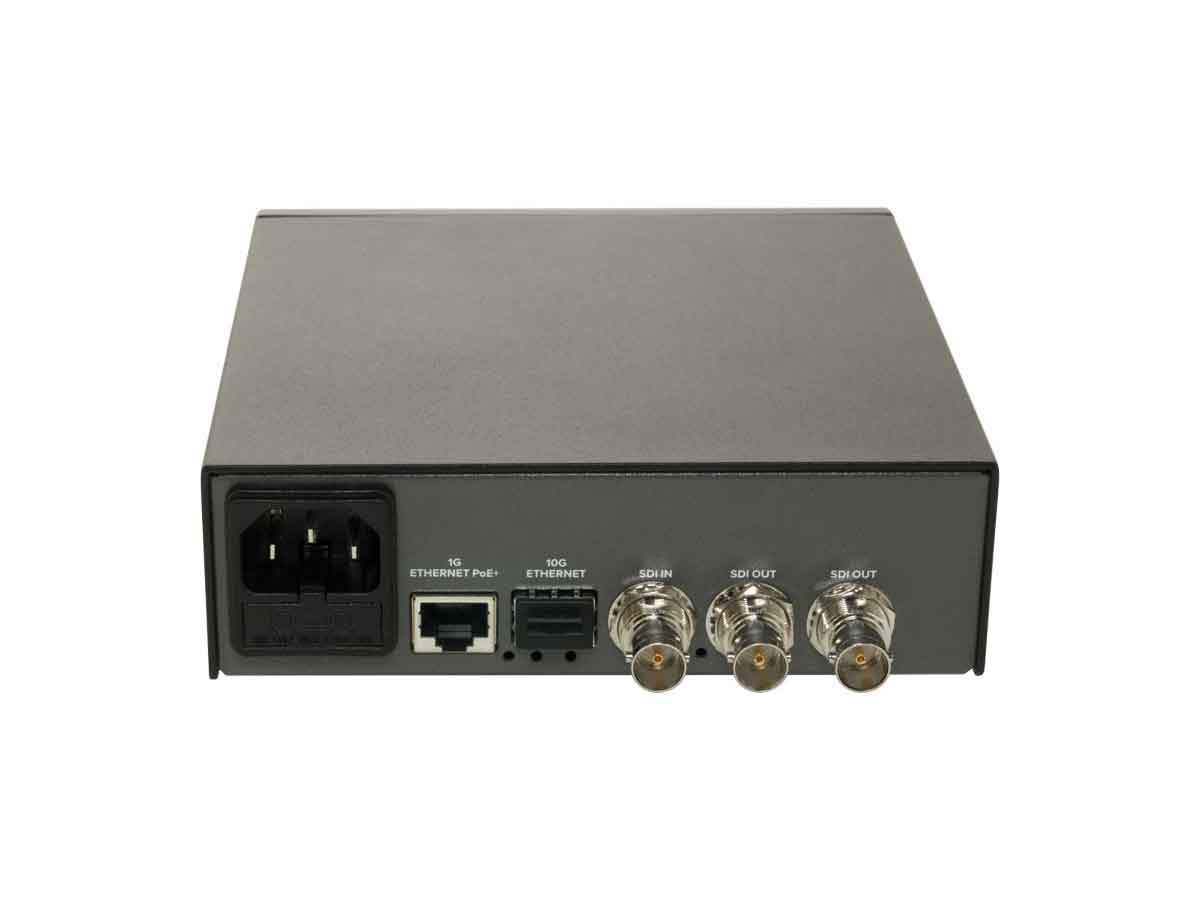

| CONNECTIONS | |
| SDI Video Inputs: | 1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI |
| SDI Video Outputs: | 2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI |
| Ethernet: | Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding. |
| Multi Rate Support: | Auto detection of HD-SDI, 6G-SDI or 12G‑SDI. |
| Updates: | USB 2.0 high speed (480Mb/s) interface or via Ethernet. |
| Configuration: | Ethernet or USB 2.0 for firmware updates and IP address setting. |
| Reclocking: | On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video. |
| STANDARDS | |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards: | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Rates: | SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI. |
| SDI Video Sampling: | 4:2:2 plus 4:4:4 up to 4K DCI 30p |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24‑bit. |
| SDI Colour Precision: | 10-bit 4:2:2 and 4:4:4 |
| SDI Colour Space: | YUV or RGB for inputs, YUV for SDI outputs. |
| SDI Auto Switching: | Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI. |
| SDI Metadata Support: | Video payload identification ancillary data as per SMPTE 352M. |
| DISPLAY | |
| Display: | Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings. |
| SOFTWARE | |
| Software Control: | Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac. |
| Internal Software Upgrade: | Via included updater application. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| SETTINGS CONTROL | |
| Control: | Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons. |
| POWER REQUIREMENTS | |
| Power Supply: | IEC power cable required. 100 - 240V AC input. |
| Power Fail Protection: | Settings preserved and restored instantly at power on. |
| Power Ever Ethernet: | Can be powered via 48V DC using PoE+ (power over Ethernet). |
| Power Consumption: | 16 Watts |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 170 x 140 x 44mm |
| Weight: | 580g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility. |
| Storage Temperature: | -20° to 60°C (-4° to 140°F) |
| Relative Humidity: | 0% to 90% non‑condensing |
- 1x Blackmagic Design Teranex Mini - IP Video 12G
- 1x Software and Manual SD Card
