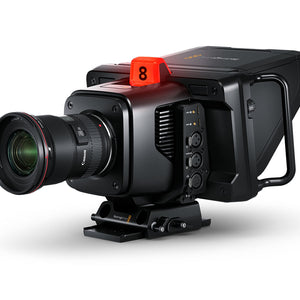

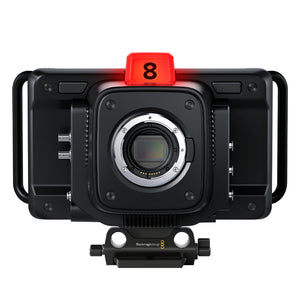

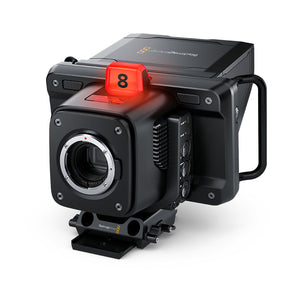

Blackmagic Design Studio Camera 6K Pro
Blackmagic Design Studio Camera 6K Pro
SKU:
BMD-CINSTUDMFT/G26PDK
Regular price
£1,668.00 GBP ex VAT
£2,001.60 GBP inc VAT
£2,001.60 GBP inc VAT
Regular price
ex VAT
Sale price
£1,668.00 GBP ex VAT
£2,001.60 GBP inc VAT
Unit price
per
£2,001.60 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Blackmagic Studio Camera 6K Pro
Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built in streaming! You also get the same powerful 12G‑SDI, 10G Ethernet and HDMI connections found on the 4K Pro G2.
The ultimate self contained live studio cameras
With 3 models of Blackmagic Studio Camera, you can choose the one that’s best for your work. Even with 3 different models, each camera still has the same Blackmagic generation 5 colour science, so have the same cinematic images when mixed and matched on the same job. The distinctive design has the benefits of a large studio camera as it’s a combination of camera and viewfinder in a single lightweight design. All models offer gain from -12dB (100 ISO) up to +36dB (25,600 ISO) for amazing low light performance with low image grain and noise, as well as maximum dynamic range from the sensor. That means you can shoot in locations with limited lighting. They even have built in colour correctors.
Lightweight Carbon Fiber Polycarbonate
Blackmagic Studio Cameras are built from advanced carbon fiber reinforced polycarbonate, so they are light weight and very strong. That's important when you are carrying multiple cameras into venues such as old theatres, stadiums or nightclubs that have crazy stairs and hard to access backstage areas. Plus the ergonomic design has all external connections on the tripod handle side of the camera. This design and the folding sunshade makes the cameras extremely fast to set up.

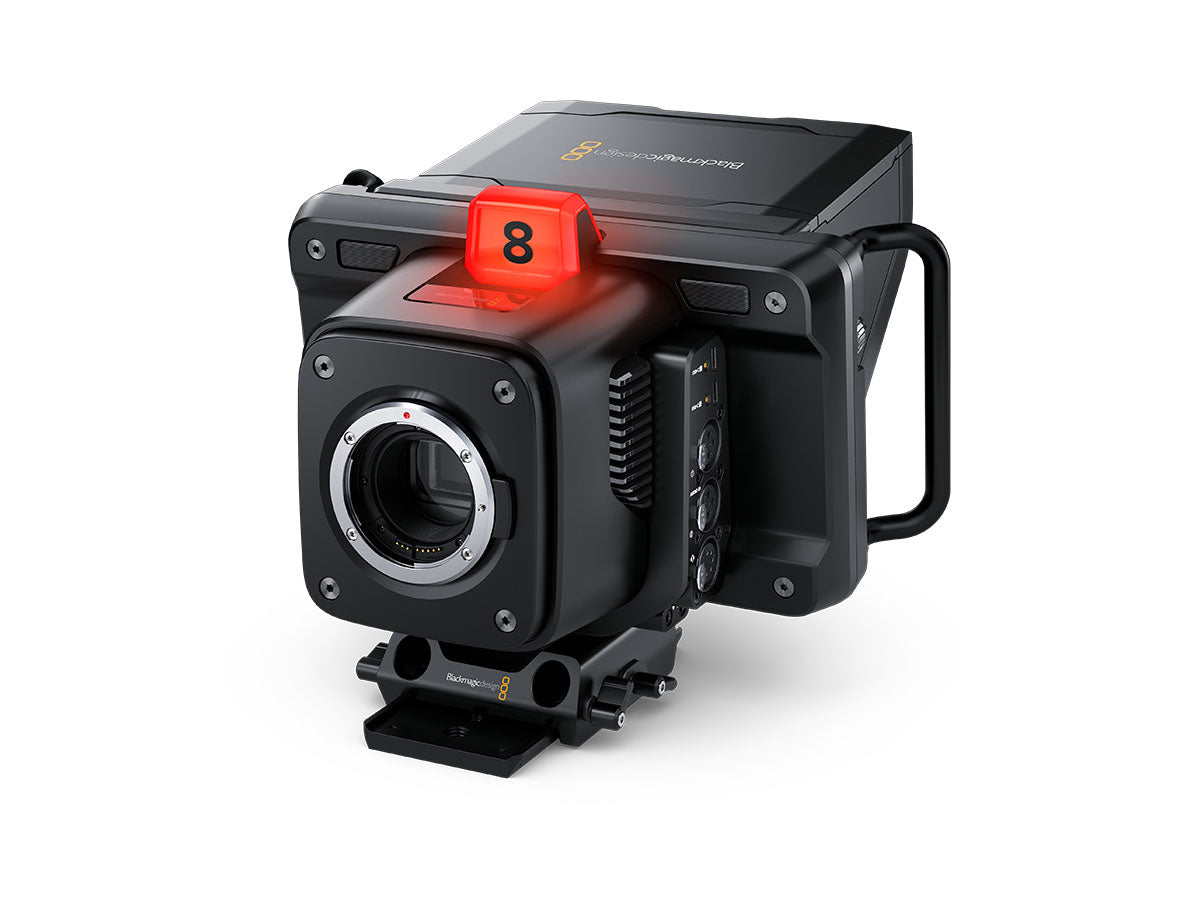

Highly Visible Tally Light
Blackmagic Studio Cameras have a large built in tally light to see which camera is on-air. The light is so big, you can see it from a great distance! Plus numeric decals are included so you can number each camera. There's also a separate tally light on the rear under the sunshade, perfect when tilting the camera down. Tally is flexible as it works via SDI, HDMI or the Ethernet connection. When using Ethernet, the Blackmagic Studio Converter even includes conventional tally GPI inputs.

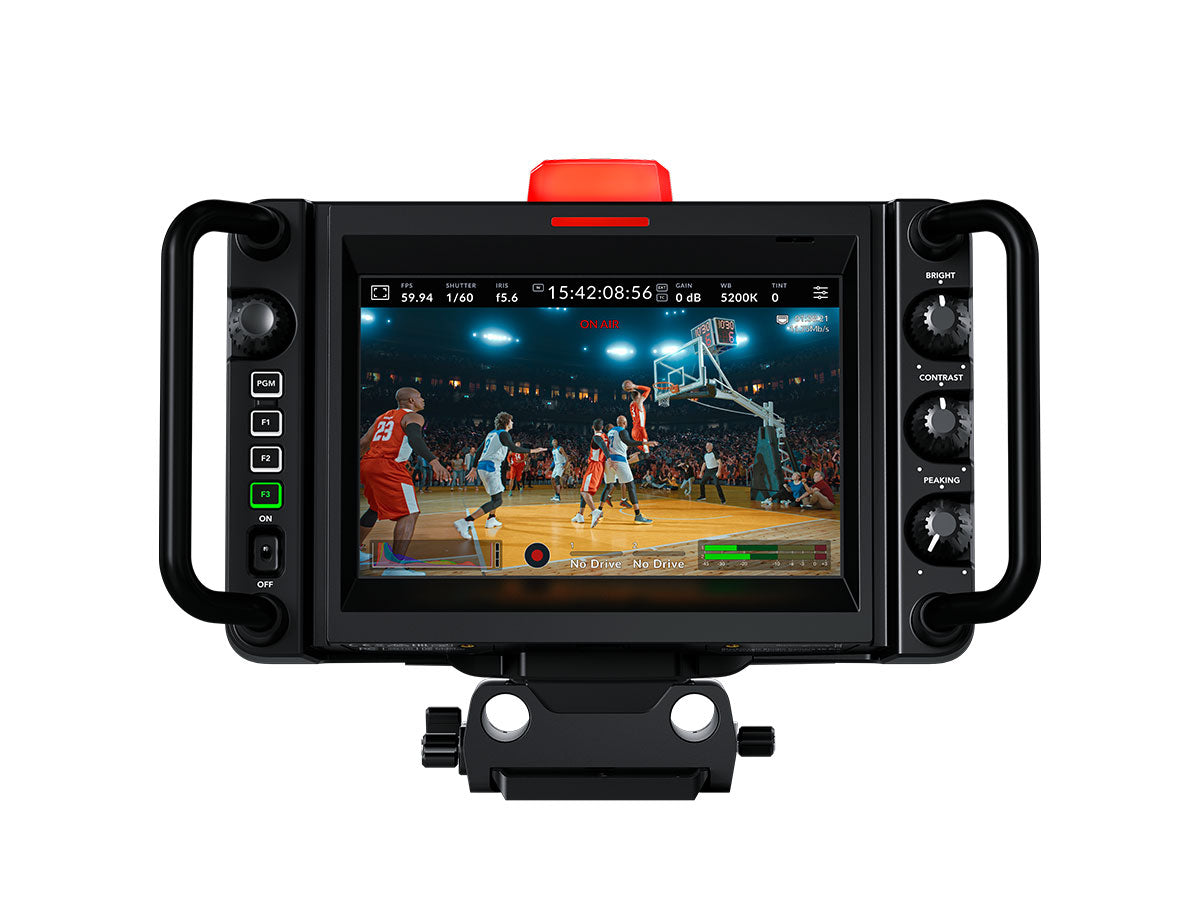

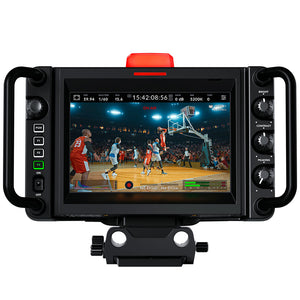

Large Built In Viewfinder
The design of the Blackmagic Studio Camera is based on an incredible full HD resolution viewfinder with a bright screen and wide viewing angle. Until now, only incredibly expensive studio cameras had the advantage of such a large viewfinder for better focusing and framing of shots! For outdoor use, there's a sunshade included that folds up to protect the screen. This sunshade can also be easily unclipped and removed, or even replaced with the metal sunshade from the URSA Studio Viewfinder.
Touchscreen and Manual Controls
For fast moving live production, it's vital to have all camera controls instantly accessible. The viewfinder LCD is also a touchscreen so you can access camera settings via on screen menus. You get knobs for LCD brightness and contrast, and a focus peaking knob lets you fine tune the focus highlighting for accurate camera focus. There's also touch parameters for camera settings such as colour temp, gain, audio level and more. Plus there's even a program return and customizable function buttons.

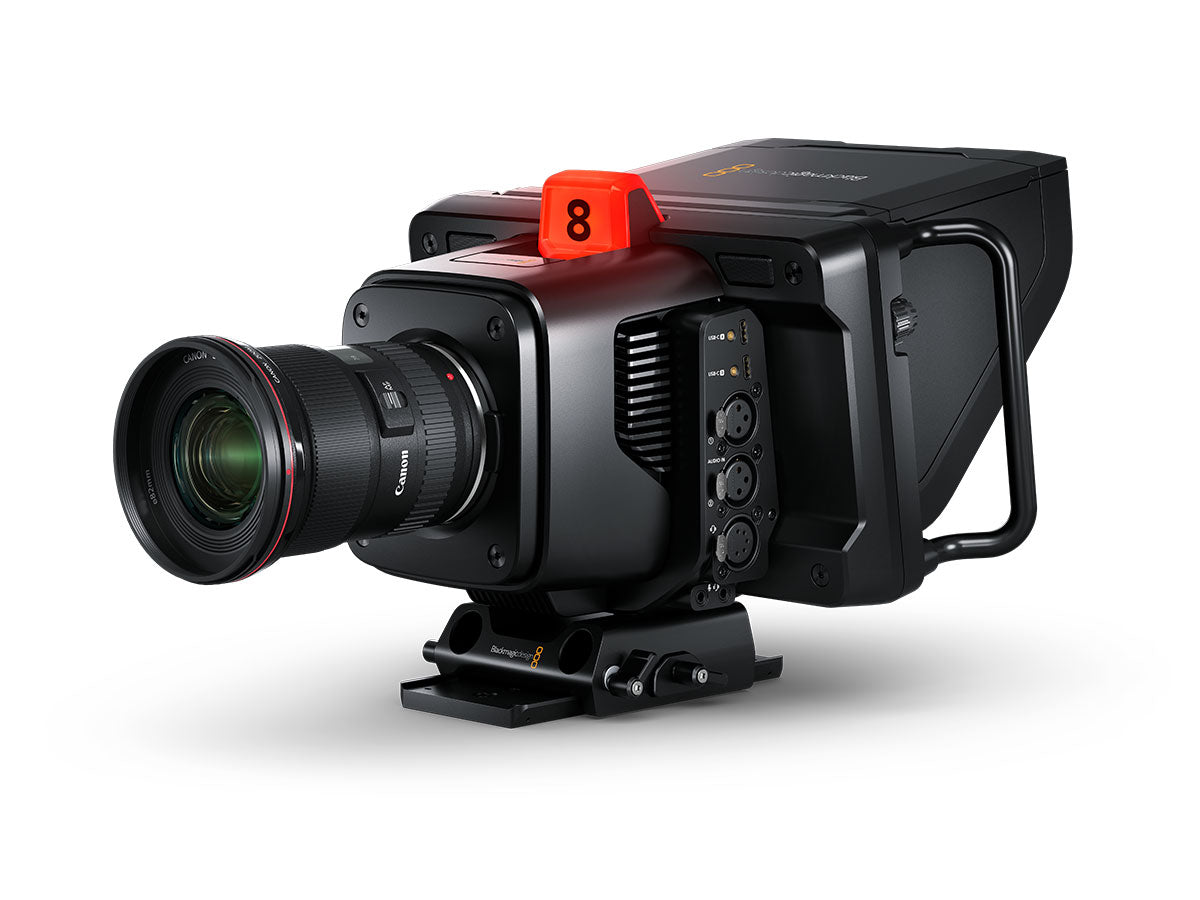

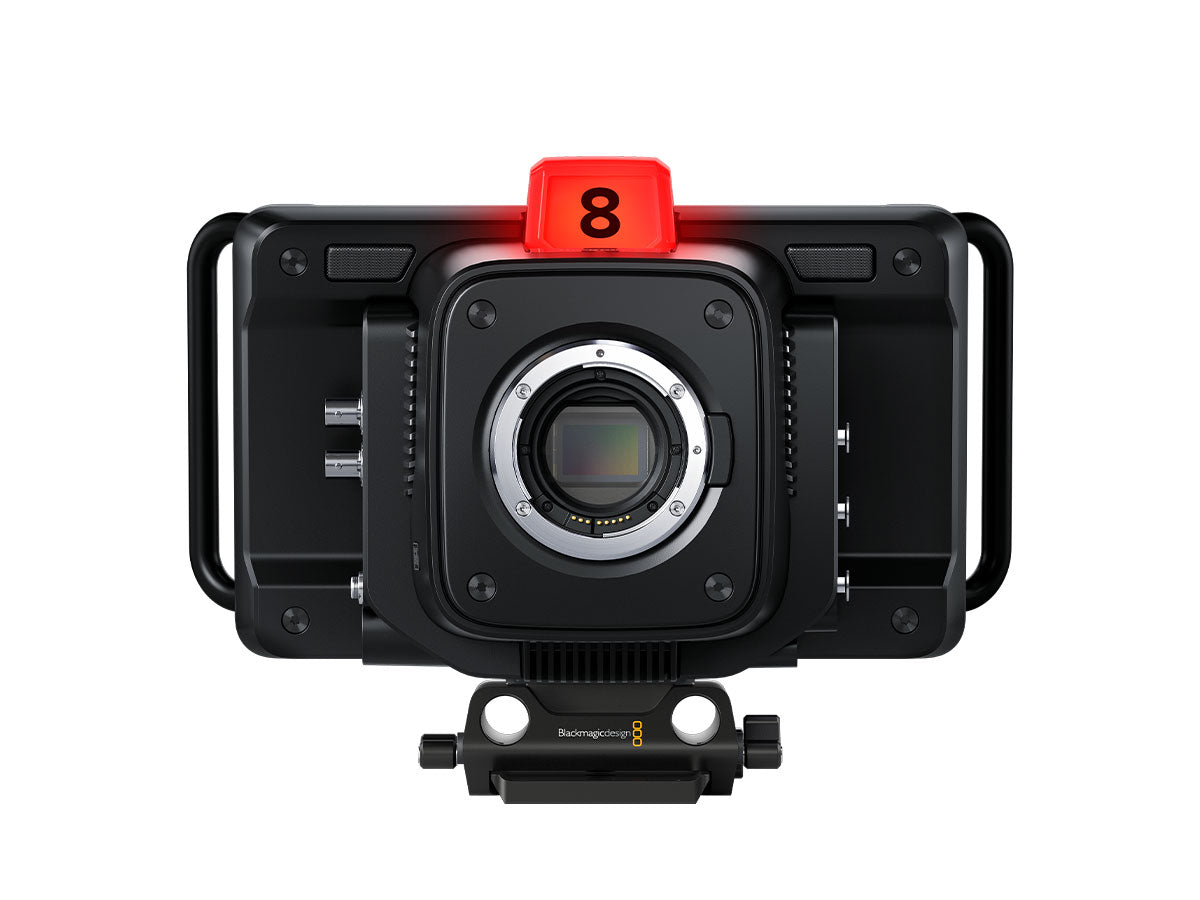

Compatible with Popular Photographic Lenses
As photographic lenses are designed to handle high resolutions and are mass produced, they're great for high end television use. The MFT and EF lens mounts allow you to choose from a massive range of lenses from a wide range of different manufacturers. Often these lenses are so well built, you get broadcast style results combined with very accurate focus and zoom control. This means you can add the optional focus and zoom demands and use the camera just like a professional broadcast camera.
Both Broadcast and Consumer Connections

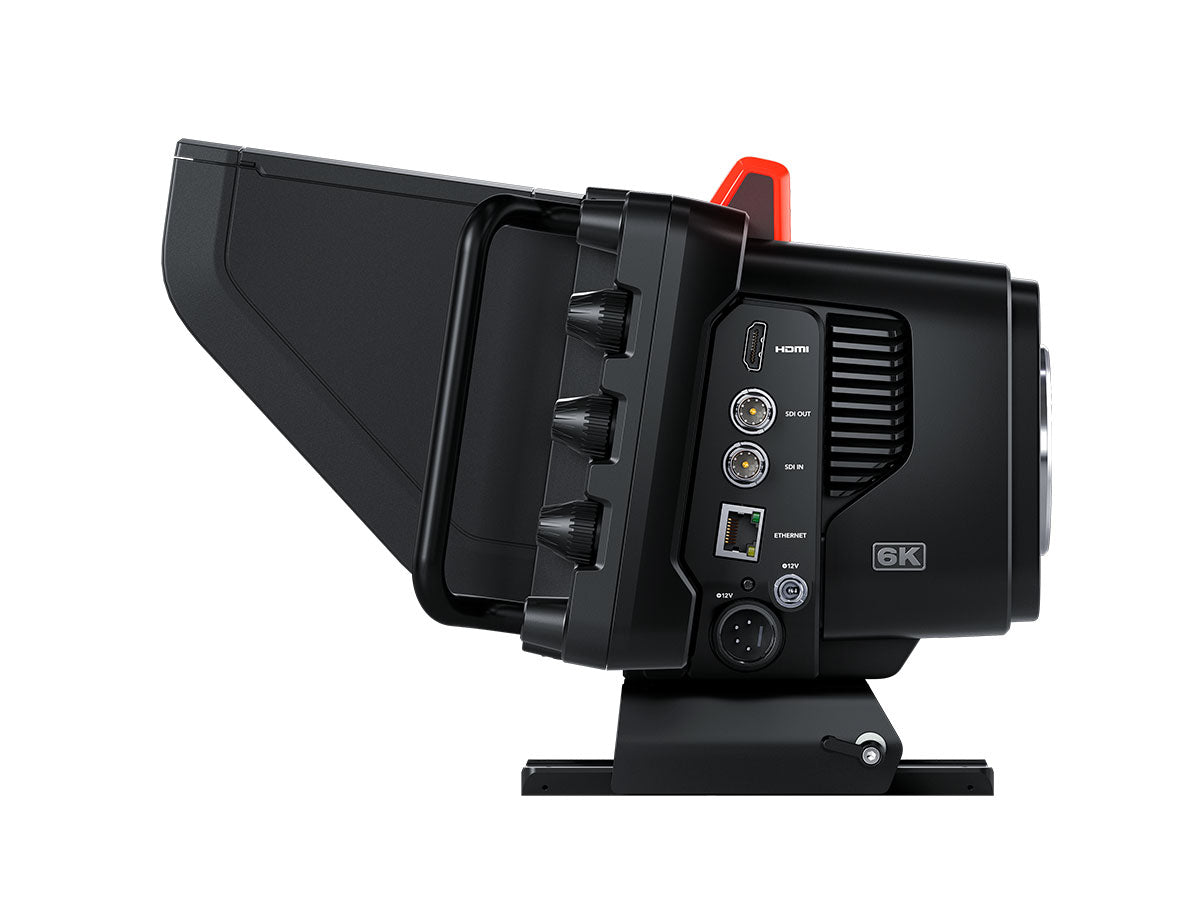

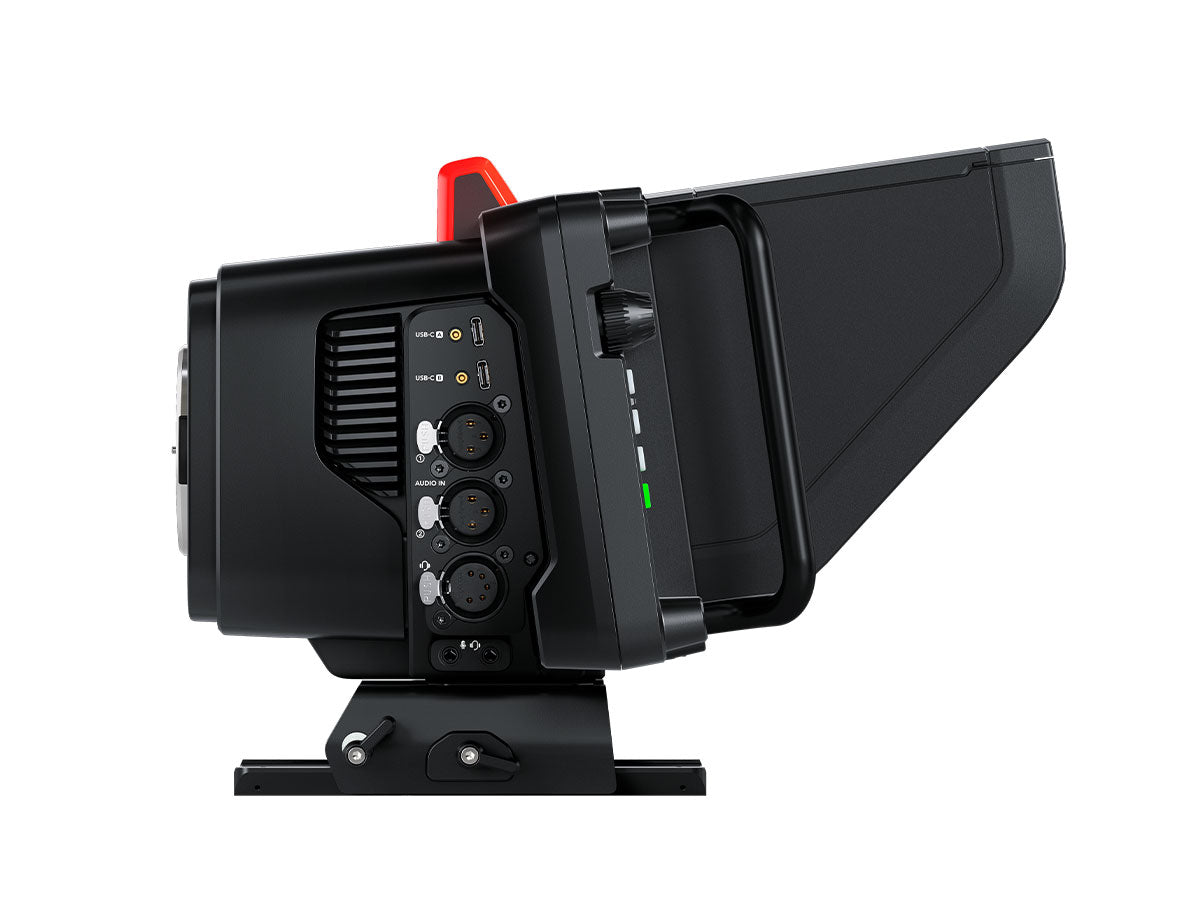

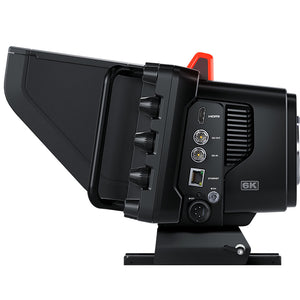

The Blackmagic Studio Cameras have been designed to look attractive but still provide all the connections in a logical lay out. The connections on the right are for all video inputs and outputs and this means they can be tied to the tripod handle. On the left side are the connections for your talkback, audio inputs, USB and more. That's great for headphones as the connection on the camera is on the same side as the connection on the headphones, so you don't have to deal with any cable tangles.
Includes Tripod Mount
Every Blackmagic Studio Camera includes a tripod mount so you don't need to purchase any accessories. The mount includes a quick release sliding plate, so you can attach the camera to the tripod just by sliding it onto the plate. That makes setup very fast when arriving on location. Plus the tripod mount includes two horizontal mounting holes so you can add optional rails when you need to support heavy items on the lens side of the camera such as prompters, matte boxes or heavy lenses.
DC, XLR or Ethernet Powered
The Blackmagic Studio Camera features a common plug pack power connection with a locking ring so it won't get disconnected accidentally. On the Pro models, you can also connect via a 4 pin broadcast style XLR power connection, or if you use the Blackmagic Studio Converter to connect via Ethernet, the single Ethernet connection will also fully power the camera. That means when you use Ethernet, you don't need to plug in any local camera power at all.
- Ultra Portable Studio Camera
- 6K Super 35 Sensor
- EF Lens Mount
- Remote Controllable ND Filters
- Stream Direct to the Internet with Built in Streaming
- 12G‑SDI, 10G Ethernet and HDMI Connections
| CAMERA FEATURES | |
| Effective Sensor Size: | 23.10mm x 12.99mm (Super 35) |
| Lens Mount: | Active EF mount. |
| Lens Control: | Iris, focus, zoom on supported lenses. |
| Dynamic Range: | 13 Stops. |
| Dual Native ISO: | 0dB and 18dB gain. |
| Sensitivity at 0dB Gain: | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| Signal to Noise Ratio: | 64.62dB for 2160p Ultra HD scaled from 5.3K |
| Recording Resolutions: | 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps |
| Video Output Standards: | 2160p, 1080p, 1080i |
| Frame Rates: | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions. |
| Built In ND Filters: | Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters. |
| Focus: | Auto focus available using compatible lenses. |
| Screen Dimensions: | 7 inch 1920 x 1200 |
| Screen Type: | LCD capacitive touchscreen. |
| Screen Brightness: | 2000 nits |
| Controls: | Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. |
| Mounting Options: | 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount. |
| CONNECTIONS | |
| SDI VIdeo Inputs: | 1 |
| SDI Video Outputs: | 1 |
| SDI Rates: | 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Outputs: | 1 |
| Analog Audio Input: | 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| Analog Audio Output: | 1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. |
| SDI Audio Output: | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16. |
| Reference Inputs: | Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. |
| Remote Control: | Remote camera control over SDI, HDMI or Ethernet. |
| Ethernet: | 10Gb/s |
| Conputer Interface: | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A. |
| AUDIO | |
| Microphone: | Integrated stereo microphone. |
| Built In Speaker: | 1 x mono speaker. |
| STREAMING | |
| Direct Streaming: | Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. |
| STANDARDS | |
| SD Video Standards: | None |
| HD Video Standards: | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance: | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24‑bit. |
| MEDIA | |
| Media: | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| Media Format: | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| SUPPORTED CODECS | |
| Codecs: | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 |
| STORAGE FEATURES | |
| Storage Type: | 2 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| Recording Formats: | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate. |
| Storage Rates: | Storage rates based on 30 frames per second. 6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/s Blackmagic RAW 5:1 - 194 MB/s Blackmagic RAW 8:1 - 121 MB/s Blackmagic RAW 12:1 - 81 MB/s Blackmagic RAW Q0 - 242 to 483 MB/s Blackmagic RAW Q1 - 162 to 387 MB/s Blackmagic RAW Q3 - 108 to 277 MB/s Blackmagic RAW Q5 - 65 to 162 MB/s 6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/s Blackmagic RAW 5:1 - 144 MB/s Blackmagic RAW 8:1 - 90 MB/s Blackmagic RAW 12:1 - 60 MB/s Blackmagic RAW Q0 - 180 to 359 MB/s Blackmagic RAW Q1 - 120 to 287 MB/s Blackmagic RAW Q3 - 80 to 205 MB/s Blackmagic RAW Q5 - 49 to 120 MB/s 5376 x 3024 (5.3K 16:9) Blackmagic RAW 3:1 - 248 MB/s Blackmagic RAW 5:1 - 149 MB/s Blackmagic RAW 8:1 - 94 MB/s Blackmagic RAW 12:1 - 63 MB/s Blackmagic RAW Q0 - 186 to 371 MB/s Blackmagic RAW Q1 - 125 to 297 MB/s Blackmagic RAW Q3 - 84 to 212 MB/s Blackmagic RAW Q5 - 50 to 125 MB/s 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s |
| CONTROL | |
| External Control: | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. |
| COLOUR CORRECTOR | |
| Colour Corrector: | DaVinci YRGB |
| TALKBACK & TALLY | |
| Live Tally Indicator: | 1 x front facing for talent, 1 x rear facing for operator. |
| Talkback: | SDI Channels 15 and 16. |
| SOFTWARE | |
| Software Included: | Blackmagic Camera Setup for Mac and Windows. |
| Operating Systems: | Mac: Mac 12.0 Monterey, Mac 13.0 Ventura or later. Windows: Windows 10, 64-bit. Windows 11. |
| POWER REQUIREMENTS | |
| Power Supply: | 1 x External 12V DC 60W power supply. |
| Power Inputs: | 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies. |
| Power Usage: | 32 ‑ 52 W using DC input. 38 ‑ 59 W using Type 4 PoE input. |
| OPTIONAL ACCESSORIES | |
| Optional Accessories: | Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM SDI switchers ATEM Constellation switchers ATEM Television Studio switchers ATEM Streaming Bridge Blackmagic MultiDock 10G HyperDeck Studio HD Plus HyperDeck Studio 4K Pro SmartView 4K Blackmagic Cloud Pod Blackmagic Cloud Store Blackmagic Cloud Store Mini 8TB Ultimatte 12 HD Mini Ultimatte 12 HD Ultimatte 12 4K Blackmagic 3G‑SDI Shield for Arduino |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 273.6 x 199 x 167.3mm |
| Weight: | 113.7 x 35.5mm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
| WHAT'S INCLUDED | |
| In The Box: | Blackmagic Studio Camera 6K Pro Blackmagic Studio Camera Sun Shade Tripod Mount compatible with 15mm lightweight rails Tripod Mount Plate Turret Dust Cap External 12V DC power supply with locking connector and international sockets adapters for most countries. Welcome wallet with QR code for software download DaVinci Resolve download card Blackmagic Design sticker |
| WARRANTY | |
| Warranty: | 12 Month Limited Manufacturer's Warranty. |
- Blackmagic Studio Camera 6K Pro
- Blackmagic Studio Camera Sun Shade
- Tripod Mount compatible with 15mm lightweight rails
- Tripod Mount Plate
- Turret Dust Cap
- External 12V DC power supply with locking connector and international sockets adapters for most countries.
- Welcome wallet with QR code for software download
- DaVinci Resolve download card
- Blackmagic Design sticker
