Blackmagic Design PYXIS Monitor EVF Kit

Blackmagic Design PYXIS Monitor EVF Kit

SKU: BMD-CURAMKITEVF
£469.91 GBP ex VAT
£563.89 GBP inc VAT
ex VAT £469.91 GBP ex VAT
£563.89 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

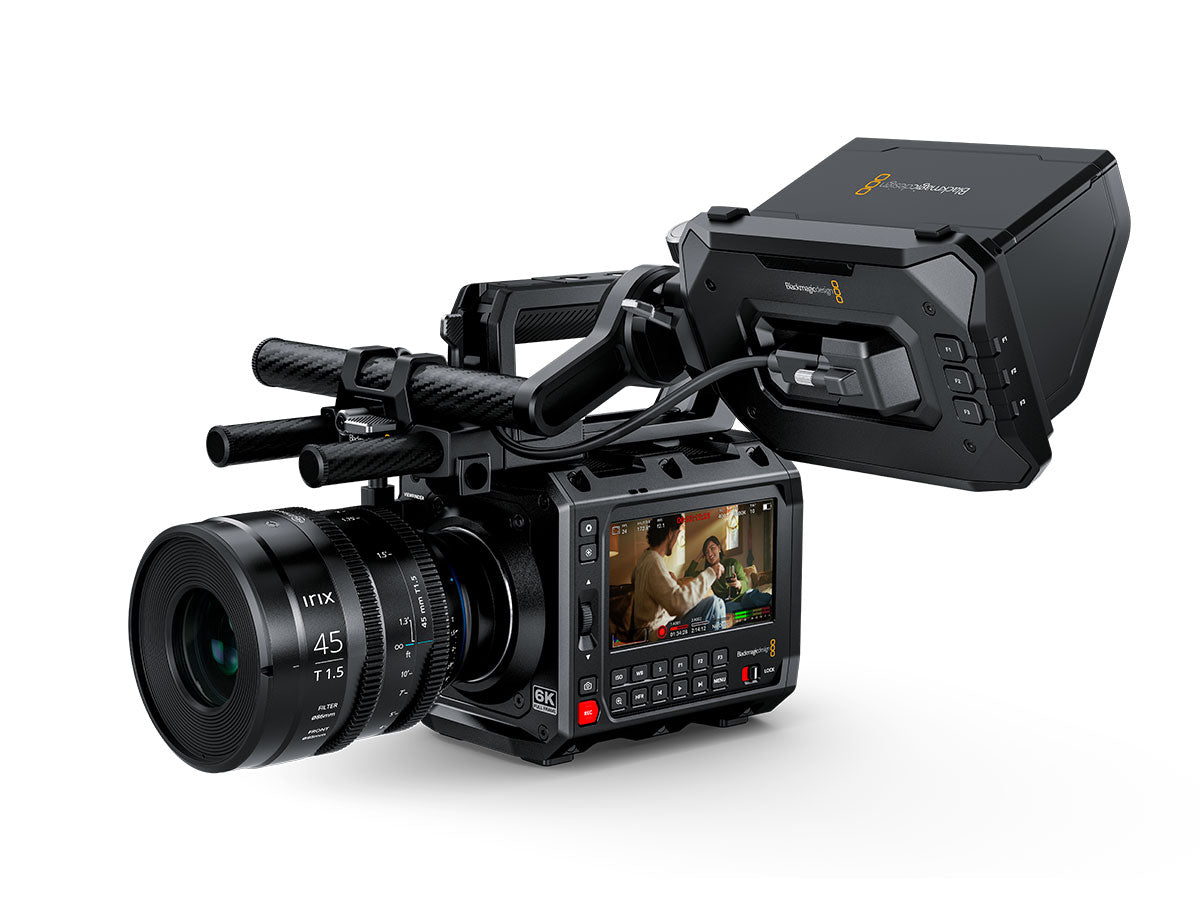

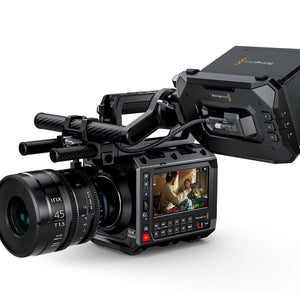

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as en electronic viewfinder.

Add Touchscreen Monitoring with Camera Control
It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display. Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set. There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight.
  • 5″ HDR touchscreen monitor EVF Kit with full camera control
  • Can be mounted almost anywhere
  • Perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display
  • 1500 nit high brightness
  • Includes a removable sunshade, Monitor Swivel Mount, Monitor Dovetail Shoe and screws
CONNECTIONS
USB-C with Locking Connector: Video, power, data and software updates.
FEATURES
Display Size: 5 inch.
Display Resolution: Full 1920 x 1080.
Display Type: LCD capacitive touchscreen.
Display Brightness: 1500 nits.
Frame Rates: Up to 60fps.
Tally: Rear facing LED tally light.
Accelerometer: Automatically rotates image when monitor mounted upside down.
CONTROL
On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets:

FPS: Preset Value

Iris: Preset Value

WB: Preset Value

ISO: Preset Value

Shutter: Preset Value
Function Button Toggle:

Clean Feed

Status Text

Display LUT

Frame Guides

Focus Assist

False Color

Zebra

Grid

Safe Area Guide

Off Speed Rec

Focus Zoom

Focus

Record

Auto White Balance

Color Bars

Playback

False Color + Zebra

OIS

Stream

Still
MOUNTING
Mounting Points:

1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.

2 x M4 bottom mounting points.

1 x 1/4-20 side mounting point with ARRI locating pin pattern.

2 x M4 side mounting points.
Mounting Brackets:

Blackmagic PYXIS Monitor Swivel Mount ‑ included in EVF Kit.

Blackmagic PYXIS Monitor Fixed Mount ‑ included in EVF Kit.

Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in EVF Kit.

Blackmagic URSA Cine EVF Bracket ‑ included in EVF Kit.
COMPATIBLE CAMERAS
Compatible Cameras:

Blackmagic PYXIS 6K

Blackmagic PYXIS 6K PL

Blackmagic PYXIS 6K EF

Blackmagic URSA Cine 12K LF

Blackmagic URSA Cine 17K 65
OPERATING SYSTEMS
Windows: Windows 10 and 11.
Mac: Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
POWER REQUIREMENTS
Power Requirements: Powered over USB-C.
PHYSICAL
Dimensions: 142.5 x 92 x 30mm
Weight: 209g
ENVIRONMENTAL
Operating Temperature: 0°to 40°C (32° to 104°F)
Storage Temperature: -20°to 60°C (‑4° to 140°F)
Relative Humidity: 0% to 90% non-condensing

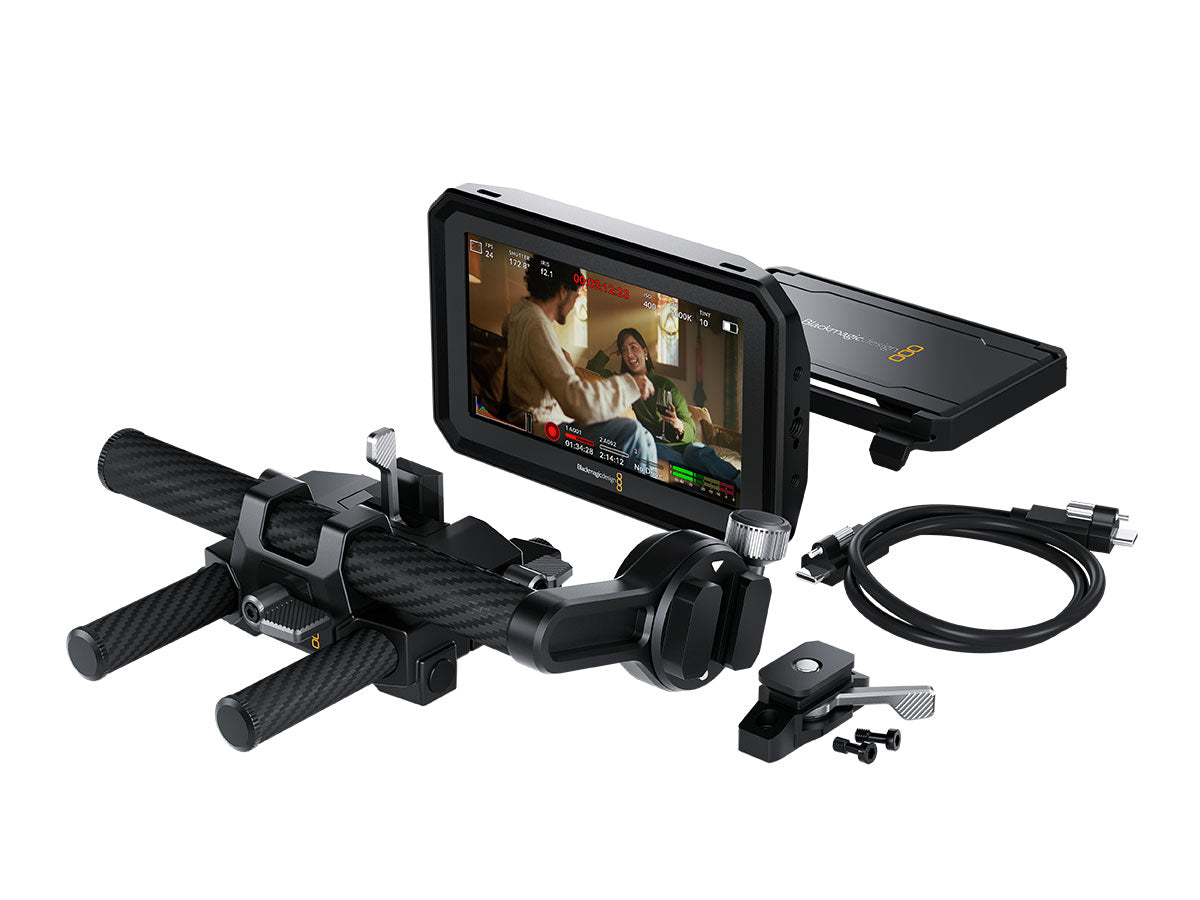

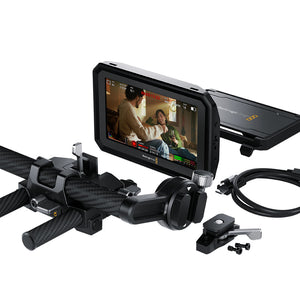

  • Blackmagic PYXIS Monitor
  • Blackmagic PYXIS Clip On Sunshade
  • Blackmagic PYXIS Monitor Swivel Mount
  • Blackmagic PYXIS Monitor Fixed Mount and screws
  • Blackmagic PYXIS Monitor Dovetail Shoe and screws
  • Blackmagic URSA Cine EVF Bracket rod mount
  • Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
  • 2 x short 15mm carbon fibre rods
  • 1 x USB-C viewfinder cable
  • Welcome wallet with QR code for software download
  • Blackmagic Design Sticker
