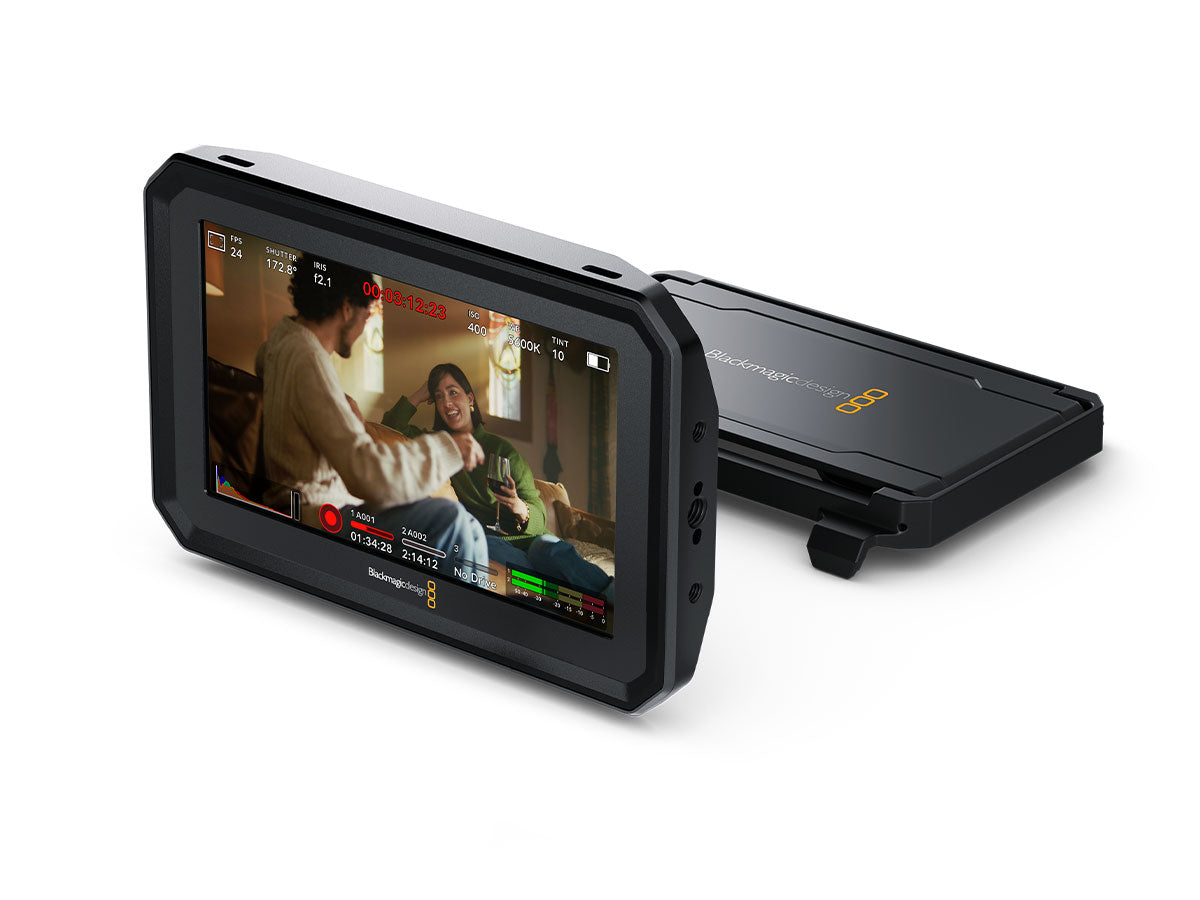

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and iIncludes a removable sunshade that also folds up to p rotect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.
Add Touchscreen Monitoring with Camera Control
It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display. Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set. There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight.
- 5″ HDR touchscreen monitor with full camera control
- Can be mounted almost anywhere
- Perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display
- 1500 nit high brightness
- Includes a removable sunshade
| CONNECTIONS | |
| USB-C with Locking Connector: | Video, power, data and software updates. |
| FEATURES | |
| Display Size: | 5 inch. |
| Display Resolution: | Full 1920 x 1080. |
| Display Type: | LCD capacitive touchscreen. |
| Display Brightness: | 1500 nits. |
| Frame Rates: | Up to 60fps. |
| Tally: | Rear facing LED tally light. |
| Accelerometer: | Automatically rotates image when monitor mounted upside down. |
| CONTROL | |
| On Screen Controls: | Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. |
| Button Controls: | Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. |
| Function Button Presets: | FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value |
| Function Button Toggle: | Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still |
| MOUNTING | |
| Mounting Points: | 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points. |
| COMPATIBLE CAMERAS | |
| Compatible Cameras: | Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 |
| OPERATING SYSTEMS | |
| Windows: | Windows 10 and 11. |
| Mac: | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. |
| POWER REQUIREMENTS | |
| Power Requirements: | Powered over USB-C. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 142.5 x 92 x 30mm |
| Weight: | 209g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0°to 40°C (32° to 104°F) |
| Storage Temperature: | -20°to 60°C (-4° to 140°F) |
| Relative Humidity: | 0% to 90% non-condensing |
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
