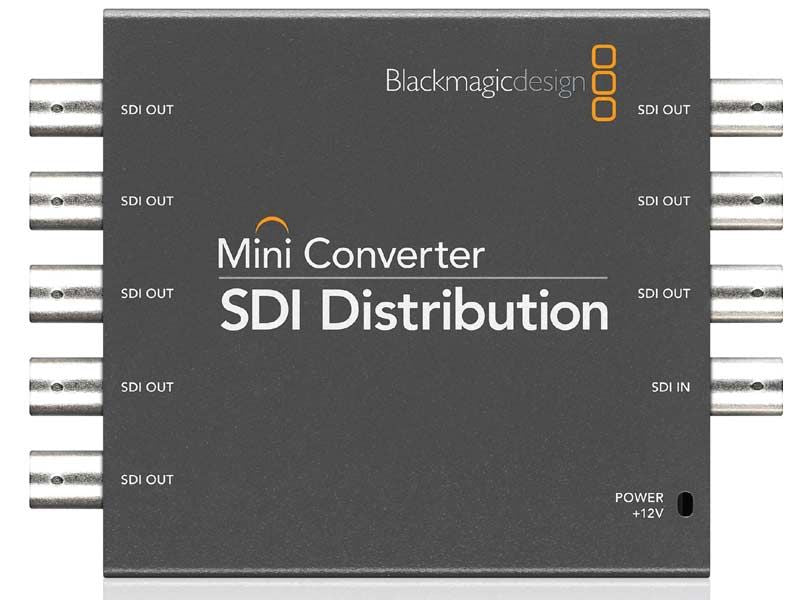

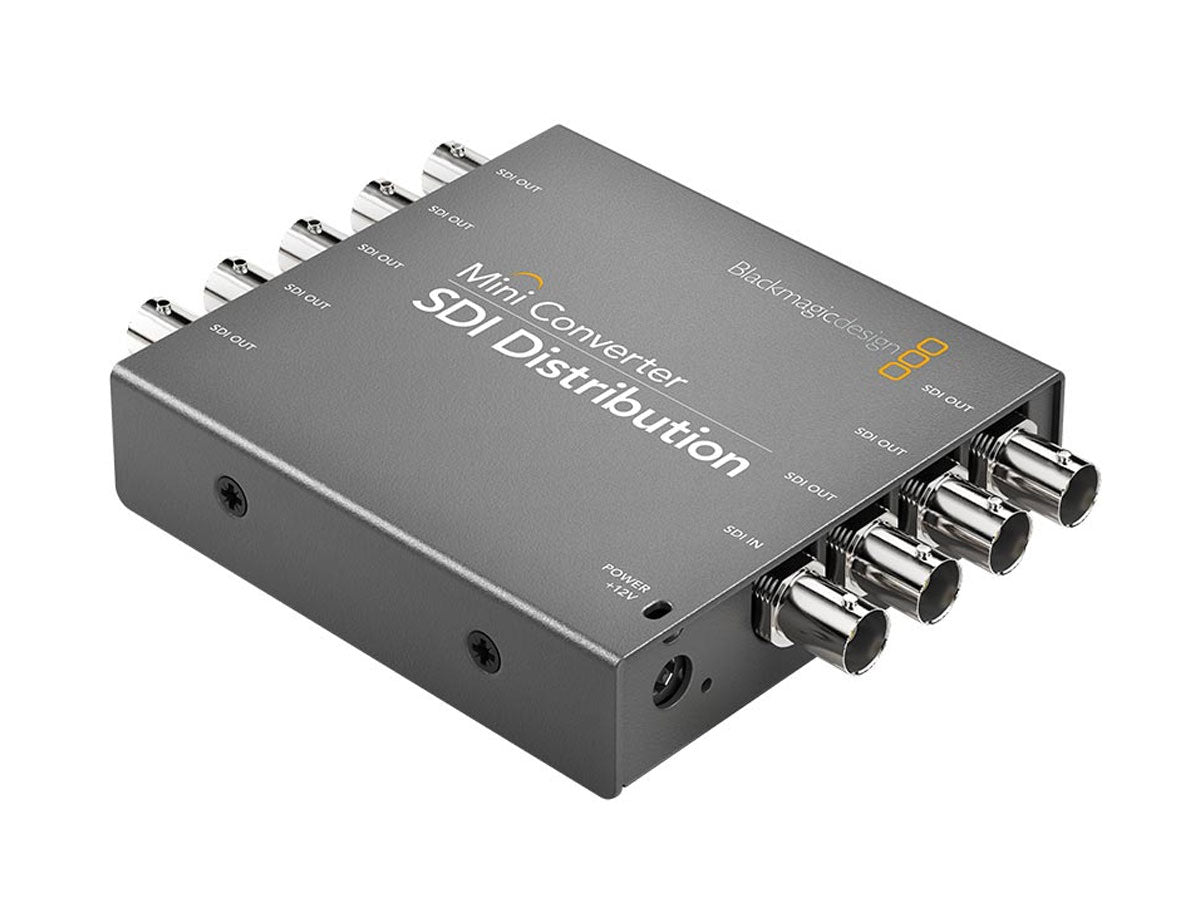

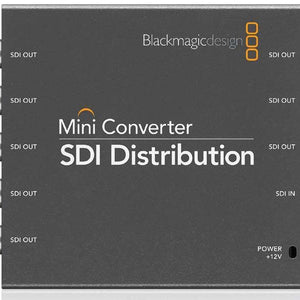

Blackmagic Design Mini Converter - SDI Distribution
Blackmagic Design Mini Converter - SDI Distribution
SKU:
BMD-CONVMSDIDA
Regular price
£115.83 GBP ex VAT
£139.00 GBP inc VAT
£139.00 GBP inc VAT
Regular price
ex VAT
Sale price
£115.83 GBP ex VAT
£139.00 GBP inc VAT
Unit price
per
£139.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI!. It also supports ancillary data and embedded audio!
High Quality SDI
High Quality SDI
Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analogue video and audio for a true broadcast quality solution. You also get the latest broadcast technology such as re-clocking and 3 Gb/s SDI.
New 3 Gb/s SDI Technology
With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that's future proof.
International Power Supply
Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure!
- Switchable between SD, HD and 3 Gb/s SDI
- 8 outputs automatically match the SDI video input
- Auto detection of HD or standard definition inputs
- SDI Re-Clocking
- ASI Support
- 12V universal power supply included with international socket adapters for all countries
| CONNECTIONS | |
| SDI Video Inputs: | 1 x SDI Video Input. Switchable between SD, HD and 3G‑SDI. |
| SDI Video Outputs: | 8 outputs automatically match the SDI video input. |
| Multi Rate Support: | Auto detection of SD, HD or 3G‑SDI. |
| Reclocking: | Yes |
| STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60. |
| 2K Video Standards: | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Rates: | SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. |
| SDI Video Sampling: | 4:2:2 and 4:4:4 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Colour Precision: | 4:2:2 and 4:4:4 |
| SDI Colour Space: | YUV and RGB |
| SDI Auto Switching: | Automatically detects SD, HD or 3G‑SDI. |
| ASI Support: | Yes |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| POWER REQUIREMENTS | |
| Power Supply: | +12V universal power supply included with international socket adapters for most countries. Cable tie point. |
| Power Consumption: | 4.80 Watts |
| Operational Voltage Range: | 12 ‑ 31V DC |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 122.1 x 92.27 x 23mm |
| Weight: | 240g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non‑condensing |
- Mini Converter SDI Distribution
- 12V universal power supply with international socket adapters
