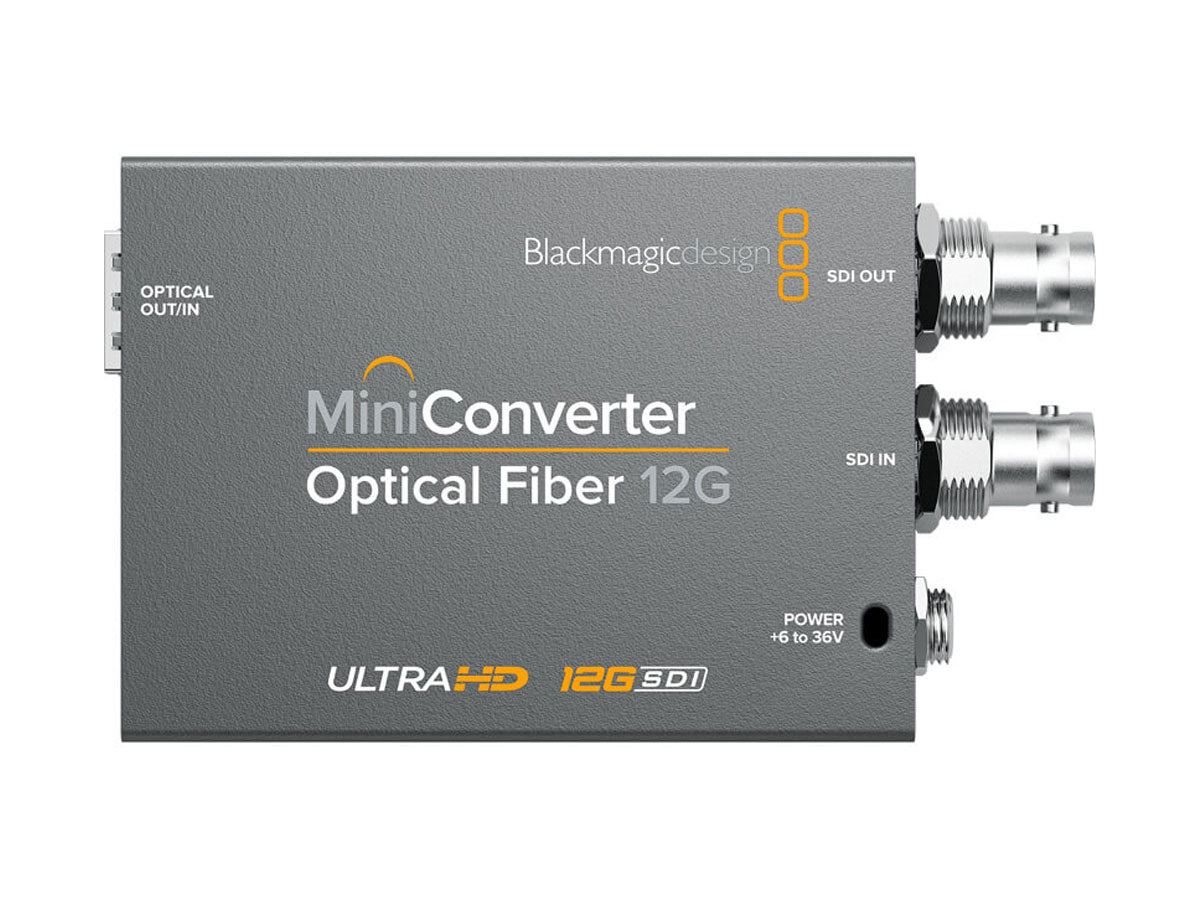

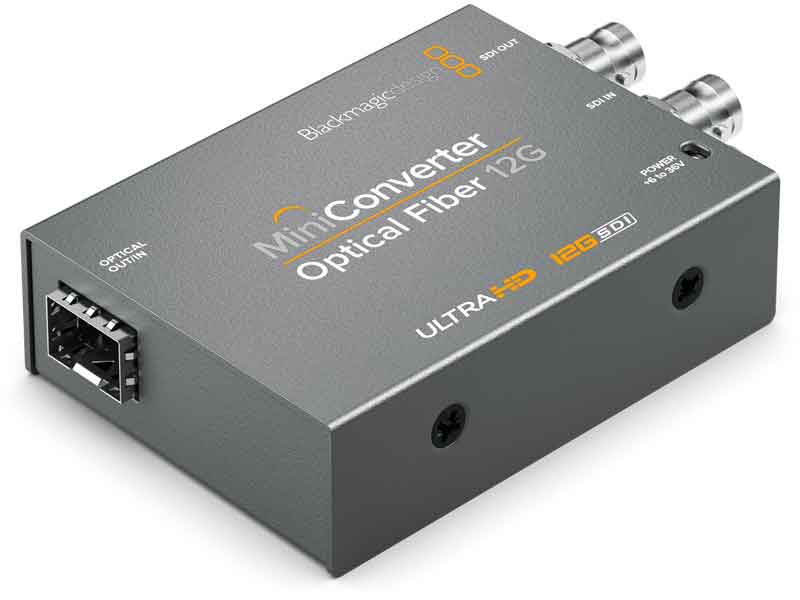

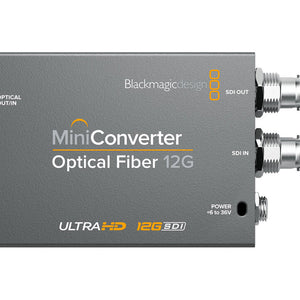

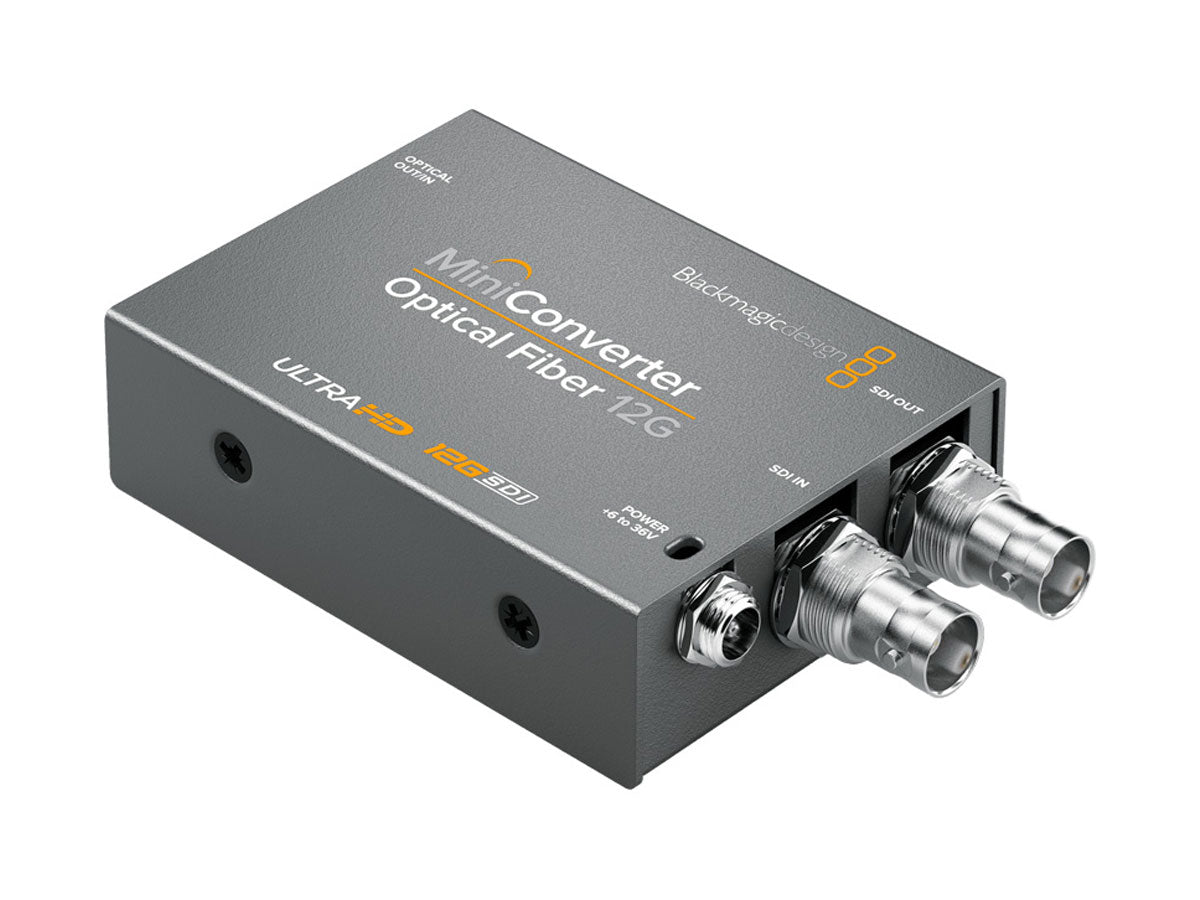

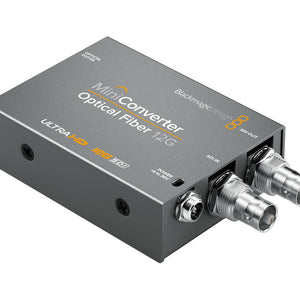

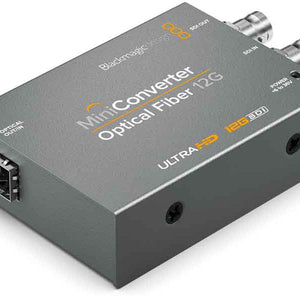

Blackmagic Design Mini Converter Optical Fiber 12G
Blackmagic Design Mini Converter Optical Fiber 12G
SKU:
BMD-CONVMOF12G
Regular price
£116.67 GBP ex VAT
£140.00 GBP inc VAT
£140.00 GBP inc VAT
Regular price
ex VAT
Sale price
£116.67 GBP ex VAT
£140.00 GBP inc VAT
Unit price
per
£140.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction.
The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices.
You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
- Converts SDI to optical fiber and optical fiber to SDI in both directions at the same time
- Can even have different video standards going in each direction
- 12G‑SDI connections are multi rate
- Compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices
| CONNECTIONS | |
| SDI Video Inputs: | 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input. |
| SDI Video Outputs: | Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber. |
| Optical Fiber Connection (Optional): | 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately. |
| Optical Fiber Video Inputs: | 1 x 10 bit SD/HD/12G-SDI switchable. |
| Optical Fiber Video Outputs: | Automatically matches the SD, HD and 12G-SDI video input. |
| Optical Fiber Audio Inputs: | 16 channel embedded. |
| Optical Fiber Audio Outputs: | 16 channel embedded. |
| Multi Rate Support: | Auto detection of SD, HD or 12G-SDI. |
| Reclocking: | Yes |
| STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards: | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI. |
| SDI Video Rates: | SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling: | 4:2:2 and 4:4:4 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Colour Precision: | 4:2:2 and 4:4:4 |
| SDI Colour Space: | YUV and RGB |
| SDI Auto Switching: | Automatically detects SD, HD or 12G-SDI. |
| ASI Support: | Yes |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| SETTINGS CONTROL | |
| Settings Control: | No user controls. |
| POWER REQUIREMENTS | |
| Power Supply: | +12V universal power supply included with international socket adapters for most countries. Cable tie point. |
| Power Consumption: | 2 Watts |
| Operational Voltage Range: | 6 - 36V DC |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 110 x 59 x 23mm |
| Weight: | 210g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- Mini Converter UpDownCross HD
- +12V universal power supply with international socket adapters
