Blackmagic Design Micro Converter SDI to HDMI 3G
Blackmagic Design Micro Converter SDI to HDMI 3G
SKU:
BMD-CONVCMIC/SH03G
Regular price
£41.67 GBP ex VAT
£50.00 GBP inc VAT
£50.00 GBP inc VAT
Regular price
ex VAT
Sale price
£41.67 GBP ex VAT
£50.00 GBP inc VAT
Unit price
per
£50.00 GBP inc VAT
In stock.
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
USE ANYWHERE - POCKET SIZE BROADCAST QUALITY CONVERTERS.
Blackmagic Micro Converters are so small you can use them anywhere. Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases, they’re professional, broadcast quality converters that can be easily hidden so the audience never sees them. They’re perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set.
MINIATURIZED DESIGN - PROFESSIONAL BROADCAST CONVERTERS
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into a proper metal enclosure so you get a professional design you can trust! You get full size professional 3G-SDI connections, HDMI and more. The converters include two LED status indicators to confirm power and video signal. Blackmagic Micro Converters include a power supply that has a USB connection. That means you can power it from the wall or you can use the USB power connection to power it from any USB socket on a television or a laptop computer.
BROADCAST QUALITY - BIG CONVERTER QUALITY, MINIATURIZED!
Whether you’re working in SD or HD, Micro Converters feature the same broadcast quality 10-bit video processing found in full size converters, so you always get professional industrial strength SDI signals. Blackmagic Micro Converters work with 8 and 10-bit broadcast quality video in all SD and HD formats up to 1080p60. Full support is included for embedded audio and closed captioning. With Blackmagic Micro Converters, you get a truly professional converter that’s perfectly suited for high end broadcast applications.
SDI RE-CLOCKING - PERFECT FOR LONGER SDI CABLE LENGTHS
Blackmagic Micro Converters include built in SDI re-clocking on the 3G-SDI input. The SDI re-clocking will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths because even degraded SDI signals can still be used. Other small, cheap converters often leave out important features such as this, making them unreliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems because they are a true professional design.
FULL SIZE CONNECTIONS - WORKS WITH THE CABLES YOU ALREADY HAVE!

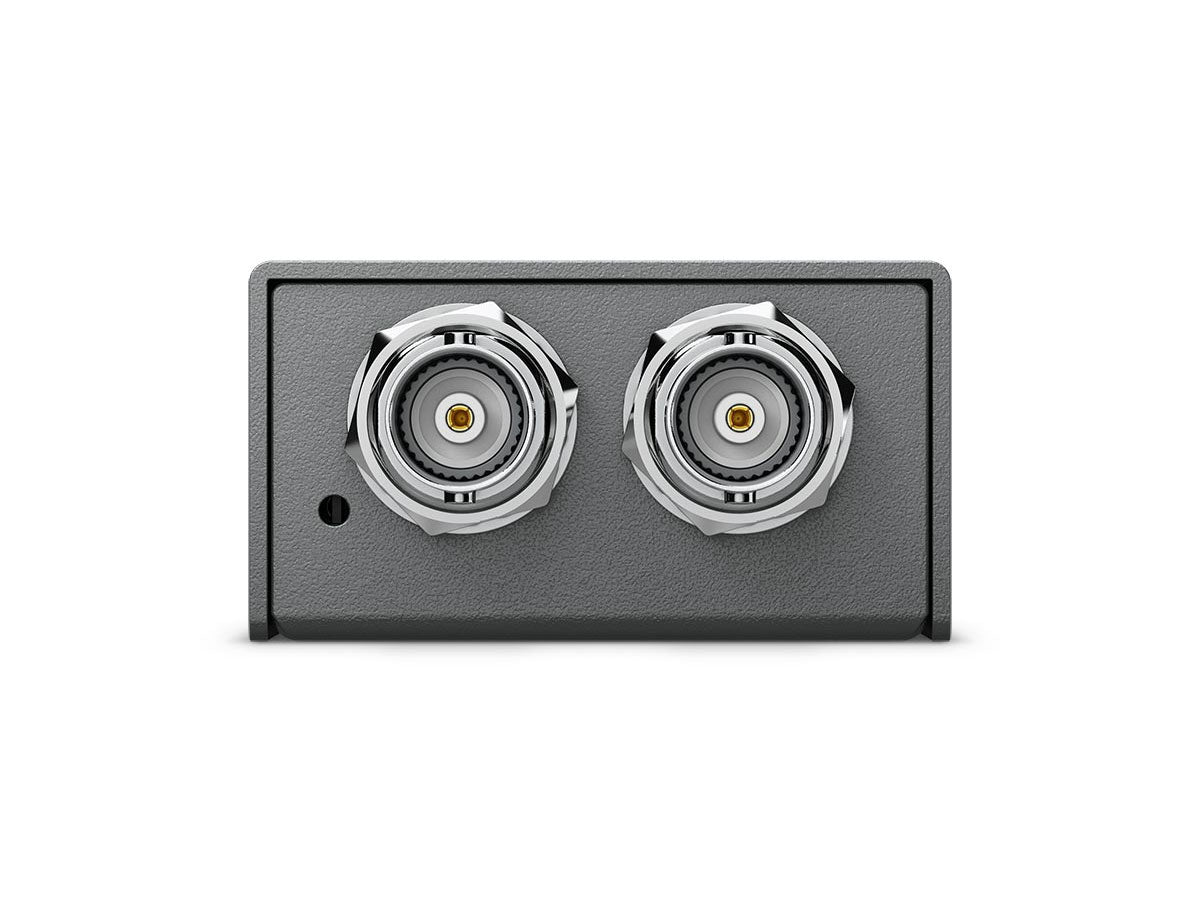

Even though they’re incredibly small, Blackmagic Micro Converters feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, making them compatible with SD and HD-SDI equipment. For maximum compatibility, micro converters support both level A and level B 3G-SDI devices. Micro Converter SDI to HDMI also includes an SDI input loop through connection. Micro Converter HDMI to SDI features two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more.
AC OR DC POWERED - INCLUDES DC PLUG PACK OR USE USB!

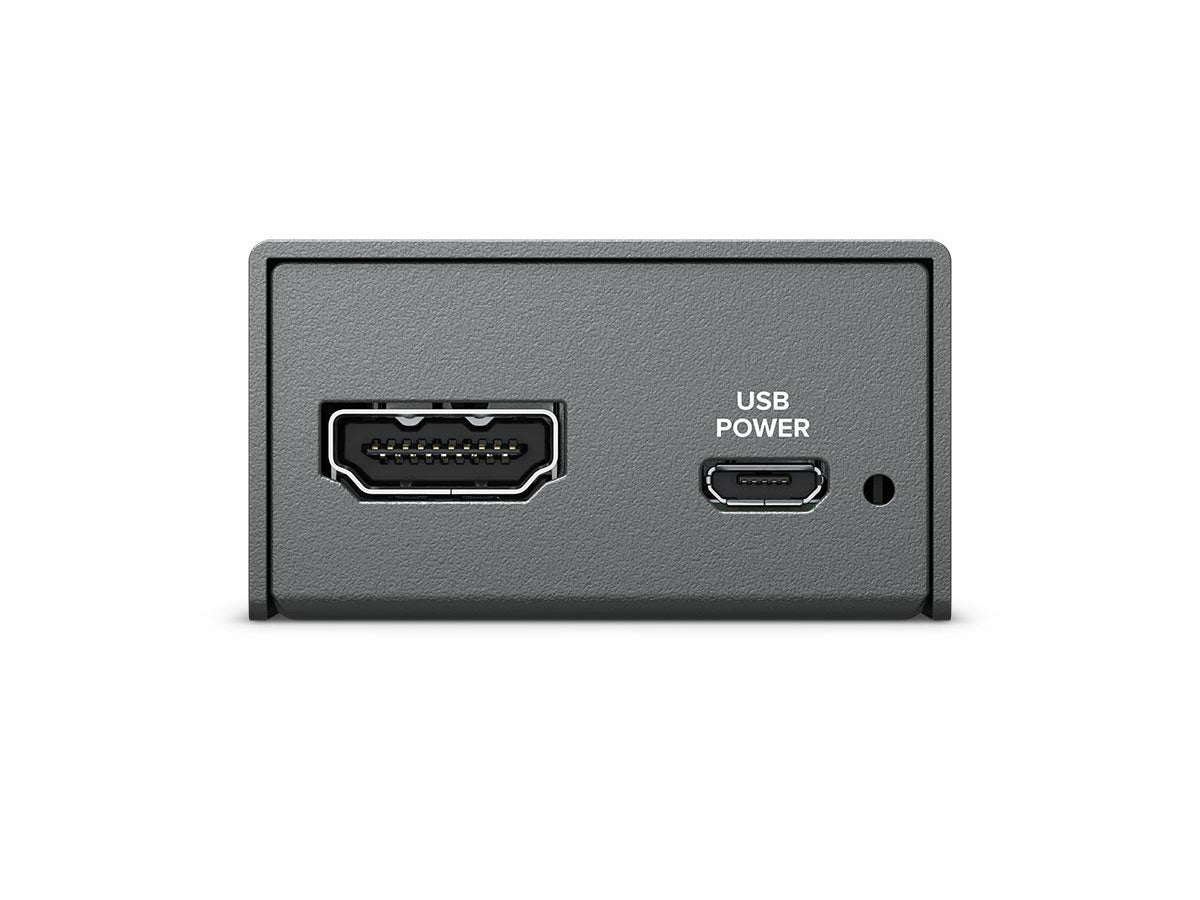

Blackmagic Micro Converters are powered via the same micro USB connection that’s used on smartphones so you can use the included DC plug pack, any USB device, or any smartphone charger to power the converters! The included DC plug pack supports 110 to 240V AC and comes with 4 different AC socket adapters so you can plug the converters into outlets anywhere in the world. That’s perfect for when you’re doing international work! You can even use smartphone chargers and rechargeable battery packs to power micro converters on set. With so many an easy to use power solutions, you’ll never be without a power supply again.
- Miniaturized broadcast quality SD and HD video converter - SDI to HDMI
- Pocket size broadcast quality converters
- Power Micro Converter from your laptop’s USB
- Turn your HDMI television into an SDI monitor
- SDI Re-clocking
- Full size connections
- Auto detection of SD or HD
| CONNECTIONS | |
| SDI Video Inputs: | 1 x SD, HD or 3G-SDI. |
| SDI Video Outputs: | 1 x SDI loop out. |
| HDMI Outputs: | HDMI Type A out. |
| Multi Rate Support: | Auto detection of SD or HD. |
| Updates, Configurations & Power: | USB Type‑C. |
| STANDARDS | |
| SDI Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| SDI Video Rates: | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition. |
| SDI Colour Precision: | 4:2:2 |
| SDI Colour Space: | YUV |
| SDI Auto Switching: | Automatically detects SD, HD and level A or B for 3G‑SDI. |
| HDMI Video Standards: | 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| HDMI Colour Precision: | 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color. |
| HDMI Colour Space: | YUV |
| SETTINGS CONTROL | |
| Settings Control: | Via MacOS™ and Windows™ software utility connected by USB. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| SOFTWARE | |
| Internal Software Upgrade: | via USB. |
| POWER REQUIREMENTS | |
| Power Consumption: | 1.6 W |
| Operational Voltage Range: | 4.4V to 5.25V DC |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 60° C (-4° to 140° F) |
| Relative Humidity: | 0% to 90% non-condensing |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 79.4 x 45.8 x 24.8mm |
| Weight: | 150g |
- 1x Blackmagic Design Micro Converter SDI to HDMI
