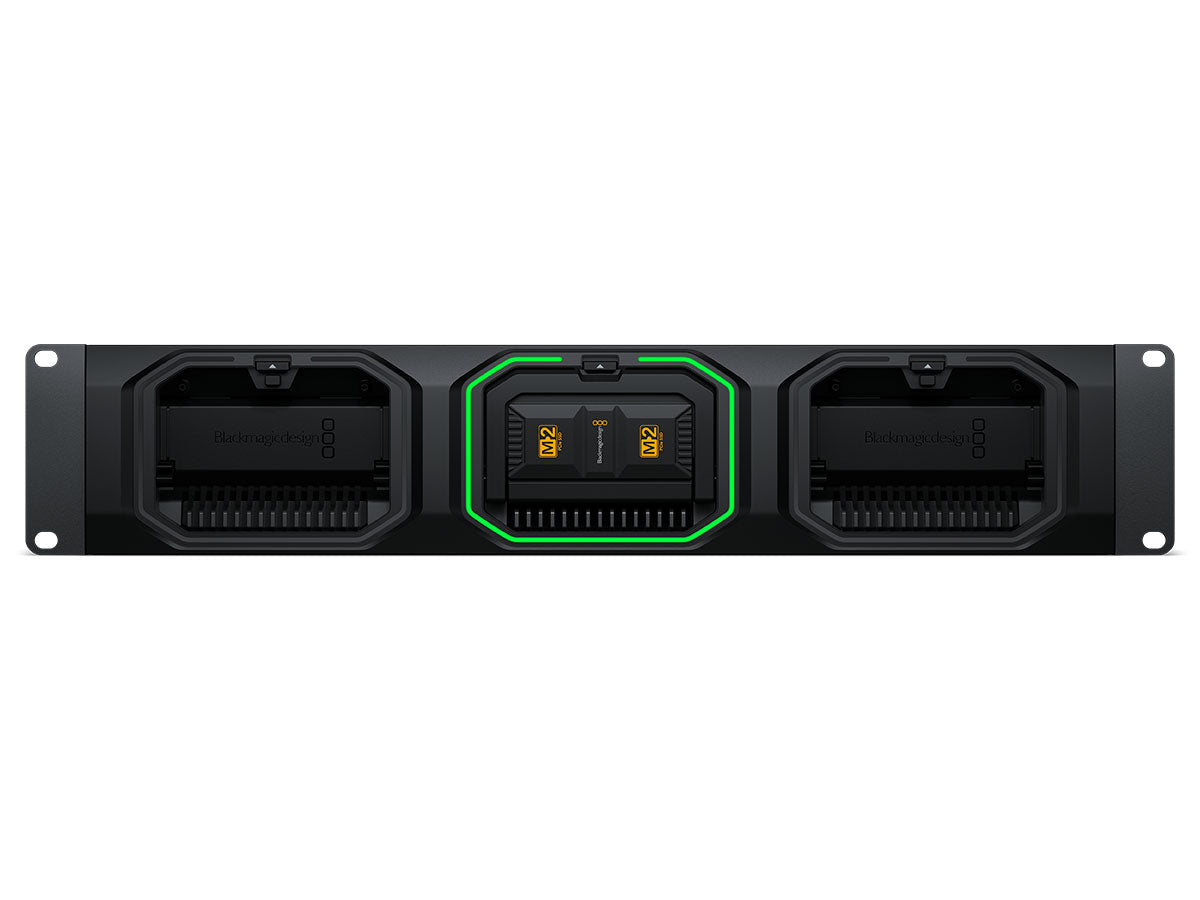

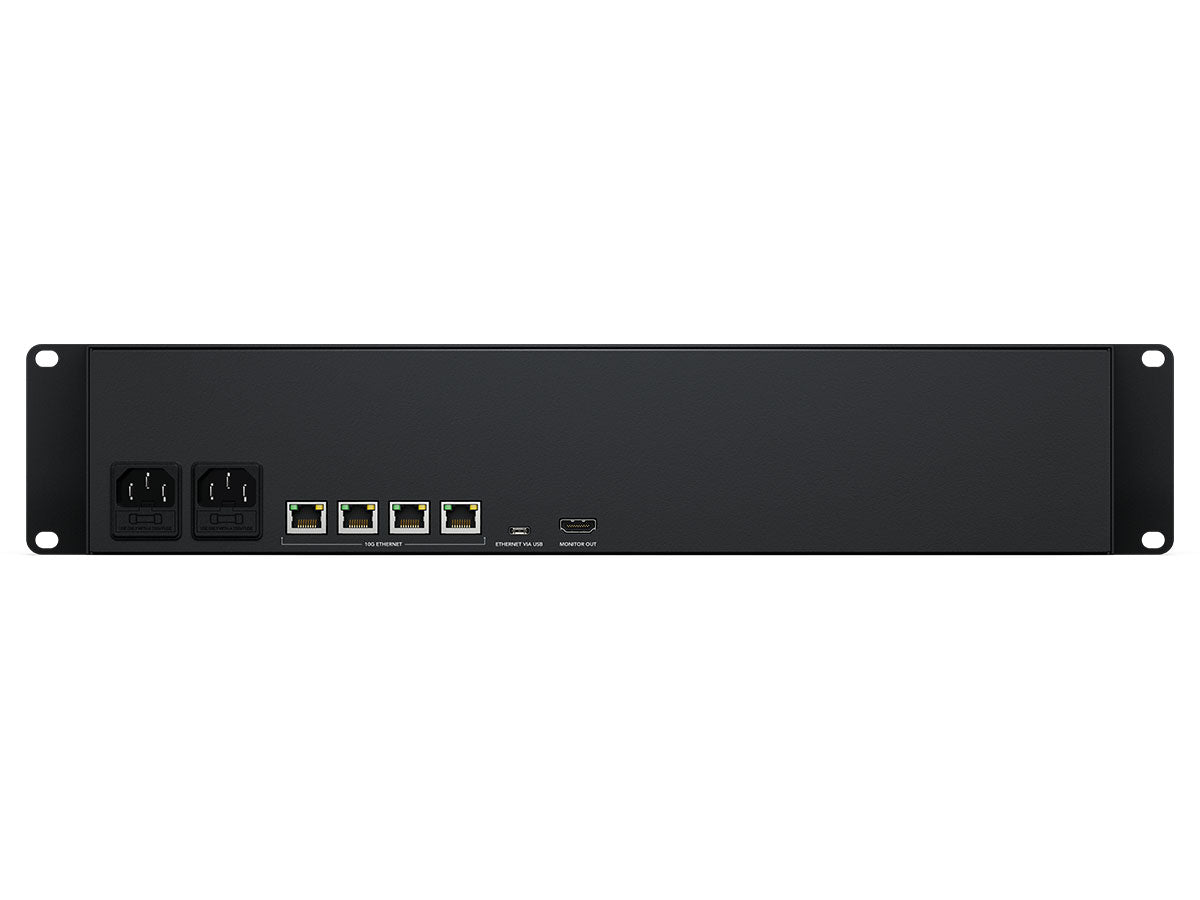

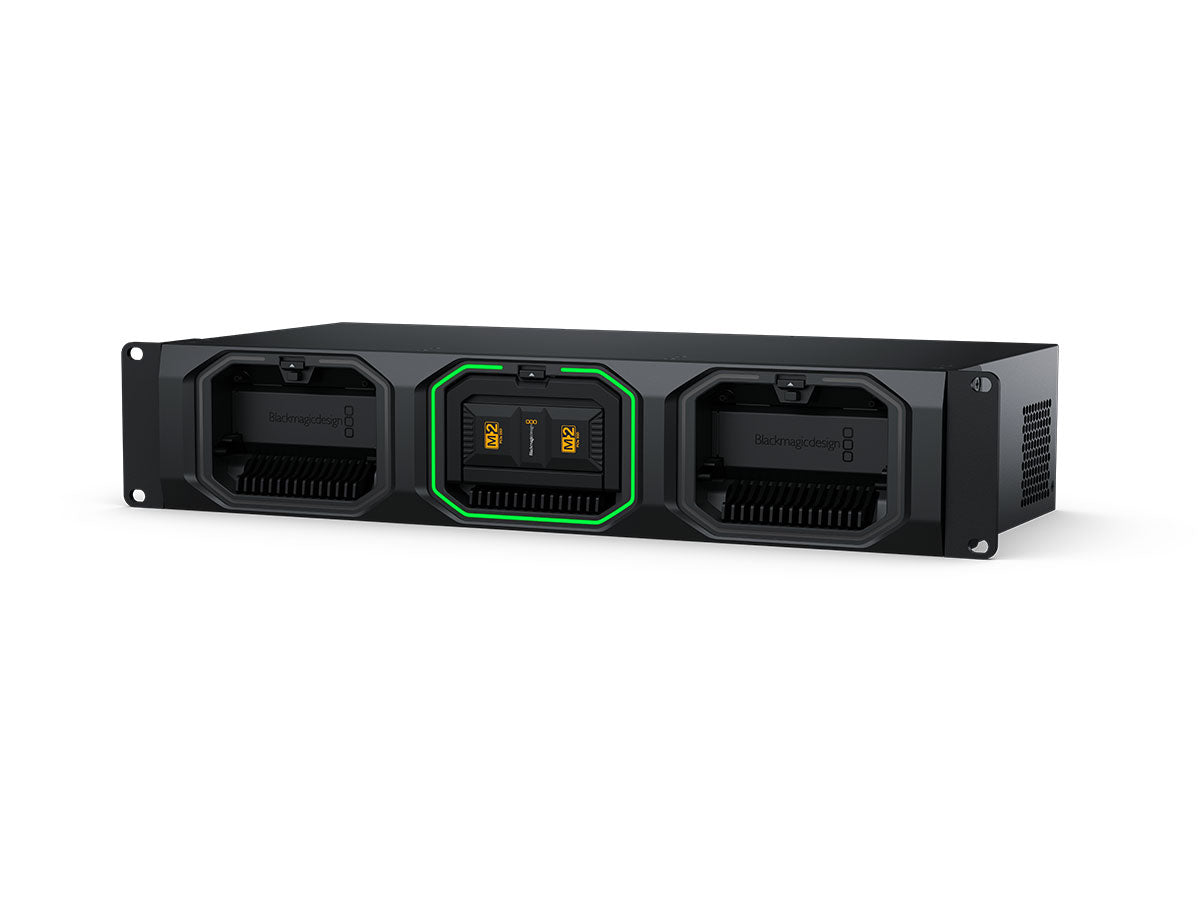

Blackmagic Design Media Dock
Blackmagic Design Media Dock
SKU:
BMD-DOCNMD03
Regular price
£1,345.50 GBP ex VAT
£1,614.60 GBP inc VAT
£1,614.60 GBP inc VAT
Regular price
ex VAT
Sale price
£1,345.50 GBP ex VAT
£1,614.60 GBP inc VAT
Unit price
per
£1,614.60 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
| CONNECTIONS | |
| Interface: | 3 x removable and hot-swappable Blackmagic Media Modules. |
| 10G Ethernet Ports: | 4 x 10G BASE-T |
| USB-C Port: | 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
| HDMI Monitor Outputs: | 1 |
| Computer Interface: | USB-C or Ethernet for shared file access, configuration and software updates. |
| FILE SHARING PROTOCOL | |
| Protocol: | SMB |
| Computer Connections: | 50 max. |
| CLOUD SYNCHRONIZATION | |
| Compatible Services: | Dropbox Google Drive |
| STORAGE | |
| Storage Type: | Up to 3 Blackmagic Media Modules. |
| External Storage Format: | Blackmagic (formatted in camera) |
| DISPLAYS | |
| HDMI Monitor Out Standards: | 1080p50, 1080p59.94, 1080p60 |
| Monitor Out Displays: | Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
| Status Indicator: | LED bezel indicator lights around media module bays. |
| DEVICE CONTROL | |
| External Control: | USB-C or Ethernet for configuration and software updates. |
| SOFTWARE | |
| Software Included: | Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. Windows 11. |
| Mac: | Mac 14.3 Sonoma or later. |
| POWER REQUIREMENTS | |
| Power Supply: | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| PHYSICAL INSTALLATION | |
| Physical Installation: | 2 rack units. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 482 x 206 x 90mm |
| Weight: | 4.96kg |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32°to 104° F) |
| Storage Temperature: | -20° to 60° C (-4° to 140° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- Blackmagic Media Dock
- Welcome wallet with QR code for software download
