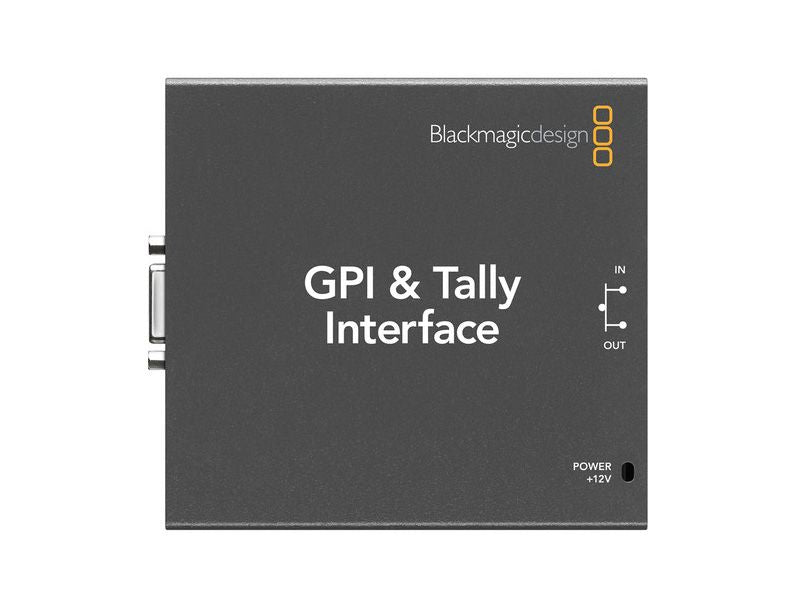

Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.

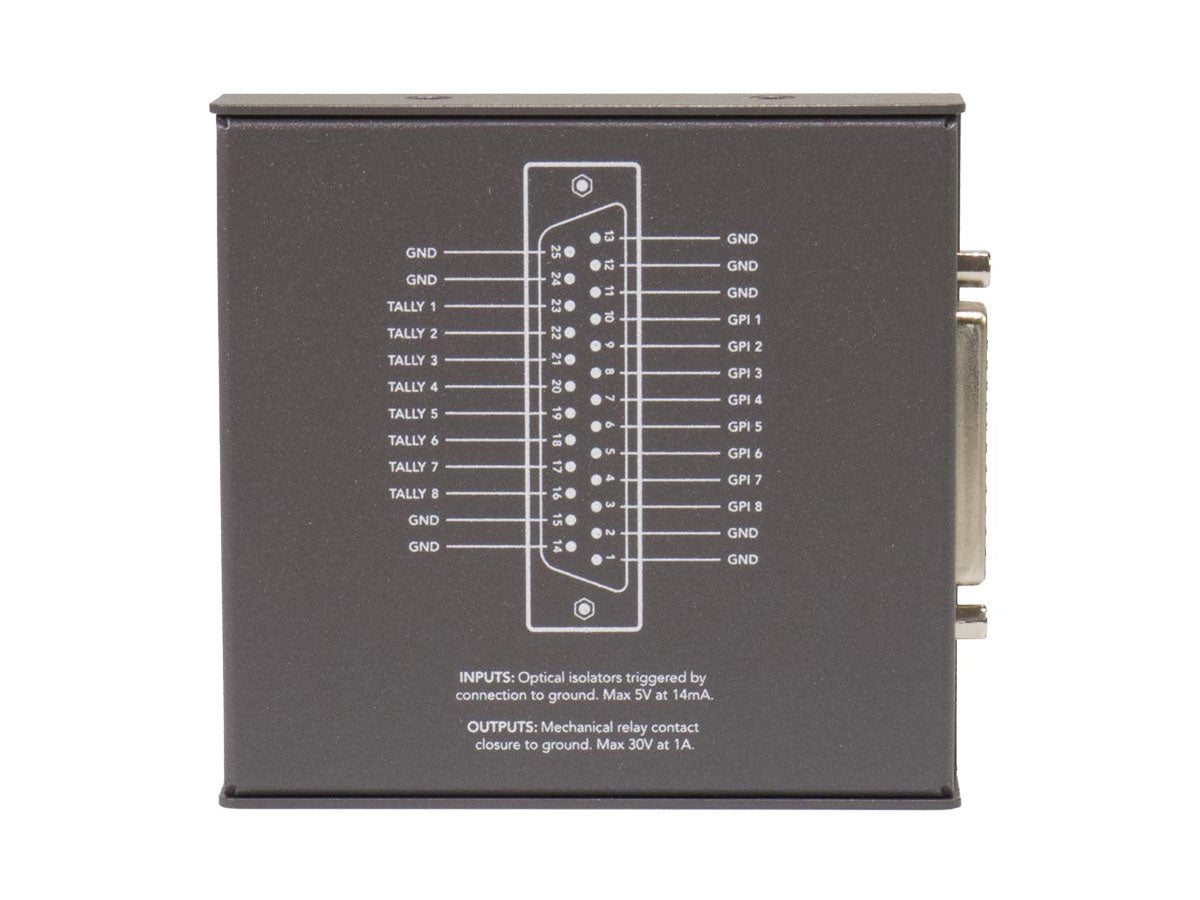

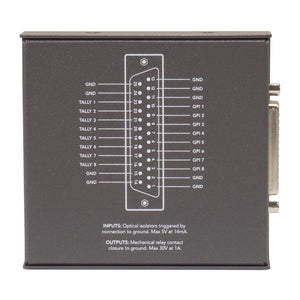

- Contact Closure - 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
- Inputs - Optical isolators triggered by connection to ground. Max 5V at 14mA.
- Outputs - Mechanical relay contact closure to ground. Max 30V at 1A.
- Ethernet - 10/100 BaseT with loop through for connecting to other ethernet enabled equipment
- Computer Interface - 1 x USB 2.0 high speed interface for configuration and firmware updates
| CONNECTIONS | |
| Contact Closure: | 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. |
| Computer Interface: | 1 x USB 2.0 high speed interface for configuration and firmware updates. |
| Input: | Optical isolators triggered by connection to ground. Max 5V at 14mA. |
| Outputs: | Mechanical relay contact closure to ground. Max 30V at 1A. |
| Ethernet: | 10/100 BaseT with loop through for connecting to other ethernet enabled equipment. |
| SOFTWARE | |
| Software Included: | Configured via ATEM Switcher Utility. |
| Internal Software Upgrade: | Firmware built into software driver. Loaded at system startup or via updater software. |
| OPERATING SYSTEMS | |
| Windows: | Windows 8.1 and 10. |
| Mac: | Mac 10.14 Mojave, Mac 10.15 Catalina or later. |
| POWER REQUIREMENTS | |
| Power Supply: | 12V power supply included with international socket adaptors for all countries. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 96 x 90 x 23mm |
| Weight: | 120g |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° - 60°C (-4°F to 140°F) |
| Relative Humidity: | Up to 95% |
- GPI and Tally Interface
- Software CD
- Power Supply
