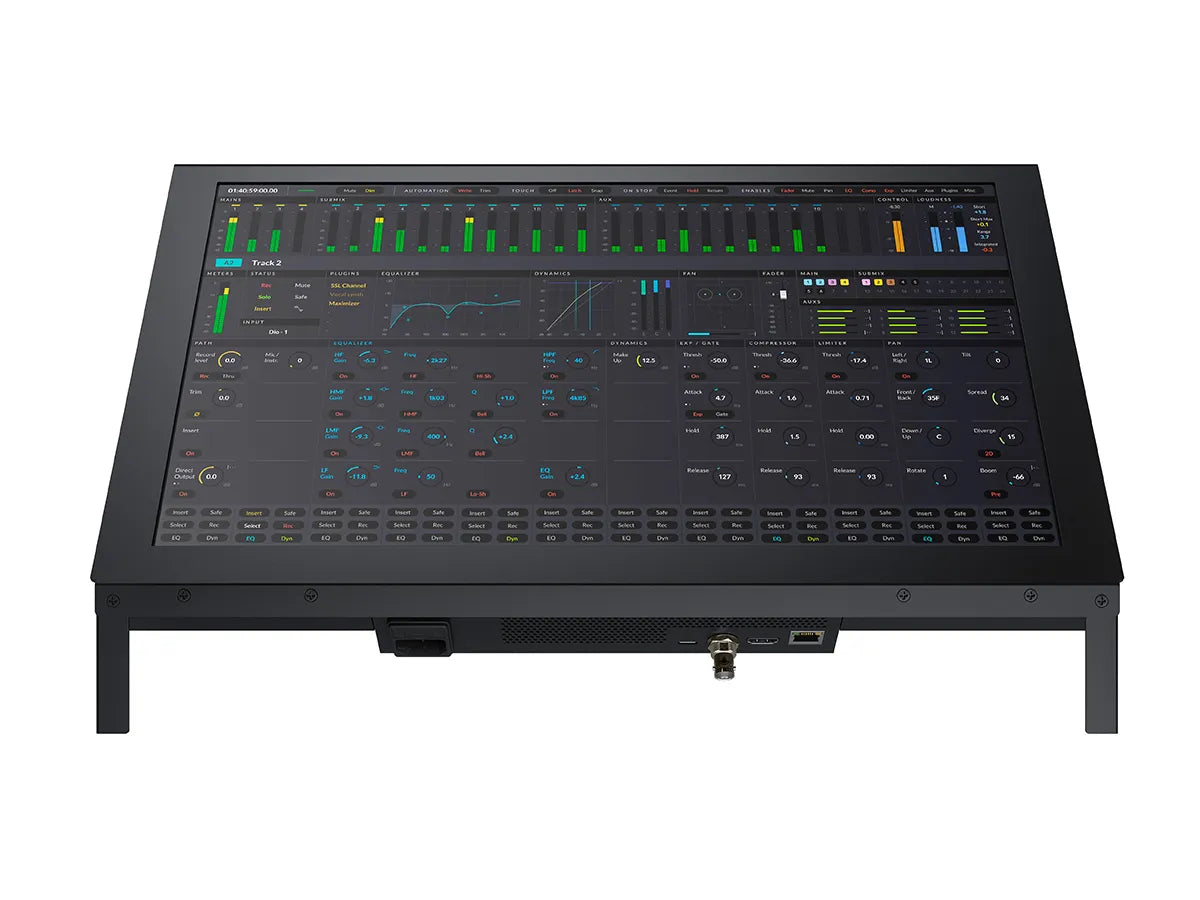

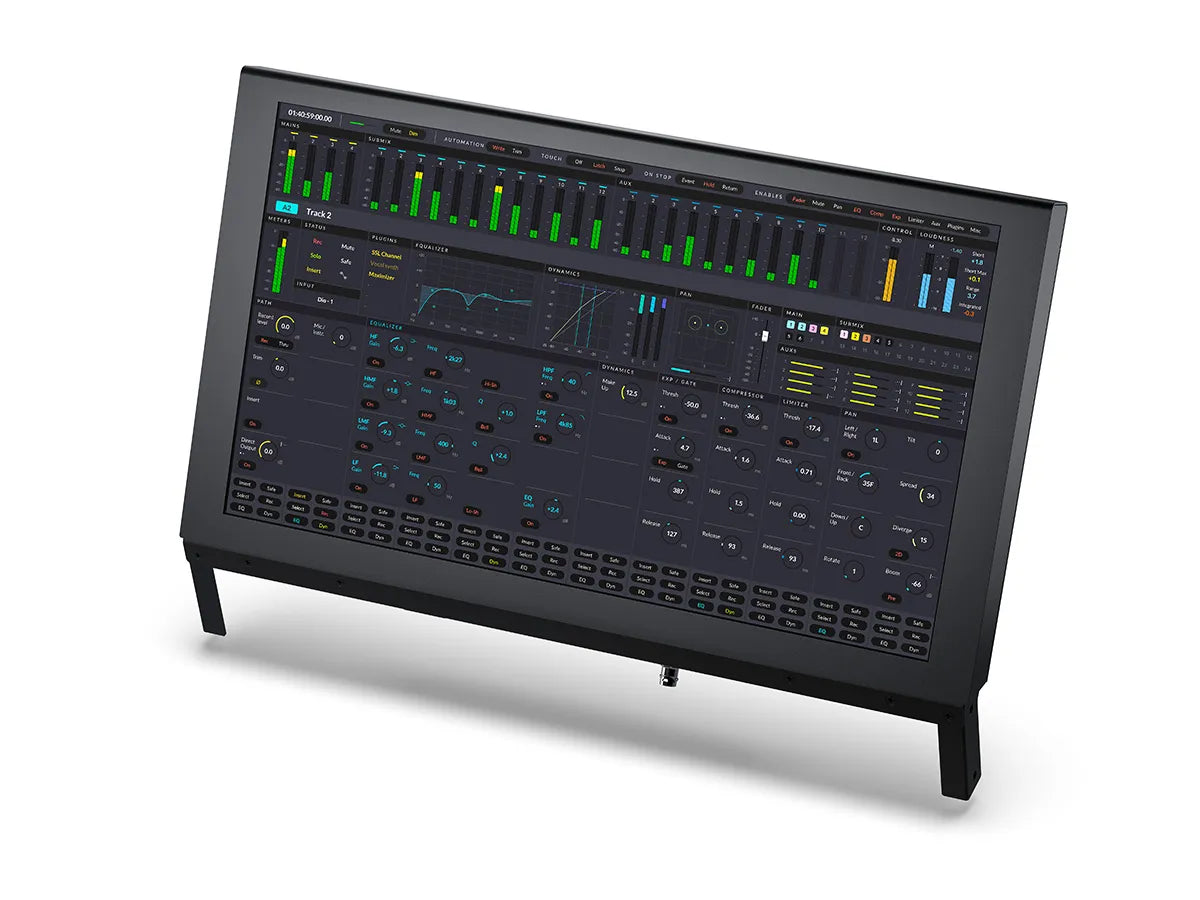

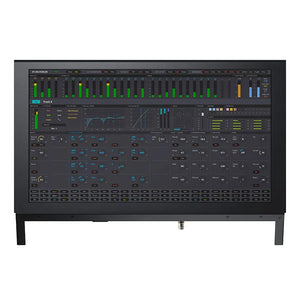

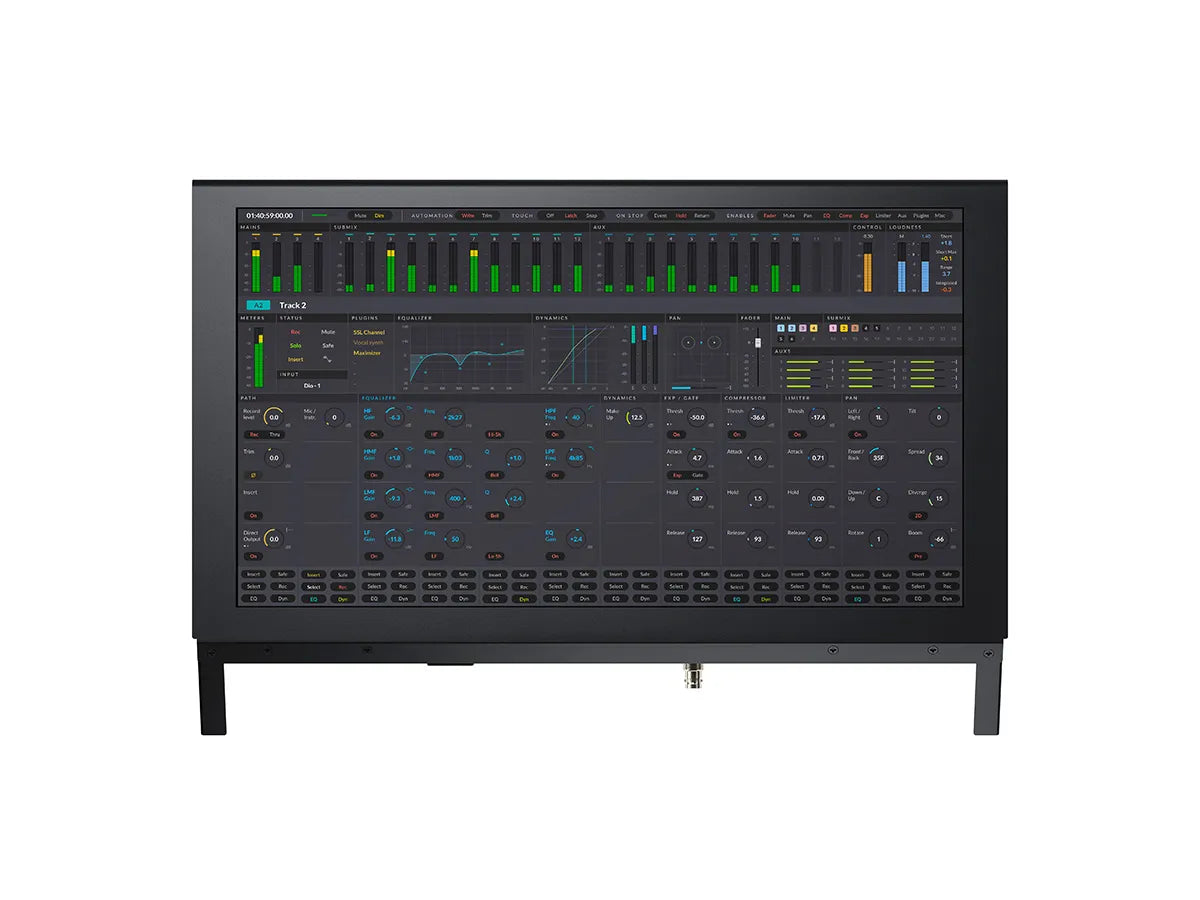

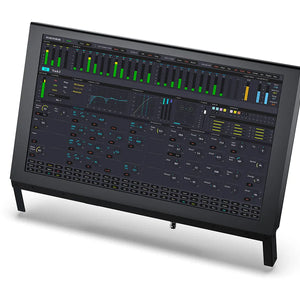

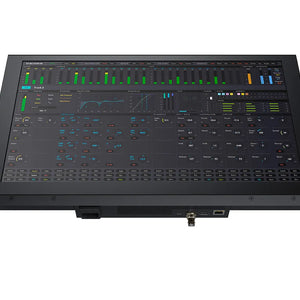

Blackmagic Design Fairlight Console LCD Monitor
Blackmagic Design Fairlight Console LCD Monitor
SKU:
BMD-BMDVRESFLCDMCS
Regular price
£1,135.00 GBP ex VAT
£1,362.00 GBP inc VAT
£1,362.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,135.00 GBP ex VAT
£1,362.00 GBP inc VAT
Unit price
per
£1,362.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Add a high resolution LCD monitor to every bay of your Fairlight console with Fairlight Console LCD Monitor. When installed above channel faders and controls you get instant graphic feedback for that channel, access to additional controls and more. Featuring an ethernet interface to display channel information, there is also an HDMI interface you can connect to your computer to see native plug?in interfaces and an SDI BNC for video program or studio camera previews.
| CONNECTIONS | |
| Ethernet: | Ethernet supports 10/100/1000 BaseT. |
| HDMI Video Input: | HDMI Type A. |
| SDI Inputs: | 1 x 3G‑SDI. |
| SDI Rates: | 1.5G, 3G. |
| STANDARDS | |
| HDMI Video Standards: | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Video Standards: | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance: | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B. |
| SDI Video Sampling: | 4:2:2 |
| SDI Colour Precision: | 10-bit |
| SDI Colour Space: | YUV |
| UPDATES & CONFIGURATION | |
| Connections: | 1 x USB Type‑C for software configuration and software updates. |
| SOFTWARE | |
| Updates: | Internal software upgrade via updater application. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10 Creators Update Windows 11 Windows 11 for ARM |
| Mac: | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. |
| Linux: | Rocky Linux 8.6 |
| SETTINGS CONTROL | |
| Setup: | Fairlight Studio and Console setup utility software when connected by USB. |
| POWER REQUIREMENTS | |
| Power Supply: | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Usage: | 20W max. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 490 x 328 x 121mm / 19.29 x 12.9 x 4.76" |
| Weight: | 4.5kg / 9.92lbs |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 0° to 40°C (32° to 104°F) |
| Storage Temperature: | -20° to 60°C (-4° to 140°F) |
| Relative Humidity: | 0% to 90% non-condensing |
- 1x Fairlight Console LCD Monitor
