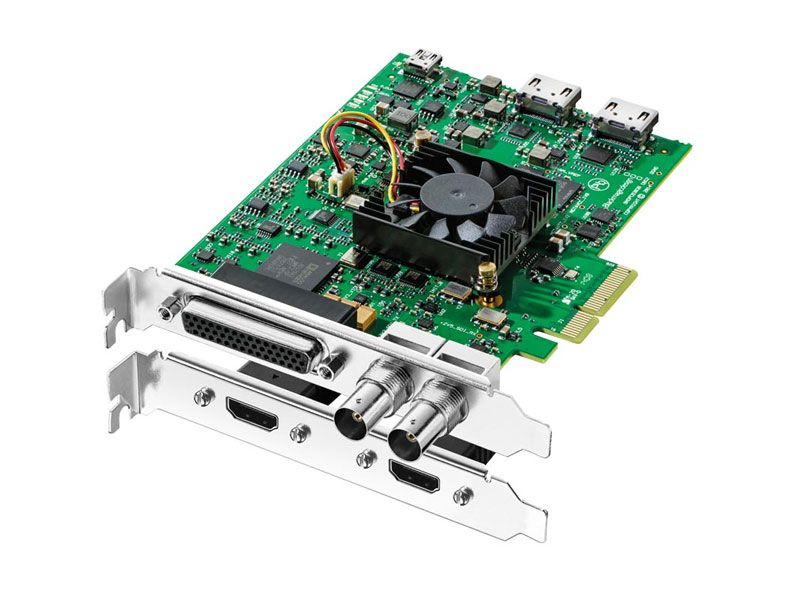

Blackmagic Design DeckLink Studio 4K
Blackmagic Design DeckLink Studio 4K
SKU:
BMD-BDLKSTUDIO4K
Regular price
£400.00 GBP ex VAT
£480.00 GBP inc VAT
£480.00 GBP inc VAT
Regular price
ex VAT
Sale price
£400.00 GBP ex VAT
£480.00 GBP inc VAT
Unit price
per
£480.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.
DeckLink Studio 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux based workstations.
- PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
- Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
- 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
- 10-bit, 4:4:4 1080p by single-link 6G-SDI
- 8-bit RBG / 10-bit YUV HDMI output
- HD to SD down-conversion
- SD to HD up-conversion
- Hardware cross conversion between 720p and 1080p on playback
- RS-422 deck control
- Internal SD keying
- Reference input
- Blackburst and tri-sync
- Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)
| CONNECTIONS | |
| SDI Video Inputs: | 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. |
| SDI Video Outputs: | 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. |
| Analog Video Inputs: | 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. |
| Analog Video Outputs: | 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. |
| Analog Audio Inputs: | 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. |
| Analog Audio Outputs: | 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. |
| AES / EBU Audio Inputs: | 2 Channels unbalanced with sample rate converter. |
| AES / EBU Audio Outputs: | 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. |
| SDI Audio Inputs: | 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. |
| SDI Audio Outputs: | 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. |
| HDMI Video Inputs: | 1 x HDMI type A connector. |
| HDMI Video Outputs: | 1 x HDMI type A connector. |
| HDMI Audio Inputs: | 8 Channels embedded in SD, HD, 4K. |
| HDMI Audio Outputs: | 8 Channels embedded in SD, HD, 4K |
| Sync Input: | Tri-Sync or Black Burst. |
| Device Control: | Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. |
| Computer Interface: | PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots. |
| SUPPORTED CODECS | |
| Supported Codecs: | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4. |
| SOFTWARE | |
| Software Included: | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade: | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation: | PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements. |
| VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards (SDI Only): | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards: | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only |
| SDI Compliance: | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support: | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Video Sampling: | 4:2:2, 4:4:4* *4K is 4:2:2. |
| SDI Colour Precision: | 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes. |
| Colour Space: | REC 601, REC 709 |
| HDMI Video Sampling: | 4:4:4, 4:2:2 & 4:2:0 |
| HDMI Colour Precision: | 10-bit RGB HD 10-bit YUV in HD and 4K |
| HDMI Configuration: | HDMI 1.4b. Automatically configures to connected display. |
| Audio Sampling: | Television standard sample rate of 48 kHz at 24 bit. |
| Colour Precision: | 10-bit |
| Colour Space: | REC 601, REC 709 |
| HDMI Resolution: | Pixel for pixel up to 4K resolutions. |
| Multiple Rate Support: | HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD. |
| Copy Protection: | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| PROCESSING | |
| HD Down Conversion: | Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. |
| HD Up Conversion: | Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. |
| Cross Conversion: | Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. |
| Real Time Effects: | DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
| Colourspace Conversion: | Hardware based real time. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 140.9mm |
| Weight: | 166g |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. Windows 11. |
| Mac: | Mac 12.0 Monterey, Mac 13.0 Ventura or later. |
| Linux: | Linux |
| POWER REQUIREMENTS | |
| Power Consumption: | 22 W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 5° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- Blackmagic Design DeckLink Studio 4K Capture & Playback Card
- SD Card with Support Software/Drivers
- Breakout Cable for Analog and RS-422 Control
- HDMI Bracket
