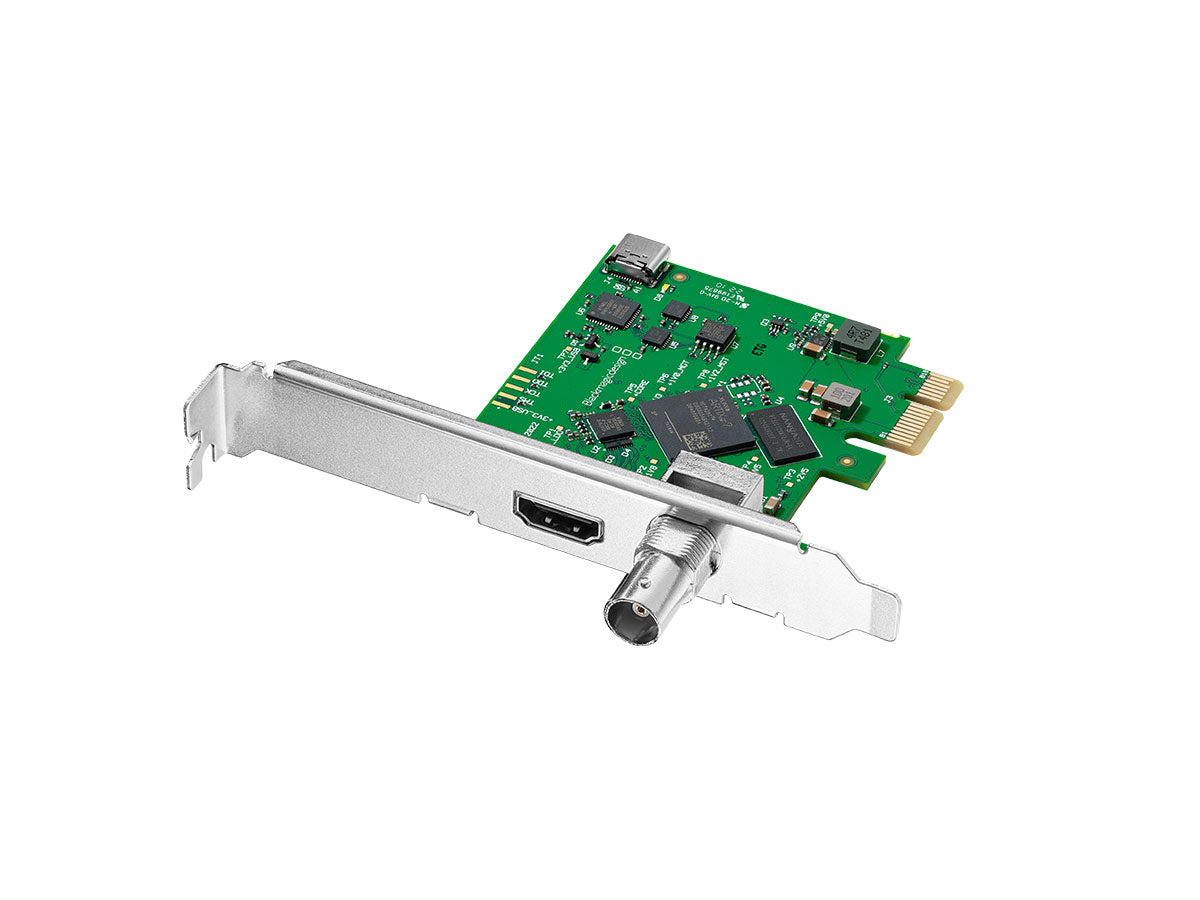

Blackmagic Design Decklink Mini Recorder HD
Blackmagic Design Decklink Mini Recorder HD
SKU:
BMD-BDLKMINIREC3G
Regular price
£98.57 GBP ex VAT
£118.28 GBP inc VAT
£118.28 GBP inc VAT
Regular price
ex VAT
Sale price
£98.57 GBP ex VAT
£118.28 GBP inc VAT
Unit price
per
£118.28 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!
- Broadcast quality HDMI and SDI video capture for your PCIe computer
- Low profile 1 lane Gen 2 PCI Express cards
- Includes PCIe shields for both regular and low profile slots
- Built in 3G-SDI and HDMI connections on each model
- Supports all common SD/HD video formats up to 1080p60
- Supports DCI formats up to 2Kp60 via SDI
- Uncompressed and compressed 10-bit 4:2:2 YUV or RGB quality
- Supports DaVinci Resolve and all other video software
- Developer SDK available to download free
| CONNECTIONS | |
| SDI Video Input: | 1 x 10-bit SD/HD switchable |
| SDI Rates: | 270Mb, 1.5G, 3G |
| SDI Audio Input: | 16 channels embedded in SD/HD |
| HDMI Video Input: | 1 x HDMI 2.0 type A connector |
| HDMI Audio Input: | 8 channels embedded in SD/HD |
| Computer Interface: | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
| SUPPORTED CODECS | |
| Supported Codecs: | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| SOFTWARE | |
| Software Included: | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade: | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation: | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
| SDI VIDEO STANDARDS | |
| SDI Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards: | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI Compliance: | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B |
| SDI Metadata Support: | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling: | 4:2:2, 4:4:4 |
| SDI Colour Precision: | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Colour Space: | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support: | SDI video connection is switchable between SD and HD. |
| HDMI VIDEO STANDARDS | |
| SDI Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HDMI Audio Sampling: | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling: | 4:2:2 and 4:4:4 |
| HDMI Colour Precision: | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI Configuration: | HDMI 2.0 supports Deep Color. |
| HDMI Colour Space: | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support: | HDMI video connection is switchable between SD and HD. |
| Copy Protection: | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| HARDWARE FRAME BUFFER | |
| Hardware Frame Buffer: | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
| PROCESSING | |
| Colourspace Conversion: | Hardware based real time. |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 92mm |
| Weight: | 56g |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. Windows 11. |
| Mac: | Mac 12.0 Monterey, Mac 13.0 Ventura or later. |
| Linux: | Linux |
| POWER REQUIREMENTS | |
| Power Consumption: | 3 W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 5° to 40° C (32° to 104° F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- DeckLink Mini Recorder HD
- Low profile slot bracket
