Blackmagic Design ATEM Mini Extreme
Blackmagic Design ATEM Mini Extreme
SKU:
BMD-SWATEMMINICEXT
Regular price
£686.17 GBP ex VAT
£823.40 GBP inc VAT
£823.40 GBP inc VAT
Regular price
ex VAT
Sale price
£686.17 GBP ex VAT
£823.40 GBP inc VAT
Unit price
per
£823.40 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

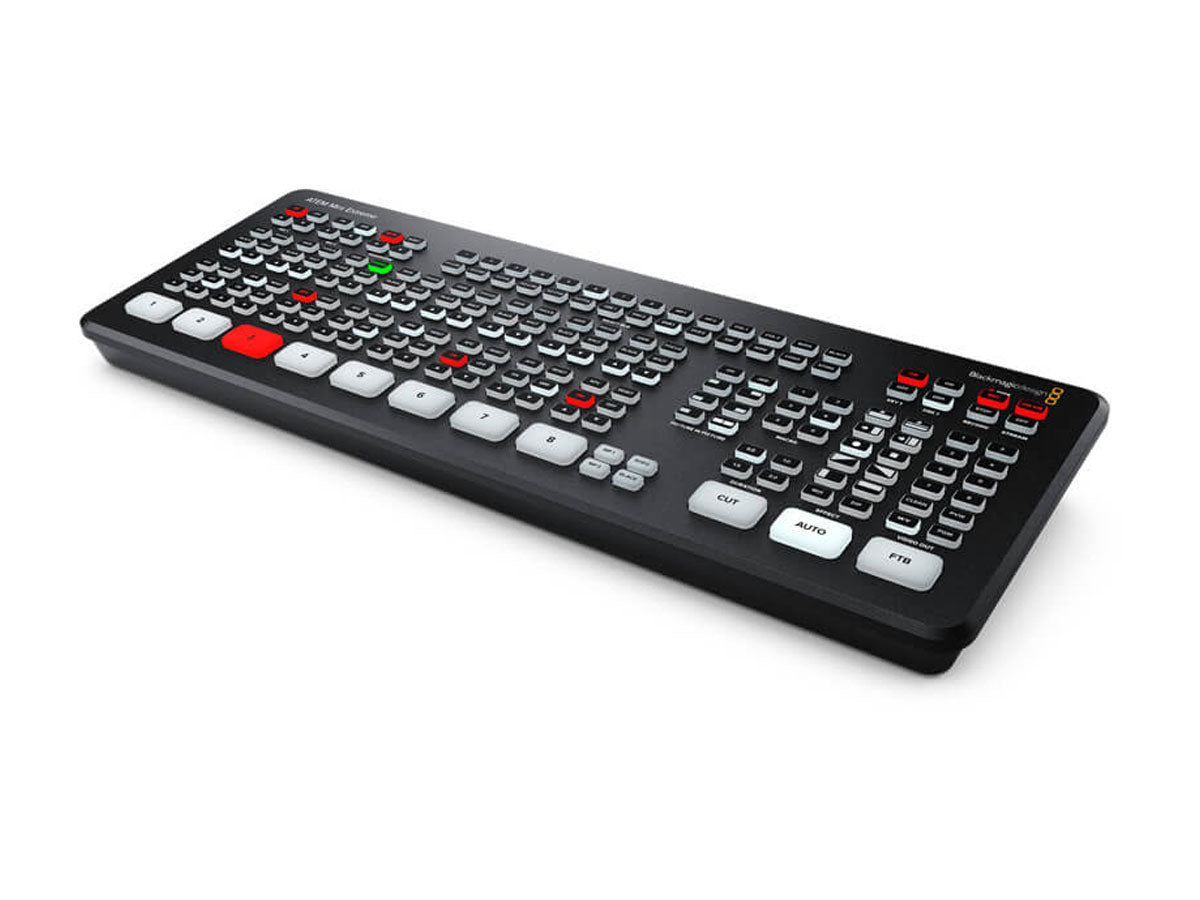

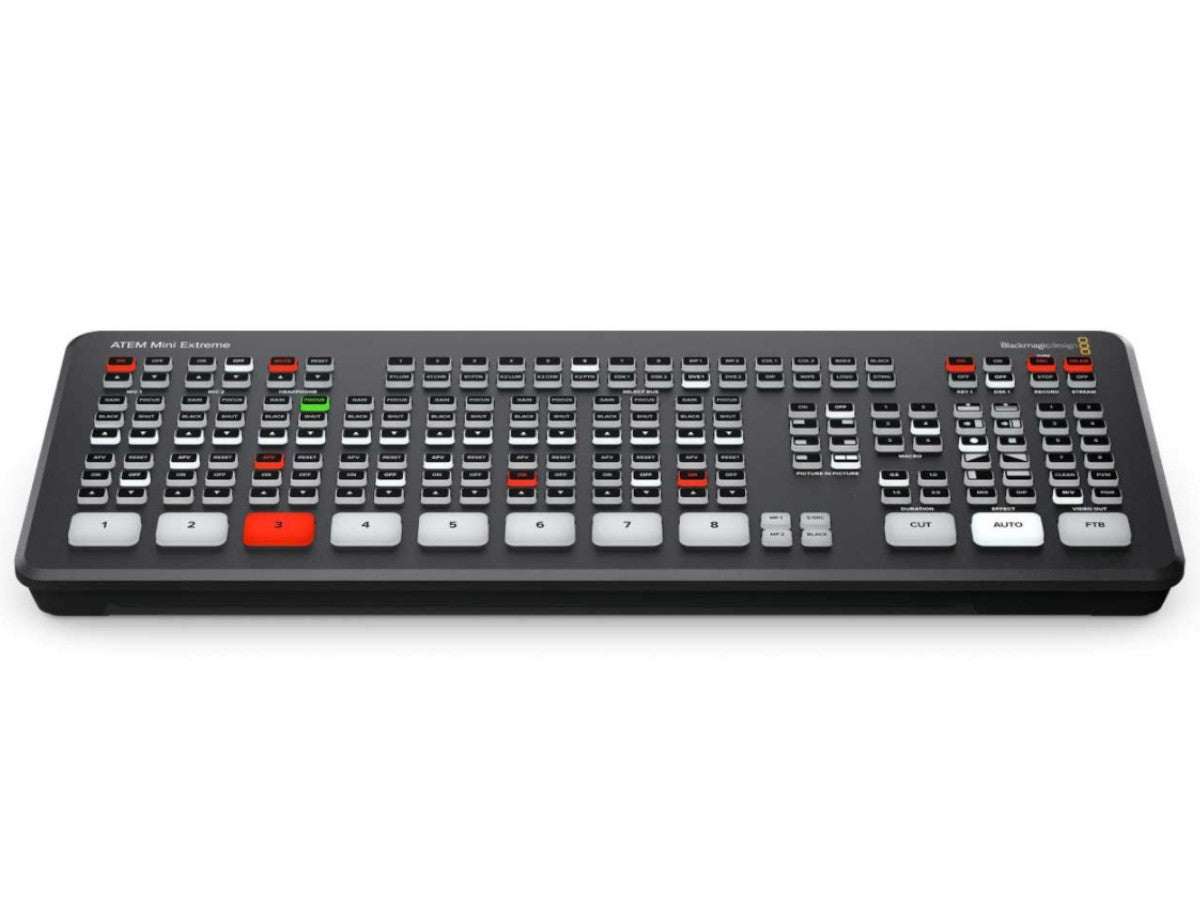

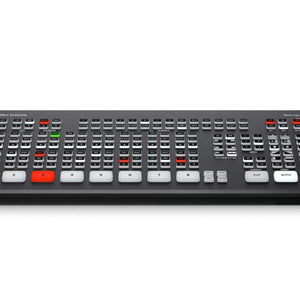

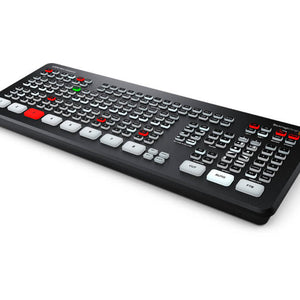

ATEM Mini Extreme is an advanced switcher for true professionals. You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players and a multiview with up to 16 views.
Easy to Use and Fast to Learn
There's never been a switcher that’s easier to use, as you simply press any of the input buttons labelled by number on the front panel to cut between video sources. You can choose between cut or effects transitions by selecting the cut or auto buttons. Unlike cut, the auto button tells ATEM Mini to use a video effect when switching inputs. You can select from exciting transitions such as dissolve, or more dramatic effects such as dip to colour, DVE squeeze and DVE push. Add a DVE effect for picture in picture effects with customized picture positions and background. There are even "media players" which are a still store for titles and graphics that you can load via external software control.
Stream Live Interviews
ATEM Mini is perfect for interviews as you can connect multiple cameras for close ups of the host, or interviewee, as well as wide shots plus ATEM Mini is so small the host can even switch in small studios. Plus ATEM Mini Pro and Extreme models support live streaming to YouTube, Facebook and more.
Connect up to 8 Independent Cameras
With 4 or 8 HDMI inputs depending on the model, you can connect multiple cameras for different views. Video cameras with HDMI outputs are better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work. Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts and music videos.
Outputs to HDMI Video and USB Webcam
To ensure maximum compatibility, all ATEM Mini models feature USB that operates as a simple webcam source. That means you can plug into a computer and get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Zoom, Microsoft Teams or Skype for a new way to do presentations with a professional multi camera broadcast quality style. The ATEM Mini webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more.
Live Stream via Ethernet
ATEM Mini Extreme models have a built in hardware streaming engine for live streaming via their ethernet connections. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with simpler settings. Just select the streaming service and enter the streaming key. There are palettes in ATEM Software Control for streaming setup, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can update the streaming profiles in an XML settings file to load new services.
Connect 5G or 4G Phones for Mobile Data
If you’re doing live production on location then the ATEM Mini Extreme models support connecting an Apple or Android phone to the USB port to use mobile data. It's also a great backup for the main Ethernet connection. Phone tethering works with the latest high speed 5G phones plus the more common 4G phones. The ATEM switcher will automatically detect when a phone is connected and switch its internet connection to use it, eliminating the need for changing settings. When connected, the phone will power from the USB port so it remains charged from the switcher. By using phone tethering and mobile data, ATEM Mini Extreme become the perfect mobile production solutions.
Work with Professional Microphones
With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. Plus all models feature a Fairlight audio mixer with all HDMI inputs and both microphone inputs are all connected to the audio mixer so you can live mix from all audio sources. The ATEM Mini Extreme also adds a headphone output.
- Advanced switcher for true professionals
- 8 HDMI inputs
- 16 way multiview
- 4 ATEM Advanced Chroma keyers
- SuperSource with 4 extra DVE's
- 2 HDMI outputs
- 2 USB ports
- Powerful control panel

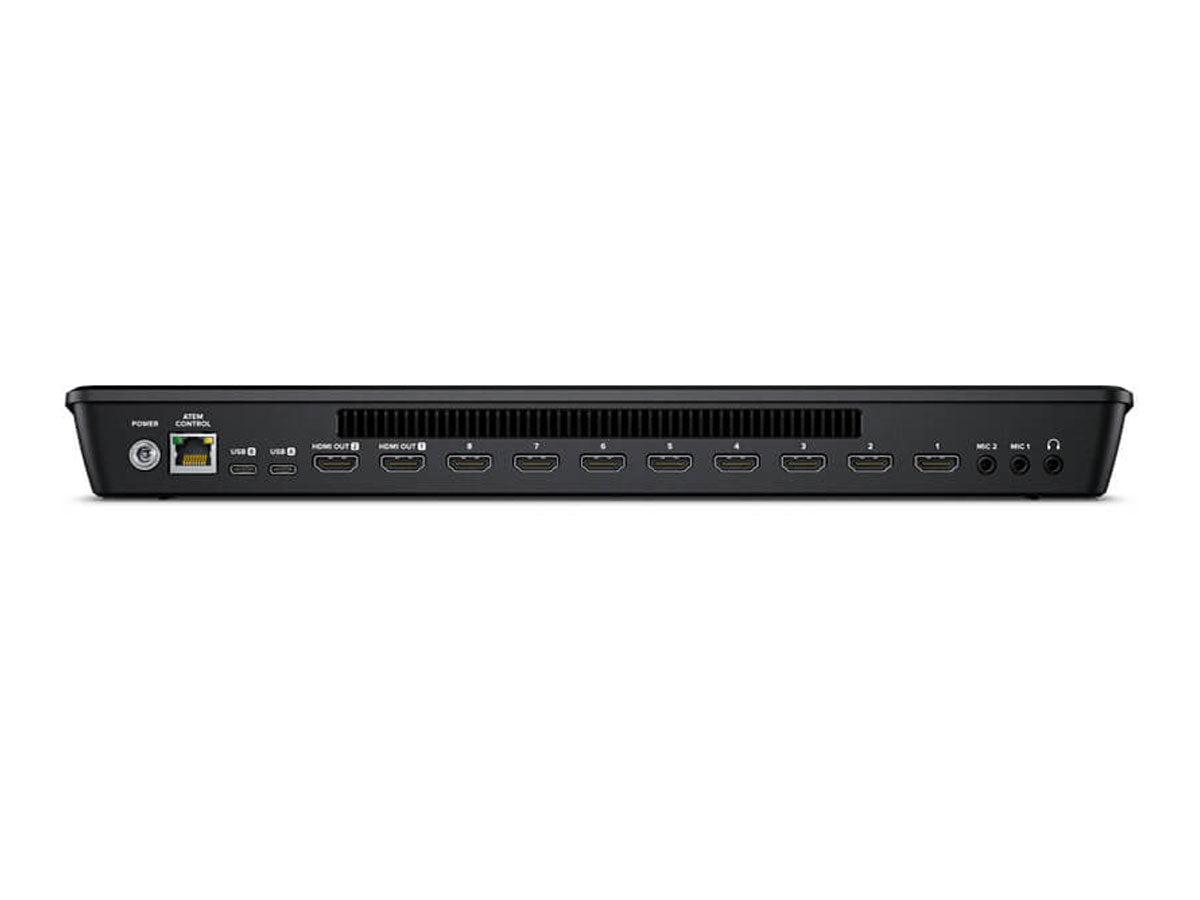

| CONNECTIONS | |
| Total Video Inputs: | 8 |
| Total Outputs: | 4 |
| Total Aux Outputs: | 2 |
| Total Audio Inputs: | 2 x 3.5mm stereo mini jack. |
| Total Audio Outputs: | 1 x 3.5mm stereo mini jack. |
| Timecode Connection: | None |
| HDMI Video Inputs: | 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. |
| Video Input Re-Sync: | On all 8 HDMI inputs. |
| Frame Rate and Format Converters: | On all 8 HDMI inputs. |
| HDMI Program Outputs: | 2 |
| Ethernet: | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer Interface: | 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| STANDARDS | |
| HD Video Input Standards: | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards: | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards: | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards: | None |
| Video Sampling: | 4:2:2 YUV |
| Colour Precision: | 10-bit |
| Colour Space: | Rec 709 |
| HDMI Input Resolutions from Computers: | 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz |
| Colourspace Conversion: | Hardware based real time. |
| PRODUCT SPECIFICS | |
| Upstream Keyers: | 4 |
| Downstream Keyers: | 2 |
| Advanced Chroma Keyers: | Up to 4 |
| Linera / Luna Chroma Keyers: | Up to 4 |
| Transition Keyer: | DVE only. |
| Total Number of Layers: | 9 |
| Pattern Generators: | 5 |
| Colour Generators: | 2 |
| DVE With Borders and Drop Shadow: | 2 |
| Interface: | Minimum monitor resolution of 1366 x 768. |
| AUDIO | |
| Audio Mixer: | 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Analog Input: | Unbalanced stereo |
| Analog Input Delay: | Up to 8 frames |
| Input Impedance: | 1.8k |
| Max Input Level: | +6dBV |
| Mic Plug In Power: | Available on both 3.5mm mini jack connections. |
| STREAMING | |
| Direct Streaming: | ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. |
| RECORDING | |
| Direct Recording Video and Audio: | USB-C 3.1 Gen 1 expansion port can record directly to external media. |
| Video Recording: | 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. |
| Media Format: | Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. |
| MULTI VIEW MONITORING | |
| Multi View Monitoring: | Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard: | HD |
| MEDIA PLAYER | |
| Media Players: | 2 |
| Channels: | Fill and key for each Media Player. |
| Media Pool Still Image Capacity: | 20 with fill and key. |
| Media Pool Still Image Format: | PNG, TGA, BMP, GIF, JPEG and TIFF. |
| CONTROL | |
| Control Panel: | Built in control panel. Software control panel with camera control included. Supports optional hardware panel. |
| Control Panel Connection: | Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. |
| Control Panel Compatibility: | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. |
| Control Panel Included: | ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only. |
| SOFTWARE | |
| Software Updates: | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration: | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10, 64-bit. |
| Mac: | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. |
| POWER REQUIREMENTS | |
| Power Supply: | 1 x External 12V power supply. |
| Power Usage: | 36W |
| PHYSICAL SPECIFICATIONS | |
| Dimensions: | 370 x 136.6 x 39.6mm |
| Weight: | 1.25kg |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature: | 5° C to 40° C (41° - 104° F) |
| Storage Temperature: | -10° to 60° C (14° to 140° F) |
| Relative Humidity: | 0% to 90% non-condensing |
- ATEM Mini Extreme
- External 12V DC power supply with international socket adapters
