Blackmagic Design 2110 IP UpDownCross 12G
Blackmagic Design 2110 IP UpDownCross 12G
SKU:
BMD-CONVNVIPJ/STD/12G
Regular price
£365.50 GBP ex VAT
£438.60 GBP inc VAT
£438.60 GBP inc VAT
Regular price
ex VAT
Sale price
£365.50 GBP ex VAT
£438.60 GBP inc VAT
Unit price
per
£438.60 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included

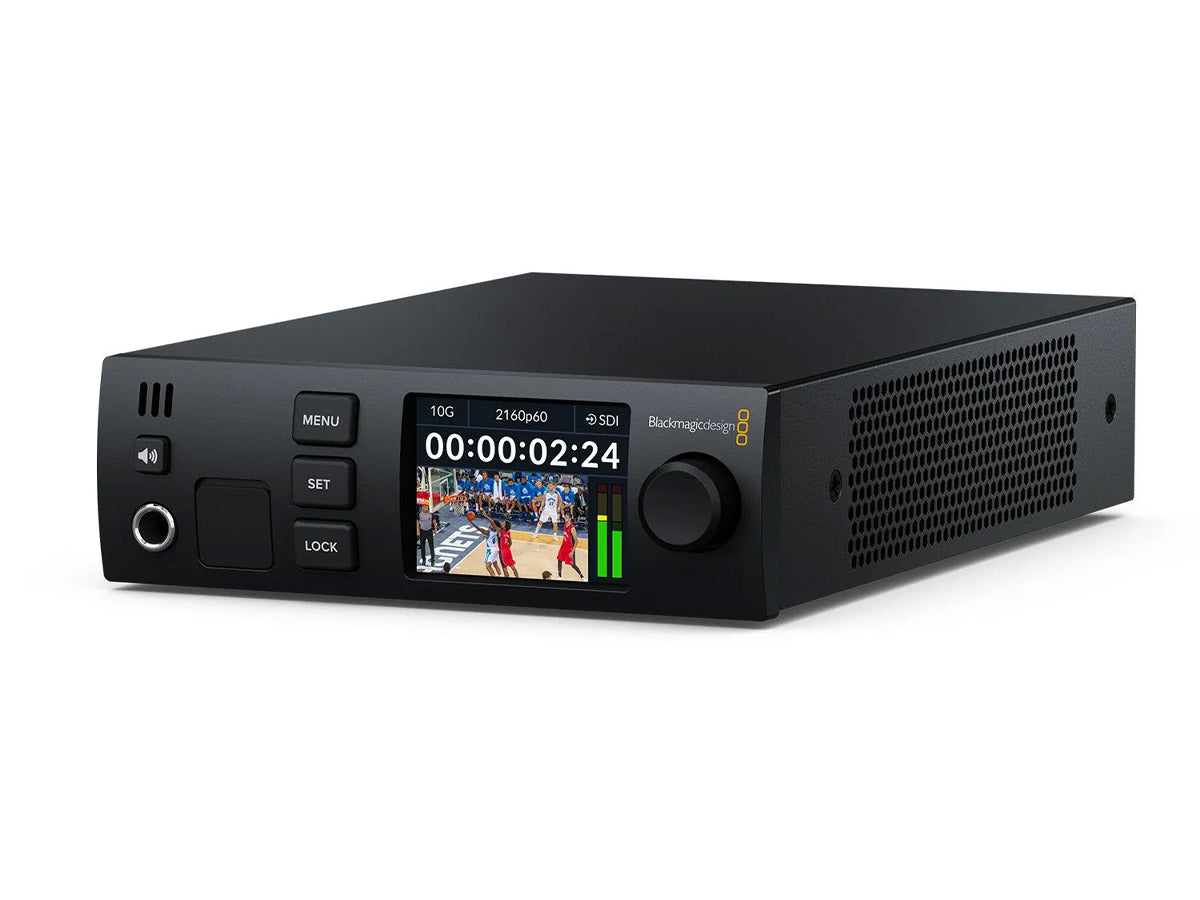

The Blackmagic 2110 IP UpDownCross 12G is a premium standards converter for live production and broadcast. It allows you to convert between any equipment with 2110 IP video, 12G-SDI, and HDMI video connections!
You get the highest quality video conversion between all SD, HD, and Ultra HD video standards. It has an elegant design with an LCD display, speaker, and headphone jack. The LCD also has menus for setting the video standard. The USB port on the front panel even works as an HD webcam!
| CONNECTIONS | |
| SDI Inputs: | 1 |
| SDI Loop Outputs: | 1 |
| SDI Outputs: | 2 |
| SDI Rates: | SD, 1.5G, 3G, 6G and 12G |
| HDMI 2.0 Video Outputs: | 1 |
| SMPTE 2110 Input / Output: | 1 x 10G Ethernet |
| SMPTE ST 2110 IP Audio Inputs / Outputs: | 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet. |
| SDI Audio Inputs: | 16 channels embedded audio. |
| SDI Audio Outputs: | 16 channels embedded audio. |
| HDMI Audio Inputs: | 8 channels embedded audio. |
| HDMI Audio Outputs: | 8 channels embedded audio. |
| Analog Audio Outputs: | 1 x 6.35 mm headphone jack. |
| Webcam Outputs: | 1 x USB-C up to 1080p60 |
| Reference In: | 1 |
| Reference Output: | 1 |
| Ethernet: | Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates. |
| Computer Interface: | USB-C for webcam out, updates and configuration |
| VIDEO STANDARDS | |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| 2K Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SMPTE Compliance: | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 |
| SDI Metadata Support: | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling: | Television standard sample rate of 48 kHz and 24 bit. |
| Colour Precision: | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Colour Space: | Rec. 601, Rec. 709, Rec. 2020 |
| HDMI HD Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
| HDMI Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62 |
| HDMI 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| HDMI Colour Precision: | 4:2:2 |
| HDMI Colour Space: | YUV |
| AUDIO | |
| Local Audio Monitoring: | Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket. |
| IP VIDEO COMPLIANCE | |
| SMPTE 2110-20 (Uncompressed Video): | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping): | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM): | Audio Conformance level: Level C |
| SMPTE 2110-30 (Ancillary Data): | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec: | Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video. |
| Precision Time Protocol: | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration: | v1.3.2 Peer-to-peer via mDNS/DNS‑SD |
| NMOS IS-05 Connection Management: | v1.1.2 |
| NMOS BCP-002-01: | Natural Grouping |
| NMOS BCP-004-01: | Receiver capabilities |
| CONTROL | |
| Built-In Control Panel: | Built in control panel including 3 buttons, spin knob control and 2.2 inch color display. |
| External Control: | RJ-45 10Gb/s Ethernet and USB-C. REST API over Ethernet for external control via HTTP when used with REST client applications. |
| DISPLAYS | |
| Displays: | Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
| OPERATING SYSTEMS | |
| Windows: | Windows 10 and 11. |
| Mac: | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. |
| POWER REQUIREMENTS | |
| Power Supply: | 1 x Internal 100 - 240V AC 50/60Hz. |
| Power Inputs: | 1 x IEC C14 socket for AC power. 1 x 12V DC Input |
| Power Usage: | TBC |
| PHYSICAL | |
| Dimensions: | 227 x 140 x 46.3mm / 8.94 x 5.51 x 1.82" |
| Weight: | 1kg / 2.2lb |
| ENVIRONMENTAL | |
| Operating Temperature: | 0° C to 40° C (32° ‑ 104°F) |
| Storage Temperature: | -20° to 45° C (-4° to 113° F) |
| Relative Humidity: | 0% to 90% non‑condensing |
- Blackmagic 2110 IP UpDownCross 12G
- Welcome wallet with QR code for software download
