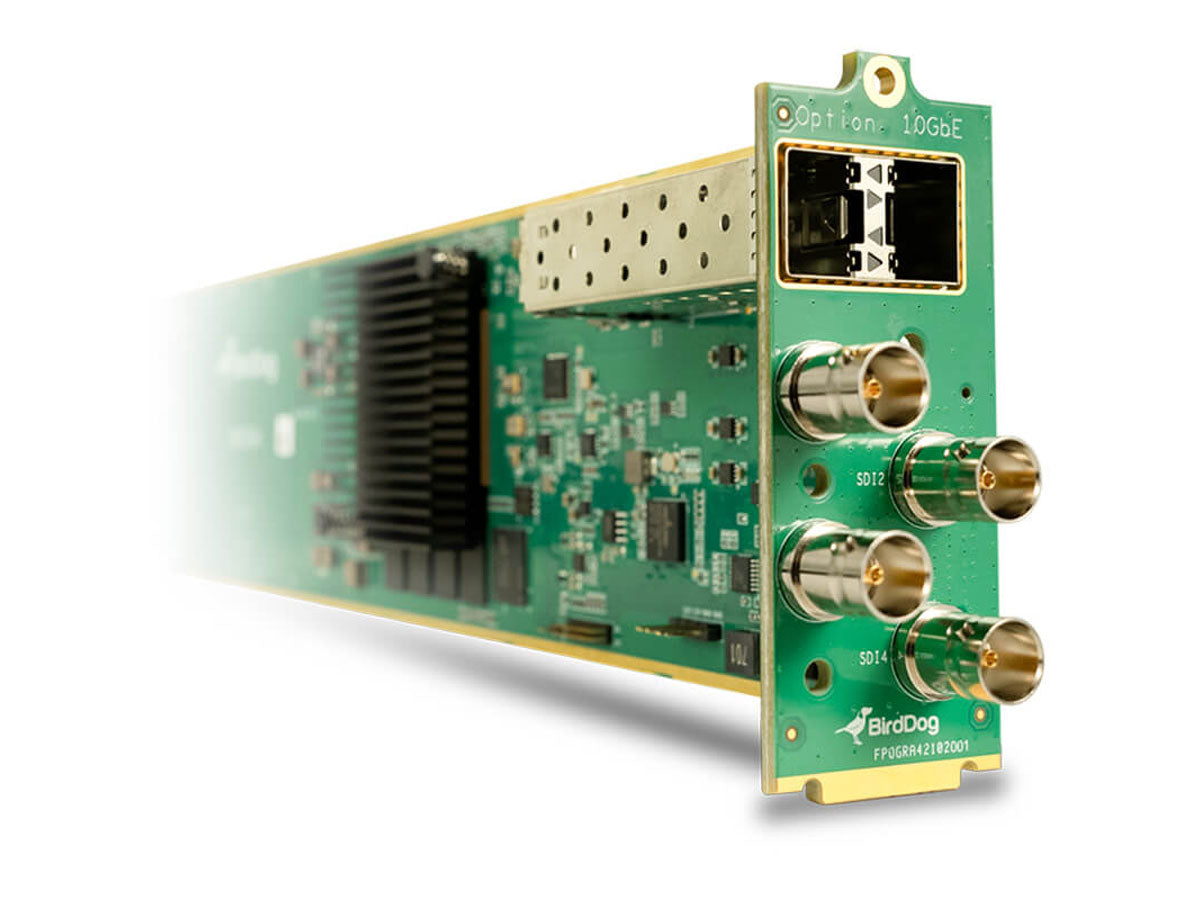

BirdDog OpenGear 4-Channel NDI Encoder/Decoder

BirdDog OpenGear 4-Channel NDI Encoder/Decoder

SKU: BD-OG4
£2,315.00 GBP ex VAT
£2,778.00 GBP inc VAT
ex VAT £2,315.00 GBP ex VAT
£2,778.00 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
OG4. The World’s First NDI® openGear card
BirdDog OG4 is the world’s first NDI® openGear card. OG4 features four independently configurable 12G SDI inputs and outputs. Full Dashboard support is included along with SFP+ port for 10GbE connectivity.

openGear oGx frame compatible
OG4 is fully compatible with the 4th generation of the openGear® platform, oGx. openGear is an open-architecture and modular 2RU rack frame system that allows for OG’s from various manufacturers to live together in the same frame in total harmony.

Professional Cooling. Professional Power
openGear frames include integrated cooling fans to provide maximum cooling for all cards and can be configured with dual, redundant power supplies for maximum reliability and uptime.

Dashboard
BirdDog OG4 offers full support for Dashboard, the freely available unified control software for MacOS, Windows, and Linux.

SFP+ for 10GbE & long range
Industry standard SFP+ connection allows for short, medium, and long-range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE.

Encode & Decode up to 4Kp60
With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier. OG4 supports up to 4x channels of 4Kp60 Encode and 2 channels of 4Kp60 Decode. Of course, OG4 supports 4 channels of 1080p60 decode.

Independent Channel Control
Each channel has independent control of frame rates and resolutions so you can mix and match. Set channel 1 to 4Kp60 and channel 2 to 1080i50. Firmware supports all Encode or all Decode.
  • NDI® openGear card
  • Four independently configurable 12G SDI inputs and outputs
  • Integrated cooling fans
  • Can be configured with dual, redundant power supplies
  • SFP+ for 10GbE & long range
  • Encode & Decode up to 4Kp60
  • Independent Channel Control
Opengear Frame Support:
Requires oGx frame, the 4th generation of the openGear platform.
Supported Video Formats:
UHD 3840x2160p:
23.98, 24, 25, 29.97, 30, 50, 59.94, 60

HD 1920x1080p:
23.98, 24, 25, 29.97, 30, 50, 59.94, 60

HD 1920x1080i:
50, 59.94, 60

HD 1280x720p:
50, 59.94, 60
Video I/O Connectivity:
12G SDI Selectable Input/Output*
Full-size x 4
Audio Input:
SDI
2-ch Per SDI connector
Audio Output:
SDI
2-ch Per SDI connector
Video Codec Support:
NDI (Full Bandwidth i-frame compression)
Max. 4ch UHD 60p
Network Streaming Transport Support:
NDI
Full NDI
Network Connectivity:
OpenGEAR Network Port (Integrated in Chassis backplane)
1 x 1Gbps

SFP+ Network Port
1 x 10Gbps optional module, Optical 10GbE
Dimensions:
33.5cm x 7.5cm x 2.4cm (Processor card only)
Control Support:
System management and control
On-device WebUI, Published RESTful API, Q-Sys plugin, Crestron, Zoom, openGear Dashboard control system

Health monitoring
On-device WebUI

*4-Ch. 12G SDI encode support, 2-Ch. 12G/4-Ch 1.5/3/6G SDI decode support.
