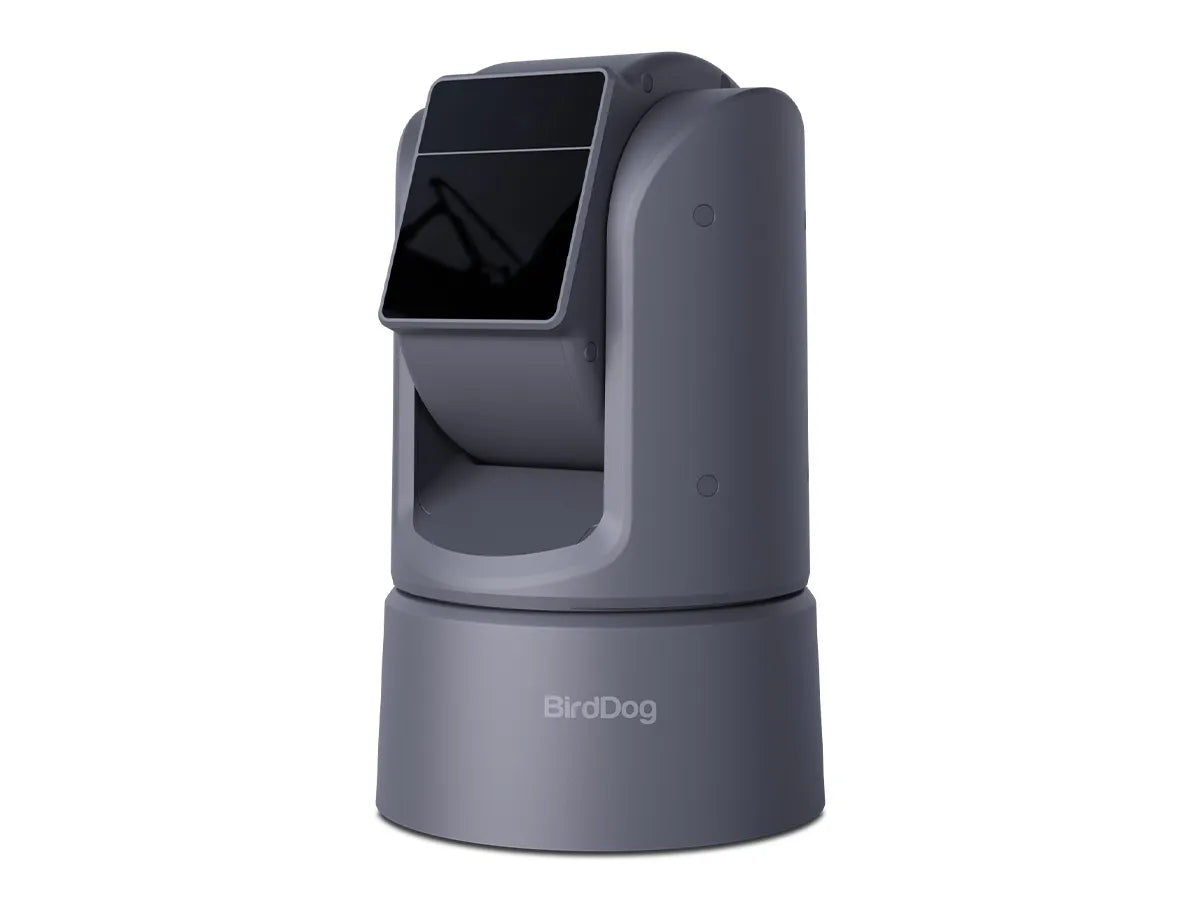

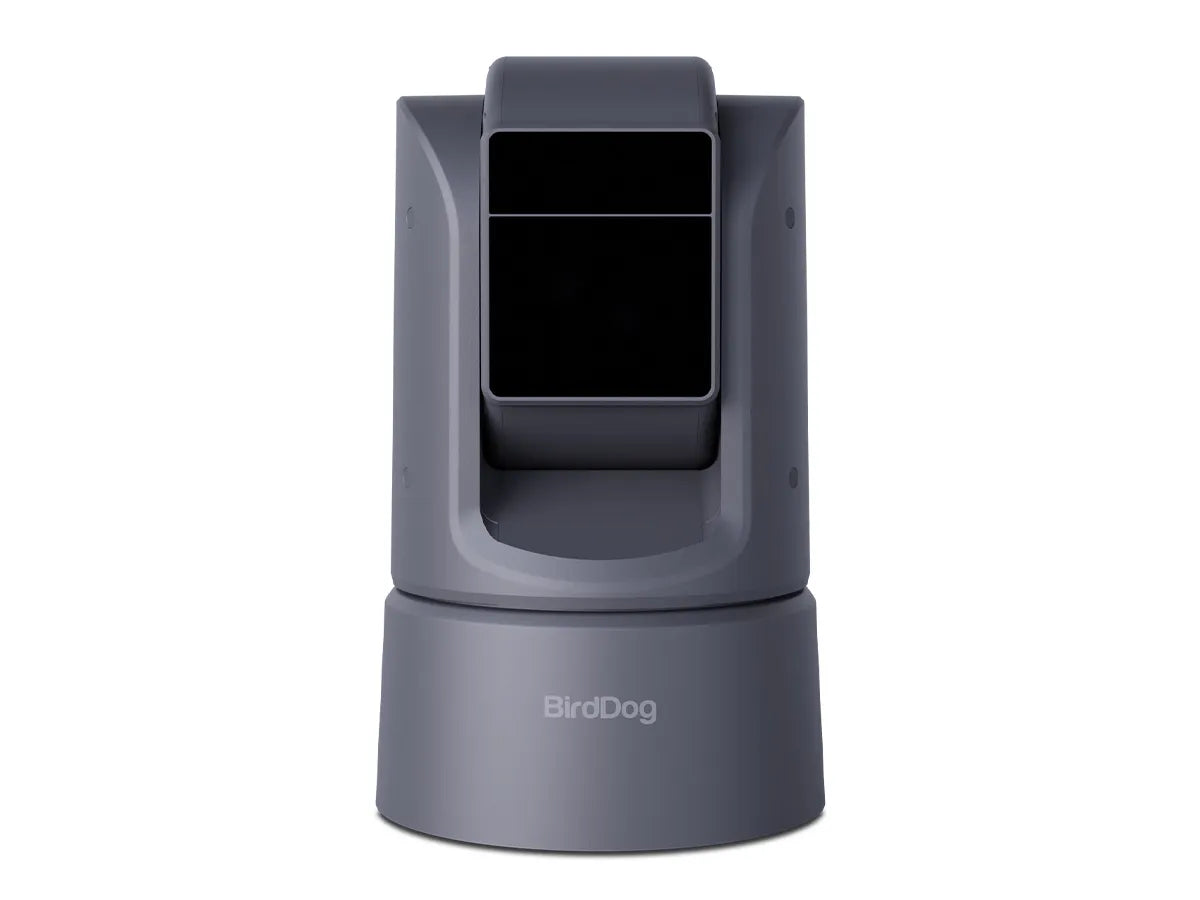

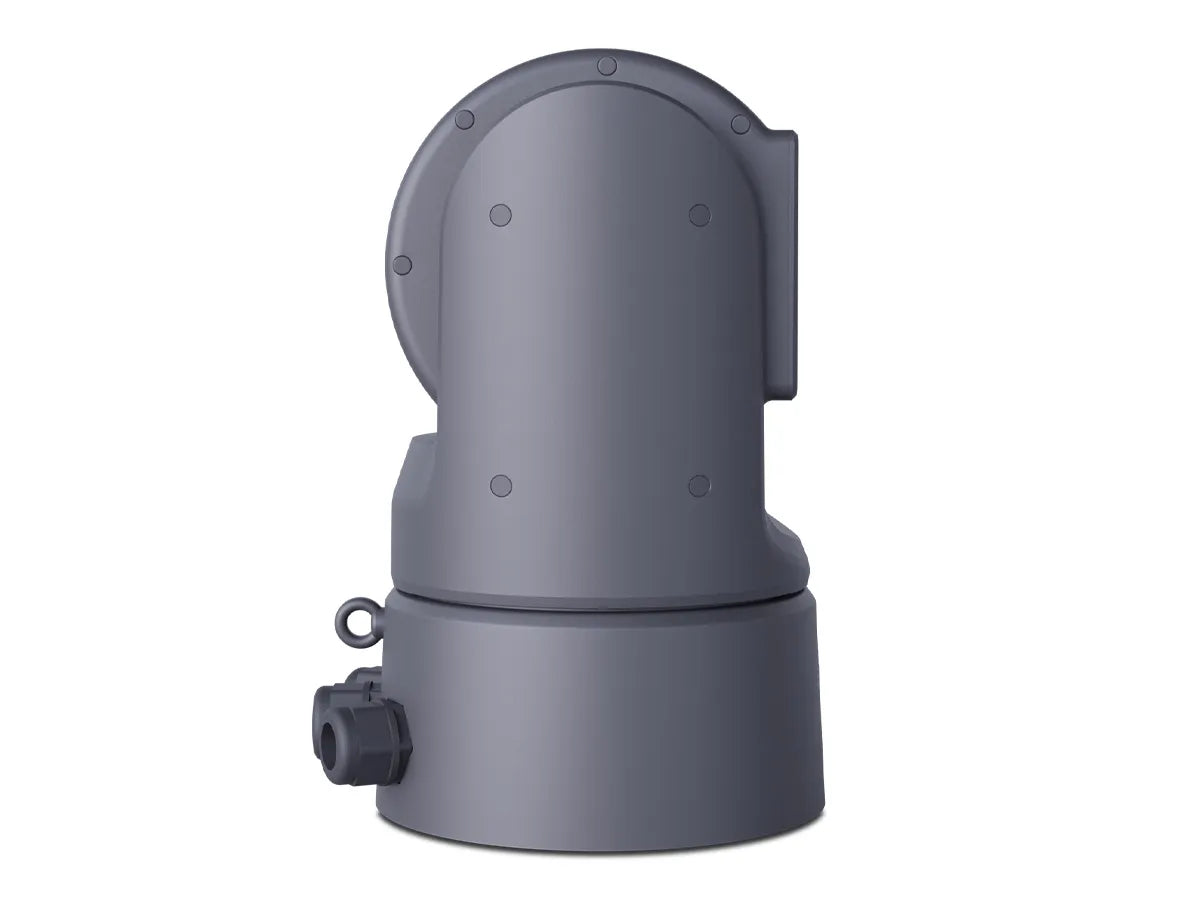

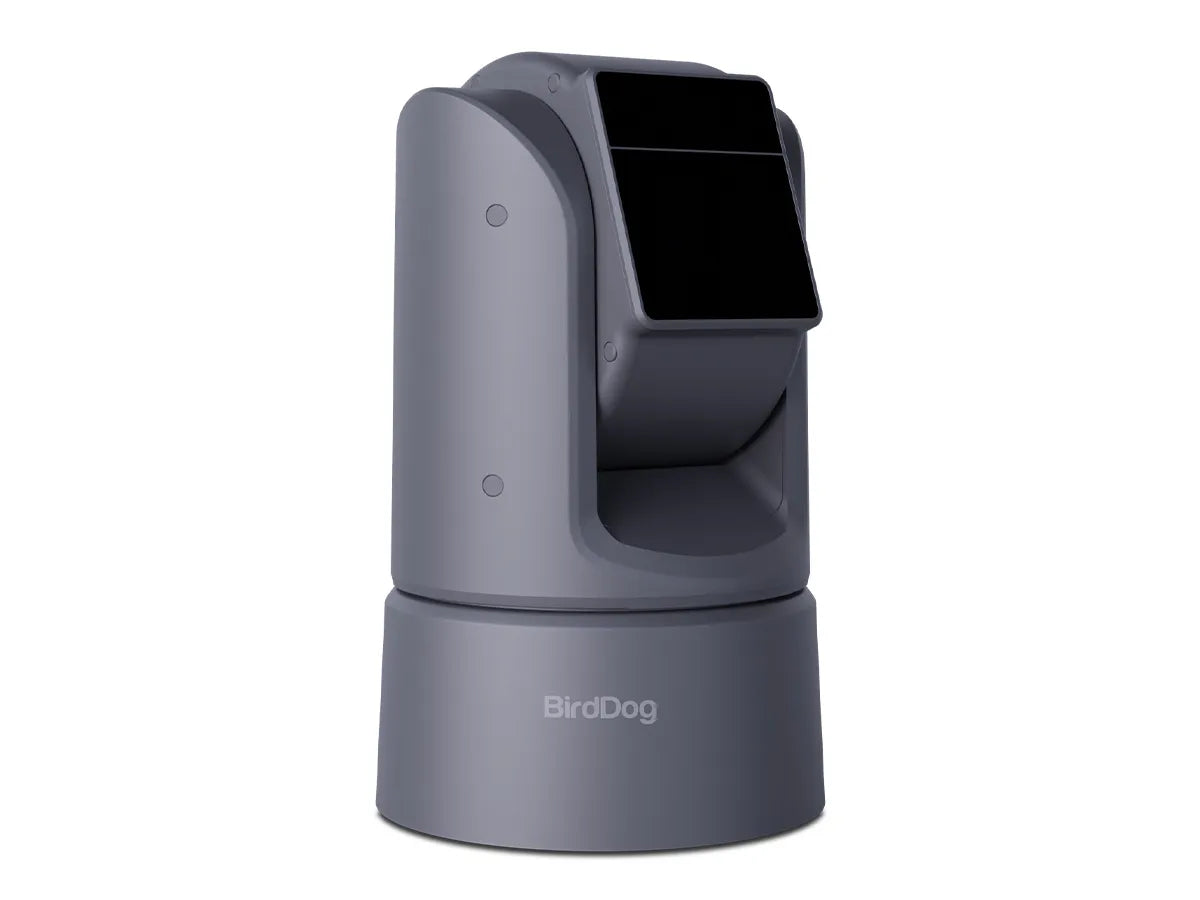

BirdDog O4 - Outdoor 4K PTZ Camera (Grey)
BirdDog O4 - Outdoor 4K PTZ Camera (Grey)
SKU:
BD-O4GR
Regular price
£5,299.00 GBP ex VAT
£6,358.80 GBP inc VAT
£6,358.80 GBP inc VAT
Regular price
ex VAT
Sale price
£5,299.00 GBP ex VAT
£6,358.80 GBP inc VAT
Unit price
per
£6,358.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
The Outdoor PTZ Camera That Owns the Elements.
BirdDog O4 is the PTZ camera built to dominate the outdoors. Designed for stadiums, city infrastructure, outdoor events, and critical perimeter monitoring, O4 delivers professional-grade image quality, extreme environmental resilience, and next-gen AI tracking in one powerful system. From mountain tops to city streets, this is the camera that doesn’t just survive the elements, it owns them.
All Weather Warrior.
O4 is built to thrive where other cameras fail. Its precision-machined, die-cast aluminium body is IP66-rated and ready to withstand the harshest weather conditions.
From freezing –40°C blizzards to scorching 60°C heatwaves. A built-in heater actively prevents fogging and condensation, while advanced smudge-resistant lens coatings keep your image sharp and clean, no matter what nature throws your way.
See Further. Even at Night.
With a 30x optical zoom that extends to 60x in HD mode, O4 offers the reach to capture every detail. Even in complete darkness, the integrated 500-meter infrared laser emitter powers exceptional night vision performance. It includes IR cut filter and B&W mode for total darkness.
Cinematic 4K60 with a Large Sensor.
At the heart of O4 lies a powerful 1/1.8” CMOS sensor that captures detailed 4K60 video with bold colour and dynamic range. Whether it’s an outdoor concert or a late-afternoon ceremony, your footage always looks broadcast-ready.
Install Smarter, Cleaner, and Faster.

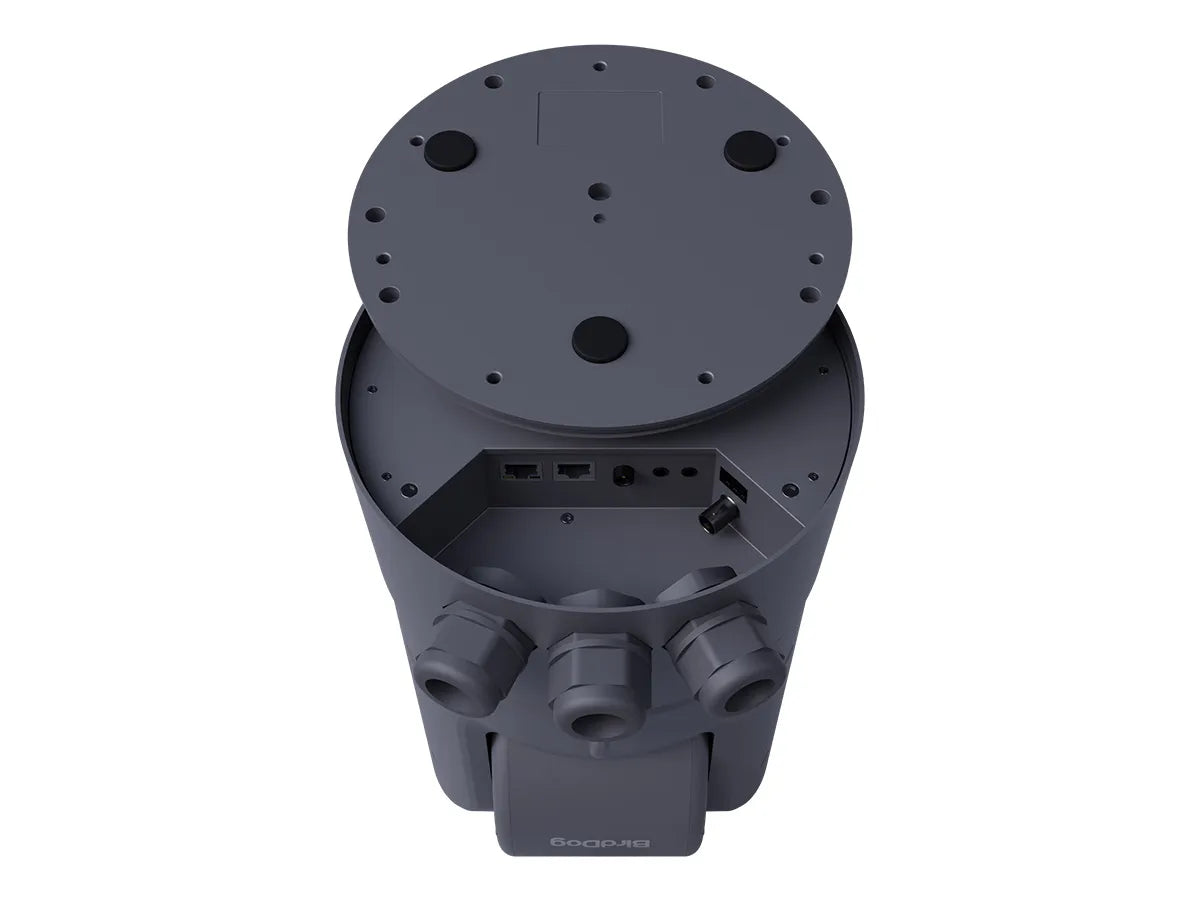

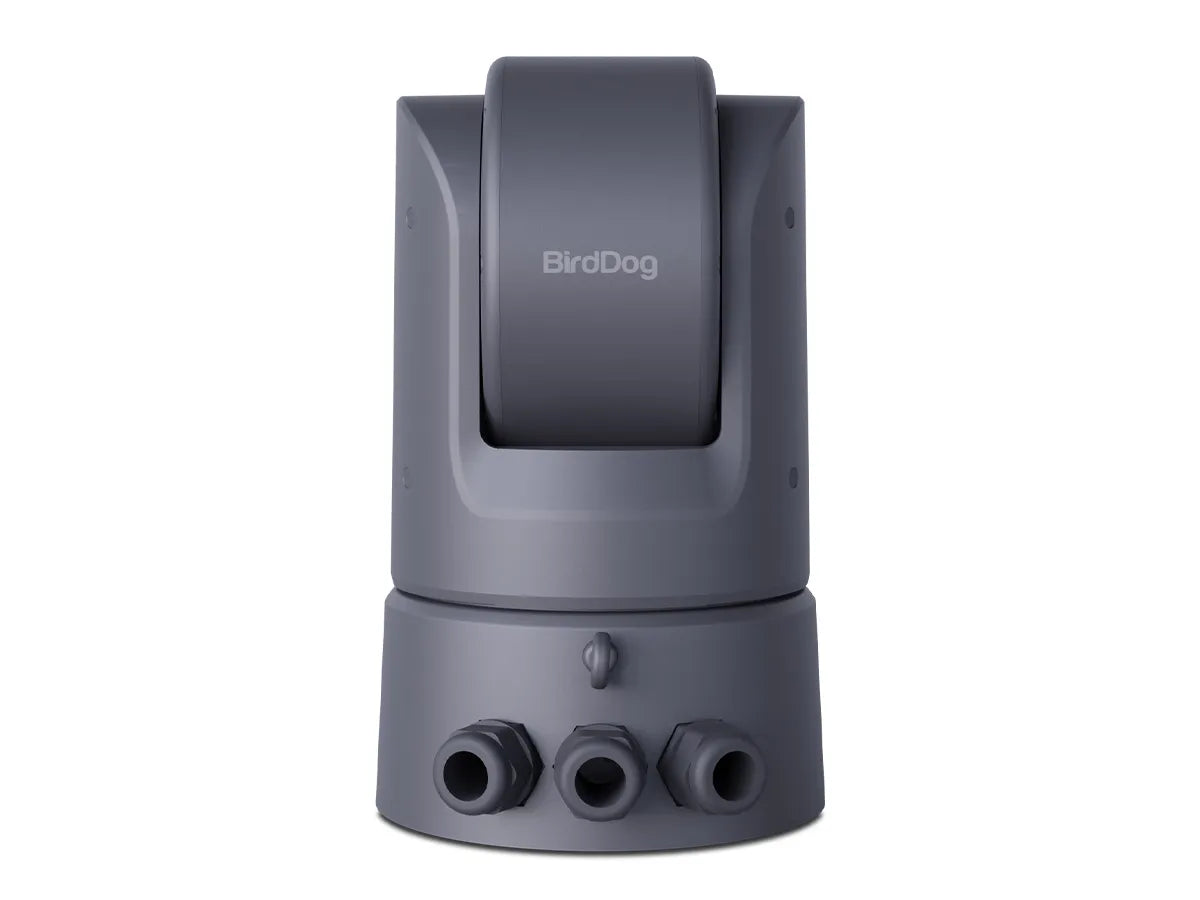

O4’s all-weather design eliminates bulky junction boxes and exposed cables. The entire I/O system is housed in a sealed undercarriage, with built-in cable management and strain relief for rock-solid installs.
AI Tracking That Moves Like a Human Operator.
O4’s AI tracking engine delivers smooth, intelligent subject following with adjustable motion profiles. Whether you’re capturing a fast-paced sports play or tracking a slow-moving speaker, O4 gives you cinematic motion without manual control.
Stream Anywhere. Connect to Everything.
Whether you’re on IP, SDI, or fiber, O4 is ready. It delivers NDI® High Bandwidth and NDI®|HX3 streams simultaneously. It can also push content via SRT, RTMP, or RTSP. With native 12G-SDI, HDMI, POE++ and an SFP port, it adapts to nearly any AV or broadcast infrastructure.
Fully Integrated with the BirdDog Ecosystem.
O4 works seamlessly with the tools you already know and love. You can control it locally or remotely, automate routing, or integrate it into your larger BirdDog deployment.
This Is Outdoor. The BirdDog Way.
While most outdoor PTZs feel like security cameras in disguise, O4 is something else entirely. It combines cinematic image quality, smart tracking, and pro-level hardware in a system that’s built to live outdoors and perform like it belongs on set. If you’re ready to expect more from outdoor video, you’re ready for O4.
One Camera. Many Missions.
Engineered for versatility and performance, this rugged 4K PTZ powerhouse captures every moment in stunning detail—whether it’s the thrill of a packed stadium, the energy of a live concert, or the flow of traffic through busy transport hubs. Built for security, monitoring, and unforgettable experiences, it’s the smart choice for campuses, cities, coasts, and open-air gatherings alike.
NDI® PTZ Control for iPad and iPhone.
Take full control of your BirdDog camera, all from a super-easy to use iPad/iPhone app. Pan, Tilt, Zoom, save and recall pre-set PTZ positions, preview your cameras in full screen, and access all the colour matrix tools and settings for your BirdDog camera.
Advanced features in BirdUI.
BirdUI gives complete access to every function of your O4, all within a beautiful and intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the O4. BirdUI adds features, including a dashboard for monitoring the camera and light/dark modes to suit your production environment.
Warranty & Support.
1-Year Mission. Enterprise-Level Support.
Every BirdDog O4 ships with a 1-year global warranty and advance replacement in supported regions.
Because true support means you’re never left in the dark.
Every BirdDog O4 ships with a 1-year global warranty and advance replacement in supported regions.
Because true support means you’re never left in the dark.
- Outdoor 4K PTZ Camera with IP66 weatherproofing, 30× optical zoom (60× in HD) and 500 m infrared night vision
- IP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heater
- Hydrophobic, smudge-resistant front glass for clear optics without wipers
- 30× optical zoom (60× in HD) for long-range framing
- 500 m infrared laser night vision with automatic B/W mode and IR cut filters
- 1/1.8"" CMOS sensor capturing 4K60 with wide dynamic range
- Simultaneous Full NDI® and NDI® HX3 streaming
- Dual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently
- 12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installs
- Sealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC power
- Adjustable AI autotracking (fast for sports, smooth for events) via BirdUI
| IMAGING | |
| Imaging Sensor: | Sony 1 / 1.8” CMOS – ULTRA HD |
| Lens: | f=6.9mm~215mm |
| Optical Zoom: | Optical 30x (4k) – 60x (HD), 8x Digital |
| Video Format: | 2160p @ 60/59.94/50/30/29.97/25fps, 1080p @ 60/59.94/50/30/29.97/25fps, 1080i @ 60,59.94,50fps, 720p @ 30/29.97/25fps |
| Horizontal Angle of View: | 60°~2° |
| Vertical Angle of View: | 34°~1.1° |
| Diagonal Angle of View: | 67°~2.3° |
| Aperture: | f1.35~f4.6 |
| Pan / Tilt Rotation: | ±175° / -30°ï½ž+90° |
| Focus: | Auto (Global/Centre/Upper/Lower/Left/Right), Manual |
| Exposure: | Auto, Manual Shutter Priority, Iris Priority, Brightness Priority |
| Exposure Metering: | Average, Centre, Top, Bottom, Left, Right |
| Backlight Compensation: | Yes |
| Exposure Compensation: | Yes |
| Flicker Reduction: | Outdoor / 50Hz / 60Hz |
| White Balance: | Auto / One Push / Indoor / Outdoor / Manual / Color Temperature |
| Digital Noise Reduction: | 2D/3D Noise Reduction |
| SNR: | >50dB |
| Effective Pixels: | 8.4 MP |
| HDR: | Supported, REC.2020 Colour Space |
| MECHANICAL | |
| Pan / Tilt Rotation: | ±170°, -30° ~ +90° |
| Pan Control Speed: | 0.05-90°/sec |
| Tilt Control Speed: | 0.05-90°/sec |
| Preset Number: | 255 Presets |
| IR Laser: | Included, 500m illumination distance |
| FreeD Support: | Included, UDP and Embedded in NDI Stream |
| Integrated Heater: | Included |
| Glass Coating: | High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating. |
| AI FUNCTIONS | |
| AI Auto Tracking: | Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone Tracking |
| AI Gesture Control: | Supported |
| I/O INTERFACE | |
| Video Output Interfaces: | 12G-SDI, RJ-45 |
| Video Compression Formats: | h.264, h.265, NDI High Bandwidth |
| Audio I/O: | Stereo Unbalanced 3.5mm TRS Input/Output |
| Network Interface: | SFP Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++ |
| Encoder Network Protocols: | NDI®|HX2, NDI®|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked via Dante Activator) |
| Control Interfaces: | Ethernet, Serial |
| Control Protocols: | NDI, VISCA-IP |
| API Control: | BirdDog RESTful API 2.0 |
| GENERAL | |
| Input Voltage: | DC 24V, PoE++ |
| Input Current: | 2.1A |
| Power Consumption: | 40W Max. |
| Operating Temperature: | -40°C ~ +60°C |
| IP Rating: | IP66 |
| Dimensions: | 200x330x226mm |
| Weight: | 7.6Kg |
