- Compact and portable
- Transmits up to 4Kp30 from HDMI input / 1080p60 from SDI input
- 5GHz Wi-Fi transmission, strong anti-interference
- Powered by NP-F battery, USB-C or DC input (9–16V)
- Transmit to iOS or Android phone
- Supports up to 4 receivers

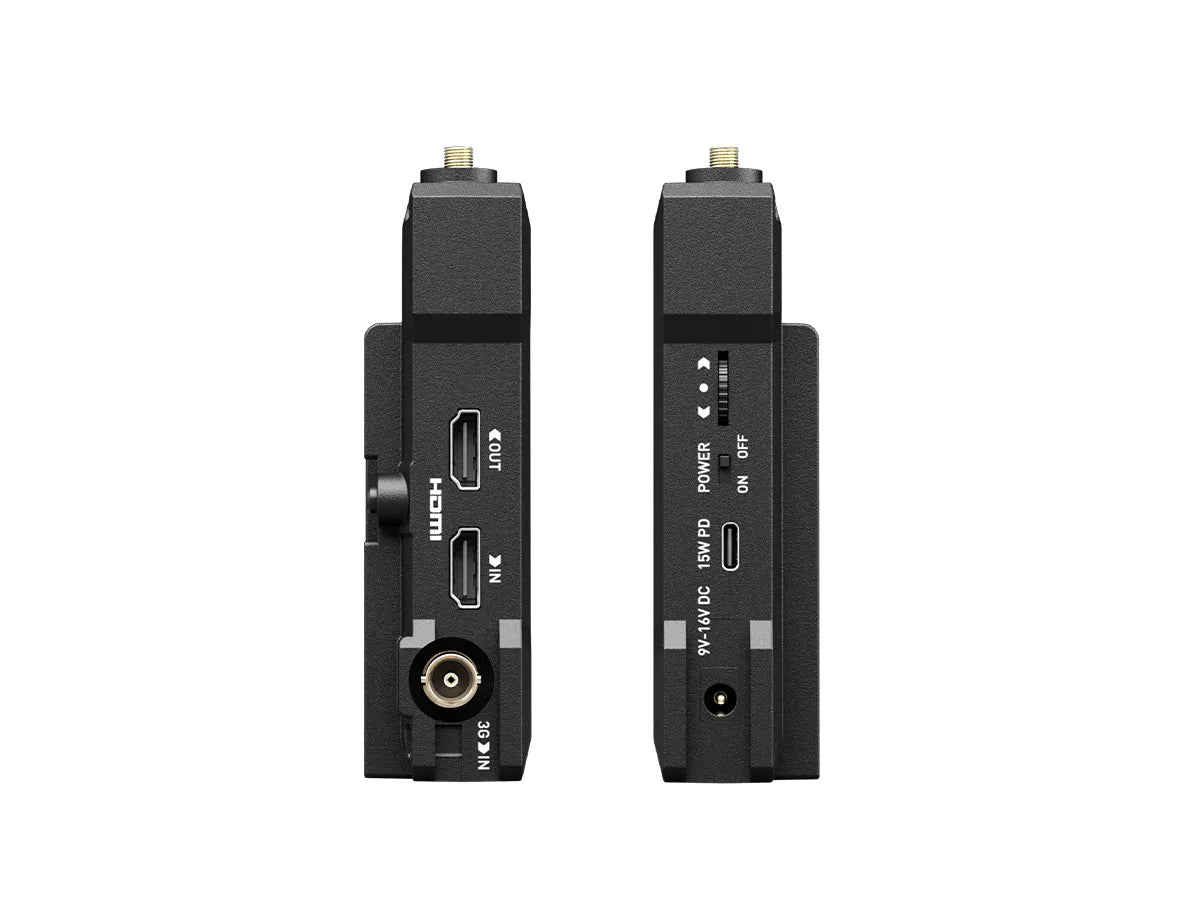

- Transmitter supports HDMI/SDI input and HDMI loop out

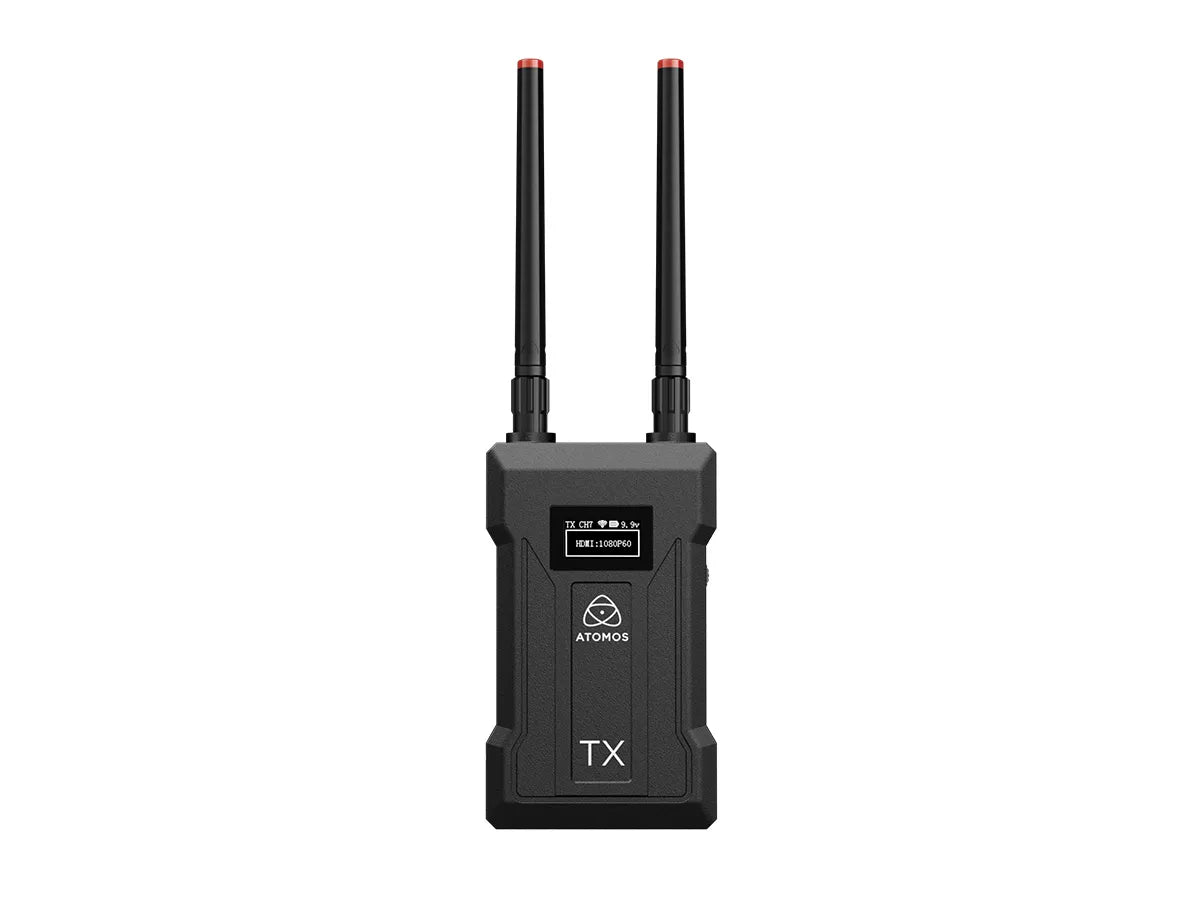

Atomos TX 4K/HD Transmitter - Wireless Video Monitoring
Atomos TX 4K/HD Transmitter - Wireless Video Monitoring
SKU:
AO-ATOMTXSL01
Regular price
£290.00 GBP ex VAT
£348.00 GBP inc VAT
£348.00 GBP inc VAT
Regular price
ex VAT
Sale price
£290.00 GBP ex VAT
£348.00 GBP inc VAT
Unit price
per
£348.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Reliable wireless transmission for on-set monitoring
The Atomos TX 4K HD is a compact HDMI transmitter that sends high-quality video wirelessly to compatible Atomos receivers, enabling real-time monitoring without cables. It’s the perfect solution for directors, focus pullers, and on-set teams who need flexible, untethered access to the camera feed.
Transmit in 4K and Full HD
The TX transmits video signals up to 4Kp30 or 1080p60 over a reliable 5GHz Wi-Fi connection. With a range of up to 150 meters (500 feet) in line-of-sight conditions, it allows the camera operator to move freely while delivering a stable and high-fidelity signal to wireless receivers like the Atomos RX or Shinobi 7 RX.
HDMI Input and USB-C Power
Featuring a full-size HDMI input, the TX is compatible with a wide range of mirrorless, DSLR, and cinema cameras. It is powered via USB-C, offering simple integration into existing power solutions such as USB battery packs or D-Tap to USB-C adapters used in professional rigs.
Compact and Easy to Mount
The TX is lightweight and designed for flexible mounting. It can be attached to a cage, camera rig, or positioned discreetly to maintain a minimal footprint on set. Despite its small size, it delivers the performance needed for professional monitoring workflows.
Pairs Seamlessly with Atomos RX and Shinobi 7 RX
When used with the Atomos RX 4K HD receiver or Shinobi 7 RX monitor, the TX creates a robust wireless video link. Together, they enable directors, producers, or clients to monitor the camera feed in real-time, wirelessly, and with minimal latency.
| PHYSICAL | |
| Dimensions: | 42mm x 67mm x 120mm |
| Weight: | 231gms |
| Mount Points: | 1 x 1/4-inch 20 screw mount on bottom of device |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 50 degrees Celsius |
| CONSTRUCTION & CONTROL | |
| Body: | Aluminium alloy |
| Rotary Control: | For channel selection |
| Power Switch: | On/off |
| POWER | |
| Input Voltage: | 9-16V |
| Operating Power: | 4W |
| Compatible Batteries: | NP-F970/750/550 battery (not included) |
| Built In Battery: | No |
| DISPLAY | |
| Resolution: | 128 x 64 pixels |
| Size: | 21.8mm x 10.8mm |
| VIDEO INPUT / OUTPUT | |
| TX: | 1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through |
| WI-FI | |
| Frequency: | 5GHz |
| Channels: | 9 (CH0-CH08) |
| Latency: | 60ms |
| Transmission Distance (Line of Sight): | Up to 300m (985ft) |
| AUDIO IN / OUT | |
| Audio Format: | PCM dual channel |
| RESOLUTION & FRAME RATES SUPPORTED | |
| HDMI: | 4K30, 4K25, 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
| 3G-SDI: | 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
- Atomos TX 4K HD Wireless Video Transmitter
- USB-C to USB-A power cable
- Mounting accessories
- Quick Start Guide
