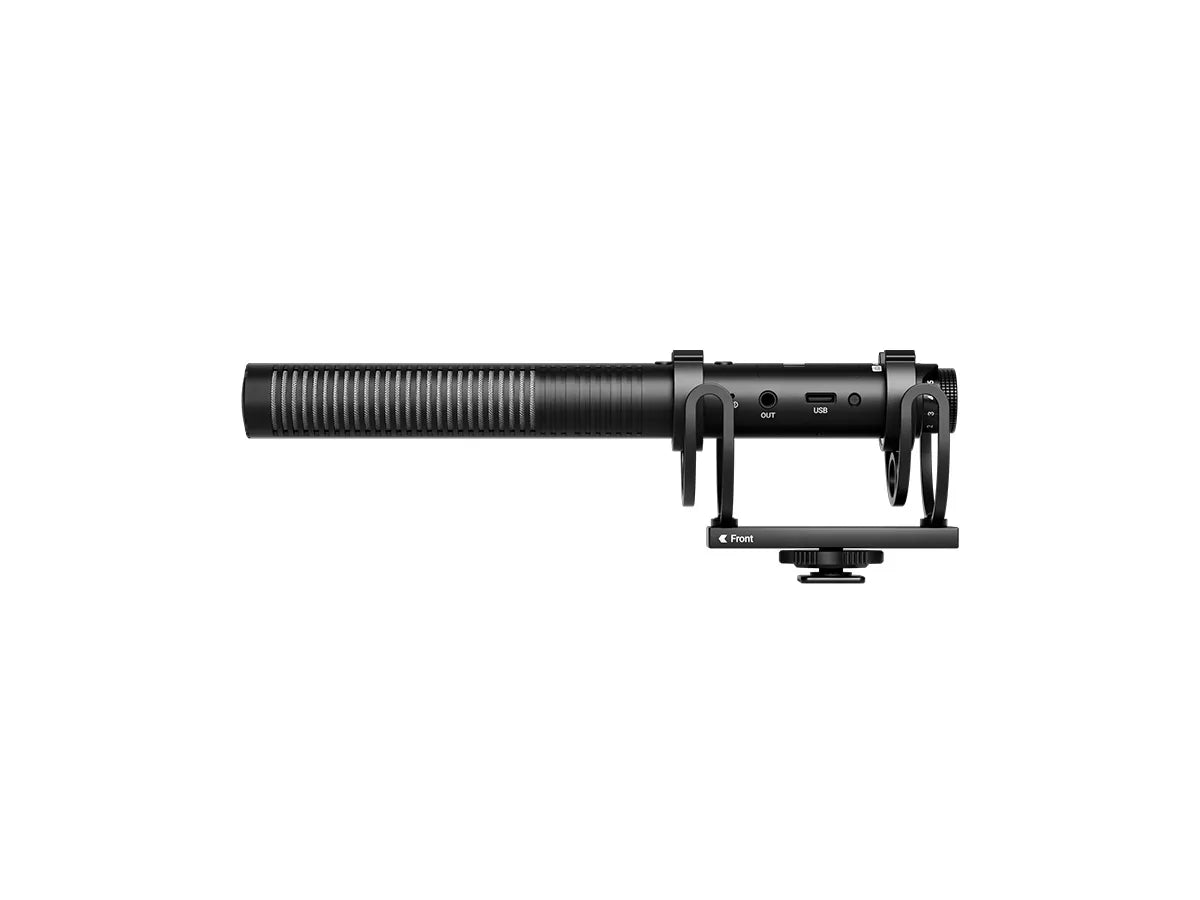

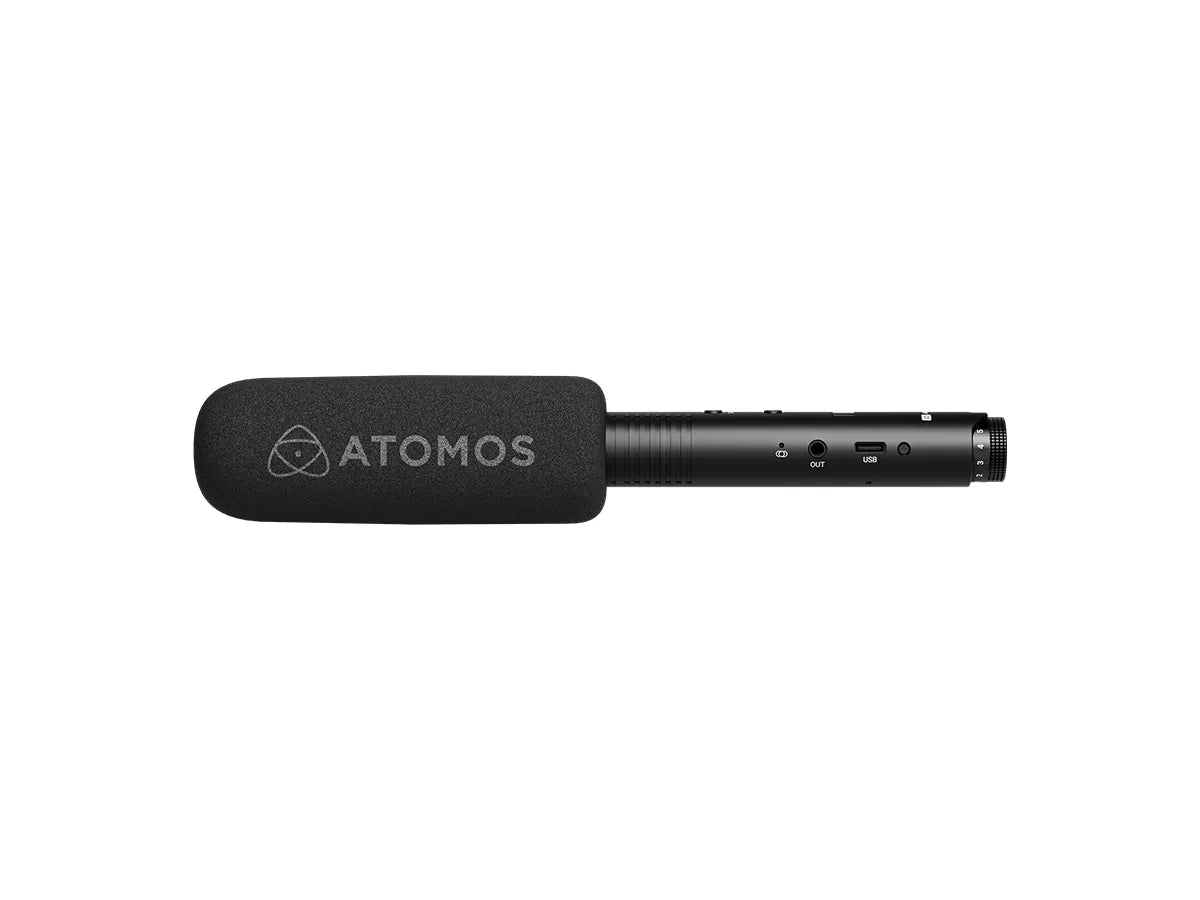

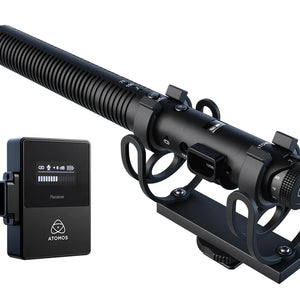

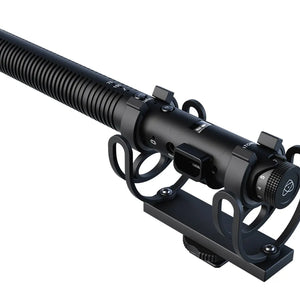

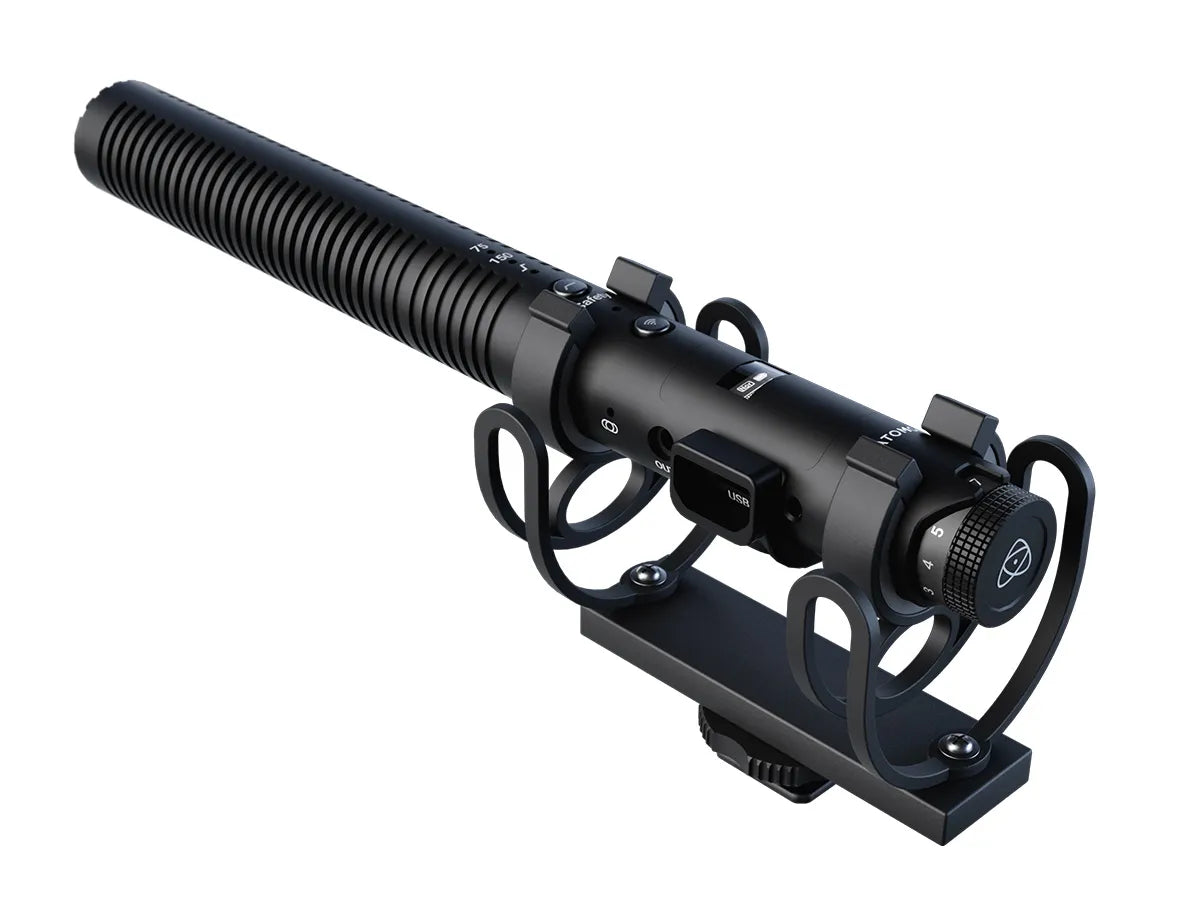

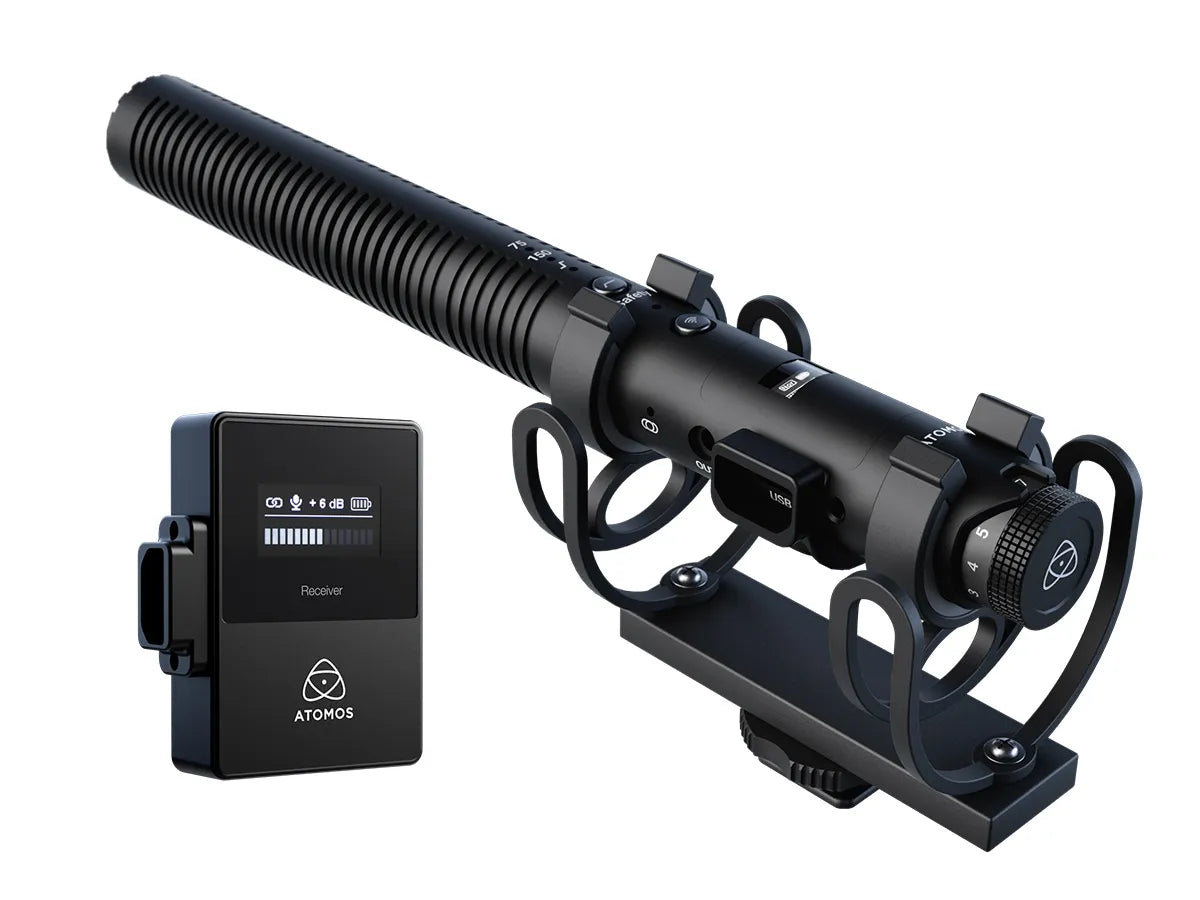

Atomos StudioSonic Shotgun Microphone
Atomos StudioSonic Shotgun Microphone
£258.00 GBP inc VAT
£258.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
A compact yet powerful wireless and wired shotgun microphone designed for filmmakers, journalists, YouTubers, and production professionals. It’s the perfect match for Atomos’ Ninja and Shogun monitor-recorders, as well as professional cameras and recording devices.
The dual-mode design offers the flexibility to operate wirelessly over 2.4GHz or via a direct USB-C digital audio connection with the Atomos’ unique locking USB-C connector, ensuring a secure, professional-grade link to cameras, monitors, and computers. The StudioSonic Shotgun Mic combines both wireless freedom and reliable wired connectivity to cater for a diverse range of scenarios, including on-location interviews, run-and-gun shooting, field reporting, and capturing unscripted dialog. Its high quality 48kHz/24-bit super cardioid design isolates voices with precision, even in noisy environments.
- Professional-grade wireless/wired shotgun microphone with locking USB-C and full broadcast feature set
- Instantly switch between wireless (2.4GHz) and wired (USB-C or 3.5mm analog) modes
- Broadcast-grade audio
- Advanced filtering
- OLED display for real-time visual feedback
- Exceptional battery life
- Ultra-low latency
- 48kHz/24-bit super cardioid condenser
- Cut filters, high-frequency boost, manual gain control
- Rechargeable battery lasts up to 8 hours wireless mode, up to 50 hours wired
- Latency <20ms with wireless range up to 100 meters
- Locking USB-C connector and cable included
| PHYSICAL | |
| Dimensions: | Transmitter: Φ22mm x L224mm, Receiver: 54mm x 48mm x 22mm |
| Weight: | Transmitter: 94gms, Receiver: 29.5gms |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 40 degrees Celsius |
| CONTSTRUCTION & CONTROL | |
| Body: | Aluminium alloy (mic); ABS (receiver) |
| POWER | |
| Battery: | Transmitter: Li-polymer 3.7V 350mAh; Receiver: Li-polymer 3.7V 330mAh |
| Battery Life: | Transmitter: Wired mode 32-50 hours; wireless mode 8-10 hours; on-board recording mode 5 hours. Receiver: 8 hours |
| WI-FI | |
| Frequency: | 2.4GHz |
| GENERAL | |
| Transmitting Power: | +10dBm |
| Receiving Sensitivity: | -96dBm |
| Antenna: | Ceramic |
| Sound Delay: | <20ms |
| Polar Pattern: | Super cardioid |
| Frequency Response: | 20Hz ~ 20kHz |
| Low-Cut: | -3dB @ 100Hz |
| High-Frequency Boost: | +3dB @ 10kHz |
| Output Impedance: | 600Ω |
| Sensitivity: | -38dB ~ -18dB re 1V/Pa (12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz |
| S/N: | 75dB SPL (A-weighted, as per IEC651) |
| Equivalent Noise: | 19dB SPL (A-weighted, as per IEC651) |
| Maximum SPL: | 130dB SPL(@ 1% THD) |
| Dynamic Range: | 111dB SPL (A-weighted, as per IEC651) |
| Analog Output: | 3.5mm TRRS/TRS |
| Digital Output: | USB-C 48kHz/24-bit |

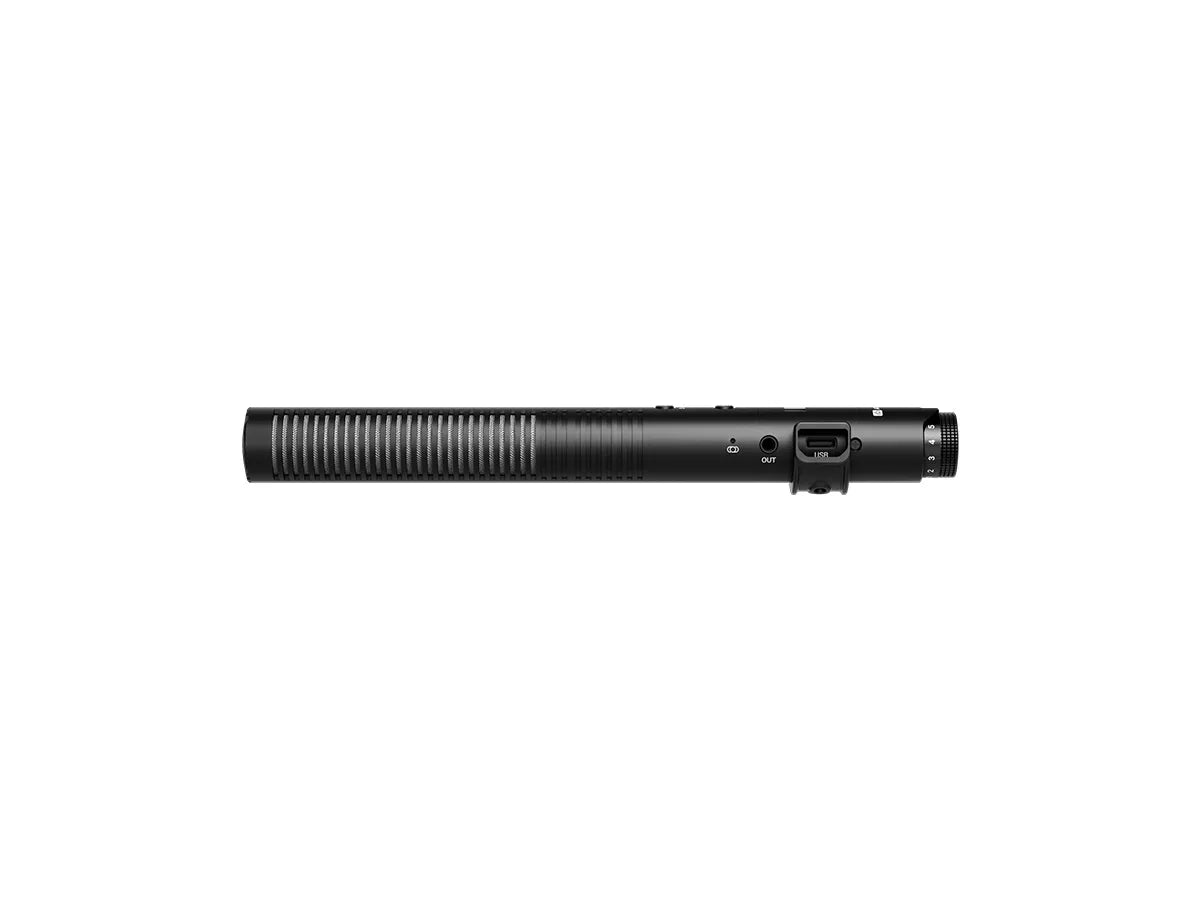

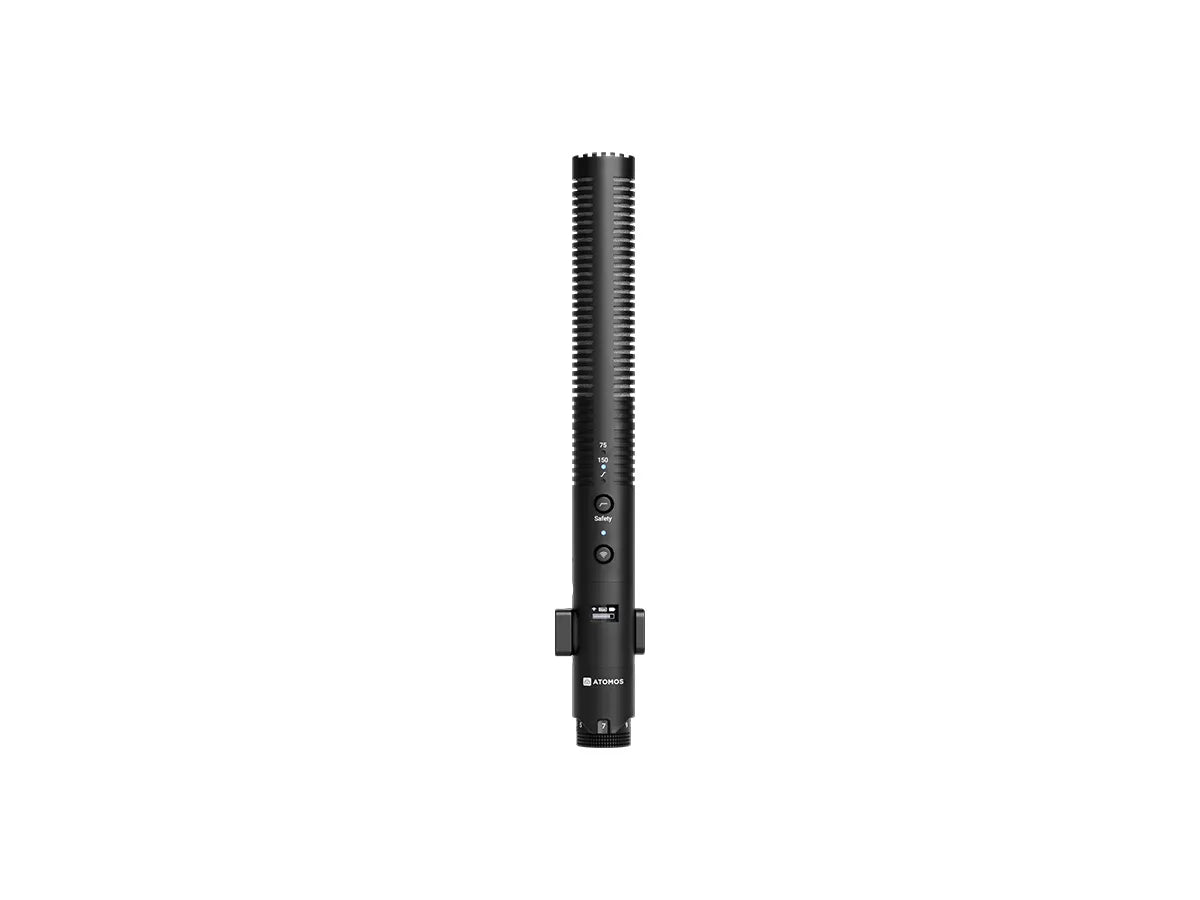

- StudioSonic Shotgun Microphone

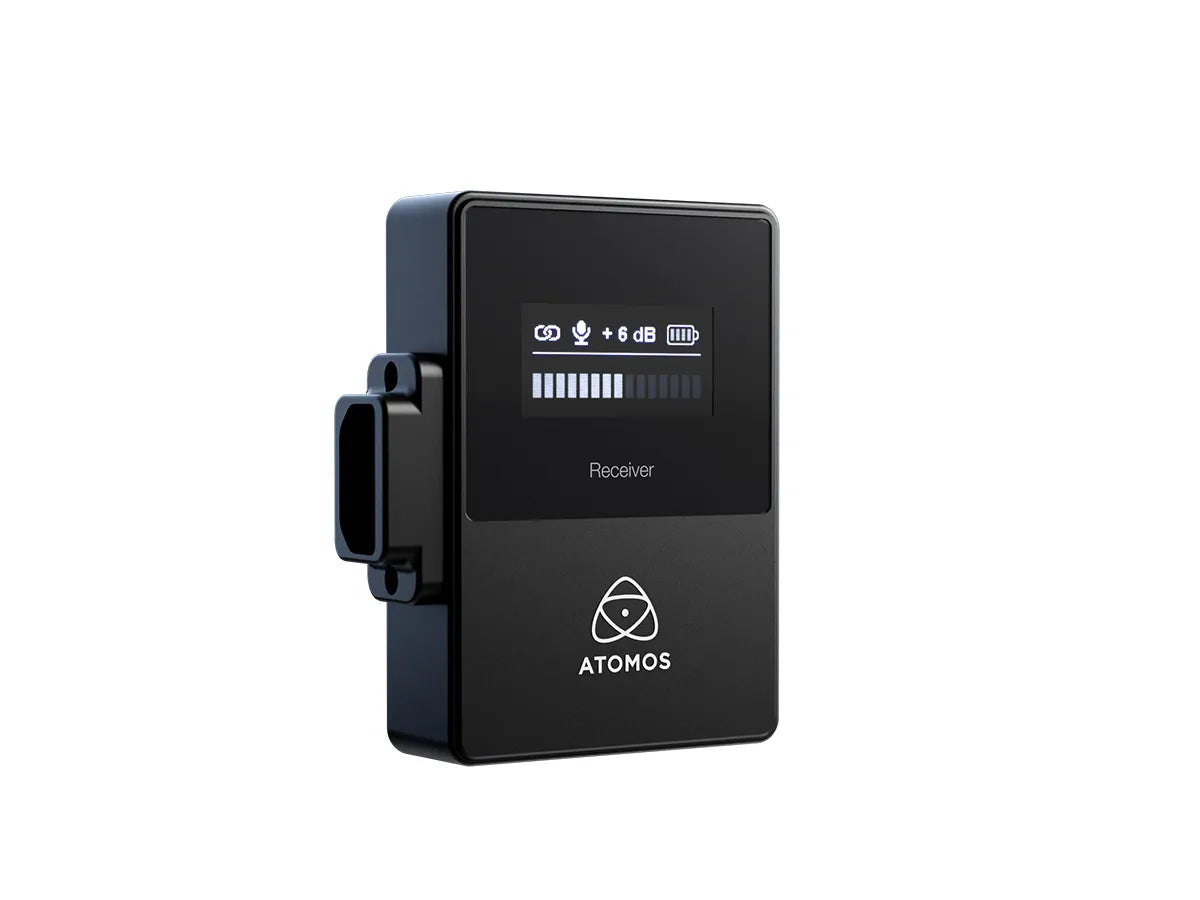

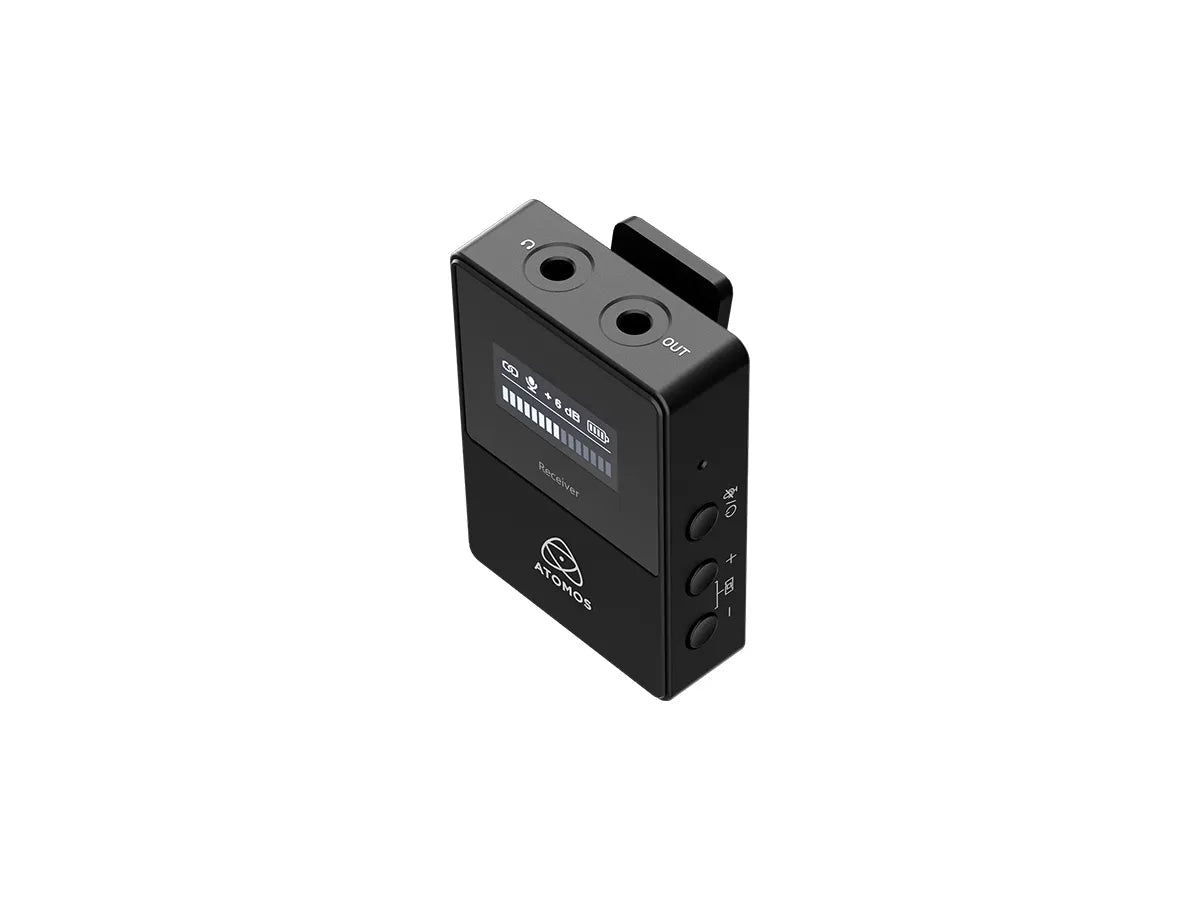

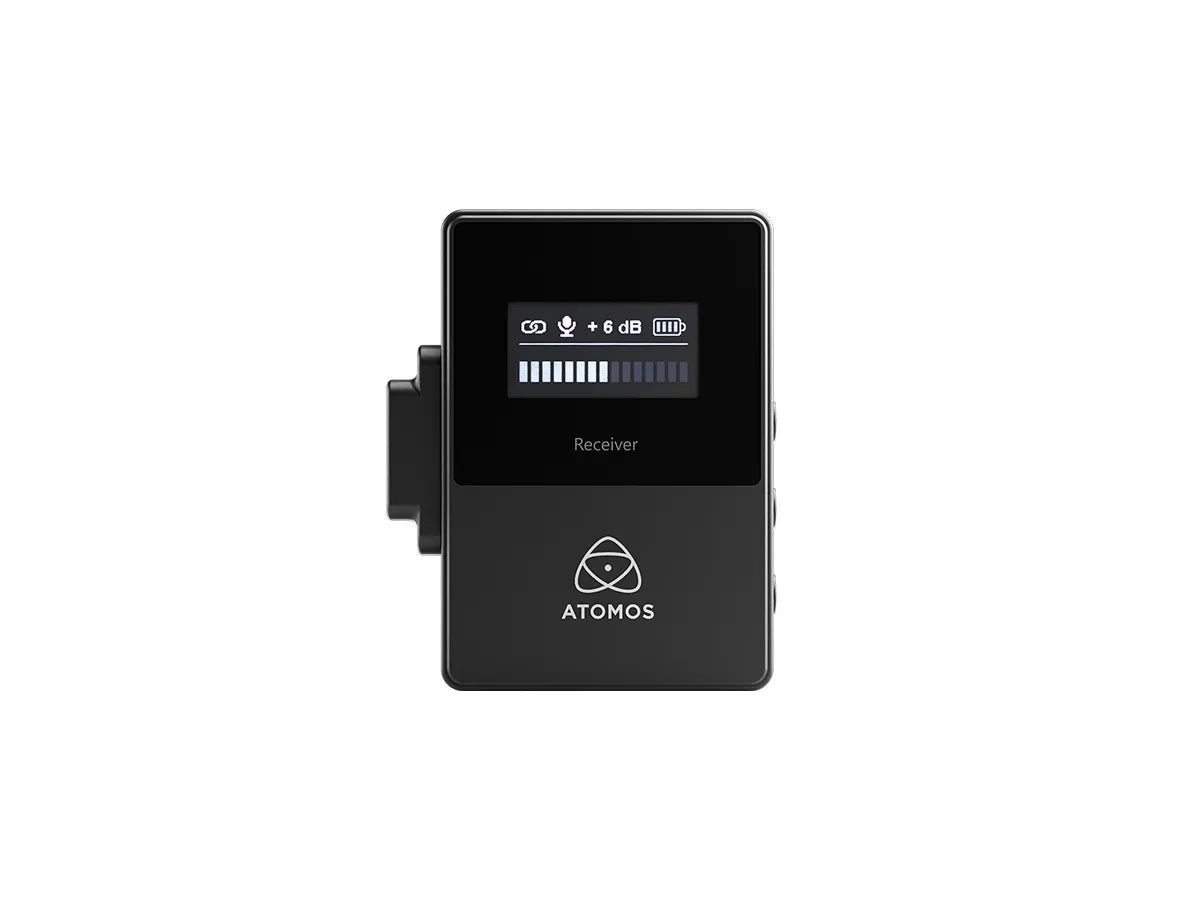

- 2.4GHz RX receiver?with USB locking connector
- Atomos USB-C to USB-C locking cable
- 3.5mm TRS cable

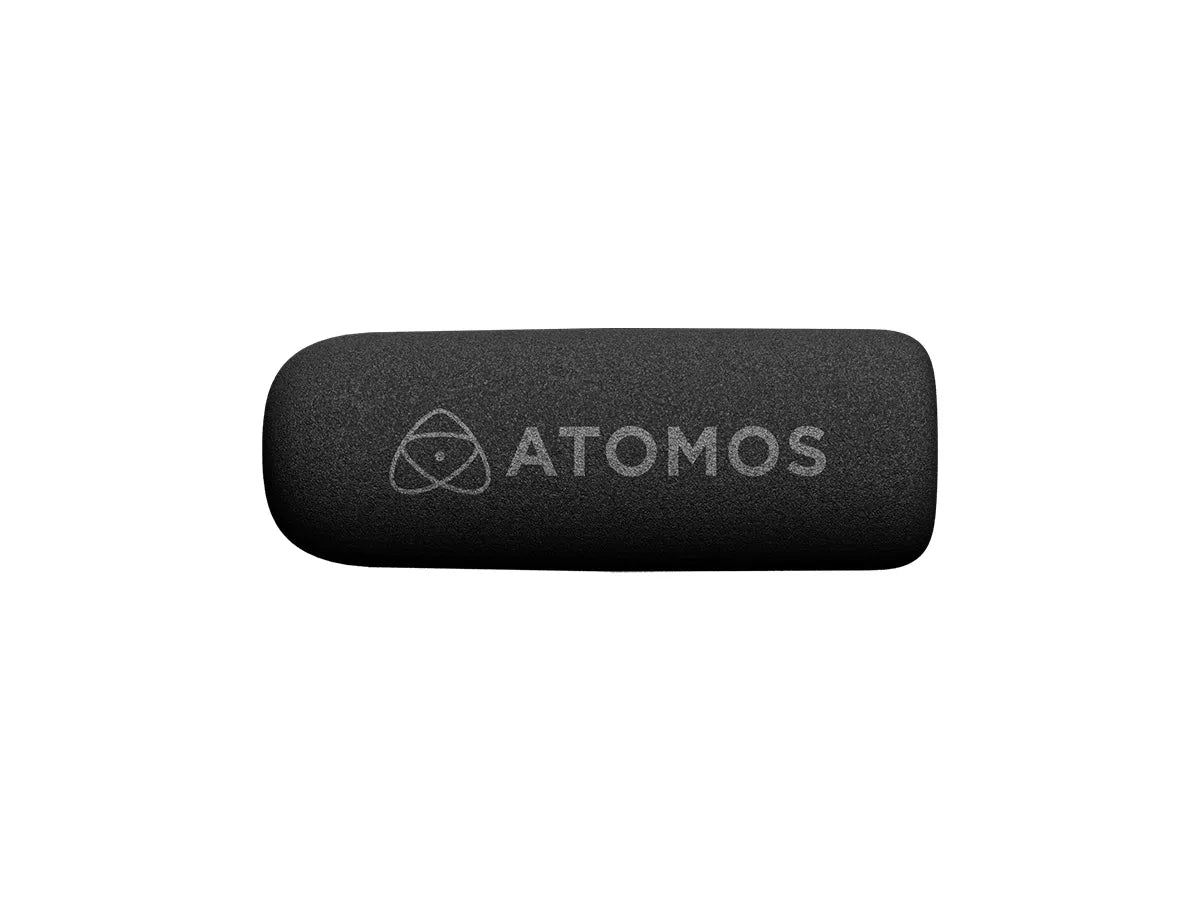

- Wind fur and foam shield
- Adjustable pole mount
- Atomos Quick Release mount
- Premium Atomos case
