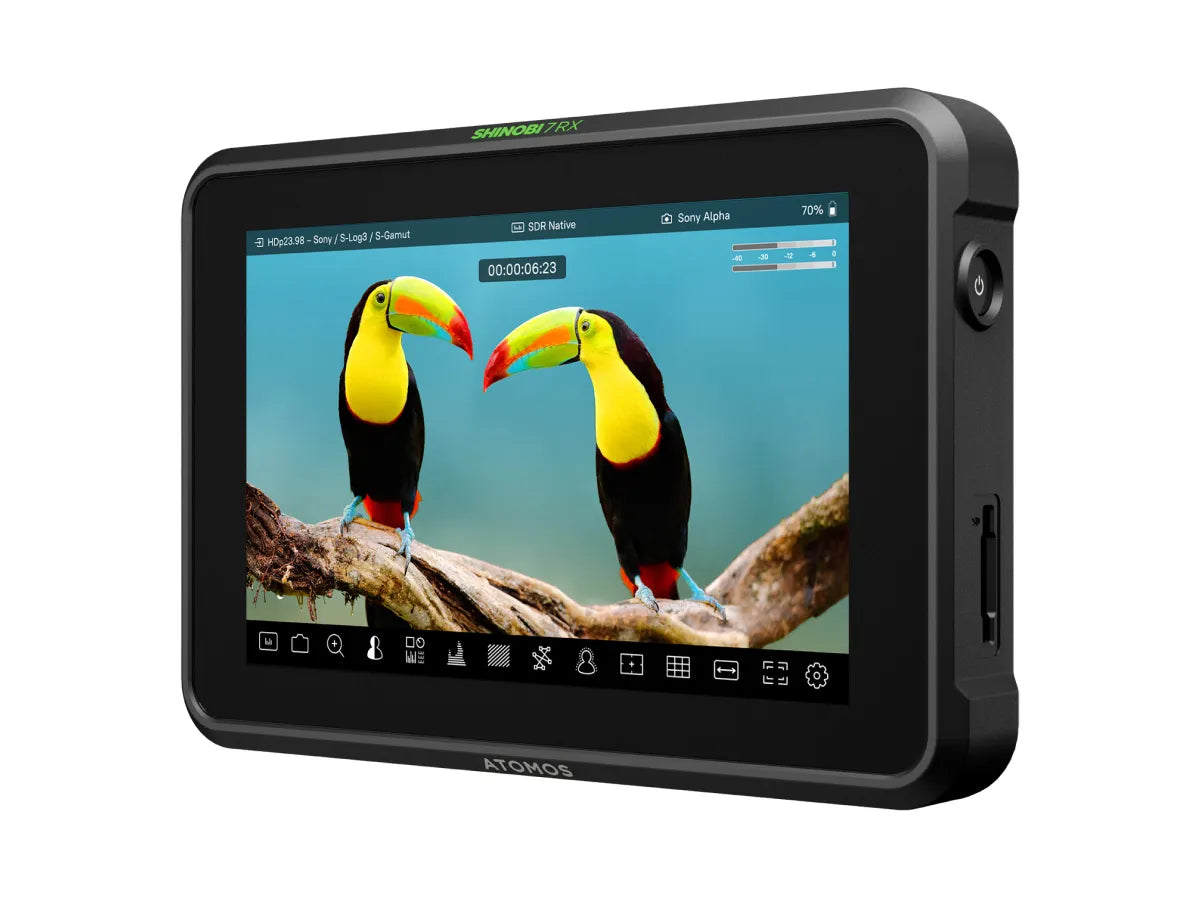

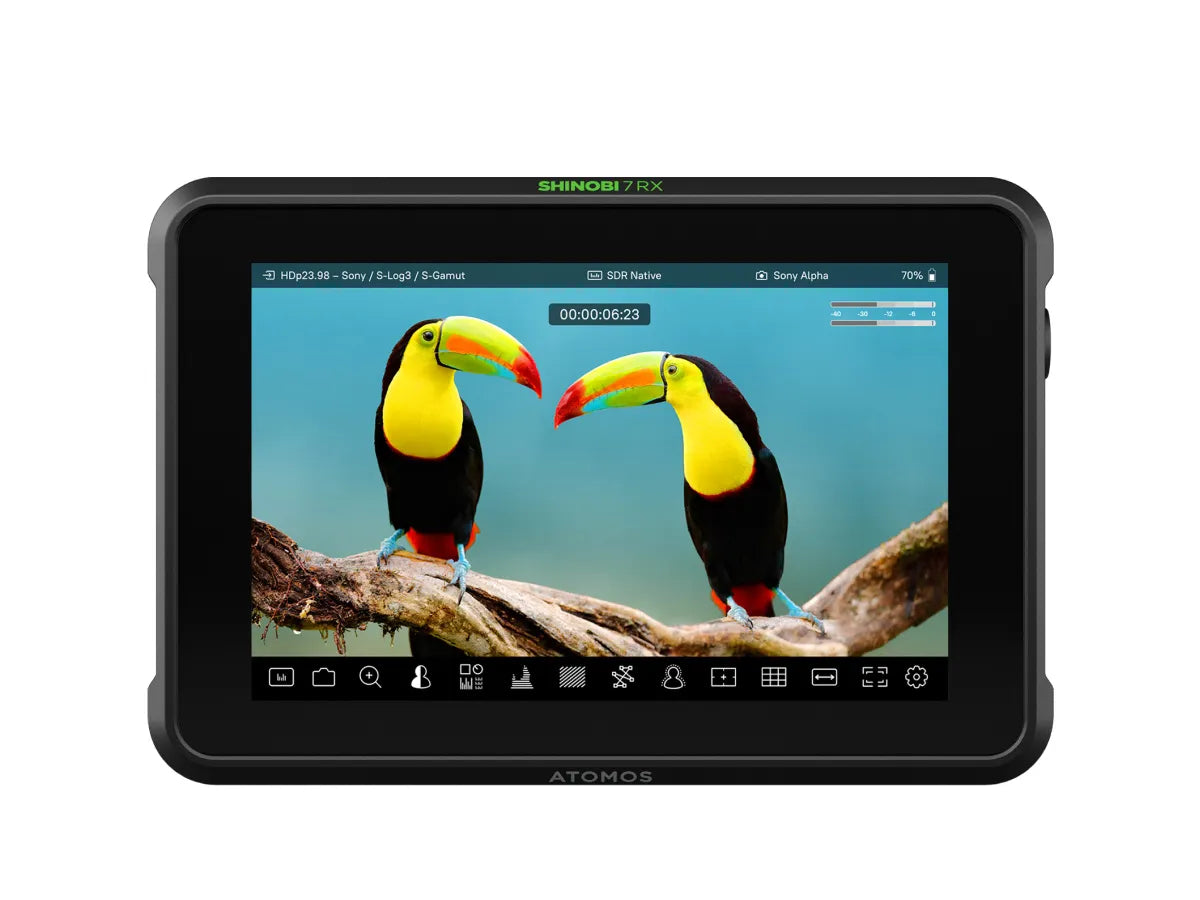

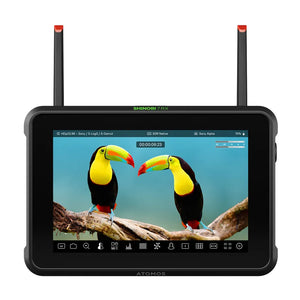

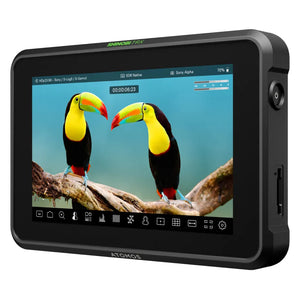

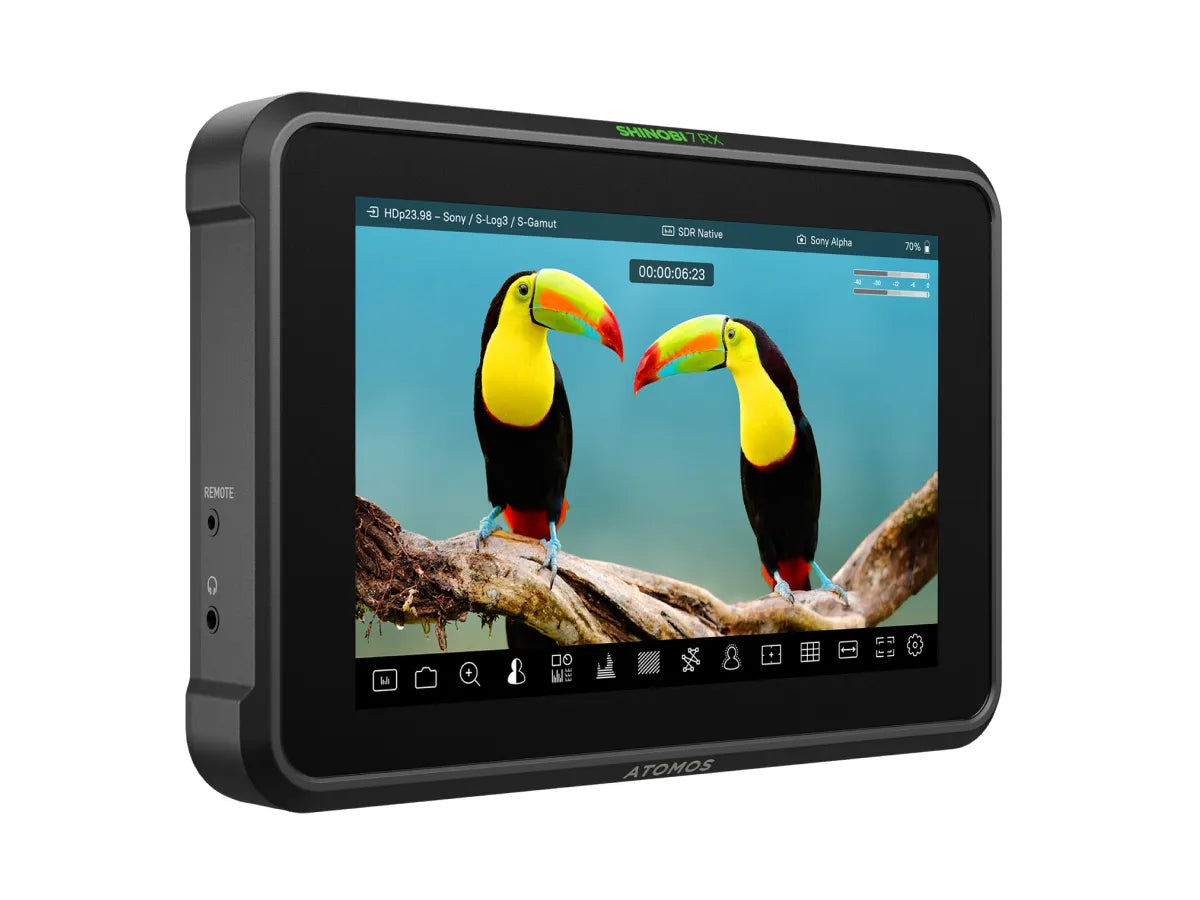

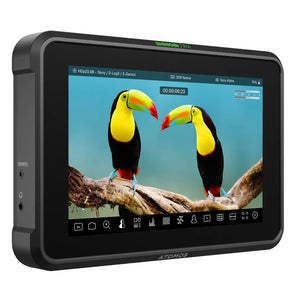

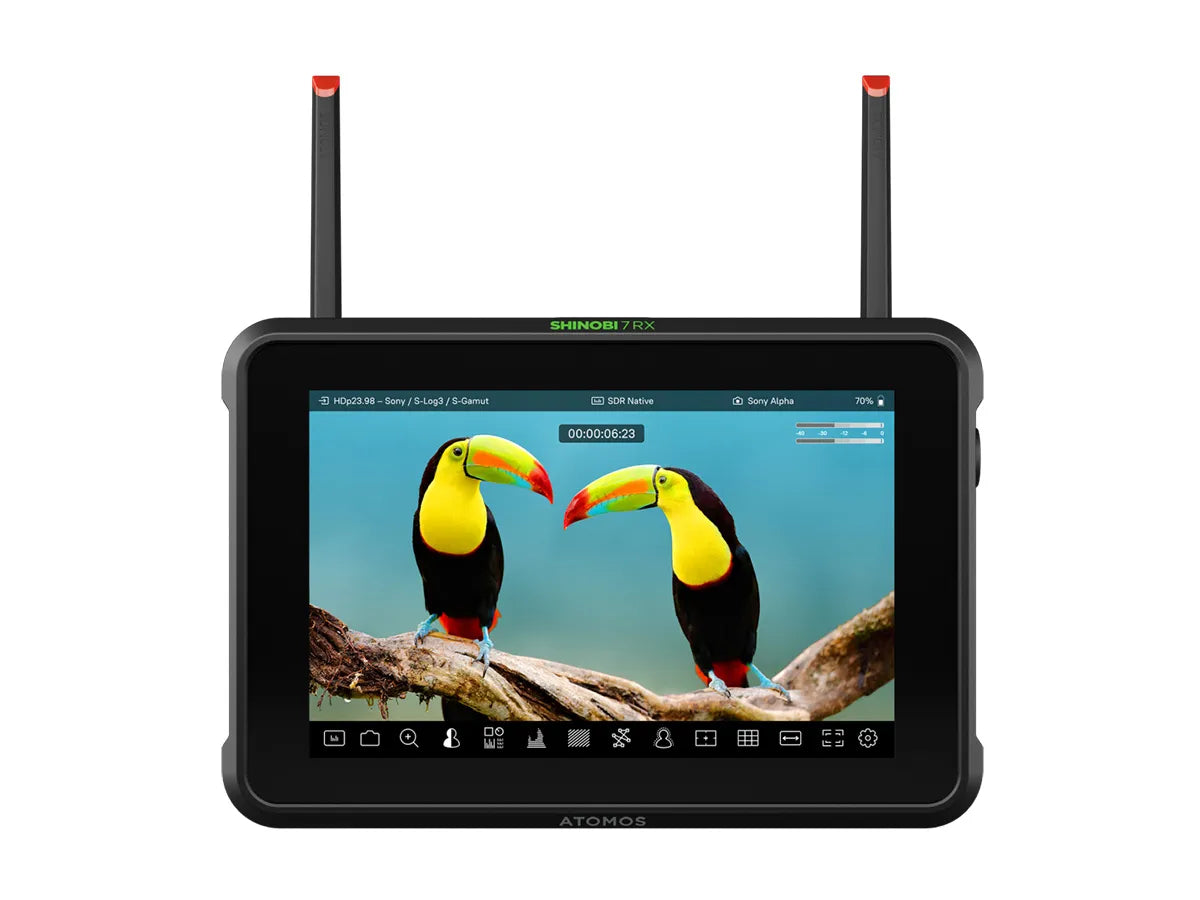

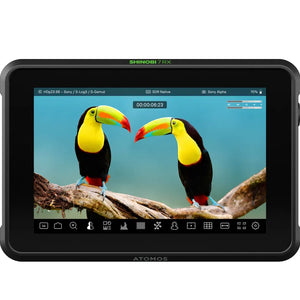

Atomos Shinobi 7 RX

Atomos Shinobi 7 RX

SKU: AO-ATOMSHBRX1
£599.00 GBP ex VAT
£718.80 GBP inc VAT
ex VAT £599.00 GBP ex VAT
£718.80 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI.
Camera Control
Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable.
Connectivity
The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
  • 7-inch, 2200nit HDR video photo monitor with camera control and integrated wireless video receiver
  • Super-bright, 7-inch HDR screen with a peak brightness of 2200nits
  • HDMI and 3G-SDI input and output
  • Camera control over USB-C (same as Shinobi II)*
  • Touch to focus (same as Shinobi II)*
  • 5G Wi-Fi for low latency (<60ms) receive from Atomos TX or RTSP H.264 stream
  • Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG
  • Built-in 3D LUT box
  • Supports 8-channel, 24-bit audio input via SDI
  • Supports on-device calibration (no computer required)

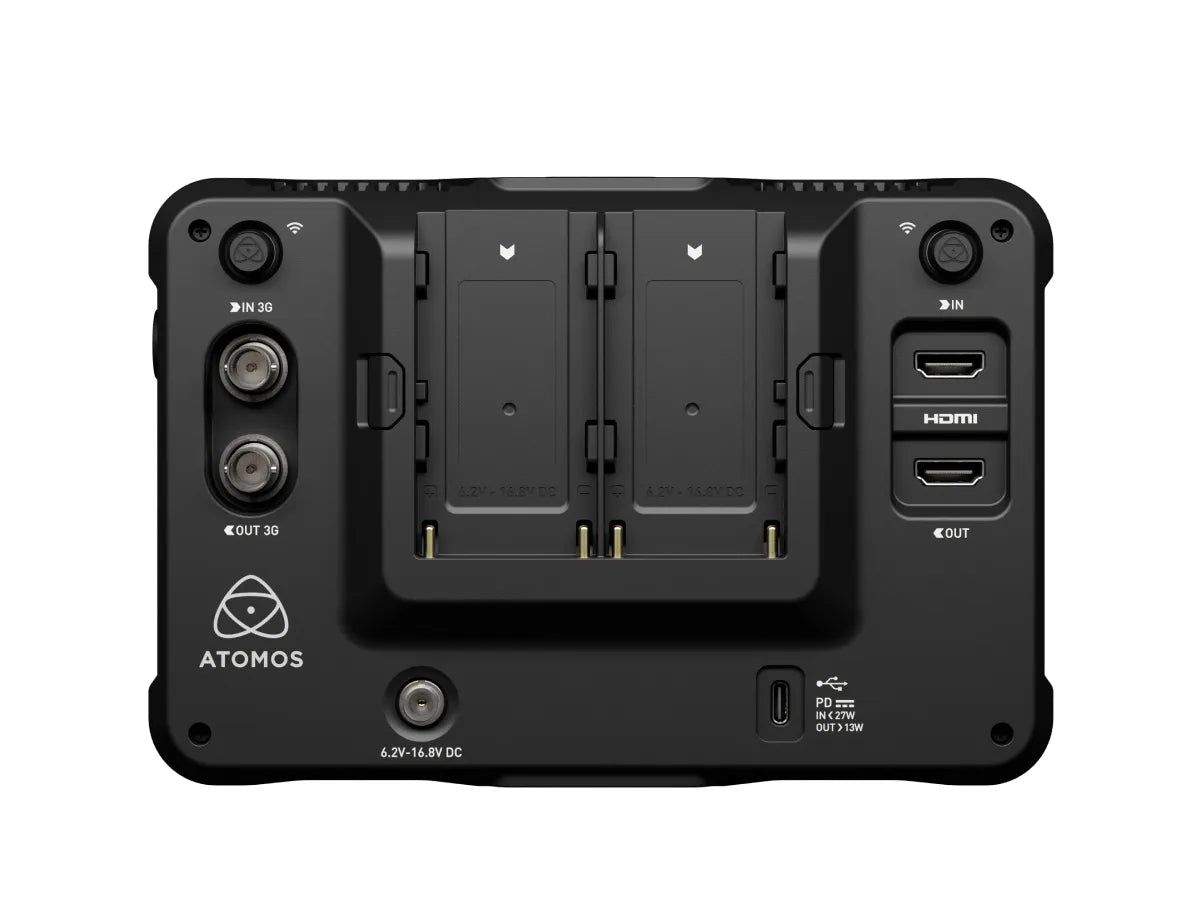

  • Dual NPF battery slots
PHYSICAL
Dimensions: 198mm x 133mm x 39mm
Weight: 580g (excluding batteries and antennas)
Mounting Points: 1 x anti-rotation 1/4-inch top and bottom
ENVIRONMENTAL
Ambient Operating Temperature: Up to 40 degrees Celsius
CONSTRUCTION
Body: ABS polycarbonate
Cooling: Heat sink + actively controlled fan
POWER
Input Voltage: 6.2V - 16.8V
Operating Power: 26W
Multi-Function Button: Power / lock screen
Continuous Power: Via NP-F battery or USB-C PD Power
DC-In Connector: Via Battery Eliminator (optional)
USB PD In: 45W capable, power supply required
USB PD Out: Up to 13W
DISPLAY
Size: 7-inch HDR screen with a calibrated peak brightness of 2200nits
Resolution: 1920 x 1200
Backlight Type: Edge-lit
Brightness (cdm2 / Nits): 2200
Panel Ratio: 16:10
Colour Gamut: Rec.709
Calibration Support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable
COLOUR PIPELINE
Gamma: Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut: BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display: .Cube format (17 & 33 points supported)
3D LUT Down Stream: Loop out
3D LUT 50/50: Yes
Monitoring Modes: SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT
VIDEO INPUT
HDMI: 1 x HDMI (2.0)
Locking Port: N/A
SDI: up to 1080p60
Wi-Fi: Wi-Fi 6E
USB: 1 x USB-C 2.0/3.0
Bit Depth: 8/10-bit video
Video Chroma Subsampling: 4:2:2
VIDEO OUTPUT
HDMI: 1 x HDMI (2.0)
Locking Port: N/A
SDI: 1 x 3G-SDI
Wi-Fi: Wi-Fi 6E
USB: 2 x USB-C 2.0/3.0
Bit Depth: 8/10-bit video
Video Chroma Subsampling: 4:2:2
METADATA
HDMI: N/A
NETWORK
Wi-Fi: Wi-Fi 6E
CONNECTIVITY
LANC: Yes
AUDIO IN / OUT
HDMI: 2-channel, 24-bit
SDI: 8-channel, 24-bit
Headphone Out: 3.5mm headphone jack, 2-channel
TIMECODE
Embedded: HDMI (display only)
Time of Day: Yes
Reference / Genlock Input: No
LTC: No
RESOLUTION & FRAME RATES
4K DCI: 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p
4K UHD: 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p
2K DCI 2048 x 1080: Yes
1080p: 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60 / 100 / 120p
1080 PsF: Converted to P and looped out PsF
1080i: 50 / 59.94 / 60i
720p: 50 / 59.94 / 60p
SUPPORTED MEDIA
SD: To update firmware and upload LUTs
File System: FAT32, NTFS
ON-SCREEN MONITORING TOOLS
MultiScope Analysis View: Image, WFM, vector, histogram
Waveform: 3 sizes – adjustable opacity & brightness
Histogram: 1 sizes – adjustable opacity & brightness
RGB Parade: 3 sizes – adjustable opacity & brightness
Vectorscope: 2 sizes – adjustable opacity & brightness
1x Zoom: Yes. 1:1 pixel mapping for 4K
2x Zoom: Yes
4x Zoom: Yes
Focus Peaking: 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
Atomos False Colour: Yes, with scale
Zebra: Adjustable threshold (50% to 105%)
Isolate Colour Channel: Blue Only
Cine Frame Guides: Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame Guides: Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe Areas: SMPTE safe title area – 93% & 90%
Grid Markers: 9 grid
Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip: Horizontal & vertical
EXTERNAL DEVICE CONTROL
USB-C: Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required).
Serial 2.5mm Jack: Calibration via optional USB to serial cable
  • Shinobi 7 RX monitor

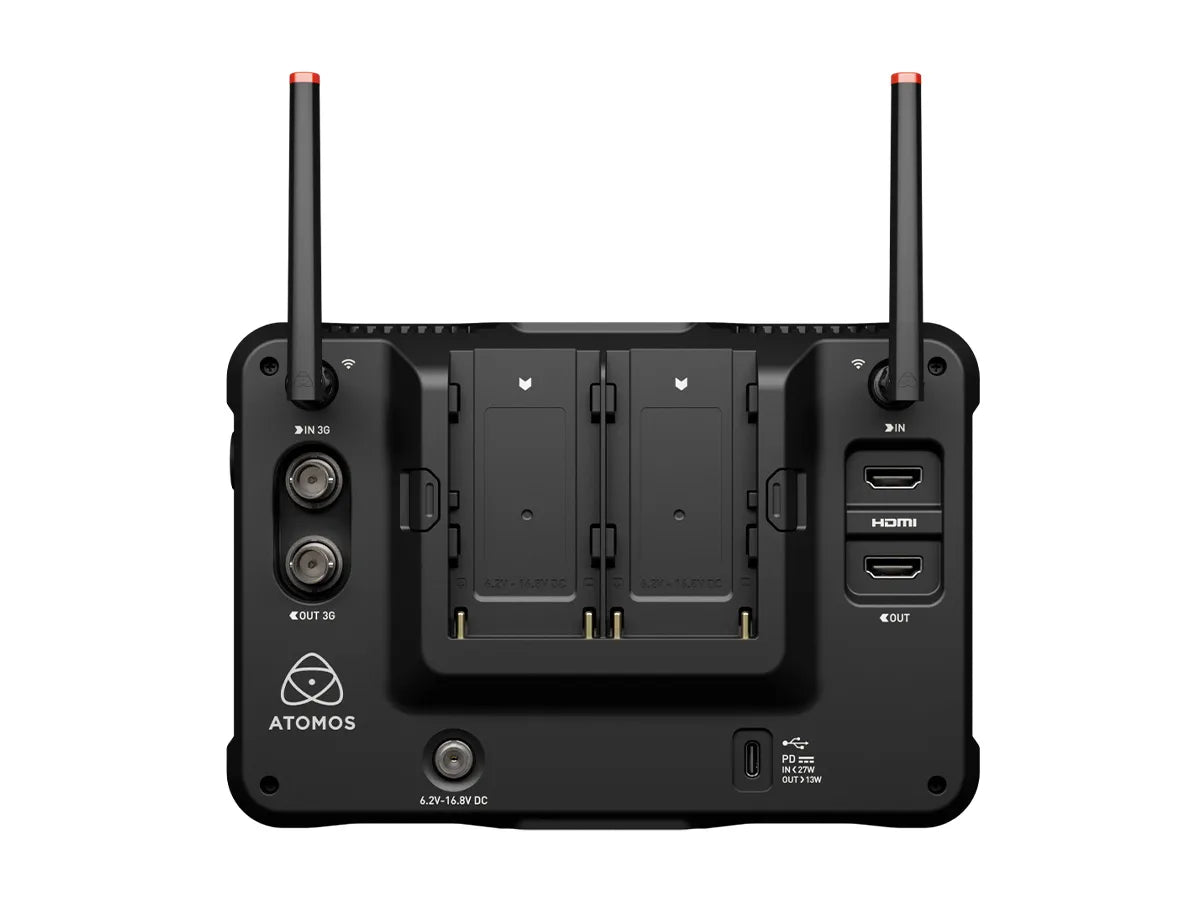

  • Wi-Fi antenna
  • 5x antenna tips (black, white, yellow, green, red)
  • 2x antenna caps
  • USB-C 2.0 cable (1m)
  • Quick Start Guide
