- Compact and portable
- Receives up to 4Kp30 video from Atomos TX
- 5GHz Wi-Fi transmission, strong anti-interference
- Powered by NP-F battery, USB-C or DC input (9–16V)
- Receiver supports dual HDMI output and SDI output

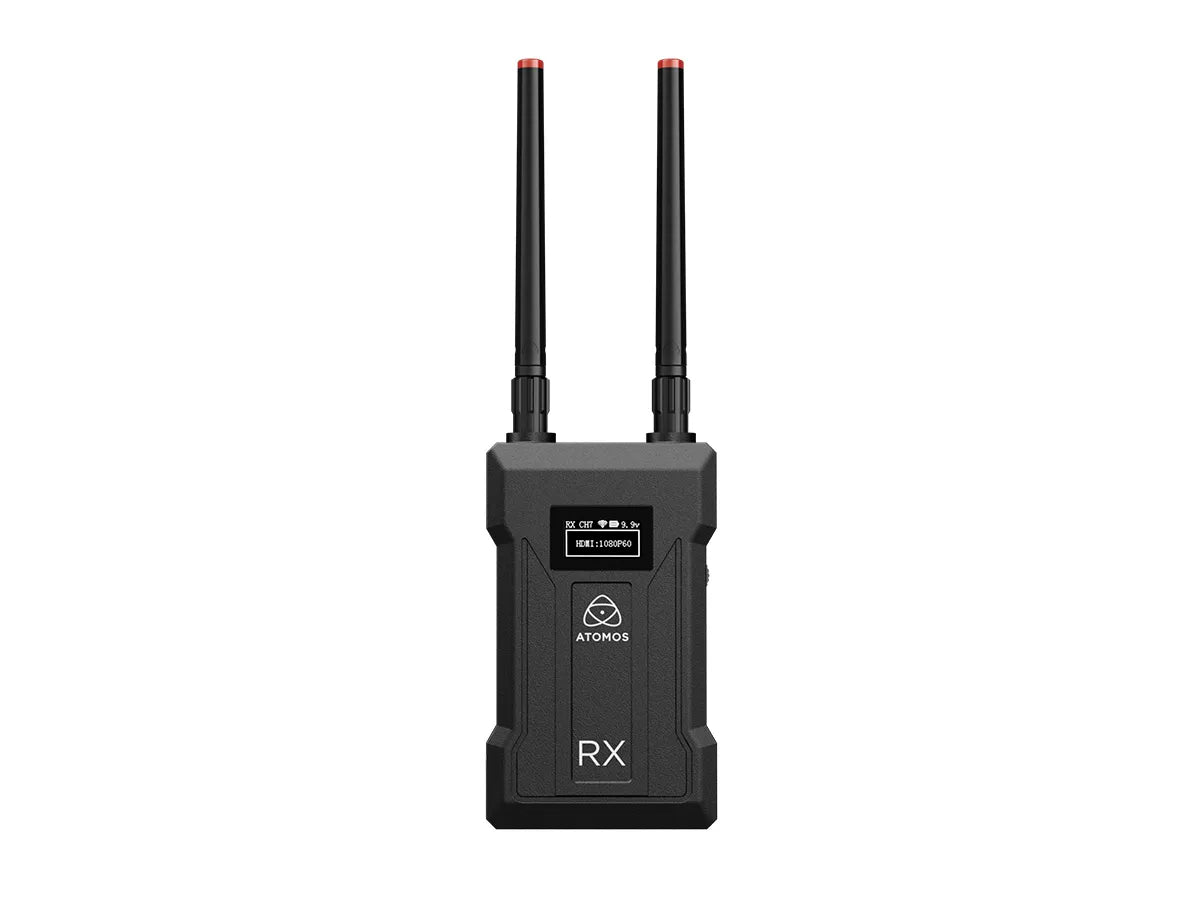

Atomos RX 4K/HD Receiver - Wireless Video Monitoring
Atomos RX 4K/HD Receiver - Wireless Video Monitoring
SKU:
AO-ATOMRXSL01
Regular price
£249.00 GBP ex VAT
£298.80 GBP inc VAT
£298.80 GBP inc VAT
Regular price
ex VAT
Sale price
£249.00 GBP ex VAT
£298.80 GBP inc VAT
Unit price
per
£298.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Wireless monitoring made simple
The Atomos RX 4K HD is a compact HDMI receiver that enables wireless video monitoring with low latency and high image fidelity. It connects directly to monitors, recorders, or switchers via HDMI, and pairs seamlessly with the Atomos TX transmitter for a cable-free, real-time video workflow.
Receive 4K and Full HD Wirelessly
The RX receives video signals up to 4Kp30 or 1080p60 over 5GHz Wi-Fi, delivering smooth and detailed monitoring in real-time. With support for a transmission range up to 150 meters (500 feet) in line-of-sight conditions, it provides flexibility for on-set or remote viewing setups without the need for HDMI cables.
HDMI Output for Flexible Monitoring
The RX unit features a full-size HDMI output, allowing you to connect to a wide range of field monitors, director’s displays, or even live switchers. You can monitor the camera feed from virtually anywhere on set, making it a powerful tool for directors, producers, and focus pullers who need freedom to move.
Simple USB-C Power and Mounting
Powered via USB-C, the RX is easy to integrate into any monitoring setup using existing power sources or batteries with USB-C output. Its compact size and lightweight design make it suitable for mounting to monitors, rigs, or even handheld setups.
Designed for Seamless Pairing with Atomos TX
When paired with the Atomos TX transmitter, the RX creates a reliable wireless video link. Together, they provide a professional solution for monitoring camera feeds without delay or cable clutter, ideal for live production, multi-cam shoots, and mobile filmmaking.
| PHYSICAL | |
| Dimensions: | 42mm x 67mm x 120mm |
| Weight: | 231gms |
| Mount Points: | 1 x 1/4-inch 20 screw mount on bottom of device |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 50 degrees Celsius |
| CONSTRUCTION & CONTROL | |
| Body: | Aluminium alloy |
| Rotary Control: | For channel selection |
| Power Switch: | On/off |
| POWER | |
| Input Voltage: | 9-16V |
| Operating Power: | 4W |
| Compatible Batteries: | NP-F970/750/550 battery (not included) |
| Built In Battery: | No |
| DISPLAY | |
| Resolution: | 128 x 64 pixels |
| Size: | 21.8mm x 10.8mm |
| VIDEO INPUT / OUTPUT | |

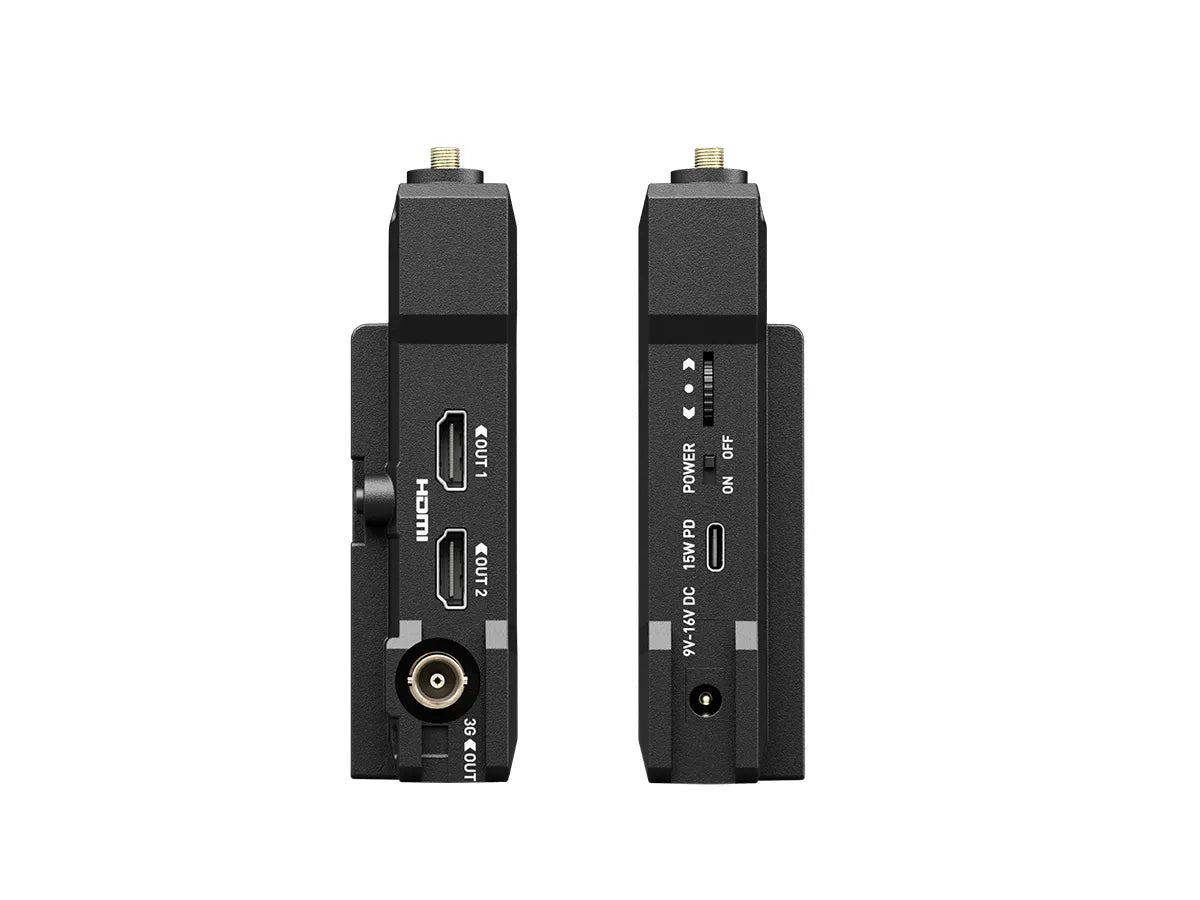

| RX: | 1 x 3G-SDI output and 2 x HDMI dual output |
| WI-FI | |
| Frequency: | 5GHz |
| Channels: | 9 (CH0-CH08) |
| Latency: | 60ms |
| Transmission Distance (Line of Sight) | Up to 300m (985ft) |
| AUDIO IN / OUT | |
| Audio Format: | PCM dual channel |
| RESOLUTION & FRAME RATES SUPPORTED | |
| HDMI: | 4K30, 4K25, 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
| 3G-SDI: | 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
- Atomos RX 4K HD Wireless Video Receiver
- USB-C to USB-A power cable
- Mounting accessories
- Quick Start Guide
