ATOMOS CONNECT
ATOMOS CONNECT
SKU:
AO-ATOMCON003
Regular price
£269.00 GBP ex VAT
£322.80 GBP inc VAT
£322.80 GBP inc VAT
Regular price
ex VAT
Sale price
£269.00 GBP ex VAT
£322.80 GBP inc VAT
Unit price
per
£322.80 GBP inc VAT
Only 1 left in stock.
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

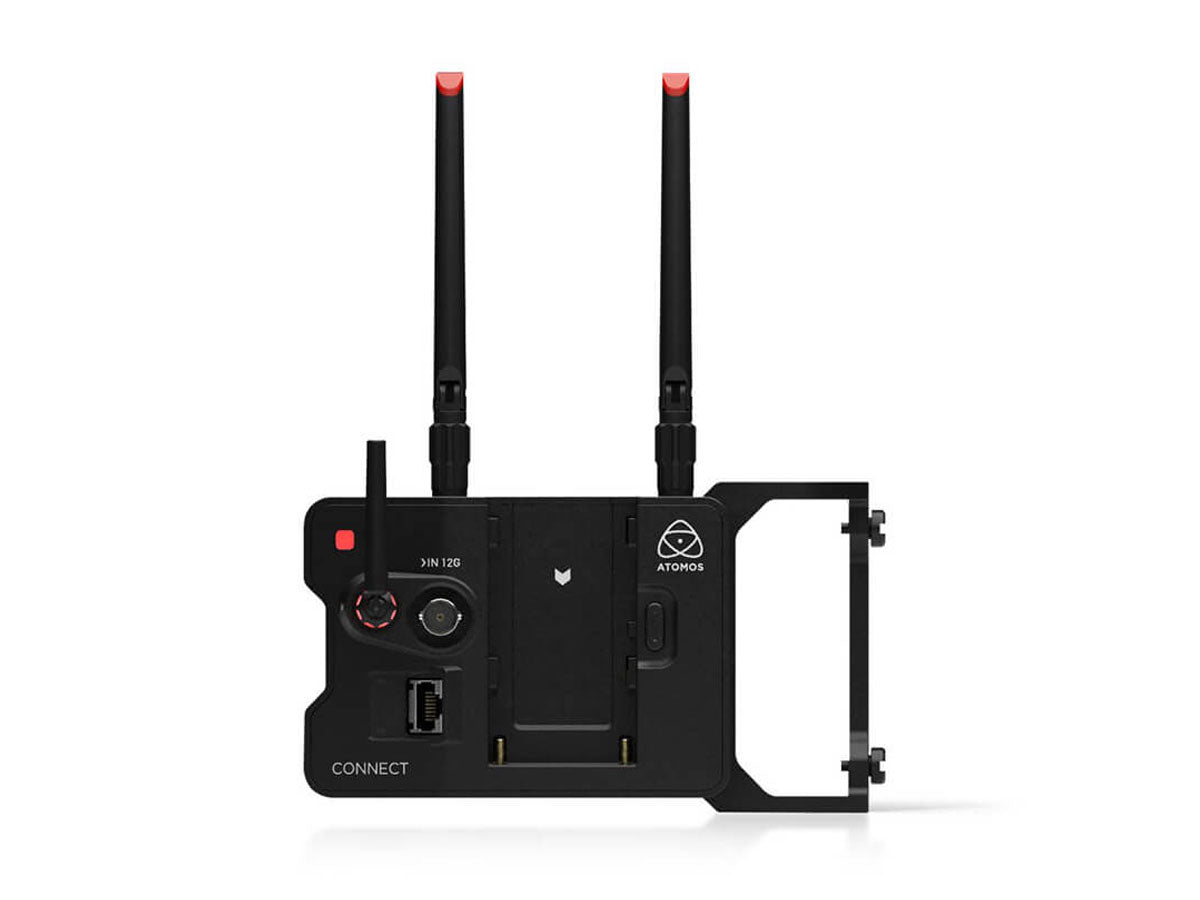

ATOMOS CONNECT - The Ultimate Accessory for NINJA V / V+ with a Connection to the World
ATOMOS CONNECT is the ultimate accessory for the NINJA V/ NINJAV+ and represents a profound shift in the way we conceive of devices for monitoring and recording. The ATOMOS CONNECT fits to the back of the NINJA V/V+ and features a 12G SDI input, ATOMOS AirGlu™ wireless sync timecode technology which enables direct, long-range communication between devices, multiple power options to accommodate a variety of on-set scenarios, plus Wi-Fi 6, Gigabit Ethernet, and Bluetooth LE capabilities for flexible connections. When attached to the NINJA V/ V+, the ATOMOS CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully connected devices that support a range of advanced cloud-based workflows.
Stream From Anywhere
With the ATOMOS CONNECT accessory the NINJA V/V+ can livestream to a range of online services including, Facebook Live, Twitch, and YouTube. With Wi-Fi 6, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, the ATOMOS CONNECT helps filmmakers, streamers and video content producers reach their audience from anywhere.
Collaboration For Everyone
ATOMOS CONNECT is fully integrated as a Frame.io Camera to Cloud (C2C) device. Through support of HDMI and SDI equipped cameras, the device offers advanced online workflows and remote collaboration to many more filmmakers, streamers, and video content creators. With Frame.io for Adobe Creative Cloud now part of the Creative Cloud subscription, even more filmmakers will have access to cloud-based workflows.
Dual Record
Frame.io C2C brings the domains of production and post closer together, enabling new ways for remote teams to collaborate. The dual record feature of the ATOMOS CONNECT for NINJA V/V+ creates “hero” Apple ProRes, Avid DNxHR/HD (or ProRes RAW on the NINJA V+) and “proxy” HEVC (H.265) files with matching timecode and metadata. Proxy files can also be uploaded during capture using ATOMOS progressive transfer technology so that the proxy clip is available in the cloud as soon as recording stops.
Bring Your Own Camera
The built-in SDI and HDMI interfaces allow the ATOMOS CONNECT to support a comprehensive range of professional cinema, DSLR and mirrorless cameras. The device also features ATOMOS AirGlu™ wireless sync technology which enables direct, long-range communication between devices and provides a robust timecode lock.
CONNECT to the World
ATOMOS CONNECT enables filmmakers, streamers, and video content producers of every kind to share their work with an audience from anywhere, easily, and seamlessly. ATOMOS CONNECT allows customers to work with any HDMI or SDI camera using a choice of connections. Regardless of the camera chosen, content creators can easily create a multi-camera setup where all devices are locked with wireless synchronised timecode.
- Ultimate accessory for NINJA V/V+ with a connection to the world
- Fits to the back of the NINJA V/ NINJAV+
- Livestream to a range of online services including, Facebook Live, Twitch, and YouTube
- Frame.io Camera to Cloud (C2C) device
- Creates “hero” Apple ProRes, Avid DNxHR/HD (or ProRes RAW on the NINJA V+) and “proxy” HEVC (H.265) files with matching timecode and metadata
| PHYSICAL SPECIFICATIONS | |
| Weight (Monitor only): | 230g / 0.5 lbs |
| Dimensions (Monitor only): | 150mm x 88mm x 53.5mm / 3.4” x 5.9” x 2.11” |
| Mount Points: | 2 x Thumb screws to mount to Ninja |
| CONSTRUCTION | |
| Body: | ABS Polycarbonate |
| Tally Light: | Yes |
| POWER | |
| Input Voltage (Battery): | 6.2 - 16.8v |
| Compatible Batteries: | NP-F / L-Series |
| DC In: | via locking DC Jack on Battery Eliminator (5.5mm OD & 2.1mm ID) |
| D-Tap: | Via optional D-Tap to DC cable |
| VIDEO INPUT | |
| SDI In: | 1 x 12G SDI |
| SDI RAW: | Optional Upgrade Activation - Resolutions & Frame rate Support is Ninja Dependant |
| NETWORK | |
| Ethernet: | 1GbE RJ45 |
| Wi-Fi: | WI-FI 6 |
| Wireless RF: | AirGlu™ SYNC Time code Network |
| Cellular: | Connect to Hot Spot via Wi-Fi |
| WEB STREAMING | |
| RTMP: | Yes |
| RTMP/S: | Yes |
| HDMI to SDI: | |
| HDMI to SDI: | No |
| SDI to HDMI: | Yes, via Ninja |
| TIMECODE / SYNC | |
| SDI Embedded: | Embedded |
| Wireless Sync: | AirGlu™ SYNC Time code Network |
| RF Network Usage: | 300m |
| RF Frequency: | Region dependant |
| Number of Channels: | 12 RF Channels per Region |
| Number of RF Clients: | 100 clients |
| Bluetooth Network Range: | 10-15m (line of sight) |
| Number of BT Clients: | 4 clients per device |
| LTC: | No BNC input |
| REMOTE CONTROL | |
| Bluetooth LE: | via AtomControl App for Monitor Assist Tools |
| WARRANTY | |
| Standard: | 1 Year |
- ATOMOS CONNECT
- AtomX SSDmini Handle
- MasterCaddy III with screws
- Wifi Antenna with Black caps
- RF antenna
- Antenna storage Pouch
- 3.5mm audio jack to jack cable
- Antenna coloured caps
- Antenna mount covers
