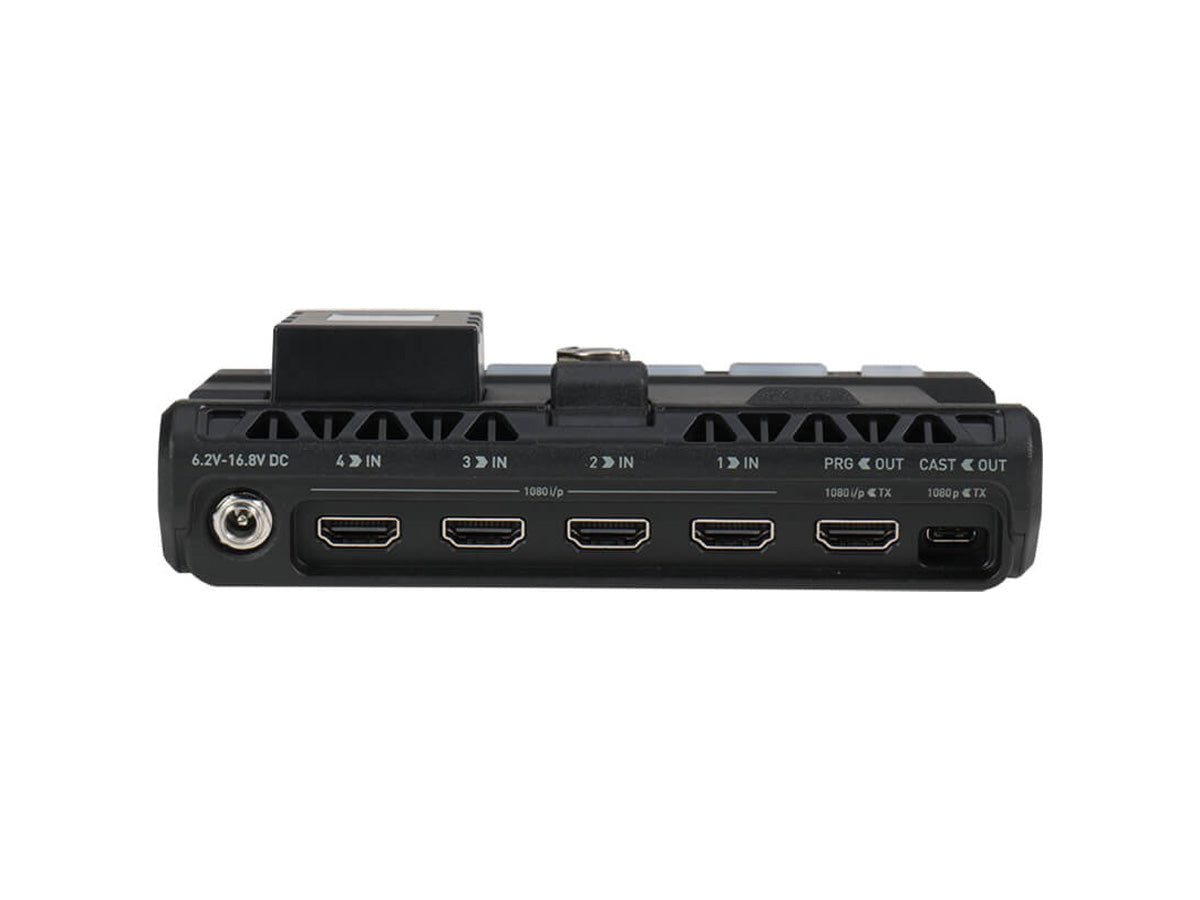

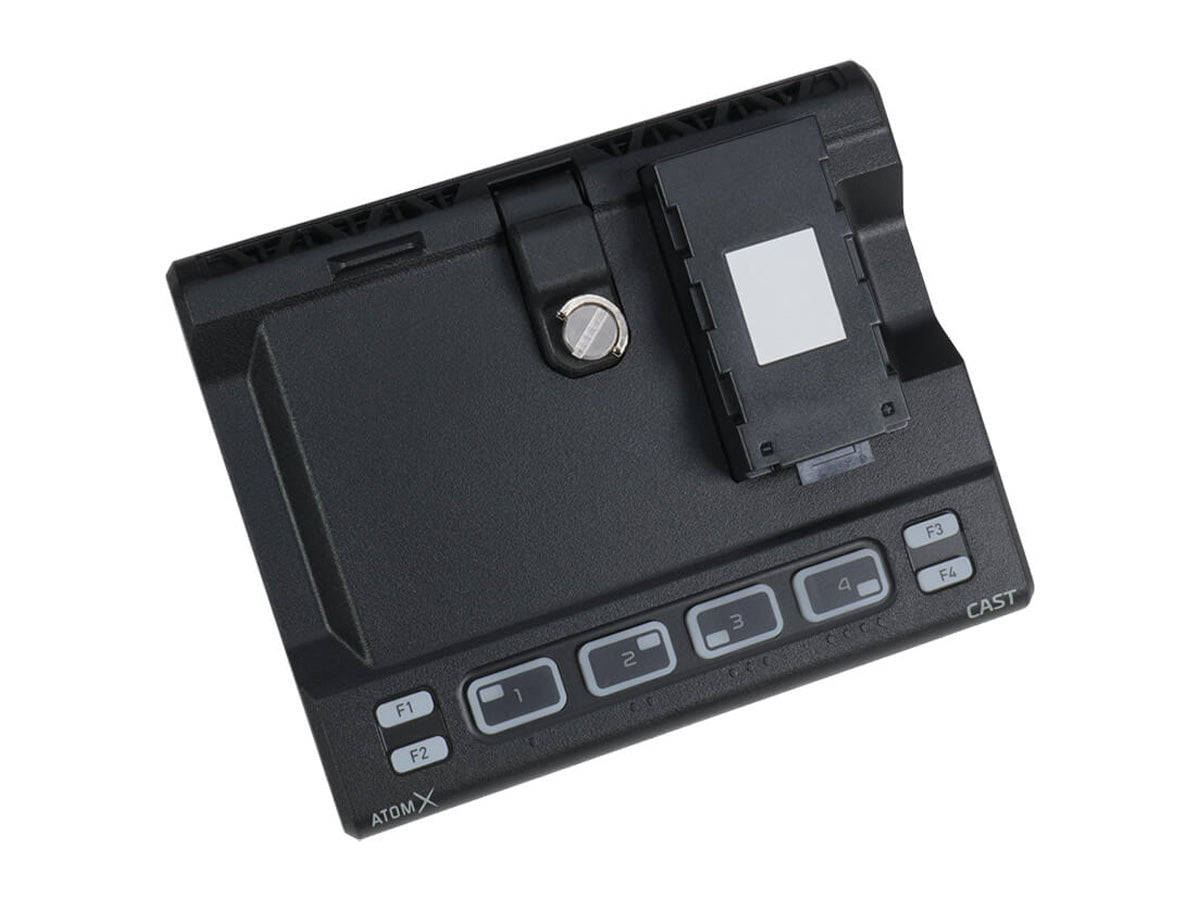

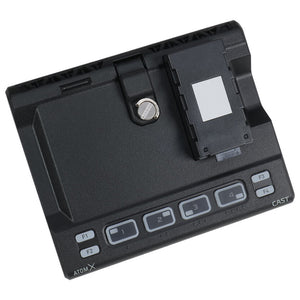

Atomos AtomX Cast HDMI Switching Dock for Ninja V / V+
Atomos AtomX Cast HDMI Switching Dock for Ninja V / V+
SKU:
AO-ATOMXCST01
Regular price
£135.00 GBP ex VAT
£162.00 GBP inc VAT
£162.00 GBP inc VAT
Regular price
ex VAT
Sale price
£135.00 GBP ex VAT
£162.00 GBP inc VAT
Unit price
per
£162.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Simple Switching and Broadcast features for everyone
AtomX CAST is a modular companion that transforms the Ninja V/V+ it into a 4 input HDMI switcher. The combination of the Ninja V and AtomX CAST becomes the Ninja CAST, a fully functional stand-alone switcher with an integrated high quality 5” HDR touchscreen monitor with multi-view, broadcast quality recording and physical buttons - that can be used anywhere and does not require a computer to function. The flexible control options allow you to use either the touchscreen or the physical buttons to ‘switch’ between sources when deciding what should be on screen at any one time for broadcast.
AtomX CAST is a modular companion that transforms the Ninja V/V+ it into a 4 input HDMI switcher. The combination of the Ninja V and AtomX CAST becomes the Ninja CAST, a fully functional stand-alone switcher with an integrated high quality 5” HDR touchscreen monitor with multi-view, broadcast quality recording and physical buttons - that can be used anywhere and does not require a computer to function. The flexible control options allow you to use either the touchscreen or the physical buttons to ‘switch’ between sources when deciding what should be on screen at any one time for broadcast.
You don’t need to be a video professional to create broadcast quality multi-camera programs, as Ninja CAST appears as a high-quality webcam to your computer, and it works immediately with your video applications like Zoom, Teams and Skype without the need to install drivers on the computer. Use features like logos, graphics and picture in picture to make your productions look incredible, and enhance your online meetings, presentations, conferences, remote learning/training, virtual conferences or demonstrations
Broadcast features for everybody
AtomX CAST is for video creators and anybody who wants to make broadcast quality multi-camera programs simply and quickly from anywhere. It is also for anybody that wants to add professional broadcast quality features to their online meetings, presentations, remote learning/training, virtual conferences, demonstrations or engaging corporate videos. Since CAST is simple and easy to ease, you don’t need to be a video professional to achieve great looking results.
Simple switching
The flexible control options allow you to use either the touchscreen or the physical buttons to ‘switch’ between sources when deciding what should be on screen at any one time for broadcast. The illuminated buttons for each input and coloured LED lighting for Program and Preview status allow you to operate the CAST in dimly lit environments.
Connect any full HD video source
Connect mirrorless or DSLR cameras, video cameras, computers, consoles or even pre-recorded content via HDMI. There's no need to worry about synchronization, as you can mix and match frame rates up to 60p, as well as interlaced and progressive HD sources automatically.
Integrates seamlessly
With the Ninja V/V+ docked in, the AtomX CAST connects via USB-C to your computer and appears as a high-quality webcam. Plug and play allows it to work immediately with all your video applications like Zoom, Teams and Skype without the need to install drivers on the computer first. Add up to 4 camera inputs to bring your presentation or meeting to the next level.
Integrated Monitor
Having an integrated monitor allows you to see the incoming signals as well as your program out, without having to connect an additional monitor. With the Ninja V/V+ docked into the AtomX CAST you can utilize its high quality 5” touchscreen for setup and the monitor-assist tools for exposure, focus and image analysis for optimising your shots. Then switch to multiview to see all four inputs at once, complete with audio level monitoring.
Enhance your brand, your video and your reach
Sophisticated features like logos, mast head graphics and lower third titles will make your productions look incredible, and the dedicated controls for these functions make them easy to use. Add custom graphics for branding your content, with support for transparency, sponsors’ logos and other on-screen information to your production and configure the layout on the Ninja touchscreen.
Picture in Picture
One of the benefits of using CAST with a multi-camera setup, is that you can use the Picture in Picture function to display two inputs at the same time. Any of the four HDMI inputs can be used for a Picture in Picture effect and there are controls for size and location of the overlayed image. You can display a close-up of a product on your desk and display your face as a picture in picture at the same time, whilst you talk about the product.
Configurable and adaptable
Since AtomX CAST is so compact and versatile, users can easily work alone or with a team to enhance their productions. Solo operators can transport the Ninja CAST in a small backpack and then use it discretely with compact mirrorless cameras for productions of any size. For larger setups, the Ninja V/V+ HDMI output can be used as a secondary output that can be set up as a duplicate program out, preview monitoring for the crew or talent, or to connect to a larger multiview display.
Advanced workflow ready
AtomX CAST, connected to a Ninja V/ V+, is a fully functional stand-alone switcher, but you can also use it with a computer for more advanced video work. In this mode, AtomX CAST and Ninja V/V+ does the heavy lifting, taking the load off your computer and reducing the likelihood of software crashes with dedicated external video processing. Simply add AtomX CAST as a media source in OBS, X-Split and VMix to make use of the software application’s additional graphics and scene configuration while using the CAST for video input switching.
Broadcast quality switching and recording
With professional 10bit/4:2:2 inputs, you get broadcast quality switching, as well as the ability to record in broadcast quality codecs like Apple ProRes or Avid DNx.
Versatility built in
AtomX CAST can deliver to a worldwide audience by sending a stream to your favourite streaming host, output a broadcast quality video signal to a local display, digital signage or video wall, and record with high quality edit-ready video codecs.
Stand out from the crowd
Using Ninja CAST with a decent camera and almost any suitable lens gives you a professional broadcasting solution with incredible picture quality. You can set a shallow depth of field and create a cinematic look that is dramatically different from the image you get from your average webcam. Pay attention to lighting, camera angles and sound, and you will soon be making professional quality video productions. Even an older HD camcorder can output great looking video through its HDMI port, which means that you probably already have cameras for a multi-camera production.
- 4 x HDMI Switching & Streaming Dock for Ninja V / Ninja V+
- Xpand and transform Ninja V/V+ in to a 4 x HDMI input switcher
- Overlay custom graphics, logos, lower thirds and content branding
- Picture in Picture effect for any combination of inputs
- WebCAST - Plug and Play UVC connection to your favourite software such as Zoom, MS Teams, Skype, OBS and more
- BroadCAST - quality switching and recording in ProRes, DNx and option for h.265
- MultiCAST - Simultaniously Record, Stream and output to local displays
- Touch Screen and Physical buttons with LED staus indciators
- Separate HDMI outputs - Dedicated Program out and Multifunction on Ninja V/V+ for Multiview, Preview or Program
- Audio Input and switching options with support for embedded, analogue inputs and Audio follow Video
| PHYSICAL SPECIFICATIONS | |
| Weight: | 485g / 1.06lbs |
| Dimensions: | 129 x 49 x 160 (with out Ninja V/V+) |
| Mount Points: | Anti rotational 1/4” 20 / 3/8 on base of unit |
| CONSTRUCTION | |
| Body: | ABS plastic with locking arm for Ninja V/V+ |
| Cooling: | Passive |
| Tally Light: | Record tally Via Ninja V/V+, Program and Preview illumination on CAST buttons |
| Control Button: | 4 x Switching, 4 x Function |
| AtomXpansion Slot: | To connect to Ninja V/V+ (no module pass through) |
| POWER | |
| Input Voltage: | 6.2V to 16.8V |
| DC In Connector: | Lock DC connector from Ninja V/V+ DC power supply |
| Battery: | Via optional Atomos DC to DTAP cable |
| DISPLAY - VIA NINJA V / V+ | |
| Touchscreen: | SuperAtom IPS panel (capacitive touch) |
| Size: | 5.2” |
| Resolution: | 1920 x 1080 |
| Brightness: | 1000nits |
| Aspect Ratio: | 16:9 |
| Colour Gamut: | Rec.709 |
| VIDEO INPUT | |
| HDMI: | 4 x HDMI 1.4b up to 1080p60 |
| Bit Depth: | 10-bit |
| Video Chroma Subsampling: | 4:2:2 |
| HDCP Copy Protection: | No |
| VIDEO OUTPUT | |
| via CAST: | HDMI 1.4b up to 1080p60 - Program ONLY |
| via Ninja V / V+: | Multi functions out - Program, Preview, Multiview |
| Multiview: | Yes, via Ninja V/V+ Display or HDMI output |
| OS Overlays: | Optional via Ninja V/V+ HDMI out |
| Video Chroma Subsampling: | 4:2:2 |
| Bit Depth: | 10-bit |
| WEB STREAMING | |
| USB UVC: | USB-C up to 1080p30 |
| AUDIO IN / OUT | |
| Audio Quality: | 24/48kHz |
| Audio Codec: | PCM |
| HDMI: | 2ch 24-Bit, input dependent per input |
| Analogue Audio In: | 3.5mm via Ninja V/V+ |
| Headphone Out: | 3.5mm via Ninja V/V+ |
| TIMECODE / SYNC | |
| Embedded: | HDMI |
| RESOLUTION & FRAME RATES | |
| FHD 1920 x 1080 Progressive: | 23.98/24/25/29.9/30/50/59.94/60 |
| FHD 1920 x 1080 PsF: | No |
| FHD 1920 x 1080 Interlaced: | 50/59.94/60 |
| 1280 x 720p: | No |
| SD PAL / NTSC: | No |
| PROGRAM RECORDING CODEC VIA NINJA V / V+ | |
| Apple ProRes: | LT, 422, 422HQ |
| Avid DNxHD: | DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com) |
| RECORDING FUNCTIONS | |
| Switched Program Record: | Clean or CAST Program feed via Ninja V/V+ |
| MULTI INPUT / SWITCHING | |
| Multiple HDMI Input: | Up to 4 x HDMI up to 1080p60 |
| Multiview Display: | Quad input display on Ninja V/V+ Display |
| Multiview Output: | Via Ninja V/V+ HDMI out |
| Picture In Picture: | Any input over Any input, 4 positions in small or large size PIP |
| Graphic Overlays: | Select layout for Stored Graphics in Ninja V/V+ and save configured scene presets |
| Media Pool Storage: | Upload and Store Graphics in Ninja V/V+ |
| Input Processing: | I > P and frame rate conversion |
| Transitions: | Fade in / out and Dip to - White or Black |
| SUPPORTED MEDIA | |
| Master Caddy II: | Yes |
| SSDmini: | Yes, requires the included AtomX SSDmini handle adaptor |
| File System: | ExFat |
| ONBOARD SIGNAL PROCESSING | |
| Pulldown Removal: | Interlaced to Progressive on Input and USB stream |
| WHAT'S IN THE BOX? | |
| Accessories Included: | AtomX CAST, USB-C cable and SSDmini Handle Adaptor |
| Optional Extras: | ATOMDTPCB2 - Dtap to DC cable, ATOMDCK004 - USB-C 3.1 Docking Station, ATOMDCK003 USB-A 3.0 Docking Station |
| COMPATIBLE WITH | |
| Atomos Product: | Requires Ninja V/V+ |
| WARRANTY | |
| Standard: | 1 year. |
- AtomX CAST
- 1x USB-C Cable
- 1x AtomX SSD mini handle
