- 1/2.8-inch HD CMOS sensor
- 20x optical zoom
- 2.07M effective pixels
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
- For education, houses of worship, and budget-friendly production

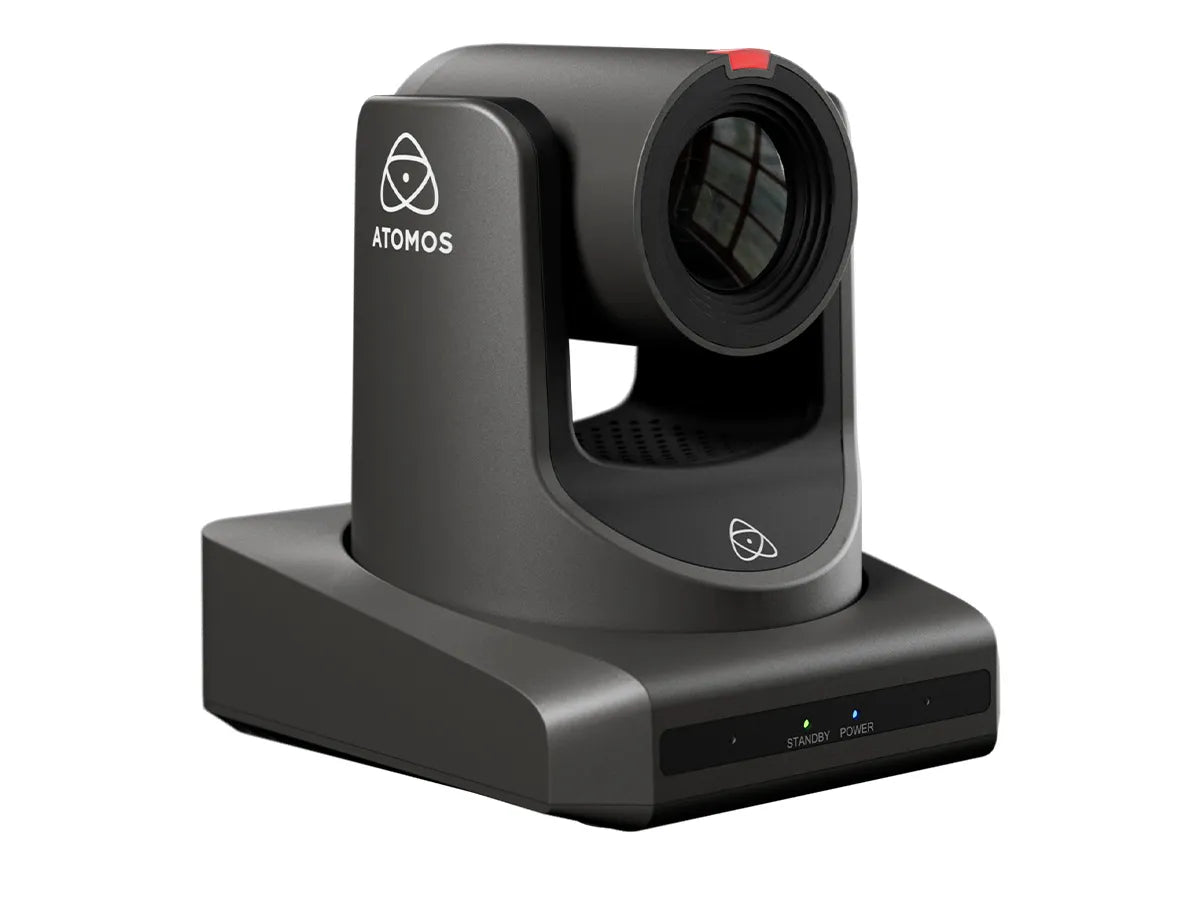

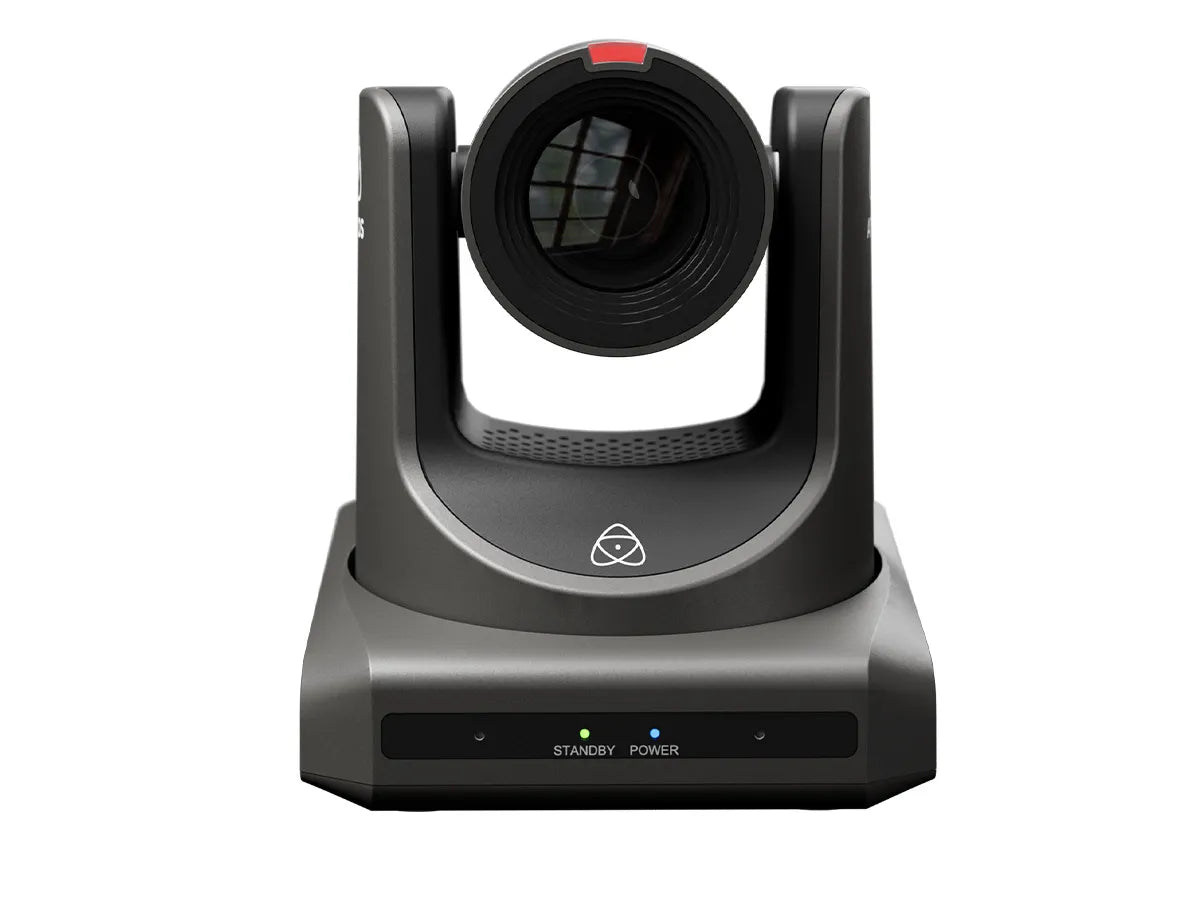

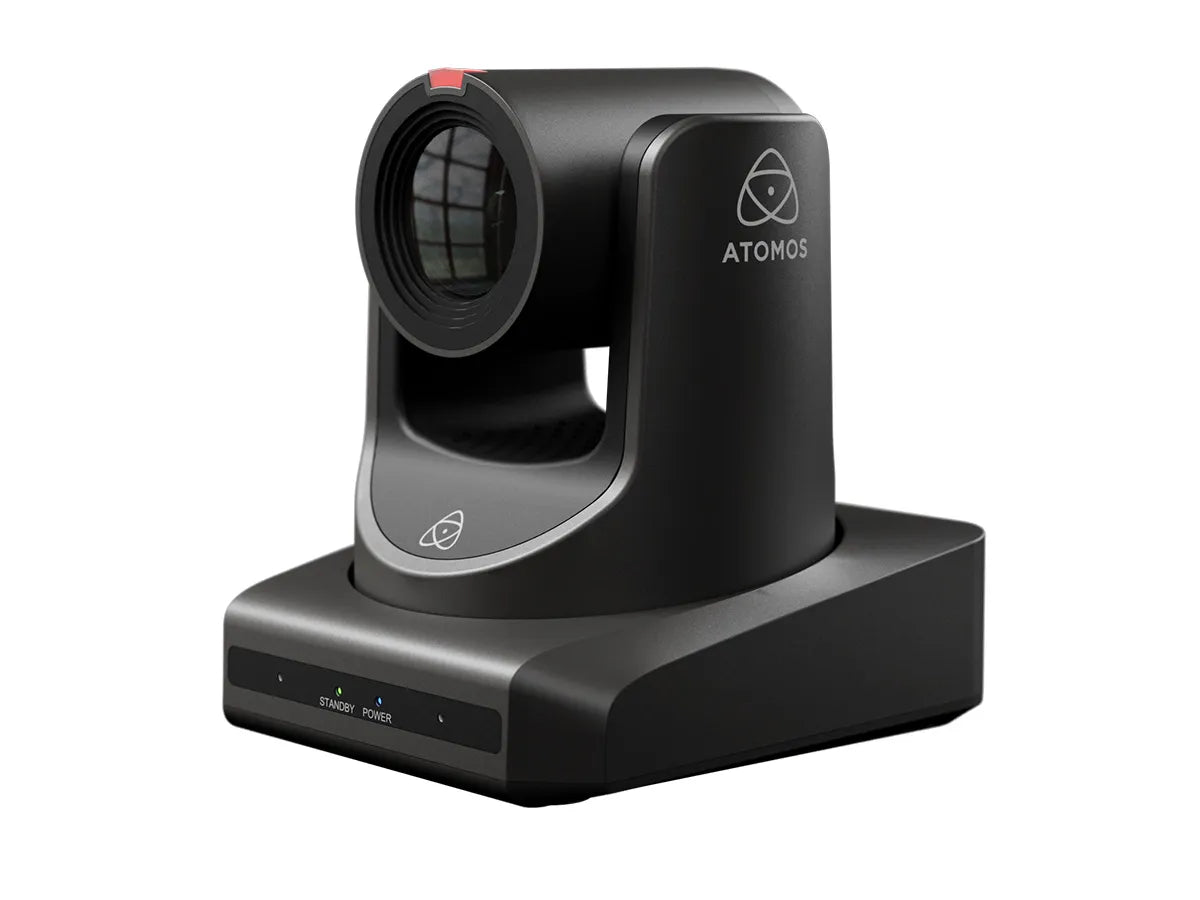

Atomos A-Eye HD-20X - PTZ Camera
Atomos A-Eye HD-20X - PTZ Camera
SKU:
AO-ATOMAEHD20
Regular price
£835.00 GBP ex VAT
£1,002.00 GBP inc VAT
£1,002.00 GBP inc VAT
Regular price
ex VAT
Sale price
£835.00 GBP ex VAT
£1,002.00 GBP inc VAT
Unit price
per
£1,002.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Powerful HD production. Precision in motion.
The Atomos A-Eye HD 20X PTZ Camera brings professional pan-tilt-zoom performance to live productions, corporate broadcasts, education, and streaming setups. Designed for seamless integration into multi-camera environments, it delivers sharp Full HD video with smooth robotic control and flexible connectivity.
Full HD Video with 20x Optical Zoom
Capture crystal-clear 1080p60 video using a precision 1/2.8 CMOS sensor and advanced image processing. With 20x optical zoom and low-light sensitivity, the A-Eye HD 20X is ideal for wide shots, close-ups, and everything in between—even in variable lighting conditions.
Smooth, Quiet PTZ Movement
The camera’s responsive pan, tilt, and zoom motors ensure fluid, near-silent movement that’s perfect for live broadcast environments. Whether controlled via joystick, software, or remote presets, A-Eye delivers consistent framing without distracting mechanical noise.
Flexible IP and Streaming Connectivity
Stream directly via RTMP, RTSP, or NDI|HX* over Ethernet, or connect via HDMI and 3G-SDI for traditional AV workflows. Integrated PoE+ simplifies setup by delivering both power and network over a single cable—ideal for permanent installations or rapid deployment.
*NDI|HX license activation may be required
Camera Control and Presets
Control A-Eye HD 20X using the optional A-Eye Control Remote, supported joystick controllers, or software via RS-232, RS-422, or IP protocols. Store and recall preset positions for fast scene switching in live production scenarios.
Built for Production Versatility
From houses of worship to corporate studios, event spaces to classrooms, the A-Eye HD 20X is ready to deliver professional-grade results in any production environment. The compact design and wall-mount compatibility make it easy to integrate into new or existing setups.
| PHYSICAL | |
| Dimensions: | 139.2mm x 176.5mm x 165.8mm |
| Weight: | About 1.5Kg |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 40 degrees Celsius |
| CONSTRUCTION | |
| Body: | ABS |
| POWER | |
| Input Voltage: | DC 12V/PoE+ (802.3at) |
| Operating Power: | Max 15W |
| Power On Indicator: | Yes |
| VIDEO | |
| Sensor: | 1/2.8 inch, CMOS |
| Effective Pixels: | 2.07M |
| Lens: | 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Scanning Mode: | Progressive |
| Resolutions Supported: | 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Colour System / Compression: | YUY2/MJPEG/H.264 |
| Video Format: | YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps |
| Digital Zoom: | 16x |
| Minimum Illumination: | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter: | 1/30s ~ 1/10000s |
| Image Flip: | Supported |
| Image Freeze: | Supported |
| White Balance: | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight Compensation: | Support |
| Digital Noise Reduction: | 2D & 3D Digital Noise Reduction |
| SNR: | ≥55dB |
| MECHANICAL | |
| Horizontal FOV: | 60.7° ~ 3.36° |
| Vertical FOV: | 34.1° ~ 1.89° |
| Pan Angle: | ±170° |
| Tilt Angle: | -30° ~ +90° |
| Pan Speed: | 1.7° ~ 100°/s |
| Tilt Speed: | 1.7° ~ 69.9°/s |
| Preset Position: | 255 |
| Preset Accuracy: | 0.1° |
| USB | |
| Operating System: | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB Audio: | Supported |
| USB Video Protocol: | UVC 1.1/UVC 1.5 |
| USB PTZ Control: | Supported |
| NETWORK | |
| Video Compression: | H.264/H.265 |
| Video Stream: | First Stream, Second Stream |
| First Stream Resolution: | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second Stream Resolution: | 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180 |
| Video Bit Rate: | 32Kbps ~ 20480Kbps |
| Bit Rate Control: | CBR, VBR |
| Frame Rate: | 1fps ~ 60fps |
| Audio Compression: | AAC |
| Audio Bit Rate: | 96Kbps, 128Kbps, 256Kbps |
| Protocols: | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| AUDIO | |
| Microphone: | Built-in dual microphone, 100Hz to 16KHz frequency response |
| Audio Input: | Line In |
| Audio Output: | Line Out, HDMI, USB |

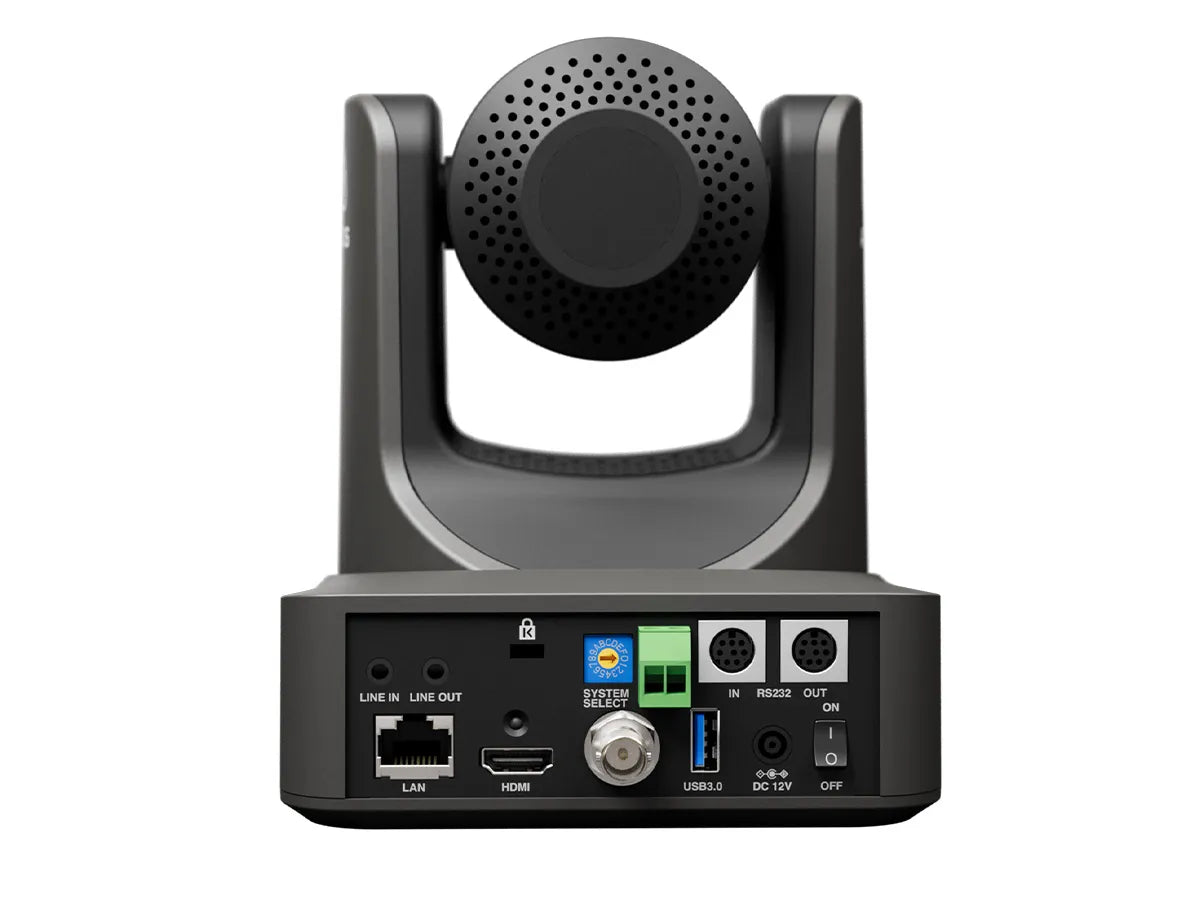

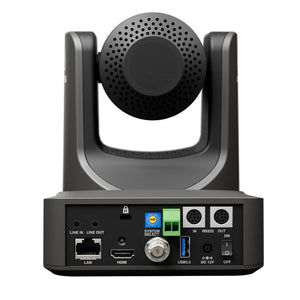

| INPUT / OUTPUT INTERFACES | |
| Line In: | 3.5mm audio interface |
| Line Out: | 3.5mm audio interface |
| RS-485: | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network: | 10M/100M Adaptive Ethernet Port |
| USB: | USB 2.0: Type A |
| SDI: | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI: | HDMI version 1.3 |
| Power Jack: | JEITA type (DC IN 12V) |
| Tally Indicator: | Yes |
- A-Eye HD 20X PTZ Camera
- RS-232 serial cable (2m)
- USB 3.0 A-A cable (1.5m)
- Lens cover
- Remote controller
- Accessory tray
- Wall mount bracket
- Screw pack
- Power adapter with 4 interchangeable plugs
- Quick Start Guide
