- 1/2.8-inch UHD CMOS sensor
- 20x optical zoom
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
- For large venues, stage productions, and professional multi-camera productions

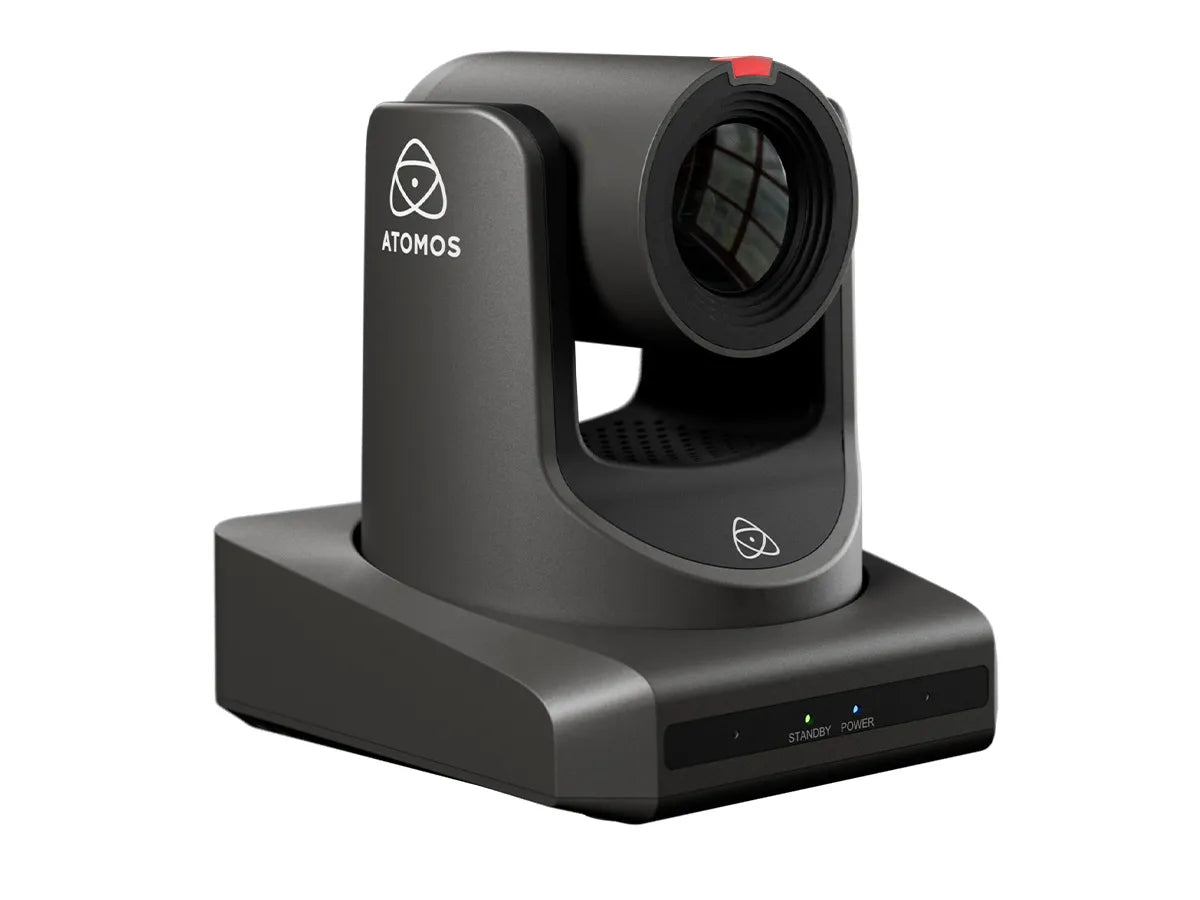

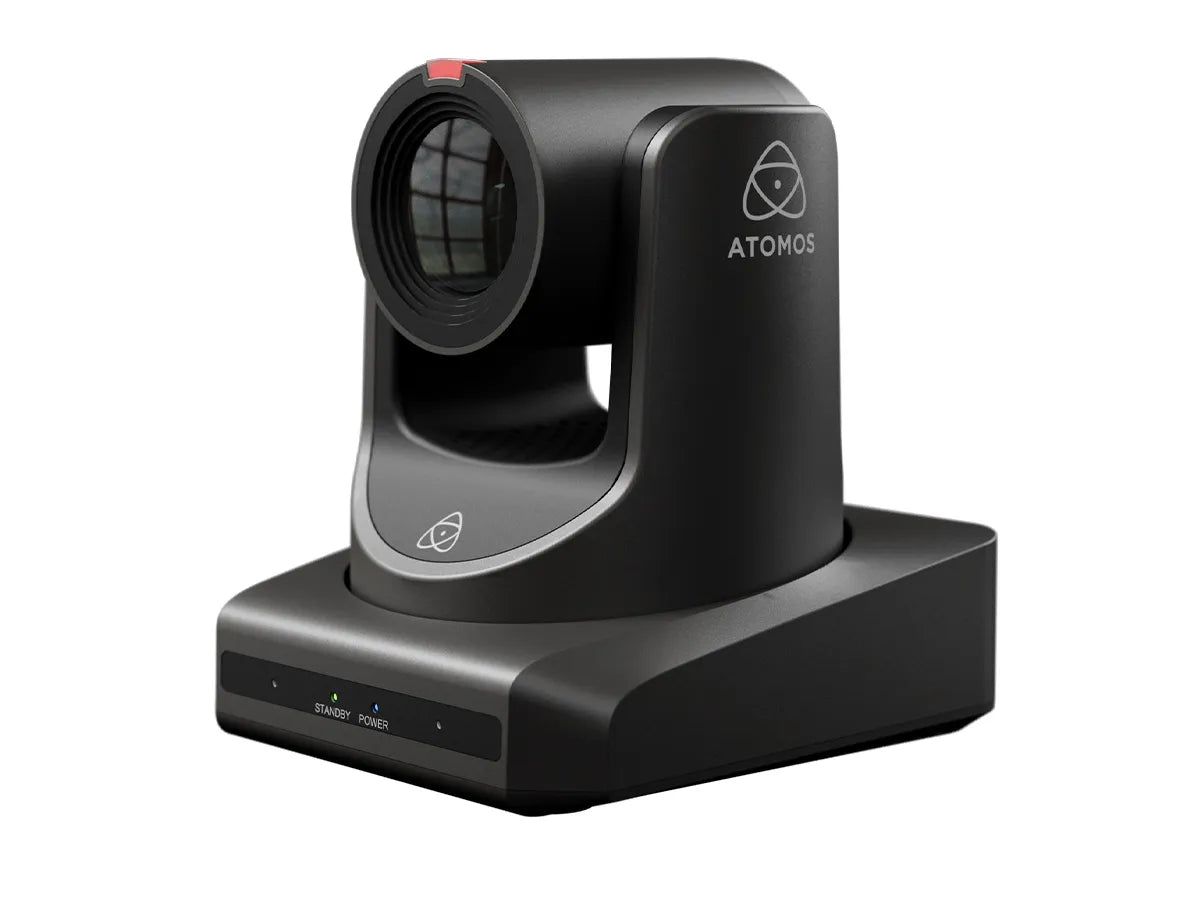

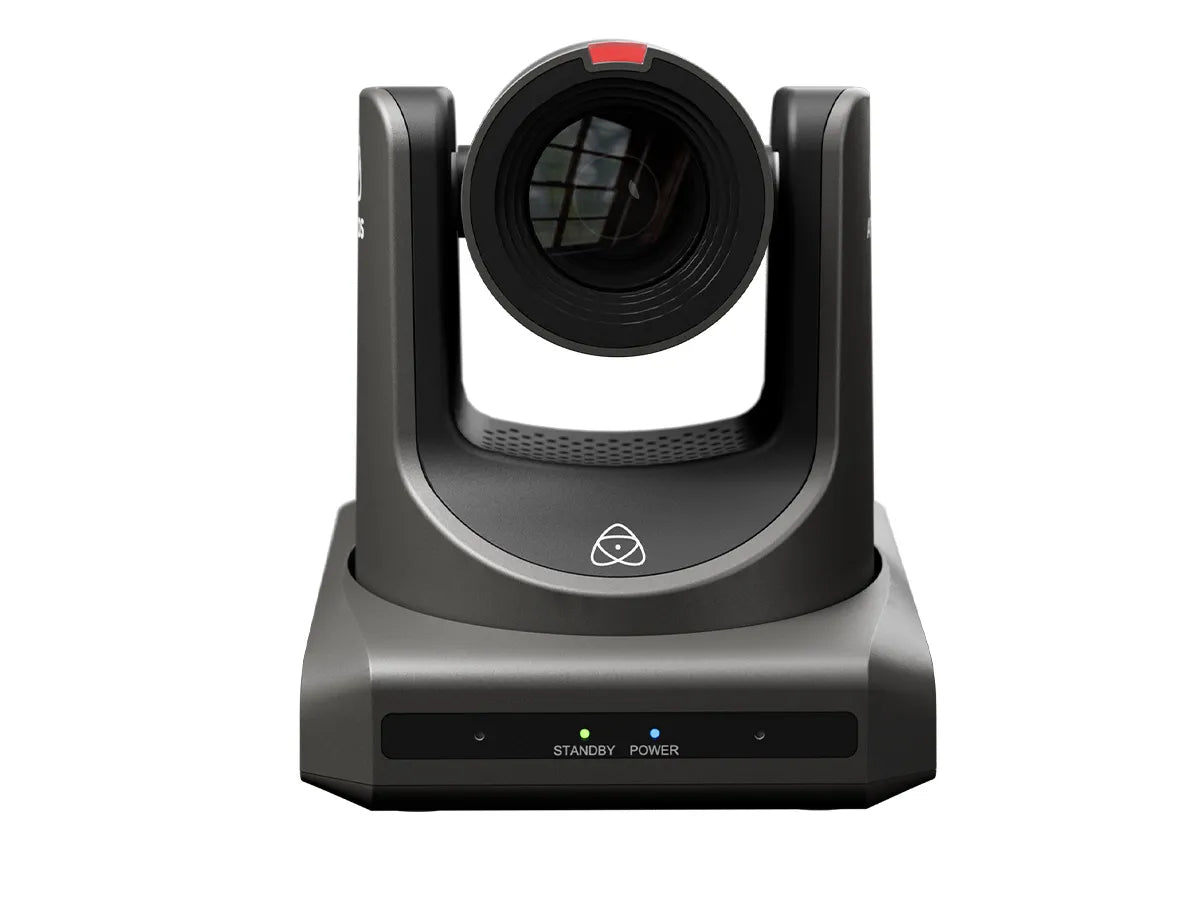

Atomos A-Eye 4K-20X - PTZ Camera
Atomos A-Eye 4K-20X - PTZ Camera
SKU:
AO-ATOMAE4K20
Regular price
£1,645.00 GBP ex VAT
£1,974.00 GBP inc VAT
£1,974.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,645.00 GBP ex VAT
£1,974.00 GBP inc VAT
Unit price
per
£1,974.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Precision optics. Seamless IP streaming. Built for the cloud.
The Atomos A-EYE 4K 20x PTZ Camera redefines live production with broadcast-quality imaging, smooth movement, and built-in IP workflows. It’s the intelligent choice for modern streaming, hybrid productions, and remote collaboration.
Powerful 4K Optics with 20x Zoom
Equipped with a 1/2.8 CMOS sensor, the A-EYE captures detailed 4K Ultra HD video at up to 60 frames per second. The 20x optical zoom delivers smooth, responsive transitions from wide shots to tight close-ups, giving creators full framing flexibility without compromising clarity.
NDI® | HX3 and IP-Based Production
With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.
Effortless Control and Deployment
The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.
| PHYSICAL | |
| Dimensions: | 146mm x 169mm x 168mm |
| Weight: | About 1.6Kg |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 40 degrees Celsius |
| CONSTRUCTION | |
| Body: | ABS |
| POWER | |
| Input Voltage: | DC 12V/PoE+ (802.3at) |
| Operating Power: | Max 18W |
| Power On Indicator: | Yes |
| VIDEO | |
| Sensor: | 1/1.8 inch, CMOS |
| Effective Pixels: | 8.42M |
| Lens: | 20x, f=6.25mm~125mm, F1.58~F3.95 |
| Scanning Mode: | Progressive |
| Resolutions Supported: | HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 |
| Colour System / Compression: | YUY2/H.264/MJPEG/H.265 |
| Video Format: | YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps |
| Digital Zoom: | 16x |
| Minimum Illumination: | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter: | 1/30s ~ 1/10000s |
| Image Flip: | Supported |
| Image Freeze: | Supported |
| White Balance: | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight Compensation: | Support |
| Digital Nosie Reduction: | 2D & 3D Digital Noise Reduction |
| SNR: | ≥55dB |
| MECHANICAL | |
| Horizontal FOV: | 60°~3.5° |
| Vertical FOV: | 35.7°~2.0° |
| Pan Angle: | ±170° |
| Tilt Angle: | -30° ~ +90° |
| Pan Speed: | 1.7° ~ 100°/s |
| Tilt Speed: | 1.7° ~ 69.9°/s |
| Preset Position: | 255 |
| Preset Accuracy: | 0.1° |
| USB | |
| Operating System: | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB Audio: | Supported |
| USB Video Protocol: | UVC 1.1/UVC 1.5 |
| USB PTZ Control: | Supported |
| NETWORK | |
| Video Compression: | H.264/H.265/MJPEG |
| Video Stream: | First Stream, Second Stream |
| First Stream Resolution: | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
| Second Stream Resolution: | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
| Video Bit Rate: | First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps |
| Bit Rate Control: | CBR, VBR |
| Frame Rate: | 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps |
| Audio Compression: | AAC |
| Audio Bit Rate: | 96Kbps, 128Kbps, 256Kbps |
| Protocols: | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| AUDIO | |
| Microphone: | No built-in mic |
| Audio Input: | Line In |
| Audio Output: | Line Out, HDMI, USB |

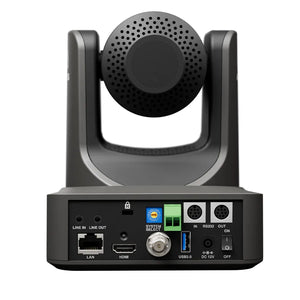

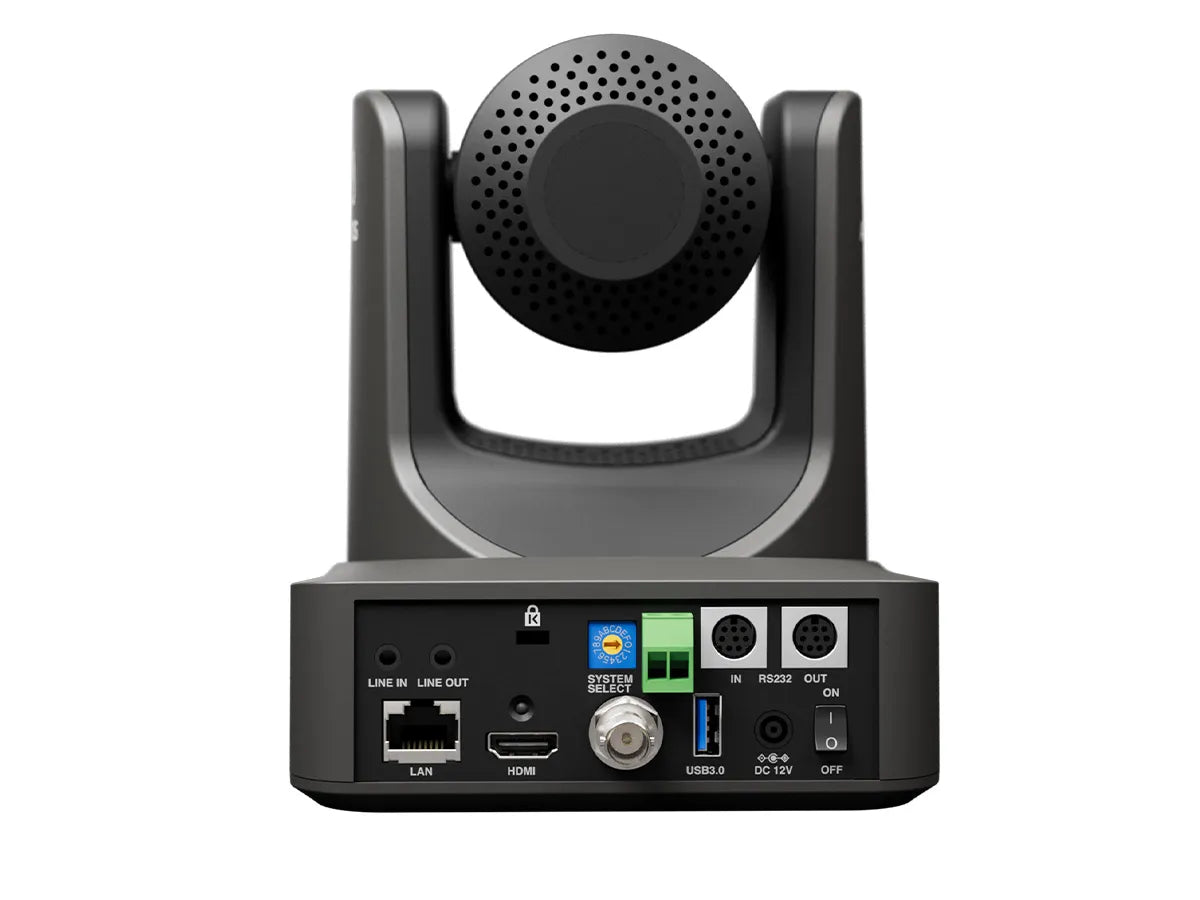

| INPUT / OUTPUT INTERFACES | |
| Line In: | 3.5mm audio interface |
| Line Out: | 3.5mm audio interface |
| RS-485: | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network: | 10M/100M Adaptive Ethernet Port |
| USB: | USB 2.0: Type A |
| SDI: | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI: | HDMI version 1.3 |
| Power Jack: | JEITA type (DC IN 12V) |
| Tally Indicator: | Yes |
- A-EYE 4K-20X PTZ camera
- RS-232 serial cable (2m)
- USB 3.0 A-A cable (1.5m)
- Lens cover
- Remote controller
- Accessory tray
- Wall mount rack
- Screw pack
- Power adaptor with 4 international plugs
- Quick Start Guide
