- 1/2.8-inch UHD CMOS sensor
- 12x optical zoom
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
- For creators, classrooms, and corporate presentations

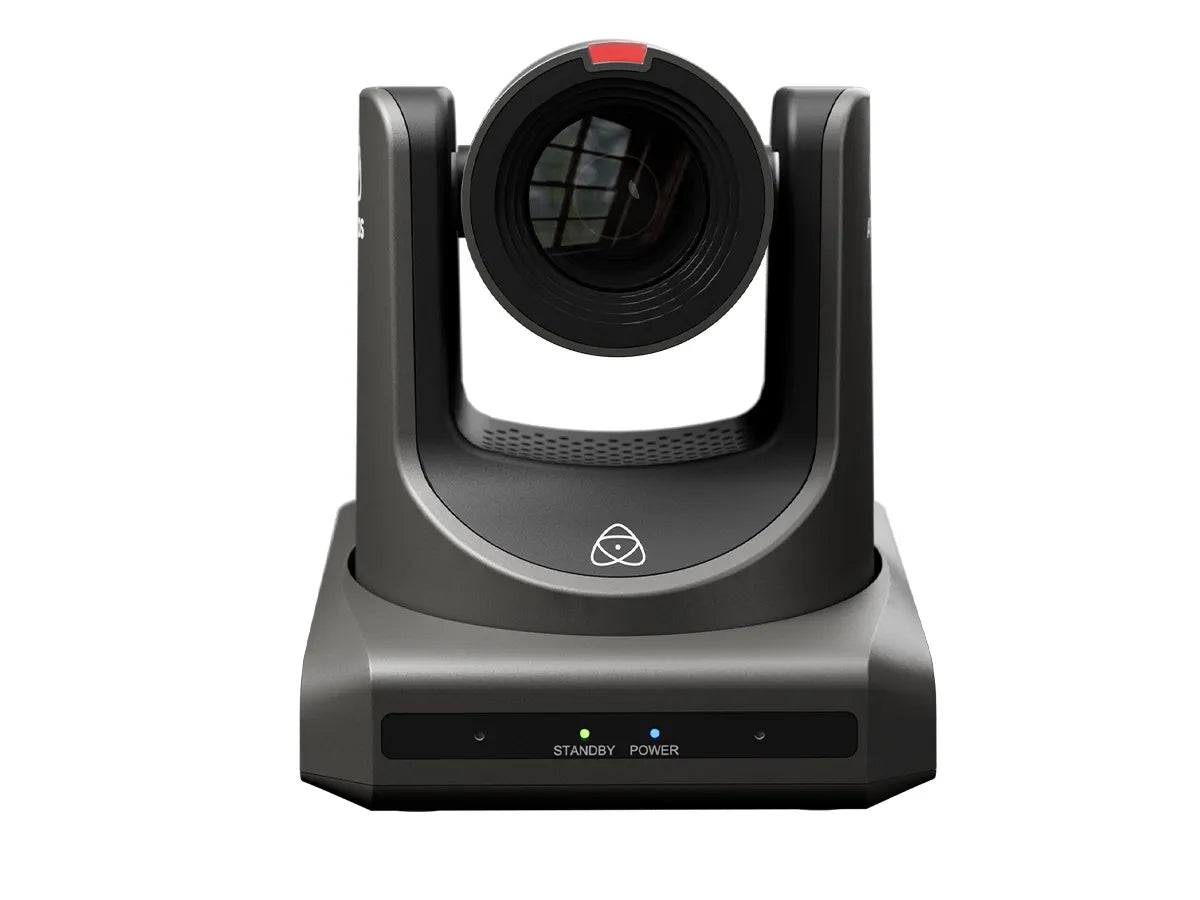

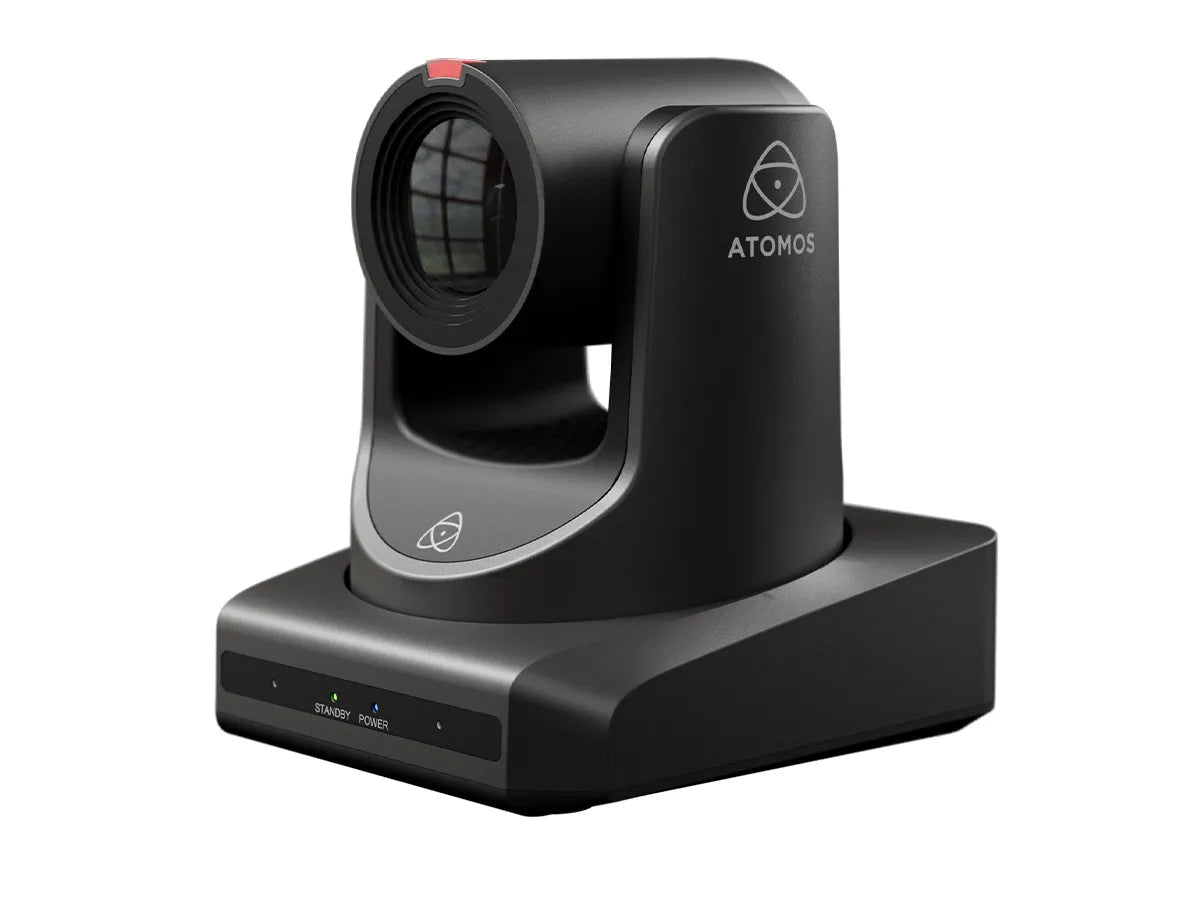

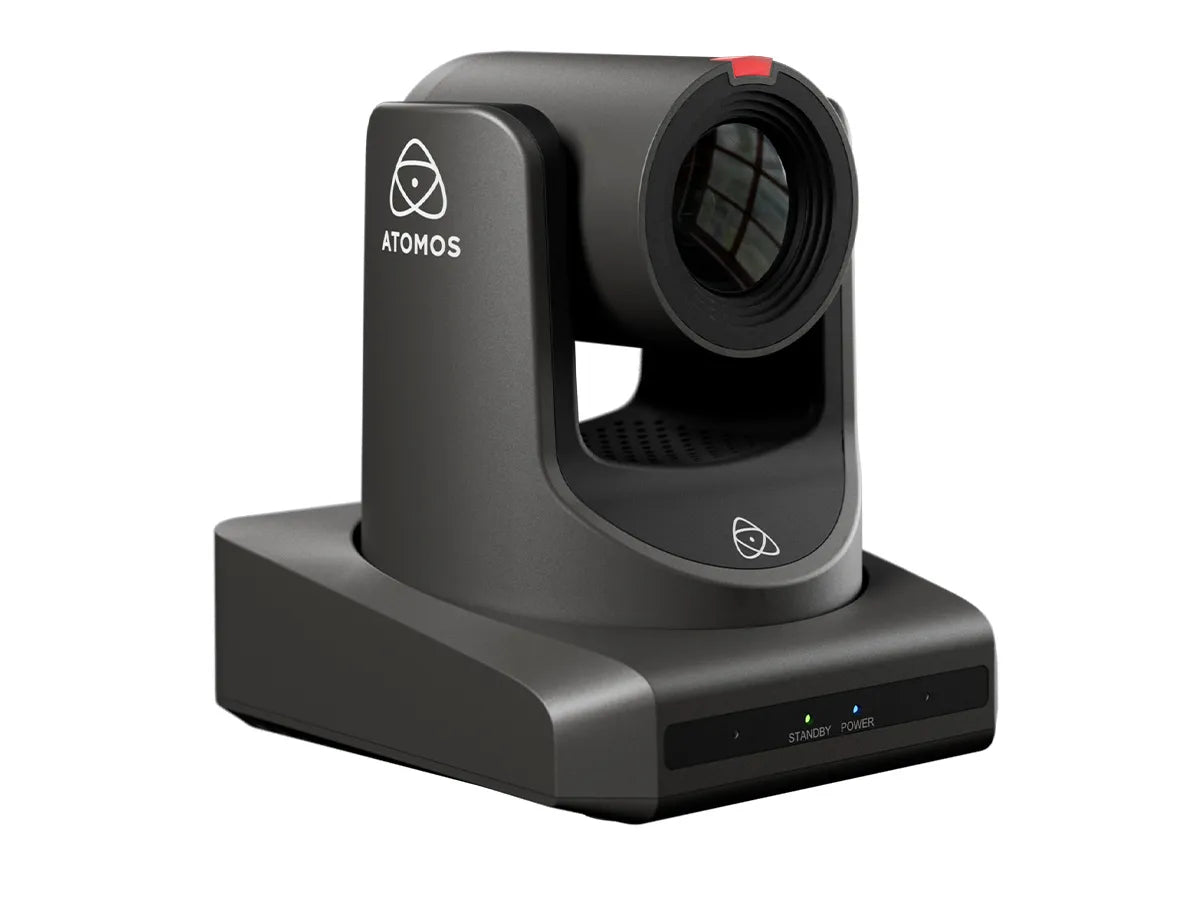

Atomos A-Eye 4K-12X - PTZ Camera
Atomos A-Eye 4K-12X - PTZ Camera
SKU:
AO-ATOMAE4K12
Regular price
£1,185.00 GBP ex VAT
£1,422.00 GBP inc VAT
£1,422.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,185.00 GBP ex VAT
£1,422.00 GBP inc VAT
Unit price
per
£1,422.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
Atomos A-Eye 4K-12X
The A-Eye HD-12X PTZ Camera is a compact, versatile solution designed to deliver professional-quality video in almost any environment. Featuring a powerful 1/2.5-inch UHD CMOS sensor and 12x optical zoom, this camera ensures sharp, detailed images whether you’re capturing a lecture, presenting in a boardroom, or streaming creative content.
Powerful 4K Optics with 12x Zoom
Get closer to the action without losing quality. Perfect for classrooms, meeting spaces, or creative projects where you need both wide shots and close-ups.
NDI® | HX3 and IP-Based Production
With built-in support for NDI®|HX3, the A-EYE delivers high-efficiency, low-latency video over standard Ethernet networks. Additional protocols like RTMP, RTSP, SRT, and VISCA-over-IP ensure broad compatibility with IP production environments, whether local or remote.
Effortless Control and Deployment
The A-EYE can be operated via VISCA or IP-based control systems and integrates with third-party hardware and software controllers. Power over Ethernet++ (PoE++) simplifies installation by delivering power, video, and control over a single cable , ideal for studios, event spaces, churches, and corporate environments.
| PHYSICAL | |
| Dimensions: | 146mm x 169mm x 168mm |
| Weight: | About 1.6Kg |
| ENVIRONMENTAL | |
| Ambient Operating Temperature: | Up to 40 degrees Celsius |
| CONSTRUCTION | |
| Body: | ABS |
| POWER | |
| Input Voltage: | DC 12V/PoE+ (802.3at) |
| Operating Power: | Max 18W |
| Power On Indicator: | Yes |
| VIDEO | |
| Sensor: | 1/2.5 inch, CMOS |
| Effective Pixels: | 8.51M |
| Lens: | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Scanning Mode: | Progressive |
| Resolutions Supported: | HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94 |
| Colour System / Compression: | YUY2/H.264/MJPEG/H.265 |
| Video Format: | YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps |
| Digital Zoom: | 16x |
| Minimum Illumination: | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter: | 1/30s ~ 1/10000s |
| Image Flip: | Supported |
| Image Freeze: | Supported |
| White Balance: | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight Compensation: | Support |
| Digital Noise Reduction: | 2D & 3D Digital Noise Reduction |
| SNR: | ≥55dB |
| MECHANICAL | |
| Horizontal FOV: | 71° ~ 8.2° |
| Vertical FOV: | 42.7° ~ 4.5° |
| Pan Angle: | ±170° |
| Tilt Angle: | -30° ~ +90° |
| Pan Speed: | 1.7° ~ 100°/s |
| Tilt Speed: | 1.7° ~ 69.9°/s |
| Preset Position: | 255 |
| Preset Accuracy: | 0.1° |
| USB | |
| Operating System: | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB Audio: | Supported |
| USB Video Protocol: | UVC 1.1/UVC 1.5 |
| USB PTZ Control: | Supported |
| NETWORK | |
| Video Compression: | H.264/H.265/MJPEG |
| Video Stream: | First Stream, Second Stream |
| First Stream Resolution: | 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
| Second Stream Resolution: | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
| Video Bit Rate: | First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps |
| Bit Rate Control: | CBR, VBR |
| Frame Rate: | 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps |
| Audio Compression: | AAC |
| Audio Bit Rate: | 96Kbps, 128Kbps, 256Kbps |
| Protocols: | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| AUDIO | |
| Microphone: | No built-in mic |
| Audio Input: | Line In |
| Audio Output: | Line Out, HDMI, USB |

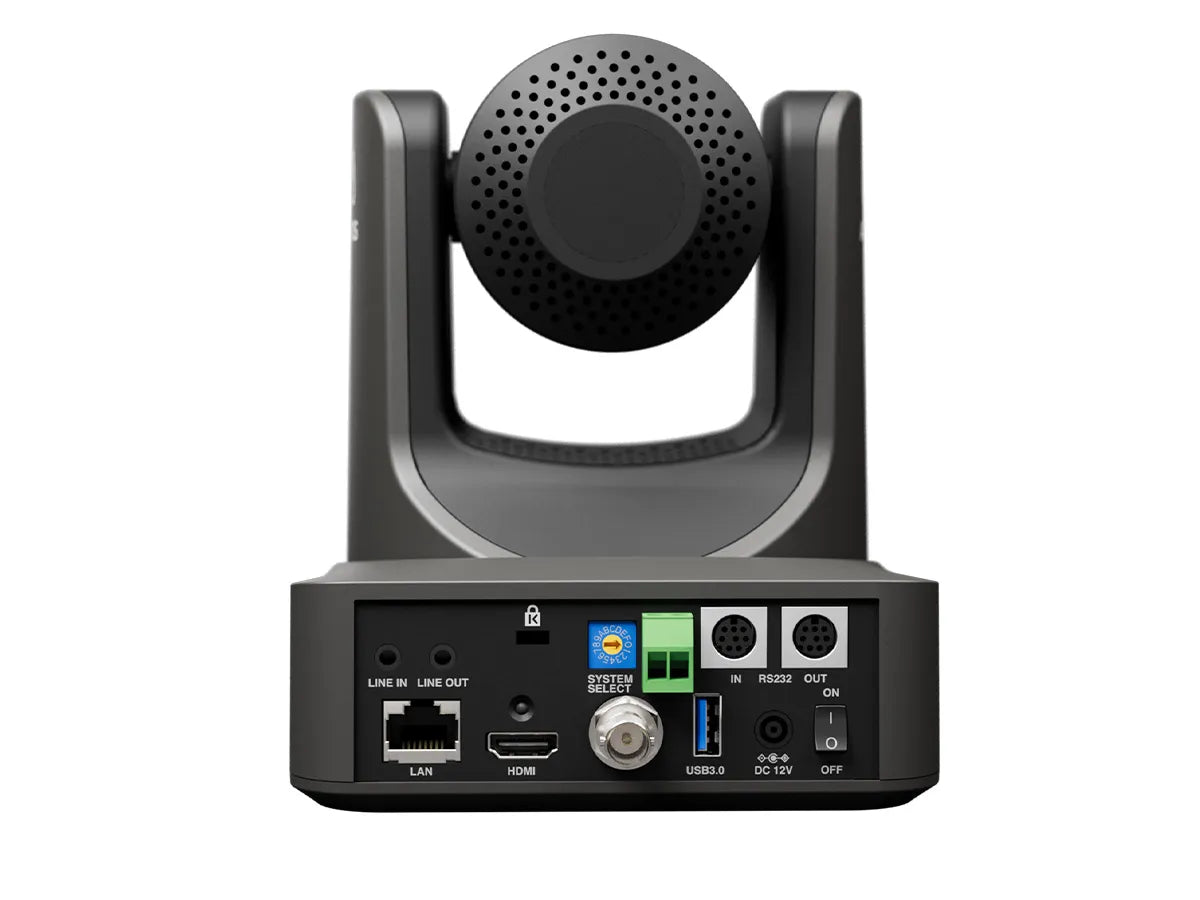

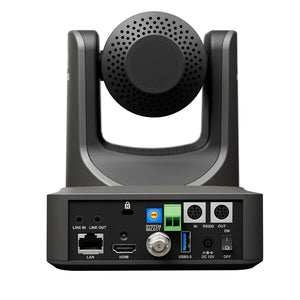

| INPUT / OUTPUT INTERFACES | |
| Line In: | 3.5mm audio interface |
| Line Out: | 3.5mm audio interface |
| RS-485: | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT: | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network: | 10M/100M Adaptive Ethernet Port |
| USB: | USB 2.0: Type A |
| SDI: | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI: | HDMI version 1.3 |
| Power Jack: | JEITA type (DC IN 12V) |
| Tally Indicator: | Yes |
