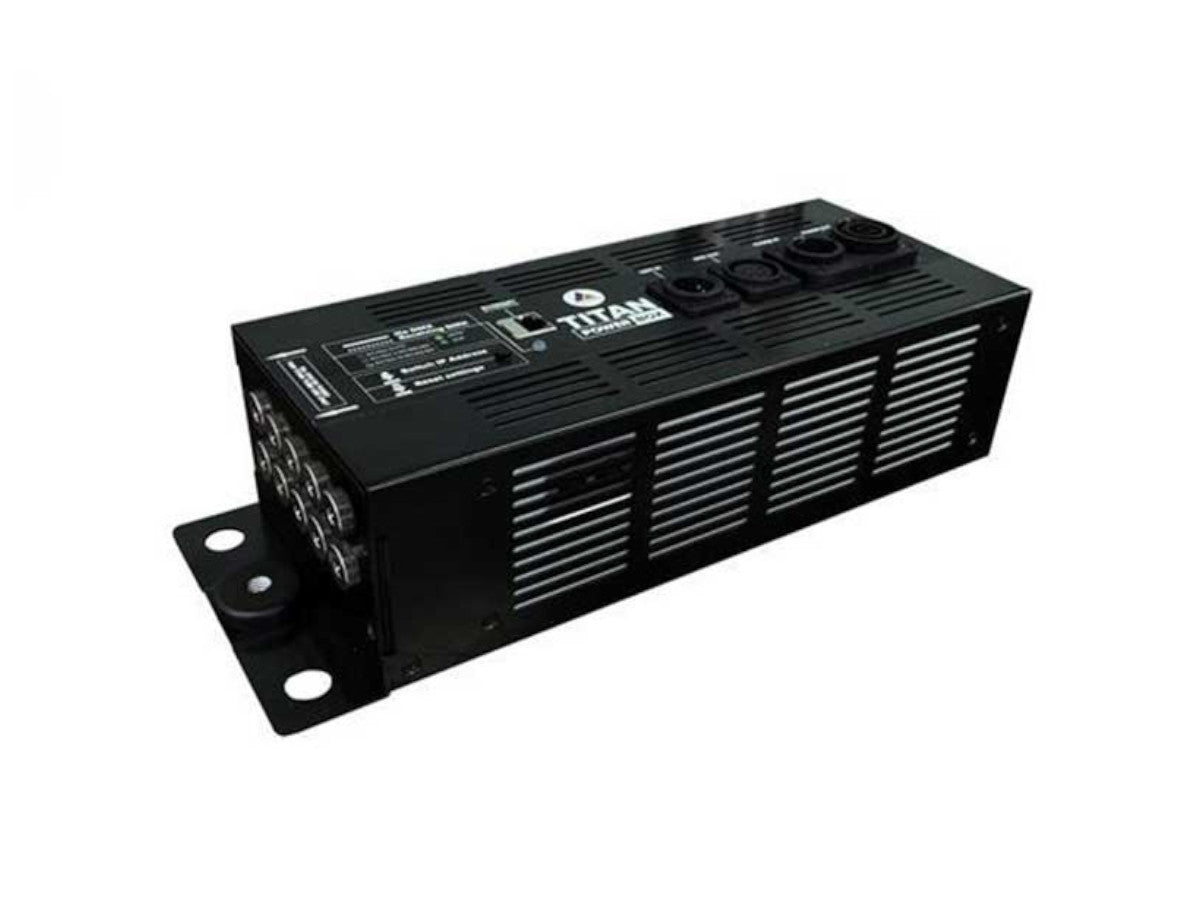

Astera Titan Tube PowerBox
Astera Titan Tube PowerBox
£718.03 GBP inc VAT
£718.03 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The PowerBox is an efficient tool to wire your Titan Tubes during jobs with power and data whenever you don't want to use them wirelessly. In addition, the PowerBox can be stored inside the Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.
Input
The PowerBox has a Powercon True1 input and output and a 5-pin XLR input and output. Furthermore, it has an FJ45 port for Art-Net and sACN and converts the signals to DMX.
Output
Up to 10 Titan Tubes can be connected to each PowerBox with a special power+data cable. The maximum cable length is 15m.
Installation
The PowerBox is designed to be placed on a floor or hung in a truss. It has a 3/8'' thread that can be removed to allow 1/2'' clamps to be attached (same as AX5). In addition, it has holes for safety leashes.
- Designed to wire your Titan Tubes
- Can be stored inside the Titan Tube Charging case
- Up to 10 Titan Tubes can be connected to each PowerBox
- Powercon True1 input and output
- 5-pin XLR input and output
- RJ45 port for Art-Net and sACN
| AC Input | 100-240 VAC, 50/60 Hz 4.4 A/115 VAC, 3 A/230 VAC |
|---|---|
| AC Connector | PowerCON TRUE1 IN/OUT |
| DC Output | 10 x 2 A / 24 VDC |
| DC Connector | 10 x DC Barrel (5.5 mm / 2.1 mm) |
| Data Input | XLR-DMX, ART-Net (1 Universe), sACN (1 Universe) |
| Data Output | DMX via 10 x DC sockets – DMX via 5-.Pin XLR |
| Data Sockets | 5-pin XLR IN/OUT, RJ45 input |
| Housing Material | Metal |
| IP Rating | IP20 |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F |
| Weight | 3.8 kg / 8.37 lbs |
| Dimensions L x W x D | 321 mm x 125 mm x 90.7 mm / 12.63" x 4.92" x 3.57" |
| Mounting Options | 3/8" – 16 UNC thread/ 1/2" hole |
- 1x Titan PowerBox (FP1-PWB)
- 8x Set of 8 DC Charging Cables (FP1-CHRCSE-SCS)
- 1x PowerCON TRUE1 cable (True1)
