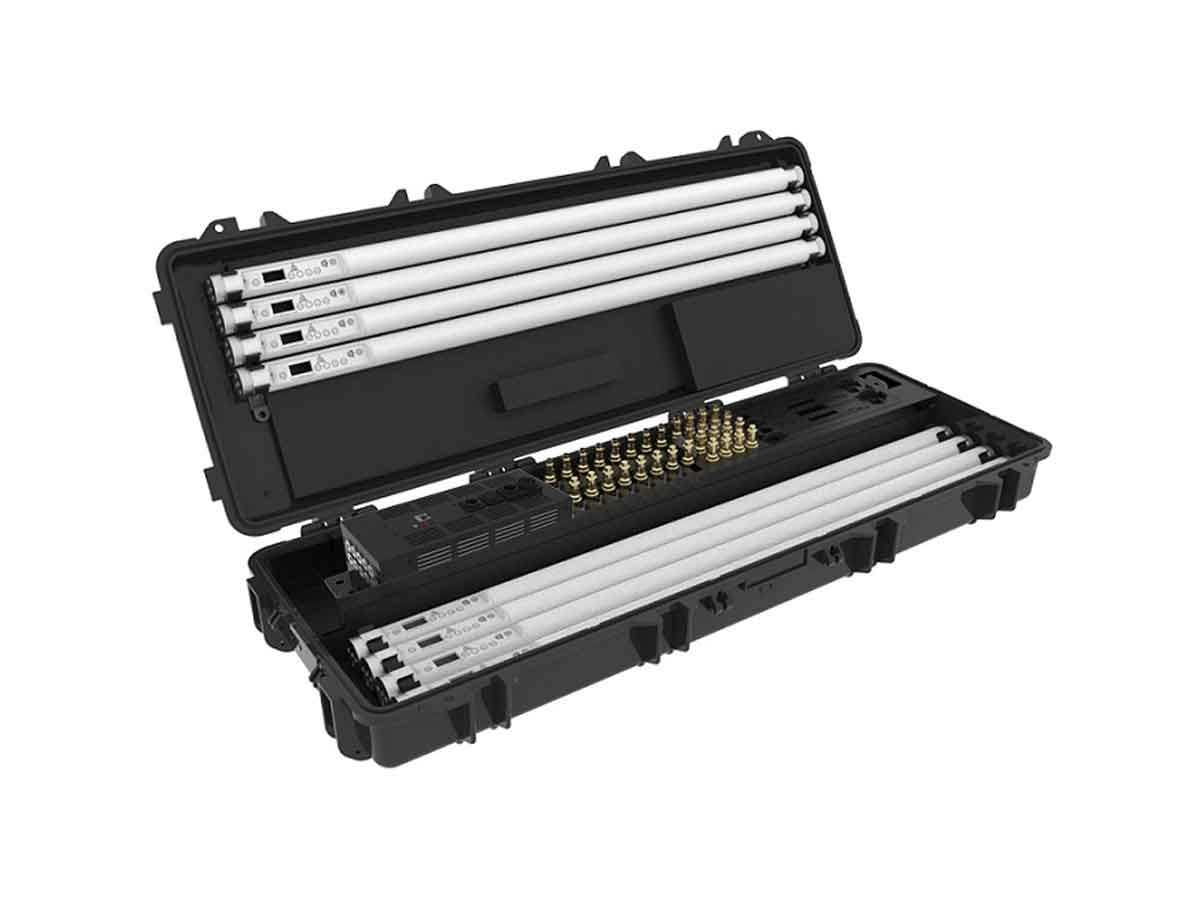

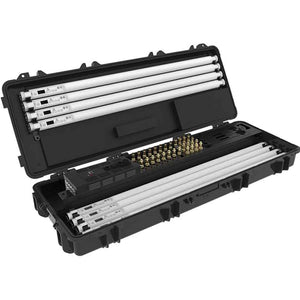

Astera Set of 8 Titan Tubes w/ Hard Case

Astera Set of 8 Titan Tubes w/ Hard Case

SKU: AST-ASPFP1-BTB-SET
£5,983.41 GBP ex VAT
£7,180.09 GBP inc VAT
ex VAT £5,983.41 GBP ex VAT
£7,180.09 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The ultimate film lighting tube for TV, cinema, and photography.

Film Lighting Tube | Titan Tube was especially designed for the Film, Broadcasting and Cinema industries. Optimized for an ultra-high TLCI, a very high CRI and peak brightness, colors as well as Hue, Saturation and Intensity can be set directly on the tube. In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.

***ART7 AsteraBox CRMX needed to control TitanTube with the Astera App**

  • Talkback+:  Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Seamless Runtime:  Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
  • TruColor Calibration: Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
  • Effects:  Quickly build programs out of colors and effects, trigger them or make them match a beat.
  • Flicker Free: Scrambled PWM technology to avoid flickering when filming.
  • Green/Magenta Correction:  Adjust green/magenta during content creation to reduce postproduction work.
  • Scheduled StandBy:  Switch lights into power-saving standby and schedule them to wake up when the production starts.
  • Dynamic PowerBoost:  This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
  • Emergency Lights:  Switches to white light when AC power is cut to keep your event save
  • Anti-Theft:  The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • DJ Feature:  Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • Other Features:  The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
Titan Tube Specs
Order Code
FP1-BTB
LED Engine
Titan LED Engine
Colors
RGBMintAmber
Total LED Power
72 W
LED Power draw
48 W
Luminous Flux 3200K
2535 lm
Luminous Flux 4000K
2900 lm
Light Output 3200 K @ 1m
708 lx
Light Output 4000 K @ 1m
785 lx
CRI(Ra)/TLCI 3200-6500K*
≥96
Beam Angle
135° x 115°
Field Angle
175° x 160°
Strobe
0-25 Hz
Pixel
16
Battery Runtime
Up to 20 hours
Battery Runtime Max Brightness
1h 45min
Battery Lifetime
70 % after 300 cycles
Charging Time (nominal)
3 hours
DC Input
24 VDC – 2 A
DC Connector
5.5 mm x 2.1 mm
AC Input
No
AC Connector
No
Wired DMX
Yes
CRMX Receiver
Built-in
BluetoothBridge BTB
Yes
Wireless Protocols
CRMX, UHF, Bluetooth, WiFi
Wireless Range
CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control
Yes
ControlSync
No
TouchSlider
No
Housing Material
Polycarbonate, metal end caps
IP Rating
IP65 (only with FP1-SP)
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
1.35 kg / 3 lbs
Dimensions
Ø43 mm x 1035 mm/ Ø1.7” x H40.7”
Mounting Options
2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand
Kit Specs
Dimensions (L x W x D) 1140 mm x 442.5 mm x 149.5 mm / 44.88" x 17.42" x 5.89"
Weight (Full) 35 kg / 77.2 lbs
  • 8x FP1 Titan Tube (FP1)
  • 1x PowerBox (FP1-PWB)

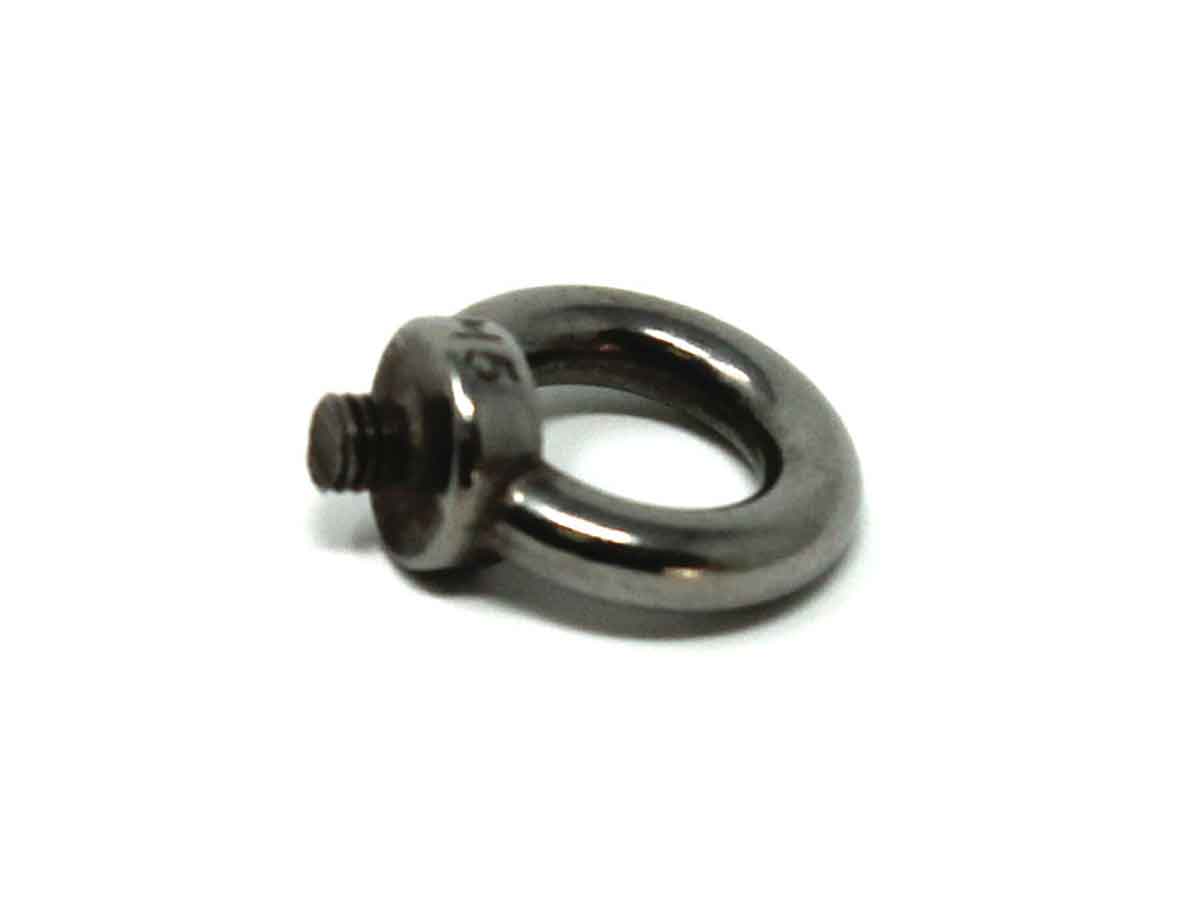

  • 16x EyeBolts (FP1-EBLT)

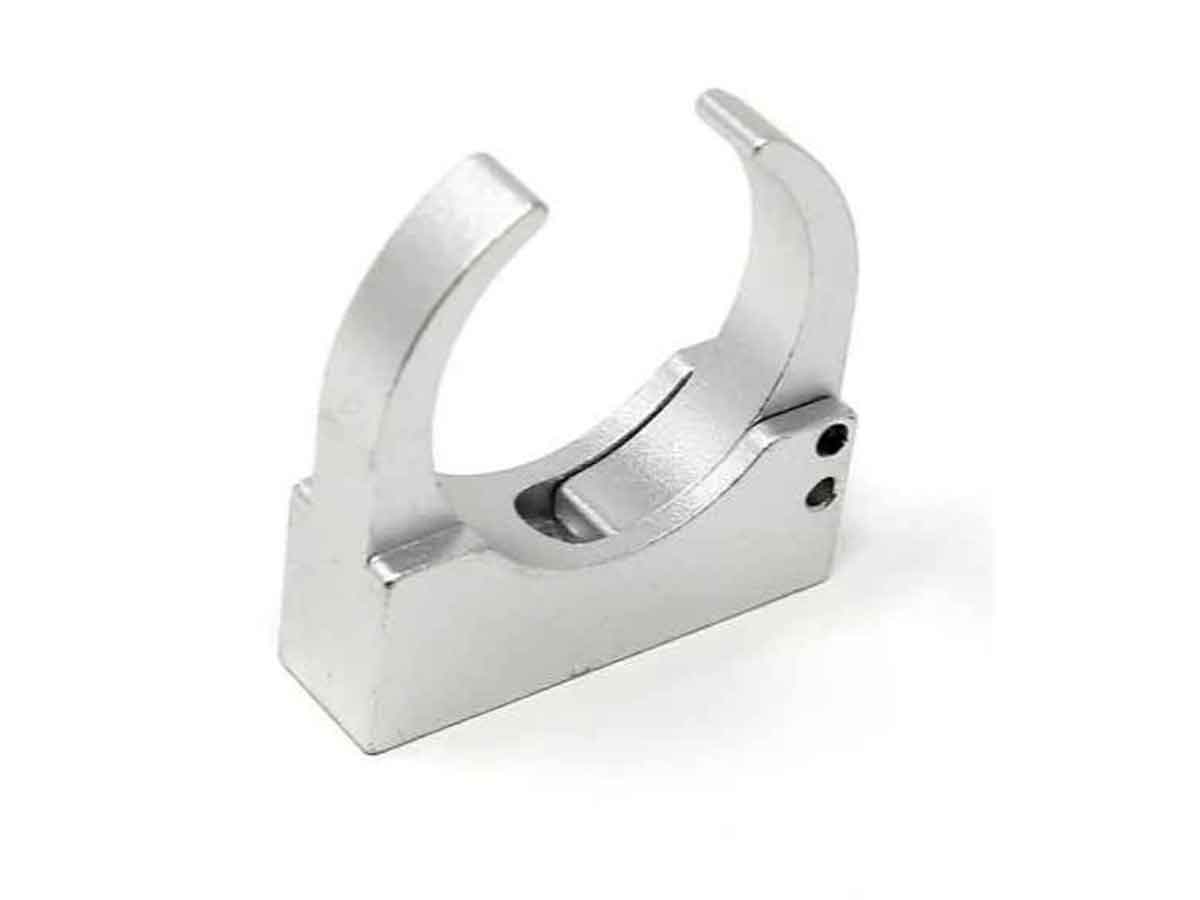

  • 16x Holder (AX1-H)

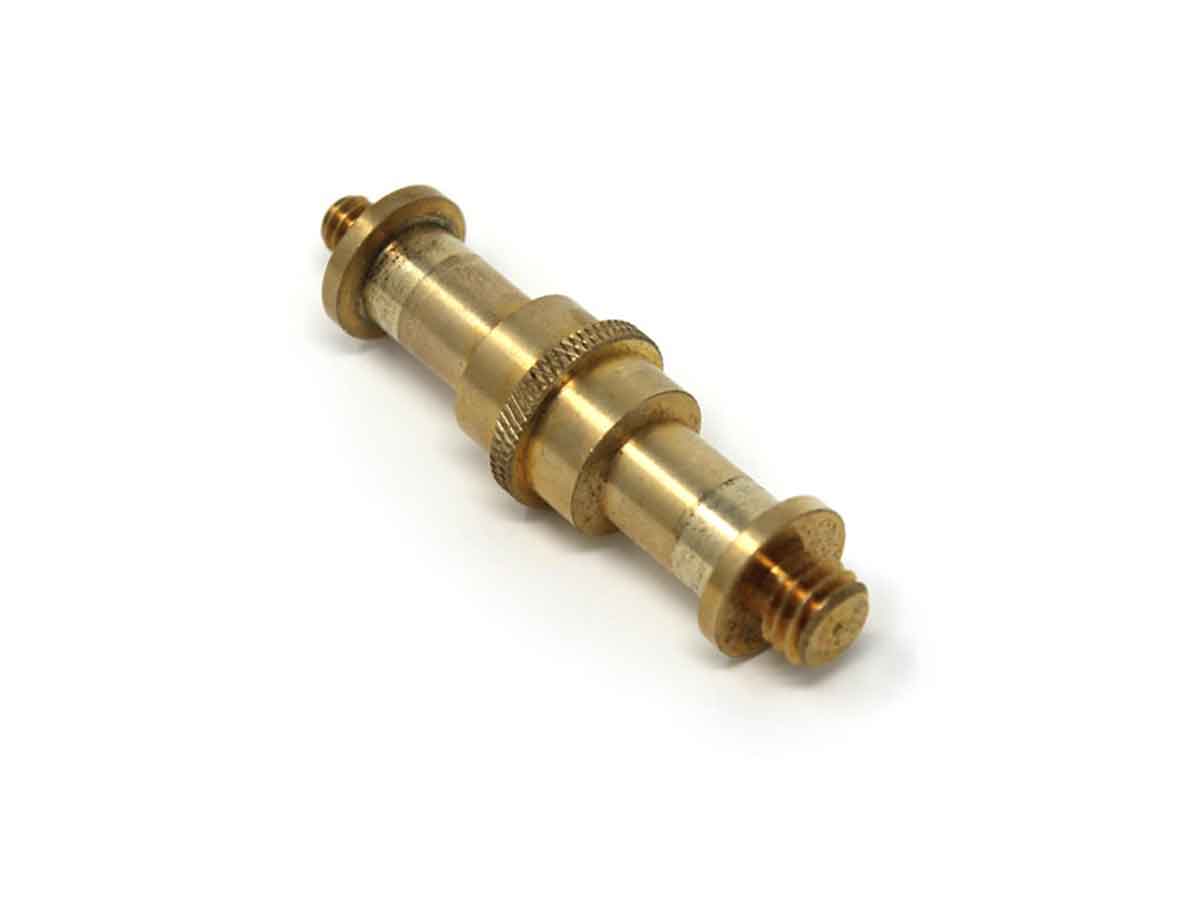

  • 16x Babypin (AX1-BLT)
  • 8x Stand (AX1-STD)
  • 1x Charging case for Titan Tube
  • 1x PowerCON TRUE1 cable
  • 8x DC cables
  • 8x Waterproof covers for charging port (FP1/2-SP)
