Astera Set of 4 Hyperion LED Tubes with Charging Case
Astera Set of 4 Hyperion LED Tubes with Charging Case
SKU:
AST-ASPFP3-SET
Regular price
£4,376.52 GBP ex VAT
£5,251.82 GBP inc VAT
£5,251.82 GBP inc VAT
Regular price
ex VAT
Sale price
£4,376.52 GBP ex VAT
£5,251.82 GBP inc VAT
Unit price
per
£5,251.82 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
It's a Titan - just Bigger

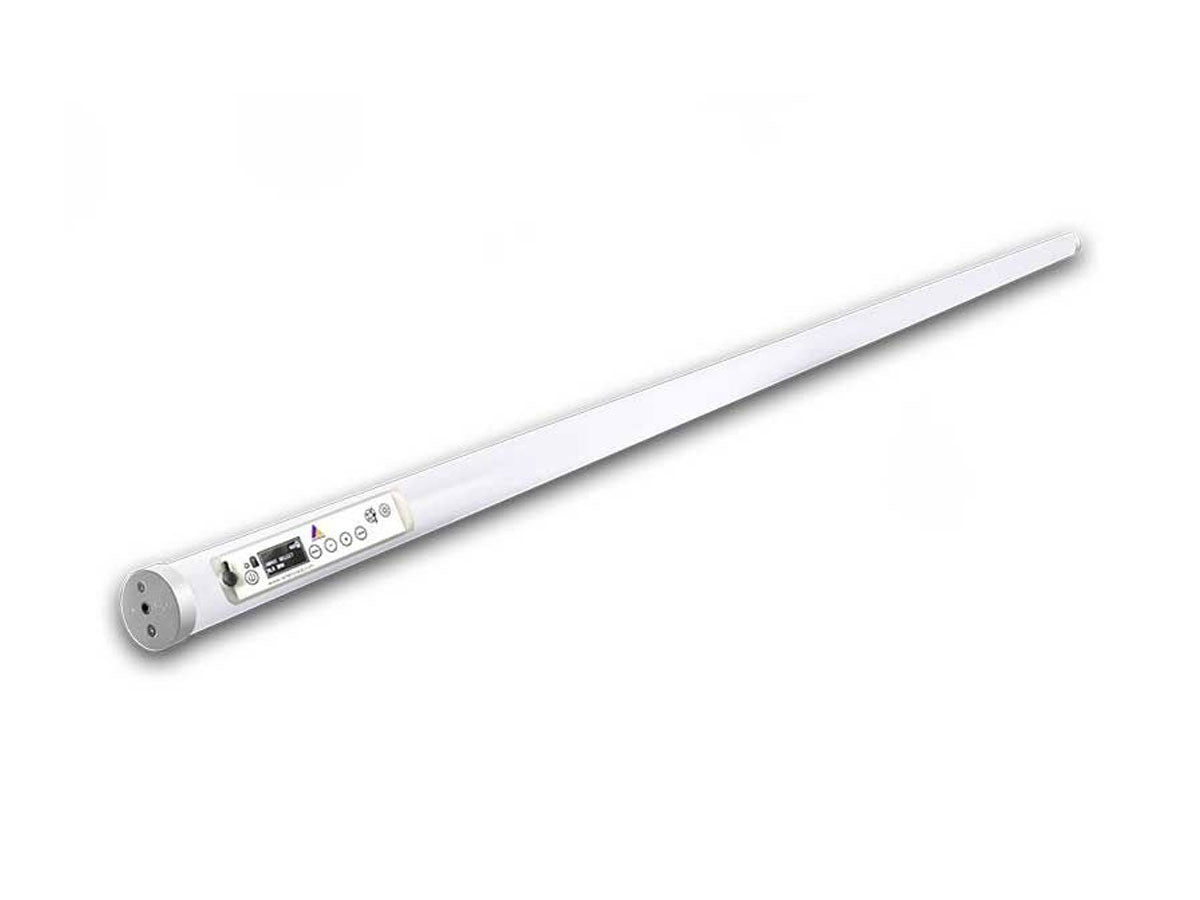

After the enormous success of the Titan Tube, Astera has created the double length Hyperion Tube which measures 2031mm and 79.96 inches. Double the LEDs, double the batteries, double the brightness, double the pixels and the same high-quality light with App, CRMX and on-tube control and wired DMX option.
-
32 Pixels - 32 individually controllable pixels
-
Tunable White with range from 1,750K to 20,000K
-
Ultra High Colour Rendering TLCI ≥96, CRI ≥96, CRI Re≥90 from 3200K to 6500K
-
Boost Mode - Ultra-bright when displaying white colour for 2h or while connected to AC
-

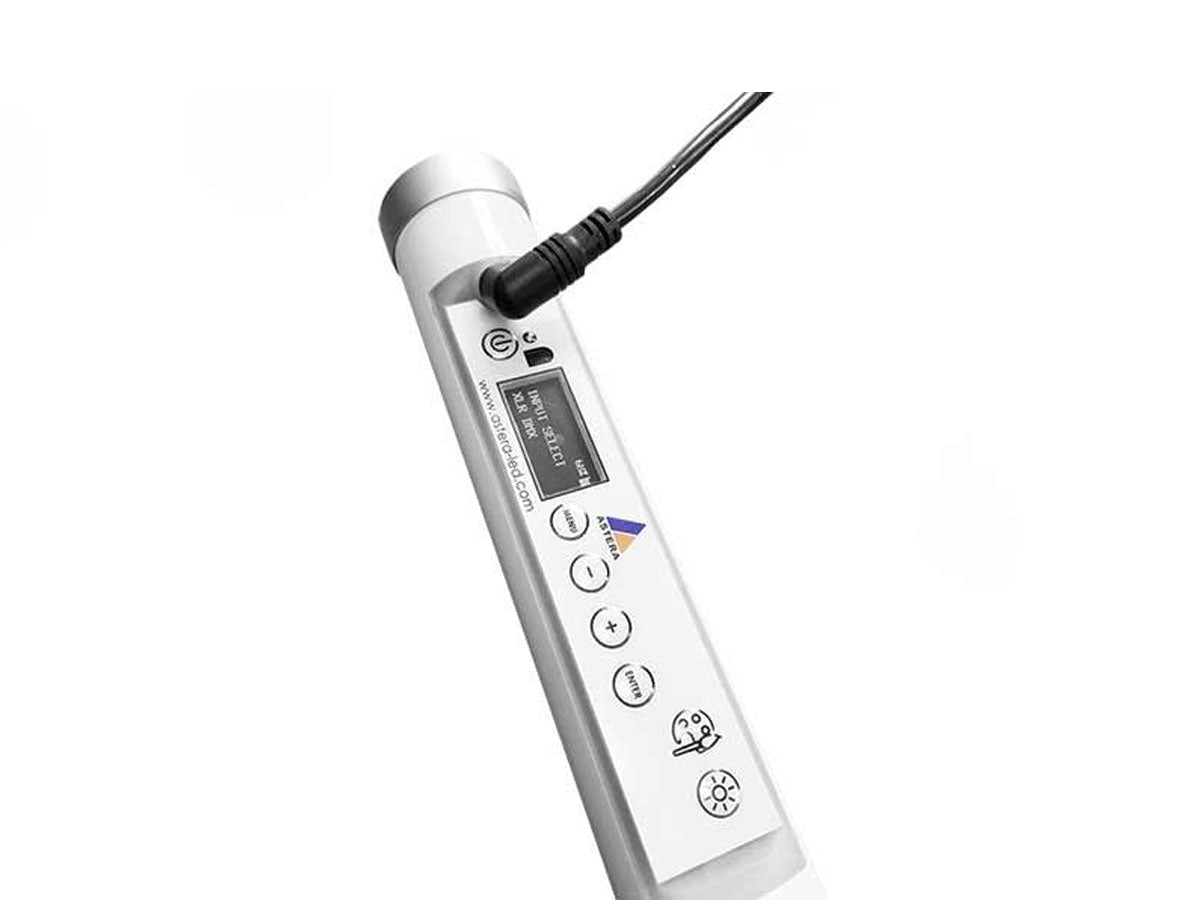

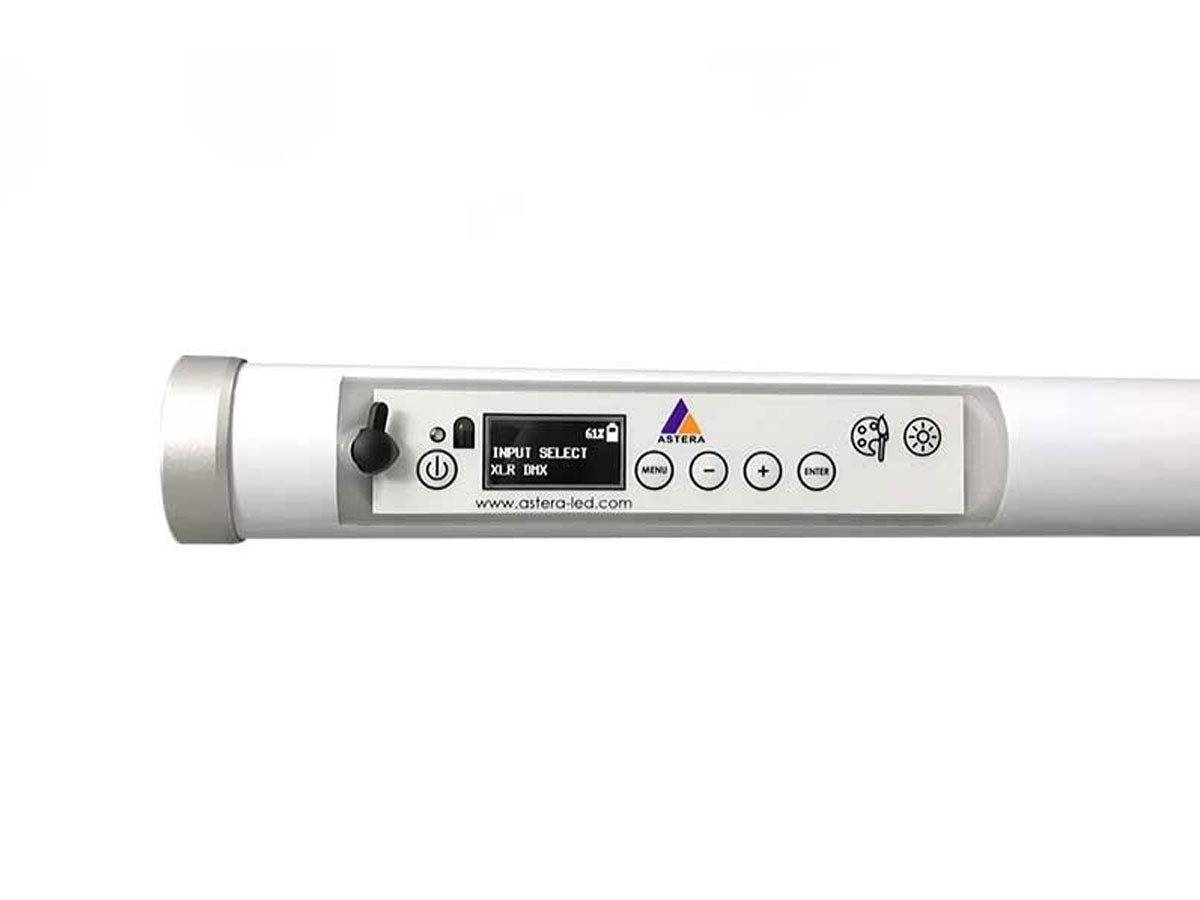

Backside Display - Quick access to DMX setup, colours and hue, saturation, intensity control
-
Wired Data Connection (+Wireless) DMX, Art-Net, sACN and power can be distributed via the PowerBox
-
Mounting accessories - Custom holders, stands etc. allow easy fixation for any production
Astera System
A smart control system of your Film Lighting Tubes. Infrared remote, wireless DMX and app work together to enable big setups. Your entire installation can be set up, monitored and adjusted in a fast and convenient way.
Control Hyperion Tube
Create complex programs out of colours, effects, and settings. Hyperion Tube will remember and repeat these effects without requiring a constant wireless link.
Create complex programs out of colours, effects, and settings. Hyperion Tube will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.
Monitor
Keep a complete overview of the status and all settings of your Titan Tubes while you operate them. View battery status, radio signal, DMX address and which lights you have targeted.
Keep a complete overview of the status and all settings of your Titan Tubes while you operate them. View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual Helios Tubes or Astera Event Spotlights and even get informed if a light is being moved or switched off. This works while you control lights by the app but also if Helios and Titan Tubes are controlled via DMX.
Set-Up Faster
Set up your Film Light conveniently out of the distance. Set DMX address and DMX footprint for one or several Helios, Titan Tube or Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.
Set up your Film Light conveniently out of the distance. Set DMX address and DMX footprint for one or several Helios, Titan Tube or Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.
LumenRadio
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.
Compatibility
Astera included the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.
Astera included the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.
PowerBox
It is an efficient tool to wire your Helios and Titan Tubes during jobs with power and data whenever you don’t want to use them wirelessly. In addition, the PowerBox can be stored inside the Helios and Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.
It is an efficient tool to wire your Helios and Titan Tubes during jobs with power and data whenever you don’t want to use them wirelessly. In addition, the PowerBox can be stored inside the Helios and Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.
Input
This device has an Powercon True1 input and output and a 5-pin XLR input and output. Furthermore it has an RJ45 port for Art-Net and sACN and converts the signals to DMX.
This device has an Powercon True1 input and output and a 5-pin XLR input and output. Furthermore it has an RJ45 port for Art-Net and sACN and converts the signals to DMX.
Output
Up to 10 Titan Tubes can be connected to each PowerBox with a special power+data cable. The maximum cable length is 15m.
Up to 10 Titan Tubes can be connected to each PowerBox with a special power+data cable. The maximum cable length is 15m.
Installation
The PowerBox is designed to be placed on a floor or hung in a truss. It has a 3/8” thread that can be removed to allow 1/2” clamps to be attached (same as AX5). In addition, it has holes for safety leashes.
The PowerBox is designed to be placed on a floor or hung in a truss. It has a 3/8” thread that can be removed to allow 1/2” clamps to be attached (same as AX5). In addition, it has holes for safety leashes.
Talkback+
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
Effects
Quickly build programs out of colours and effects, trigger them or make them match a beat.
Quickly build programs out of colours and effects, trigger them or make them match a beat.
Scheduled Standby
Switch lights into power-saving standby and schedule them to wake up when the production starts.
Switch lights into power-saving standby and schedule them to wake up when the production starts.
Anti-Theft
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
Seamless Runtime
Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
Flicker Free
Scrambled PWM technology to avoid flickering when filming.
Scrambled PWM technology to avoid flickering when filming.
Dynamic PowerBoost
This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colours.
This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colours.
DJ Feature
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
TruColour Calibration
Individually calibrated lights lead to 100% colour consistency and exact colour reproduction of colour temperature and filter gels.
Individually calibrated lights lead to 100% colour consistency and exact colour reproduction of colour temperature and filter gels.
Green/Magenta Correction
Adjust green/magenta during content creation to reduce postproduction work.
Adjust green/magenta during content creation to reduce postproduction work.
Emergency Lights
Switches to white light when AC power is cut to keep your event safe
Switches to white light when AC power is cut to keep your event safe
Other Features
The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
- 32 Pixels - 32 individually controllable pixels
- Tunable White with range from 1,750K to 20,000K
- Ultra High Colour Rendering TLCI ≥96, CRI ≥96, CRI Re≥90 from 3200K to 6500K
| Hyperion Tube Specs | ||
|---|---|---|
| Order Code | FP3-BTB | |
| LED Engine | Titan LED Engine | |
| Colors | RGBMintAmber | |
| Total LED Power | 144 W | |
| LED Power Draw | 92 W | |
| Luminous Flux 4000K | 5 800 Lumens | |
| Light Output 4000 K @ 1m | 1 570 Lux | |
| CRI (Ra)/ TLCI 3200- 6500 K* | ≥96 | |
| Beam Angle | 135° x 115° | |
| Field Angle | 175° x 160° | |
| Strobe | 0 – 25 Hertz | |
| Pixels | 32 | |
| Battery Runtime | up to 20 hours | |
| Battery Lifetime | 70 % after 300 cycles | |
| Charging Time (nominal) | 3 hours | |
| DC Input | 24 VDC – 4 A | |
| DC Connector | 5.5 mm x 2.1 mm | |
| Wired DMX | Yes (via FP3-DTL / PWB-2-86) | |
| CRMX Receiver | Built-in | |
| BluetoothBridge BTB | Built-in | |
| Wireless Protocols | CRMX, UHF, Bluetooth, WiFi | |
| Wireless Range | CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds | |
| Infrared Control | Yes | |
| Housing Material | Polycarbonate, metal end caps | |
| IP Rating | IP65 (only with FP1-SP) | |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F | |
| Weight | 2.9 kg / 6.39 lbs | |
| Dimensions | 2 031 mm x Ø 43 mm / 79.9" x Ø 1.7" | |
| Mounting Options | 2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread) | |
| Kit Specs | ||
| Dimensions (L x W x D) | 2262 mm x 394 mm x 149 mm / 89.05" x 15.51" x 5.86" | |
| Weight (Full) | 34.4 kg / 75.8 lbs | |
- 4x FP3 Hyperion Tube
- 4x Power Supply Unit
- 1x DataLink
- 8x EyeBolts
- 8x Holder
- 8x BabyPin
- 4x WingPlate

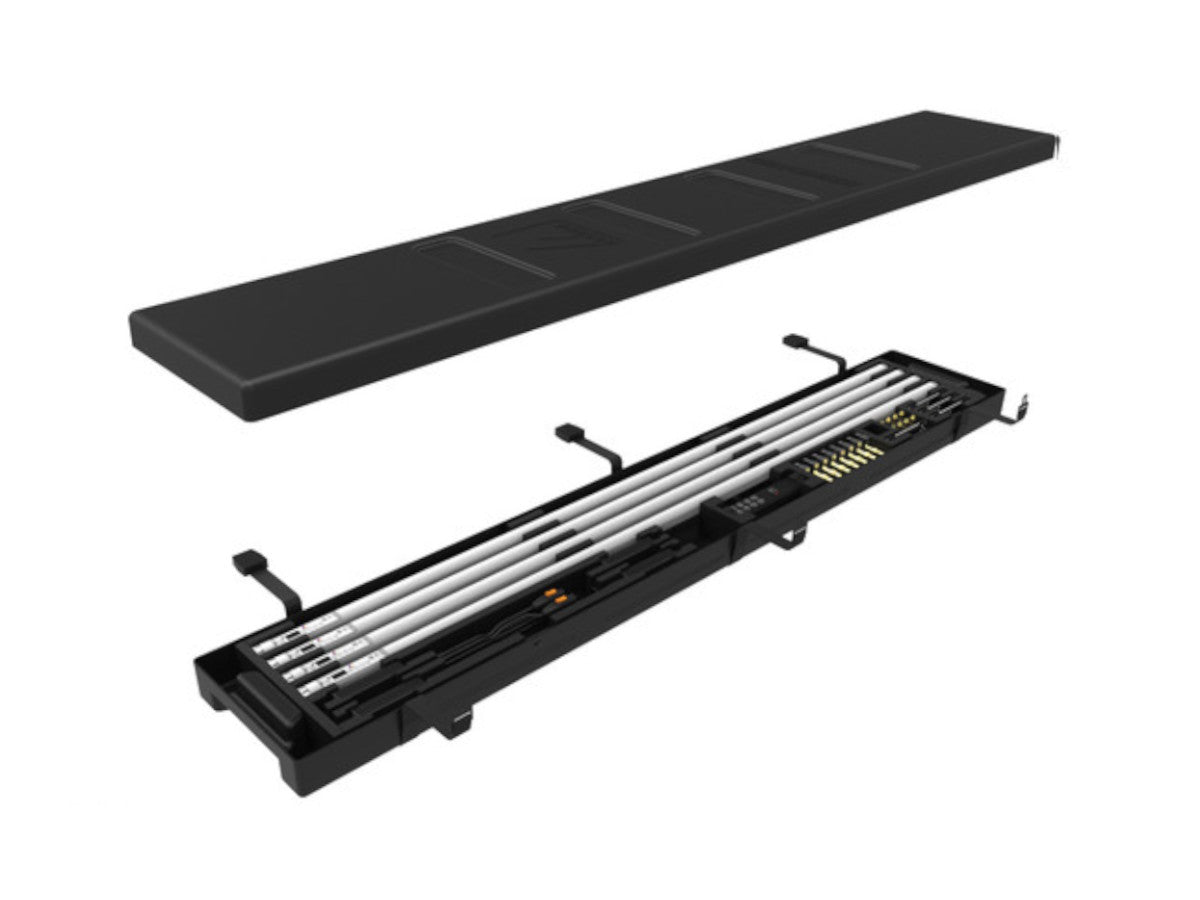

- 1x Charging case for Hyperion Tube
- 1x AC Distribution Cable
- 4x Waterproof cover for charging port
