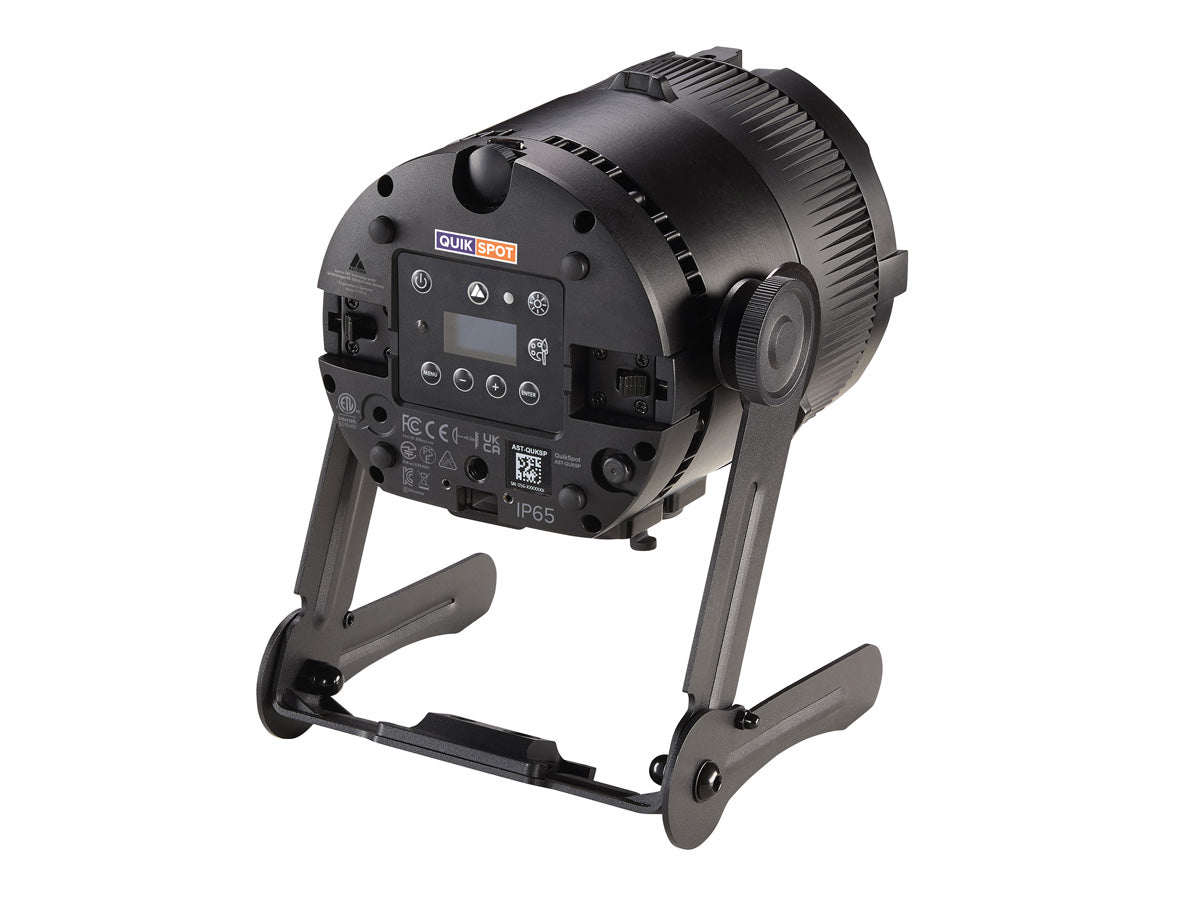

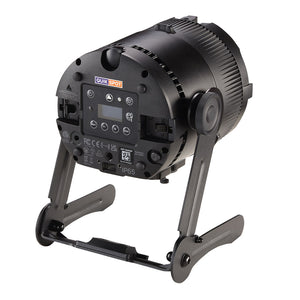

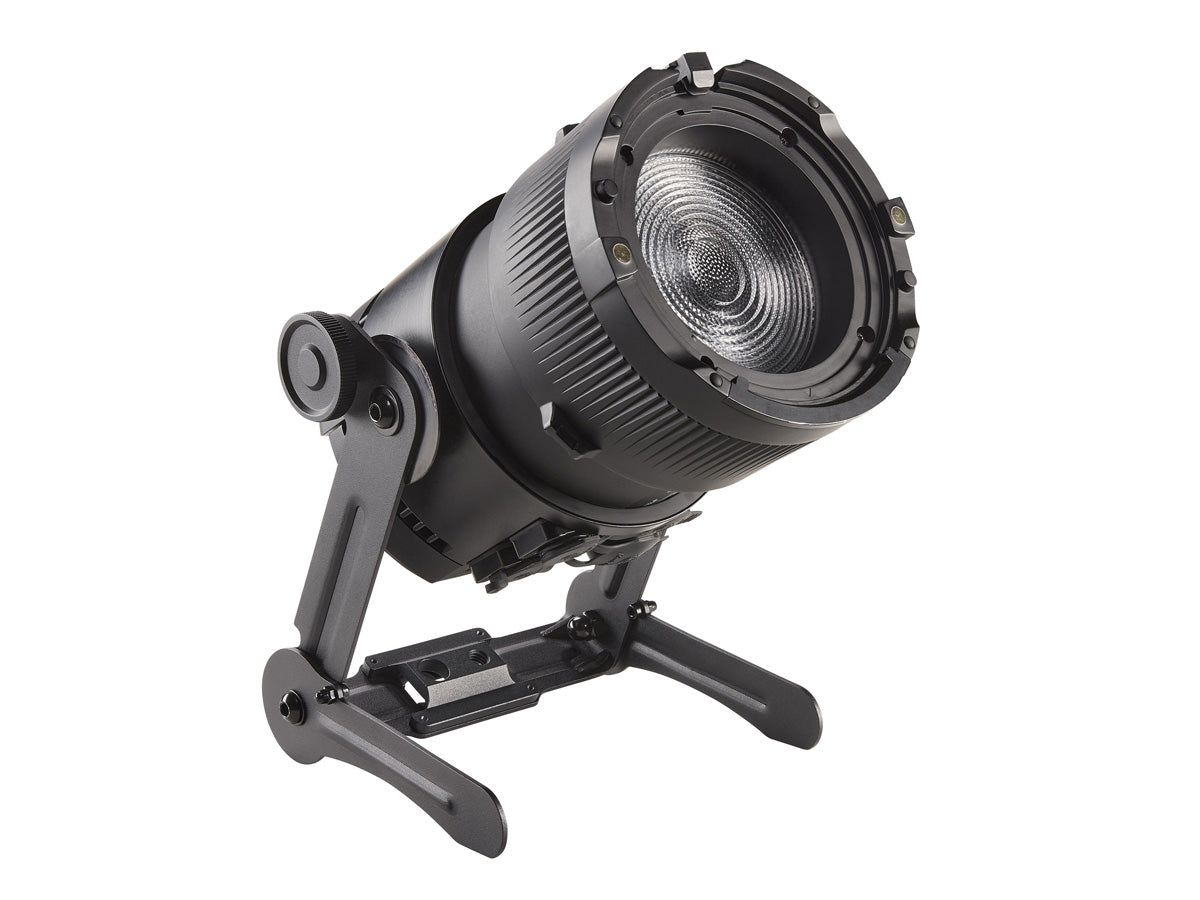

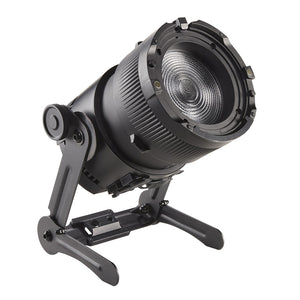

Astera QuikSpot

Astera QuikSpot

SKU: AST-ASPAST-QUKSP
Regular price £754.88 GBP ex VAT
£905.86 GBP inc VAT
Regular price ex VAT Sale price £754.88 GBP ex VAT
£905.86 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
QuikSpot is a battery-driven uplight, a precise zoomable Fresnel and a versatile, compact spotlight. With seamless integration into the Astera ecosystem, it’s the technician’s best friend, always ready to run and tackle any job. Available with a dedicated ChargingPlate and PrepBox, Removeable Yoke and SafetyLink-ready Barndoors.
Optimised Battery Runtime
Delivering 4.5 hours of maximum runtime with OutputGain activated, QuikSpot offers the best size-to-output wireless performance in its class. Charging and prepping is also extremely easy with the battery-driven PrepBox and its ChargingPlate.
Efficient Optical Design

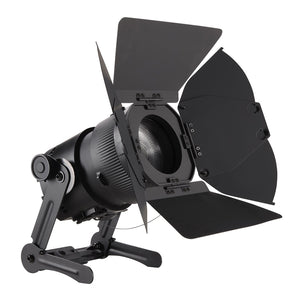

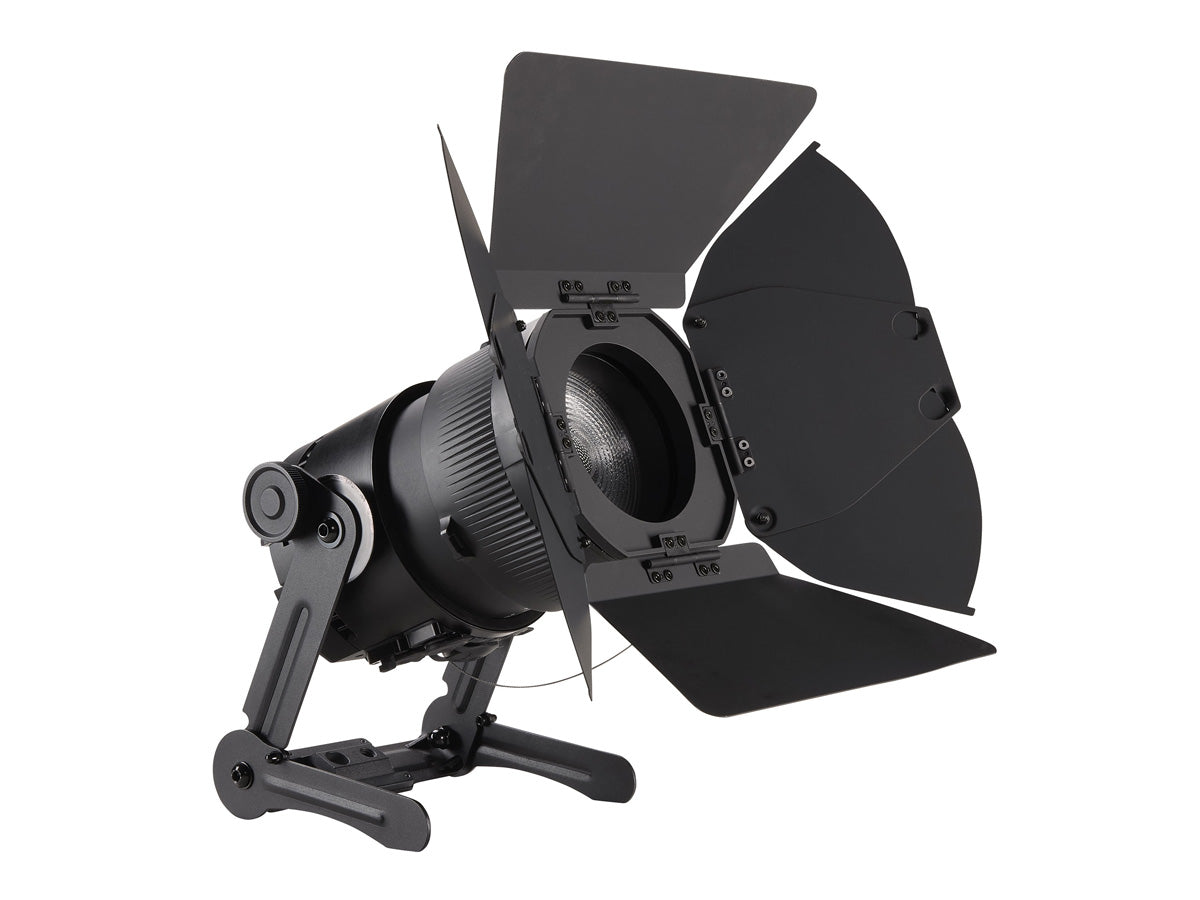

QuikSpot’s lens system is specifically designed for maximum brightness, while working as a high-quality Fresnel. Use it as a hard spotlight, flood it for wide angle coverage, use filters to shape the beam or attach the SafetyLink-ready Barndoors for precise cuts. No need for extra safety wires for your accessories: The precise 8-way Barndoor can rotate 360° while the integrated SafetyLink is attached to the QuikSpot’s housing.
Rigging Made Easy

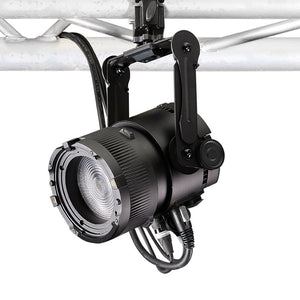

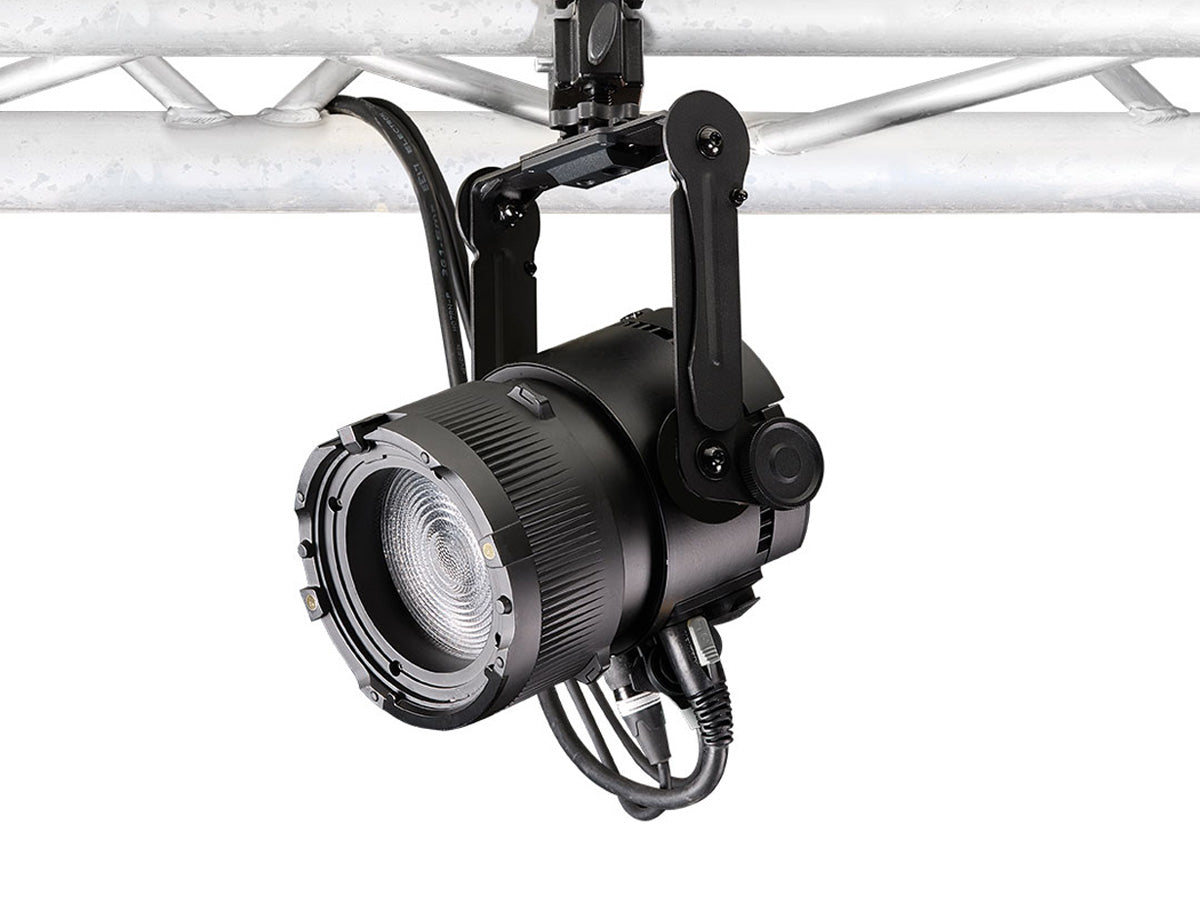

Whether hung or on the floor, QuikSpot is ready to rock: focus it with the removable Yoke or angle it with the integrated Kickstand, mount a pin in the back or add a TrackPin Compact to the airline track, attach a third-party clamp or use a FlexCover to blend the fixture into the surroundings.
Adjustable, Versatile Design
  • QuikTurn – As simple as it seems. Adjust QuikSpot’s beam angle from 13° to 60° by simply turning the barrel. QuikTurn will stop at 30° to indicate that you are in the middle of the zoom range.
  • Rotatable elliptical filter – While QuikSpot is designed to hold all existing AX5 filters and front attachments, it works especially well with the Rotatable 17° x 46° Elliptical Filter.
LED Engine: Titan LED Engine
Colours: RGBMintAmber
Output Gain: Yes
Total LED Power: 60 W
LED Power Draw: 35 W
CRI (Ra) /  TLCI 3200 - 6500k: ≥96
Strobe: 0 – 25 Hertz
Battery Runtime: up to 20 hours
Battery Runtime (Max. Brightness): 4.5 hours
Battery Lifetime: 70 % after 500 cycles
Charging Time (Nominal): 5 hours
AC Input: 100 – 240 VAC, 50/60 Hertz 115 VAC – 0.6 A / 230 VAC – 0.3 A
AC Connector: PowerCON TRUE1 IN/OUT
Power Consumption (Max.): 50 W
Wired DMX: Yes
CRMX Receiver: Built-in
BluetoothBridge (BTB): Built-in
Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
RDM Support: Wireless and wired
Infrared Control: Yes
PrepBox Compatible: Yes
IP Rating (Unwired): IP65
IP Rating (Wired): IP65
Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
Weight: 3450 g / 7.6 lbs
Dimensions: 164 mm x 164 mm x 182 mm / 6.45" x 6.45" x 7.16"
Mounting Options: AirlineTrack, 3/8"" – 16 UNC thread, Yoke (with 3/8"" – 16 UNC thread, 1/2"" hole)
