Astera PixelBrick Set of 8

Astera PixelBrick Set of 8

SKU: AST-ASPPB15-SET
£3,146.38 GBP ex VAT
£3,775.66 GBP inc VAT
ex VAT £3,146.38 GBP ex VAT
£3,775.66 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

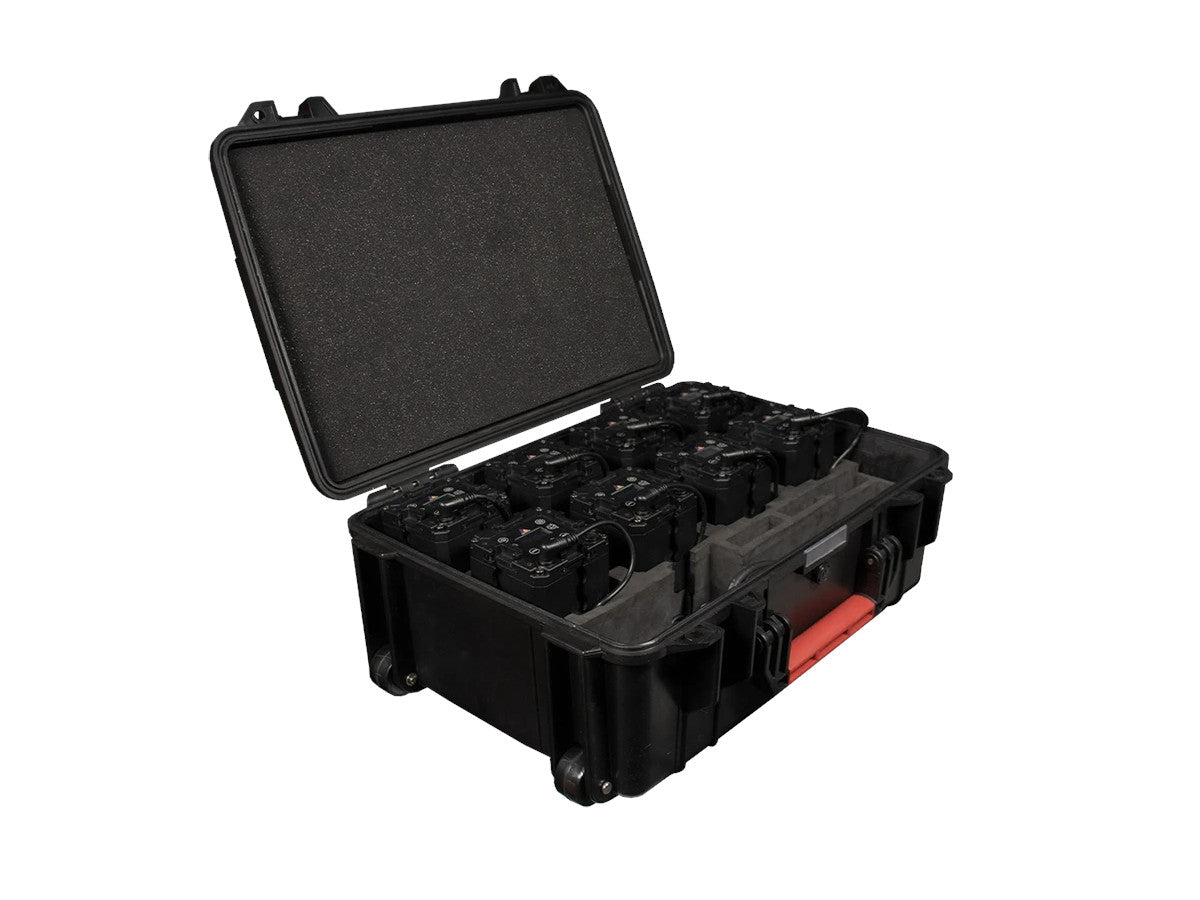

Kit of 8 PixelBricks with essential accessories stored in a durable protective plastic case with wheels and retractable handle. With the included PowerBox you can charge your lights in the case to get them ready for their next job. For longer installations, the PowerBox can be taken out of the case to supply power and data via the optionally available Power/Data Combination cables.

  • Seamless Runtime - To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.
  • Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.
  • Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Anti-Theft - When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.
  • Emergency Light - With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

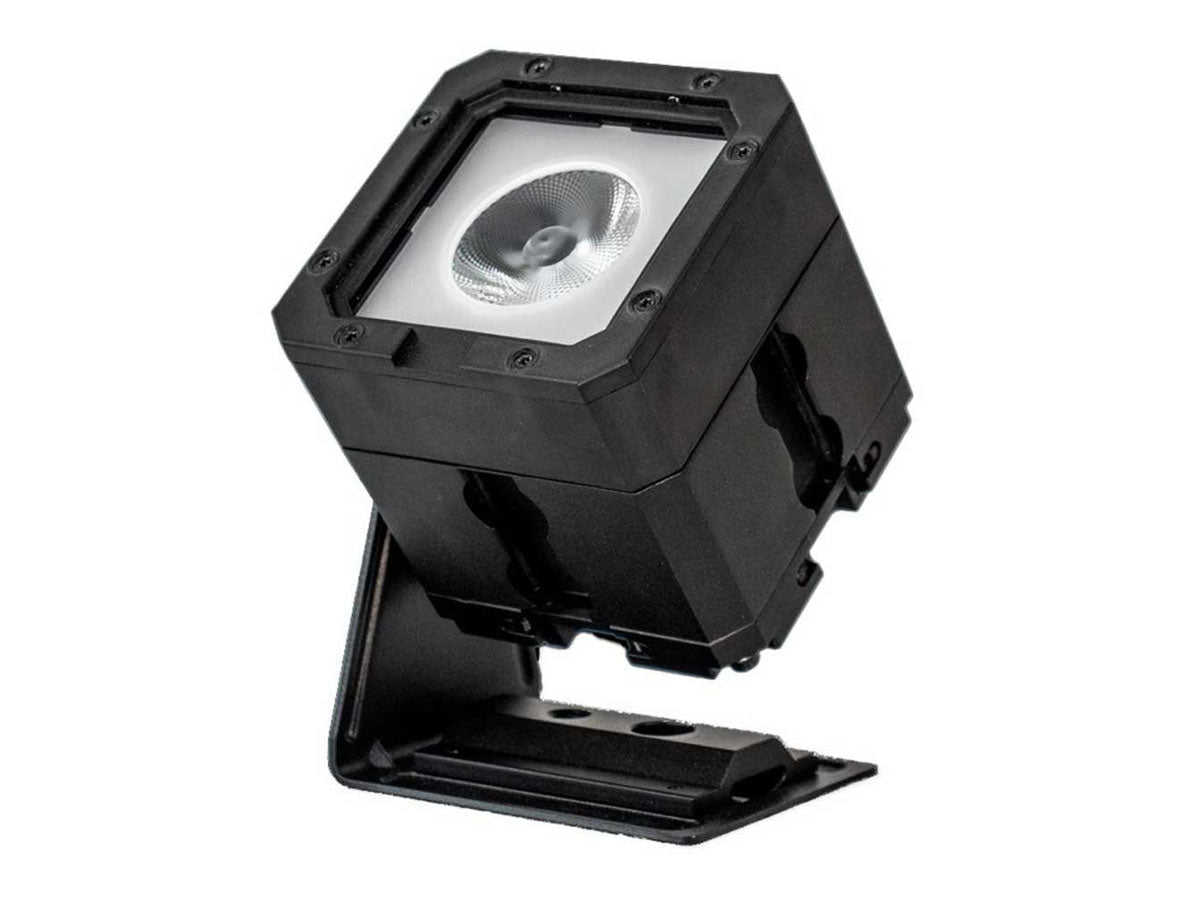

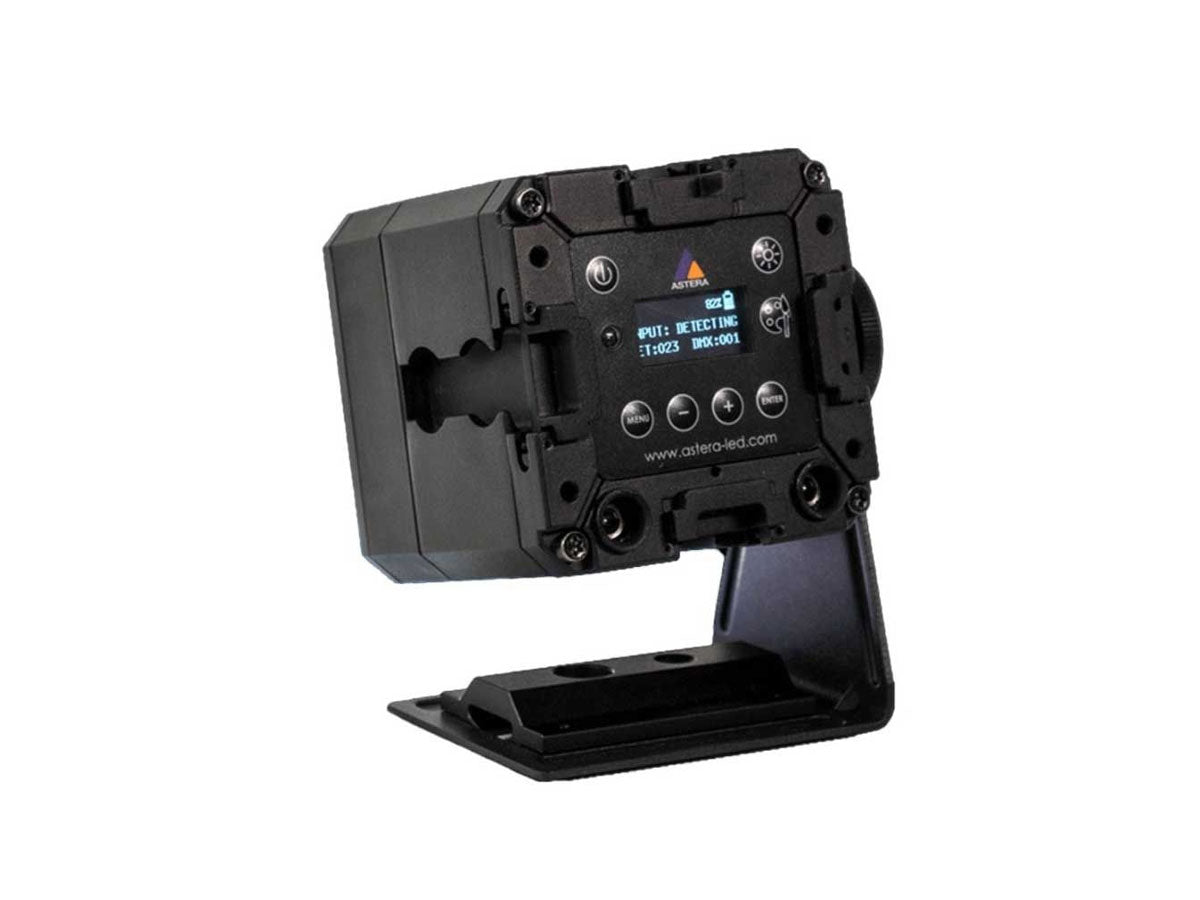

PixelBrick Specs
LED Engine
Titan LED Engine
Colors
RGBMintAmber
Total LED Power
15 W
LED Power Draw
12 W
Luminous Flux 2700K
405 lm
Luminous Flux 3200K
475 lm
Luminous Flux 5500K
395 lm
Light Output 2700 K @ 1m
6,178 lx
Light Output 3200 K @ 1m
7,144 lx
Light Output 5500 K @ 1m
5,985 lx
CRI (Ra)/ TLCI 3200- 6500 K*
≥96
Beam Angle
13°
Field Angle
25°
Strobe
0 – 25 Hz
Pixels
1
Battery Runtime
up to 20 hours
Battery Lifetime
70 % after 300 cycles
DC Input
24 VDC – 0.8 A
DC Connector
5.5 mm x 2.1 mm
AC Input
No
AC Connector
No
Power Consumption (max.)
20 W
Wired DMX
Yes via PWB-2-86 (FP1-PWB/ FP3-DTL)
CRMX Receiver
Built-in
BluetoothBridge BTB
Built-in
Wireless Protocols
CRMX, UHF, Bluetooth, WiFi
Wireless Range
CRMX/ UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control
Yes
ControlSync
No
TouchSlider
No
Housing Material
Aluminium
IP Rating
IP65
Ambient Operating Temperature
0 – 40 °C / 32 – 104 °F
Weight
1.12 kg / 2.47 lbs
Dimensions L x W x D
91 mm x 91 mm x 94 mm / 3.6" x 3.6" x 3.7"
Mounting Options
4x Airline Tracks, 4x M5 threads, BrickBracket
Kit Specs
Dimensions (L x W x D) 541.5 mm x 400 mm x 205.5 mm / 21.3" x 17.44" x 8.1"
Weight (Full) 16.3 kg / 36 lbs
Material ABS
  • 8x PB15 PixelBrick
  • 1x PowerBox
  • 8x BrickConnect
  • 8x 17° BeamSoftener
  • 8x 30° FloodFilter
  • 1x PixelBrick Charging Case
  • 1x PowerCON TRUE1 cable
  • 18x Waterproof covers for charging ports
