Astera Leo Fresnel

Astera Leo Fresnel

SKU: AST-ASPAF250
£2,858.63 GBP ex VAT
£3,430.36 GBP inc VAT
ex VAT £2,858.63 GBP ex VAT
£3,430.36 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included
EXPECTED RELEASE: SEPTEMBER 2023

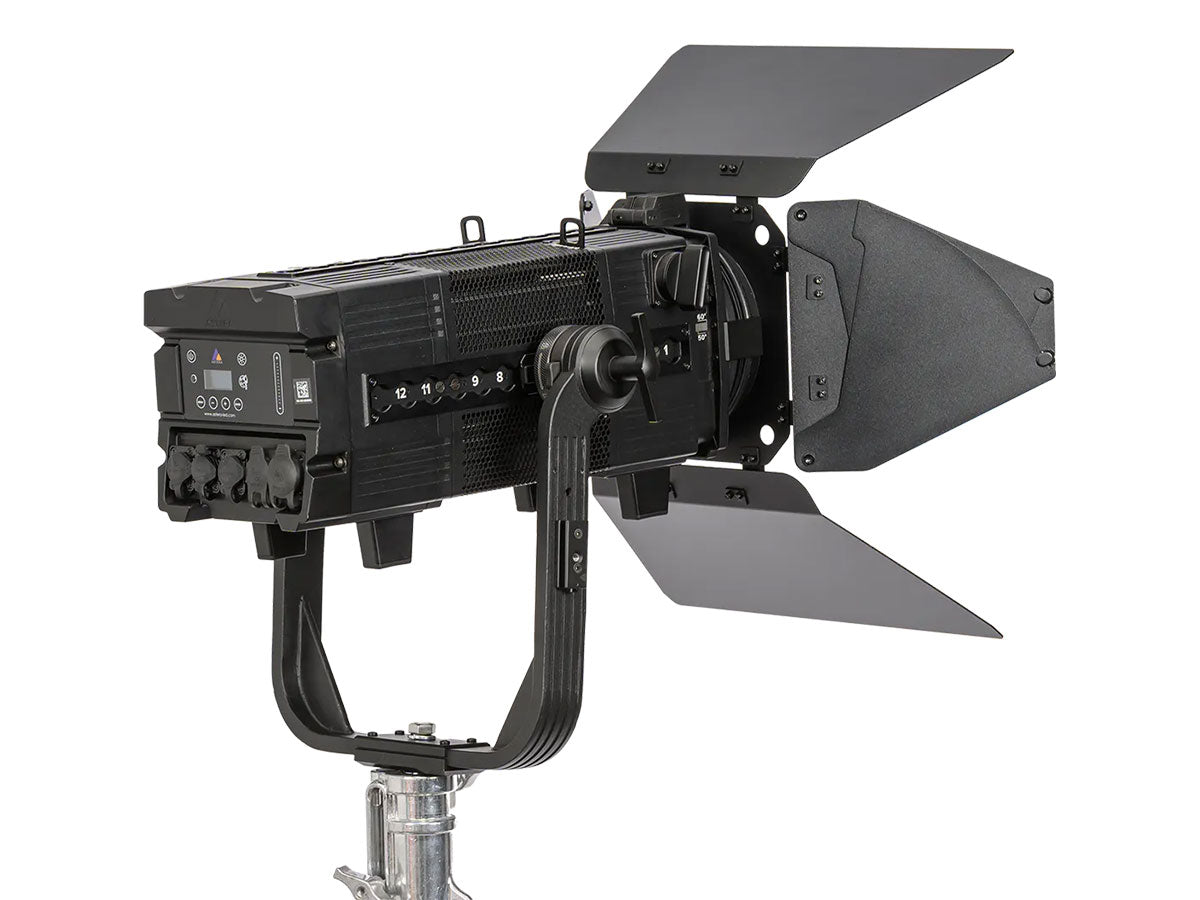

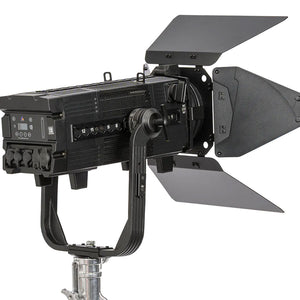

Astera’s LeoFresnel is as an exceptional solution for film, studio, and event lighting. LeoFresnel boasts an impressive output comparable to a traditional 1000W Tungsten Fresnel. With a beam angle of 15° to 60° without color fringing, wireless and wired DMX control, these lights offer impressive performance while consuming only 250 W. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.
Built-In Battery - 2 Hours on MAX Runtime
Unlike traditional Fresnels, this light has a built-in battery that lasts 2 hours displaying white colors on MAX Brightness. When a longer operation is needed, you can set the Seamless Runtime setting up to 20 hours. For longer installations, LeoFresnel can be connected to AC power via Powercon in+out sockets.
External Battery Option - With RuntimeExtender
For a longer operational time, one or two RuntimeExtender’s with V-Mount or Gold Mount battery can be connected. With one 14.4V battery, the light can be operated on reduced power. A single 26V battery or two 14.4V batteries allow full power output.
Battery Priority
When external batteries are connected, you can select if the light uses the internal or external battery first. This can be set directly on the lights display or via the AsteraApp.
Zoomable Fresnel
This next generation Fresnel lens works in conjunction with a light pipe that is built into the fixture. It creates an even beam with steep fall-off and no chromatic aberration or color fringing. The manual zoom ranges from 15° – 60° and allows it to be opearated as spotlight, washlight and anything in between.
Barndoor

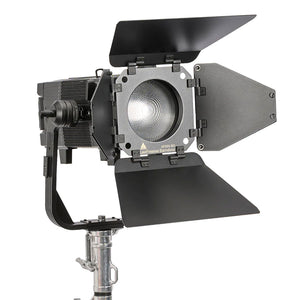

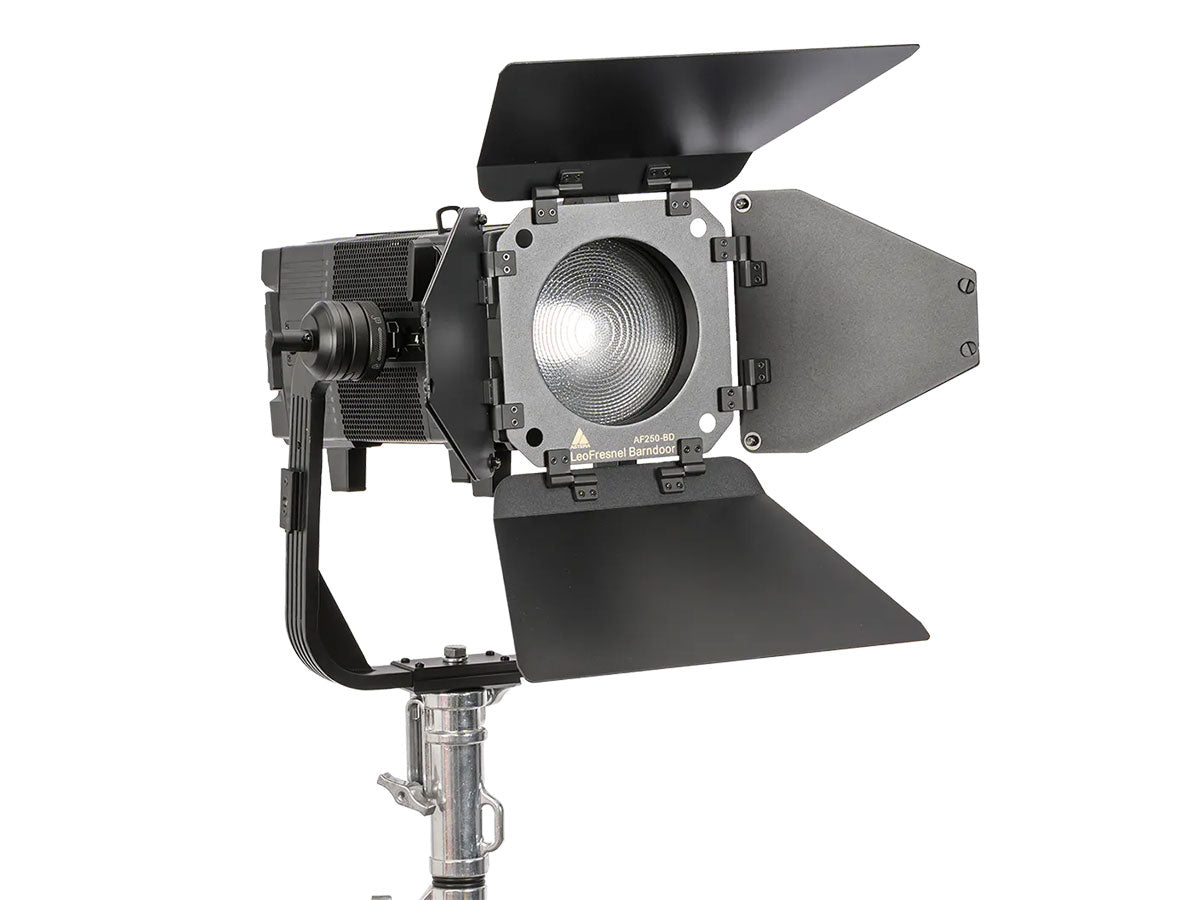

Included with each light is a eight-leave Barndoor. Its specific design leads to ultra-clean cuts; the edges stay razor sharp when shaping your beam.
Open Face
For additional versatility, the Fresnel lens can be slid out after opening its lock. This gives you a wider beam with even crisper shadows.
Projection Lens - Coming Late 2023
A custom-built projection lens with 16°-36° zoom, manual focus and 4 shutters. Turn your LeoFresnel into a profile that also allows you to insert B size Gobos.
Rabbit-Rounder Adapter
With each LeoFresnel we ship a Rabbit Rounder Adapter which means that universal DOP Choice products for Rabbit-Rounder such as Octa 3, Lantern M and Snapbag M can be attached to the light.
Order Code: AF250
LED Engine: Titan LED Engine
Colours: RGBMintAmber
Total LED Power: 350 W
LED Power Draw: 250 W
CRI (Ra) / TLCI 3200 - 6500 K: ≥96
Beam Angle: 15° – 60°
Field Angle: TBD
Strobe: 0 – 25 Hertz
Pixels: 1
Battery Runtime: up to 20 hours
Batttery Runtime (Max. Brightness): 2 h
Battery Lifetime: 80% after 400 cycles
DC Input: 12 – 48 VDC; max. 15A
DC Connector: 3pin XLR (Pin 1:- Pin 2:+)
AC Input: 100 – 240 VAC, 50/60 Hertz, 3.8 A, 250 W
AC Connector: PowerCON TRUE1 Input/Output
Wired DMX: Yes
CRMX Receiver: Built-in
BluetoothBridge BTB: Built-in
Wireless Protocols: CRMX, UHF, Bluetooth, WiFi, RDM
Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control: Yes
ControlSync: No
TouchSlider: Yes
Housing Material: Polymer & Metal
IP Rating Unwired: IP55
IP Rating Wired: IP55
Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
Weight (with AF250-FL, AF250-BD): 13.83 kg / 30.48 lbs
Weight (with AF250-FL, AF250-BD, AF250-YK, 2x AF250-YKB): 16.32 kg / 35.99 lbs
Dimensions: 455 mm x 215 mm x 240 mm / 17.91" x 8.46" x 9.45"
Dimensions (with AF250-YK, 2x AF250-YKB, AX-TVMP, AX-THD): 455 mm x 371 mm x 545 mm / 17.91" x 14.61" x 21.46"
Mounting Options: AirlineTracks, Yoke with 2x BrickMount (PB15-BMO) and 1/2" mounting hole
  • 1 x LeoFresnel (AF250)
  • 1 x Fresnel Lens for LeoFresnel (AF250-FL)
  • 1 x Barndoors for LeoFresnel (AF250-BD)
  • 1 x Yoke for LeoFresnel (AF250-BD)
  • 2 x YokeBase for LeoFresnel (AF250-YKB)
  • 1 x Rabbit-Rounder Adapter (AF250-RRA)
  • 1 x TVMP Adapter (AX-TVMP)
  • 1 x TrackHandle (AX-THD)
