Astera Hyperion Tube

Astera Hyperion Tube

SKU: AST-ASPFP3
£986.06 GBP ex VAT
£1,183.27 GBP inc VAT
ex VAT £986.06 GBP ex VAT
£1,183.27 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

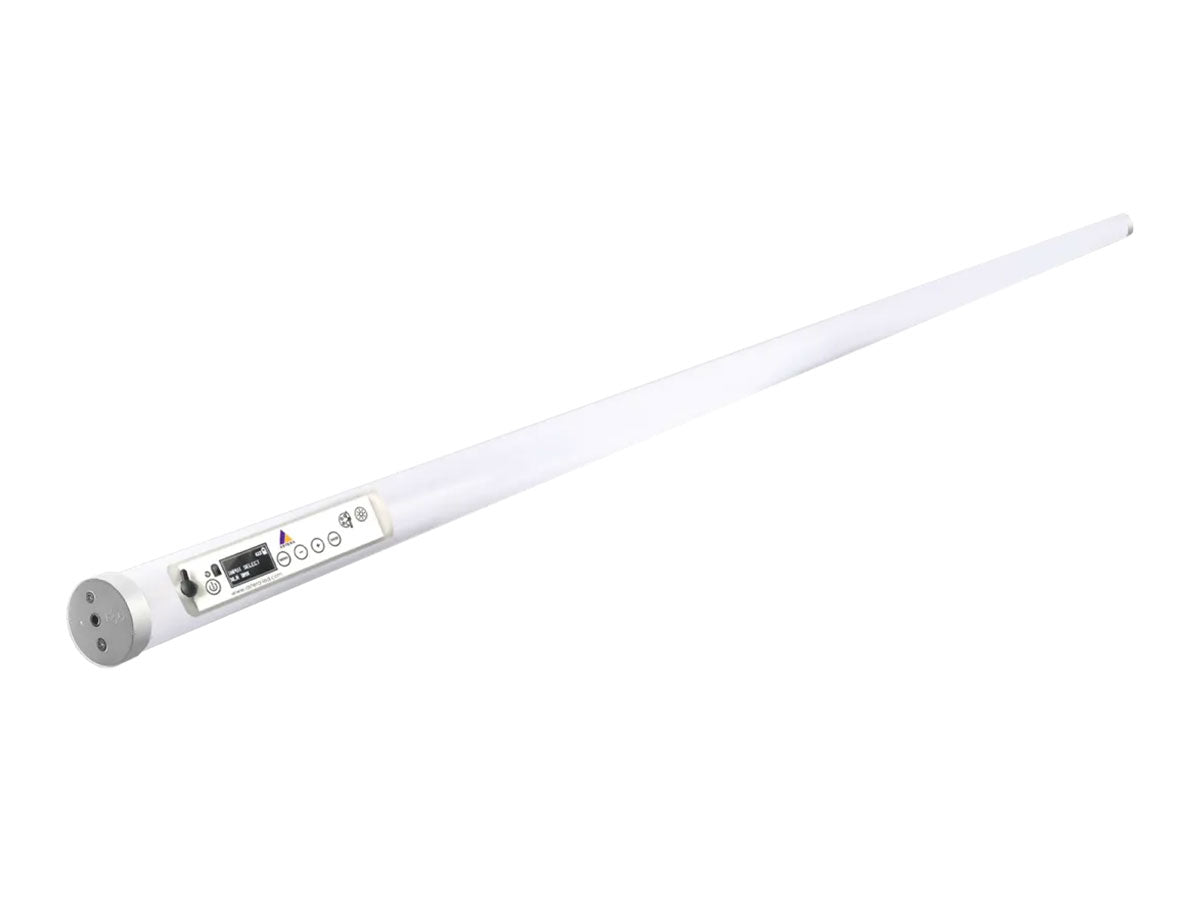

After the enormous success of the Titan Tube, Astera has created the double length Hyperion Tube, which measures just over 2 meters and around 80 inches. Double the LEDs, double the batteries, double the brightness, double the pixels and the same high-quality light with App, CRMX and on-tube control and wired DMX option.
Built-in Battery
Hyperion has a powerful built-in battery. With our “seamless runtime” technology, it can be set to a specific length of time to ensure that your lights won’t run out of battery while still getting the maximum brightness. When displaying white light in maximum brightness, it will last 1 h 45 min.
How To Control
  • App Control - AsteraApp offers intuitive and fast control of complex lighting setups and is also used for preparation and monitoring of our lights.
  • Wireless DMX - All Astera lights contain a wireless DMX module by LumenRadio, enabling them to be controlled by CRMX and W-DMX transmitters alongside other wireless fixtures. The AsteraBox has built-in CRMX and can be used to transmit DMX data to your lights.
  • Wired DMX - Data can be added via DataLink, a data injector for Hyperion Tubes with power pass-through. Connect up to 4 Power Supplies, add DMX, Artnet or sACN and connect up to 4 Hyperion Tubes with Titan Power/Data Combination Cables.

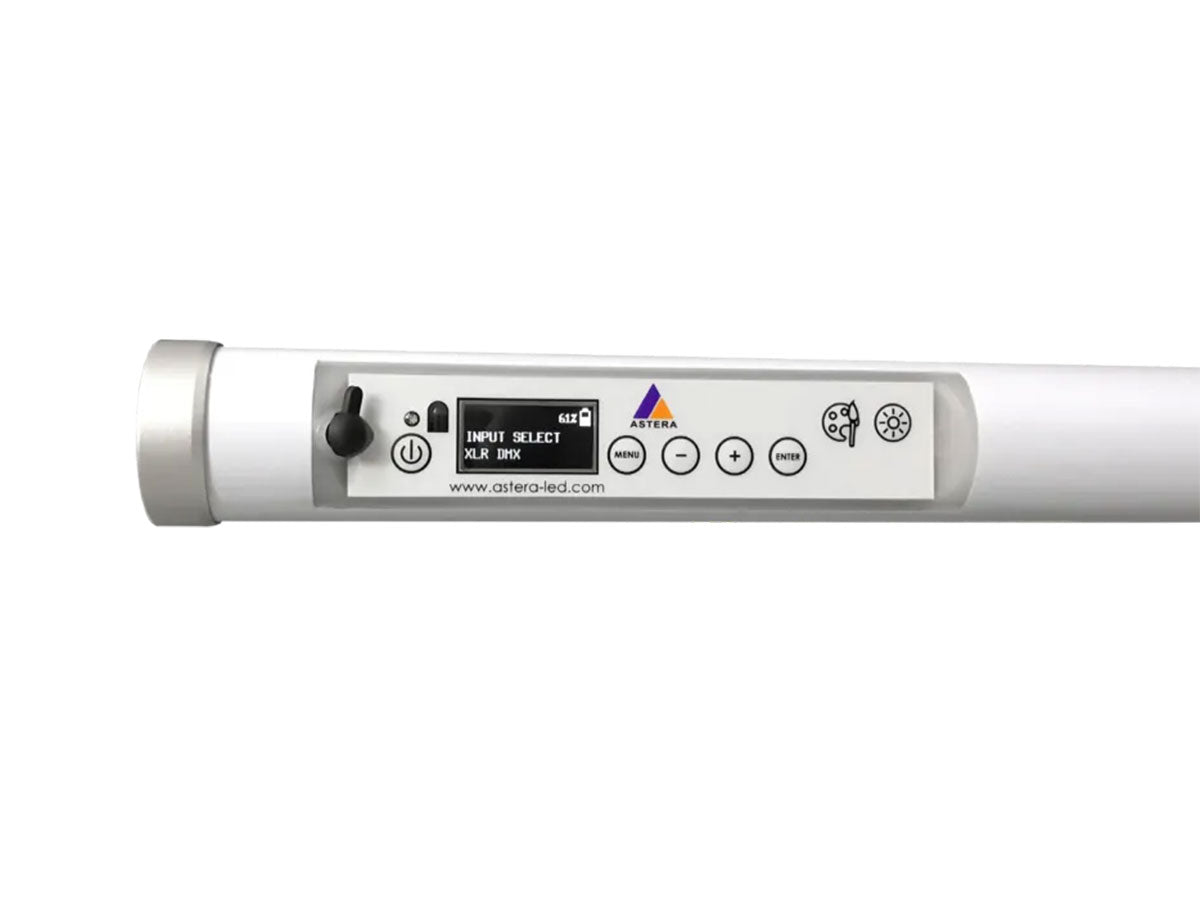

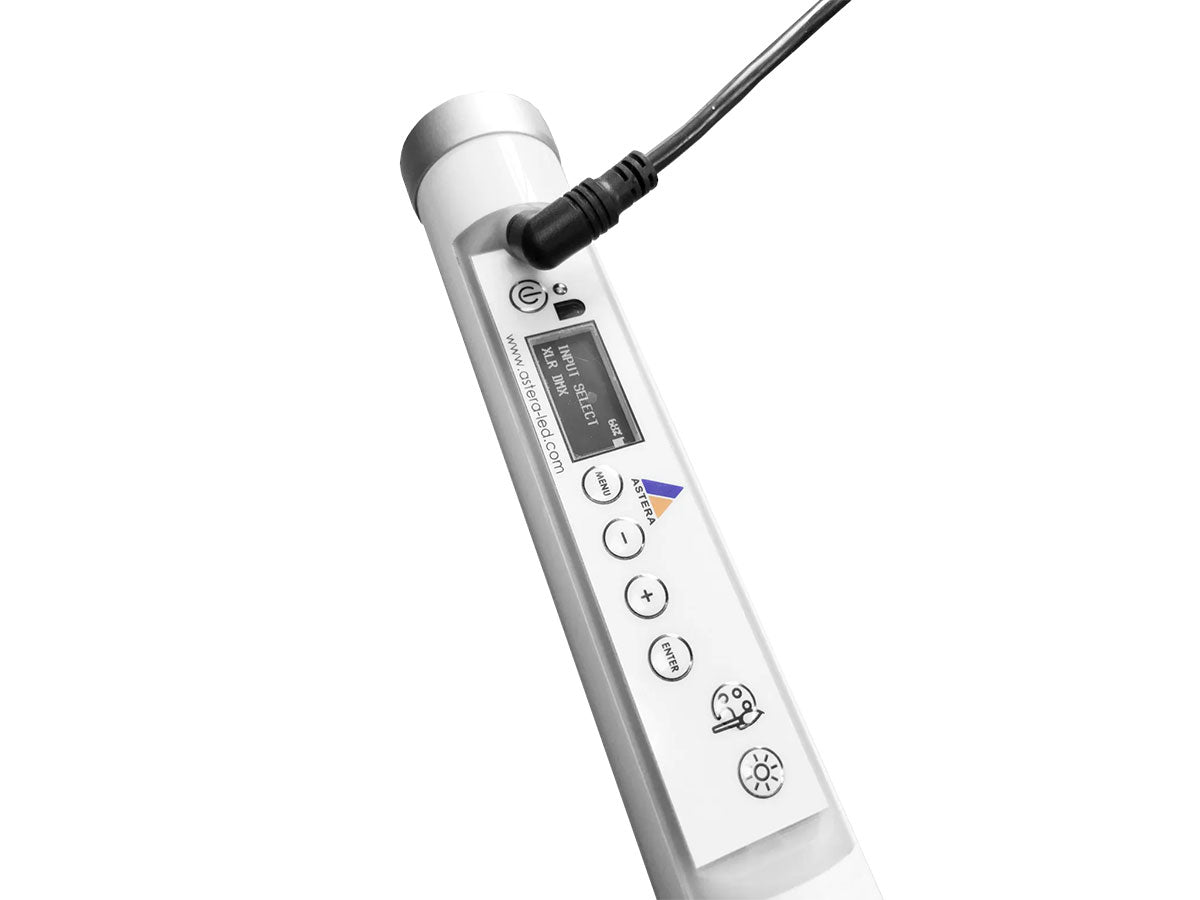

  • On your light - The control panel offers intuitive control over your light. Dedicated buttons offer swift control over brightness and HSI colors.
  • Seamless Runtime - To ensure that your light’s batteries last throughout your entire production, you can select how many hours they have to last. This limits the light’s output to a level where you get the maximum brightness to achieve the selected runtime.
  • Effects - Quickly build programs out of colors and effects, trigger them or make them match a beat. Turn multiple programs and lights into scenes.
  • Talkback+ - Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Anti-Theft - When enabled, the integrated theft alarm gives visual and audible alarm if lights are being moved. In addition, the AsteraApp also shows the alarm.
  • Emergency Light - With this innovative feature, the lights can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.

Order Code

FP3

LED Engine

Titan LED Engine

Colors

RGBMintAmber

Total LED Power

144 W

LED Power Draw

96 W

Luminous Flux 4000K

5800 lm

Light Output 4000 K @ 1m

1570 lx

CRI (Ra)/ TLCI 3200- 6500 K*

≥96

Beam Angle

135° x 115°

Field Angle

175° x 160°

Strobe

0 – 25 Hz

Pixels

32

Battery Runtime

up to 20 hours

Battery Lifetime

70 % after 300 cycles

Charging Time (nominal)

3 hours

DC Input

24 VDC – 4 A

DC Connector

5.5 mm x 2.1 mm

AC Input

No

AC Connector

No

Wired DMX

Yes

CRMX Receiver

Built-in

BluetoothBridge BTB

No

Wireless Protocols

CRMX, UHF, Bluetooth

Wireless Range

CRMX/UHF up to 300 m / 330 yds

Infrared Control

Yes

ControlSync

No

TouchSlider

No

Housing Material

Polycarbonate, metal end caps

IP Rating

IP65 (only with FP1-SP)

Ambient Operating Temperature

0 – 40 °C / 32 – 104 °F

Weight

2.9 kg / 6.39 lbs

Dimensions

Ø43 mm x 2031 mm / Ø1.7” x H79.9”

Mounting Options

2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread)
  • 1 x Hyperion Tube (FP3)
  • 2 x TubeHolder (AX1-H)
  • 2 x Eyebolt (FP1-EBLT)
  • 1 x DC Socket Cover (FP1/2-SP)
